◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#145579) — 22 parça

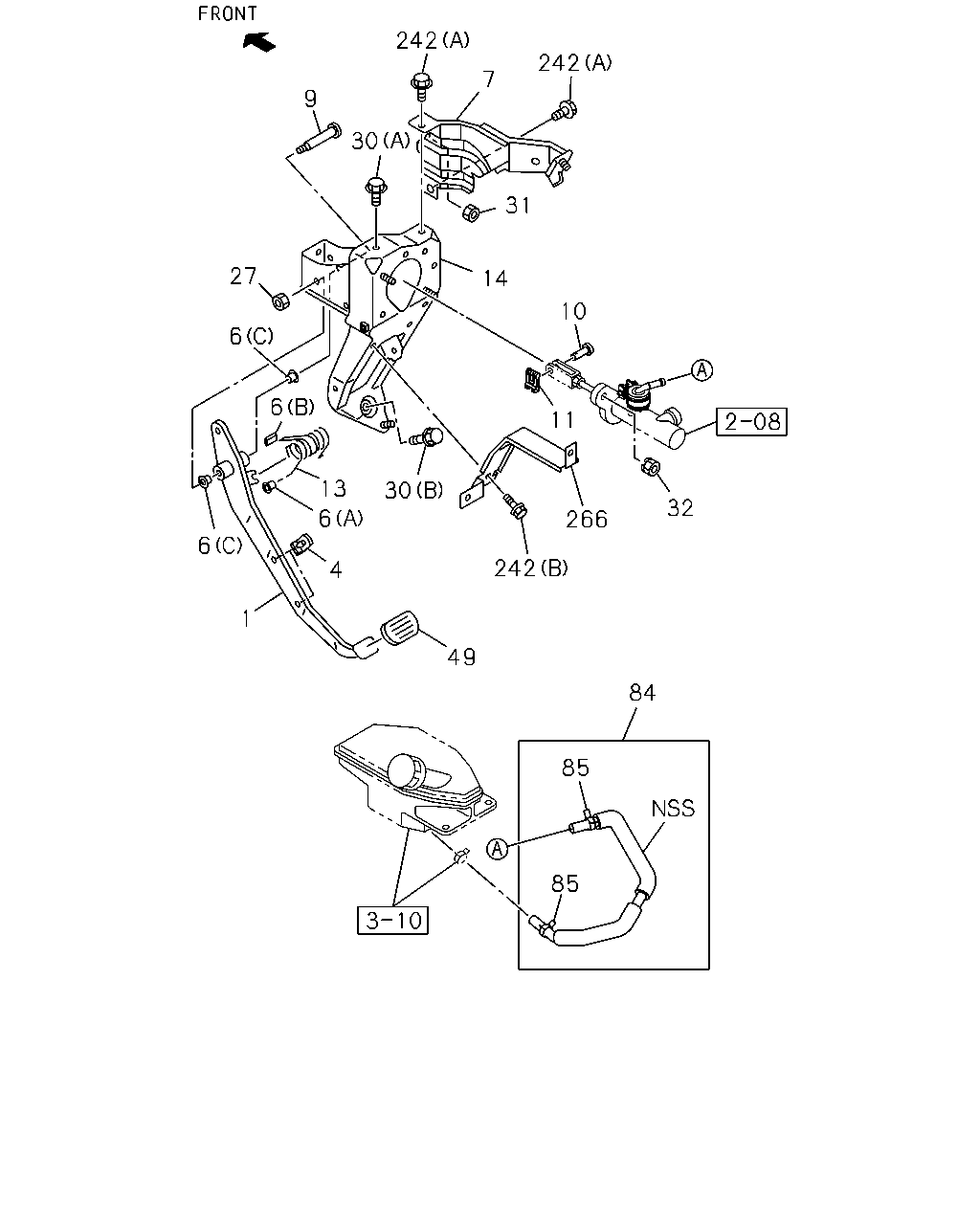

çizim 431483
242 242 7 9 30 31 14 10 11 32 266 242 84 85 85 1 49 4 6 13 30 6 27 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.830 PEDAL; CLU 8-98034-752-0 01 1 1407- ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1407- ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1407- ● ● ●
6 00.831 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 1407- ● ● ●
6 00.831 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 1407- ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-98222-745-0 01 1 1407- ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1407- ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1407- ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1407- ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-98034-014-0 01 1 1407- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-98054-878-0 01 1 1407- ● ● ●
27 00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1407- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1407- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1407- ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1407- ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1407- ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1407- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-98218-210-1 01 1 1407- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1407- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1407- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1407- ● ● ●
266 04.054 BRACKET; CLU SWITCH 8-98078-745-4 01 1 1407- ● ● ●
