Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#145575) — 195 parça

2 36 17 46 1 223 329 25 329 562 1 36 2 17 46 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH TAILPIPE SINGLE HORIZONTAL TYPE<NC2> EXHAUST BRAKE<NF8> (B)	8-98242-073-0	01	1	1407-	●
1	03.609 PIPE; EXH TAILPIPE SINGLE HORIZONTAL TYPE<NC2>, TAILPIPE SINGLE SHORT TYPE<8JJ> EXHAUST BRAKE<NF8> (B)	8-98242-073-0	01	1	1407-		●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98242-073-0	01	1	1407-			●
1	03.609 PIPE; EXH TAILPIPE SINGLE HORIZONTAL TYPE<NC2> EXC. EXHAUST BRAKE<NF8> (B)	8-98242-072-0	01	1	1407-	●	●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (B)	8-98242-072-0	01	1	1407-			●
1	03.609 PIPE; EXH TAILPIPE SINGLE SHORT TYPE<8JJ> EXC. EXHAUST BRAKE<NF8> (A)	8-98242-074-0	01	1	1407-		●
2	03.611 GASKET; PIPE TO MANIF	8-97381-456-0	01	1	1407-	●	●	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1407-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> EXHAUST BRAKE<NF8>	8-98242-077-0	01	1	1407-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST BRAKE<NF8>	8-98242-077-0	01	1	1407-			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST BRAKE<NF8> TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98242-078-0	01	1	1407-		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1407-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1407-	●	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-97084-346-2	01	1	1407-	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●	●
562	03.690 PLATE; STUD,BOLT EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1407-	●	●	●

416 122 121 143 104 143 416 14 416 24 172 104 12 416 122 121 143 59 24 143 104 130 576 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-98242-086-0	01	1	1407-	●	●
12	03.701 SILENCER ASM; EXH	8-98242-086-0	01	1	1407-			●
14	03.704 GASKET; SILENCER TO EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.611 ID=64	8-97373-108-0	01	1	1407-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=64	8-97373-108-0	01	1	1407-			●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	02	1	1407-	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-98082-156-0	01	1	1407-	●	●	●
84	03.611 GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-			●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-		●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	02	1	1407-	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1407-	●	●	●
130	03.704 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98034-767-0	01	1	1407-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1407-			●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	02	1	1407-	●	●	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1407-	●	●	●
416	03.706 BRACKET; RR EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (B)	8-98107-264-0	01	1	1407-	●
416	03.706 BRACKET; RR EXH PIPE (B)	8-98107-264-0	01	1	1407-			●
416	03.706 BRACKET; RR EXH PIPE 03.704 (A)	8-98027-822-0	01	1	1407-	●	●	●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C)	8-98107-265-0	01	1	1407-		●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (D)	8-98107-266-0	01	1	1407-		●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98269-463-0	01	1	1407-		●
576	03.706 BRACKET; DPD FRT TO FRAME TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98067-992-0	01	1	1407-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1407-			●
576	03.706 BRACKET; DPD FRT TO FRAME TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98242-089-0	01	1	1407-		●

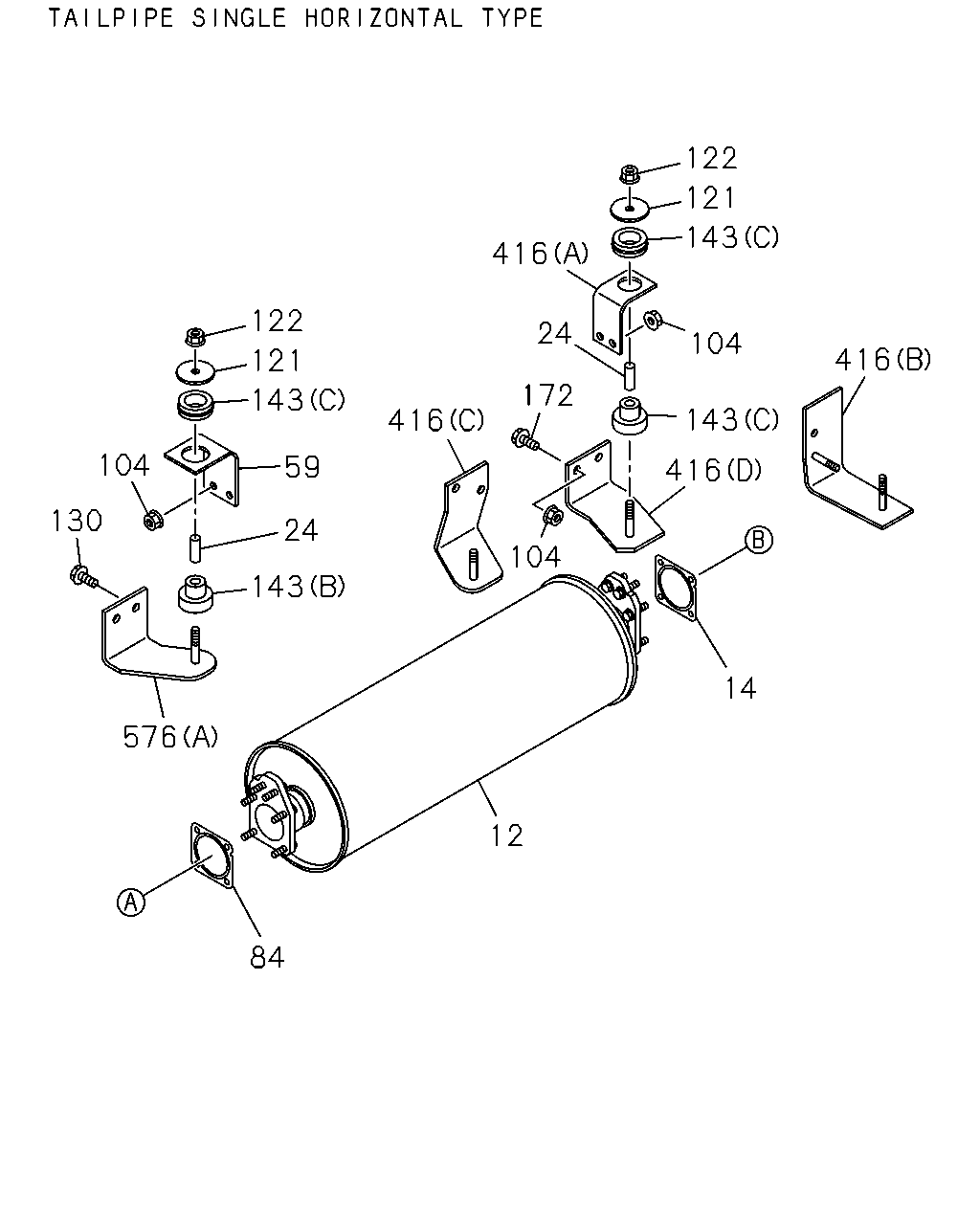

122 121 143 416 104 24 172 143 416 104 12 84 576 418 130 352 122 121 143 59 24 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-98242-086-0	01	1	1407-	●	●
12	03.701 SILENCER ASM; EXH	8-98242-086-0	01	1	1407-			●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	02	1	1407-	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-98082-156-0	01	1	1407-	●	●	●
84	03.611 GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-			●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-		●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	02	1	1407-	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1407-	●	●	●
130	03.704 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98034-767-0	01	1	1407-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1407-			●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	02	1	1407-	●	●	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1407-	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-	●	●	●
416	03.706 BRACKET; RR EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (B)	8-98107-264-0	01	1	1407-	●
416	03.706 BRACKET; RR EXH PIPE (B)	8-98107-264-0	01	1	1407-			●
416	03.706 BRACKET; RR EXH PIPE 03.704 (A)	8-98027-822-0	01	1	1407-	●	●	●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C)	8-98107-265-0	01	1	1407-		●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (D)	8-98107-266-0	01	1	1407-		●
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98269-463-0	01	1	1407-		●
418	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98067-992-0	01	1	1407-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1407-			●
576	03.706 BRACKET; DPD FRT TO FRAME TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98242-089-0	01	1	1407-		●

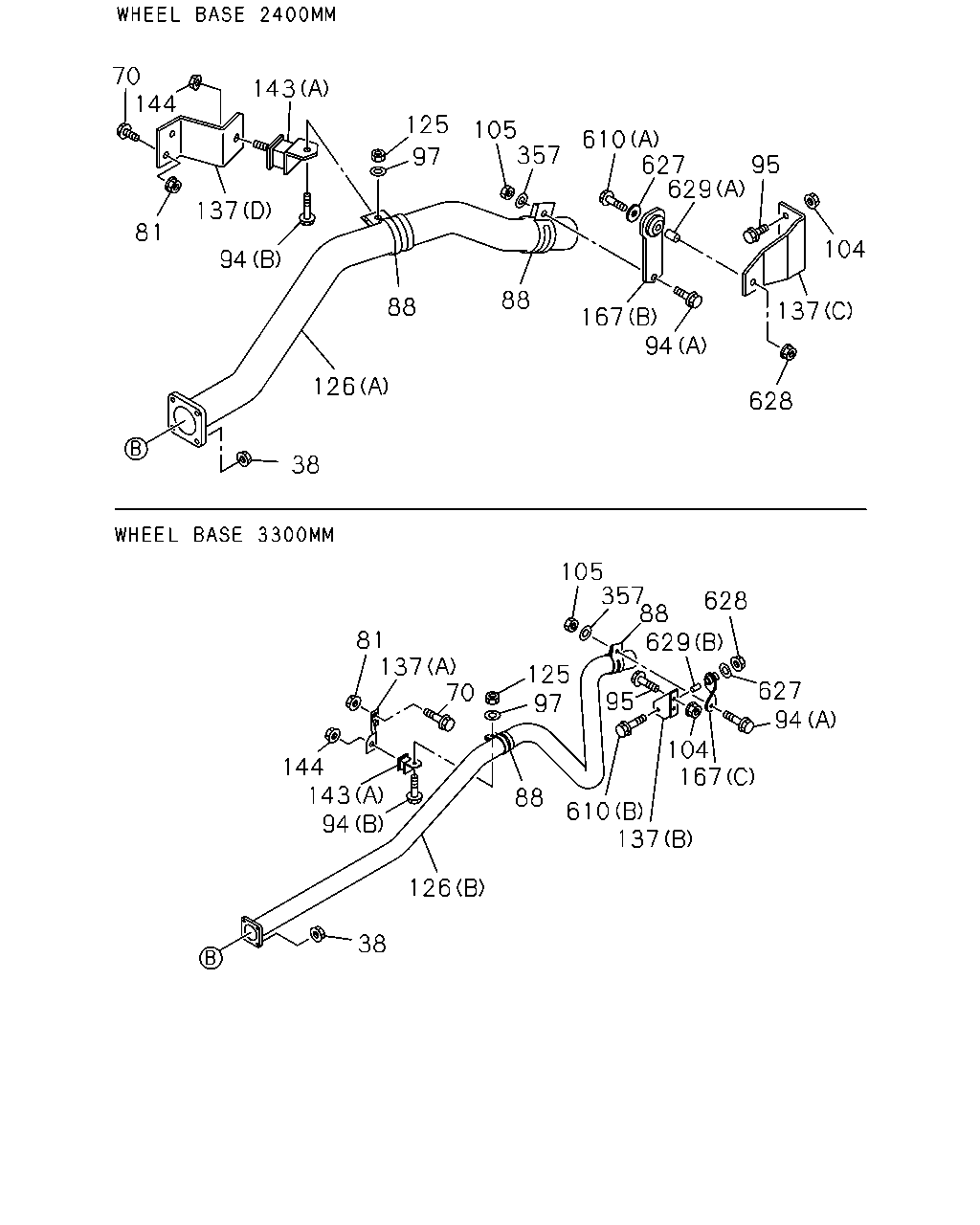

143 94 38 137 81 70 144 88 97 125 126 105 357 610 627 629 95 81 104 137 94 167 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-			●
70	03.706 BOLT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-			●
81	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-			●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-97373-158-0	01	1	1407-	●	●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-97373-158-0	01	1	1407-	●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1407-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1407-			●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1407-			●
94	03.704 BOLT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-	●	●
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-			●
94	03.704 BOLT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	1407-	●	●
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	1407-			●
95	03.708 BOLT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-			●
97	03.708 WASHER; PL,CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-			●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-			●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-		●
105	03.704 NUT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.833 M10	0-91110-510-0	01	1	1407-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1407-			●
125	03.708 NUT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.833 M10	0-91110-510-0	01	1	1407-	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1407-			●
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (C)	8-98140-855-0	01	1	1407-	●
126	03.705 PIPE; EXH,RR (C)	8-98140-855-0	01	1	1407-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	1407-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98120-472-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (E)	8-98001-893-1	01	1	1407-	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	1407-			●
137	03.706 BRACKET; TAIL PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (F)	8-98001-903-0	01	1	1407-	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	1407-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (A)	8-98075-674-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98075-675-1	01	1	1407-		●
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98034-767-0	01	1	1407-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1407-			●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	02	1	1407-	●	●	●
144	03.613 NUT; MTG RUBBER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-			●
167	03.706 HANGER; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98032-149-0	01	1	1407-	●
167	03.706 HANGER; EXH PIPE (A)	8-98032-149-0	01	1	1407-			●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98032-150-0	01	1	1407-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C) L=115	8-98034-765-0	01	1	1407-		●
357	03.708 WASHER; PL,CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-			●
610	03.704 BOLT; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-		●
610	03.704 BOLT; HANGER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-			●
610	03.704 BOLT; HANGER WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.706 (B) M10X70 FLANGE	0-28051-070-0	01	1	1407-		●
627	03.706 WASHER; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1407-	●	●
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1407-			●
629	03.706 SPACER; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A) L=23	8-98006-011-0	01	1	1407-	●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A) L=23	8-98006-011-0	01	1	1407-		●
629	03.706 SPACER; HANGER (A) L=23	8-98006-011-0	01	1	1407-			●
629	03.706 SPACER; HANGER WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (B) L=37.5	9-22151-217-0	01	1	1407-		●

70 144 81 137 143 94 125 97 88 126 38 105 88 357 610 627 629 95 104 137 628 94 167 38 126 88 610 137 167 104 94 627 628 629 88 357 105 97 95 125 70 137 81 144 143 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-			●
70	03.706 BOLT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-			●
81	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-			●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-97373-158-0	01	1	1407-	●	●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2>	8-97373-158-0	01	1	1407-	●
88	03.708 CLAMP; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1407-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1407-			●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1407-			●
94	03.704 BOLT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-	●	●
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-			●
94	03.704 BOLT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	1407-	●	●
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	1407-			●
95	03.708 BOLT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-			●
97	03.708 WASHER; PL,CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-			●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-			●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●	●
104	03.704 NUT; BRKT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-		●
105	03.704 NUT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.833 M10	0-91110-510-0	01	1	1407-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1407-			●
125	03.708 NUT; CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.833 M10	0-91110-510-0	01	1	1407-	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1407-			●
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (C)	8-98140-855-0	01	1	1407-	●
126	03.705 PIPE; EXH,RR (C)	8-98140-855-0	01	1	1407-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	1407-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98120-472-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (E)	8-98001-893-1	01	1	1407-	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	1407-			●
137	03.706 BRACKET; TAIL PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (F)	8-98001-903-0	01	1	1407-	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	1407-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (A)	8-98075-674-0	01	1	1407-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98075-675-1	01	1	1407-		●
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98034-767-0	01	1	1407-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1407-			●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	02	1	1407-	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	02	1	1407-	●	●	●
144	03.613 NUT; MTG RUBBER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-			●
167	03.706 HANGER; EXH PIPE TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A)	8-98032-149-0	01	1	1407-	●
167	03.706 HANGER; EXH PIPE (A)	8-98032-149-0	01	1	1407-			●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (B)	8-98032-150-0	01	1	1407-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) (C) L=115	8-98034-765-0	01	1	1407-		●
357	03.708 WASHER; PL,CLAMP TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1407-			●
610	03.704 BOLT; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-		●
610	03.704 BOLT; HANGER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1407-			●
610	03.704 BOLT; HANGER WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 03.706 (B) M10X70 FLANGE	0-28051-070-0	01	1	1407-		●
627	03.706 WASHER; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1407-	●	●
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1407-			●
628	03.275 NUT; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-		●
629	03.706 SPACER; HANGER TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A) L=23	8-98006-011-0	01	1	1407-	●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (A) L=23	8-98006-011-0	01	1	1407-		●
629	03.706 SPACER; HANGER (A) L=23	8-98006-011-0	01	1	1407-			●
629	03.706 SPACER; HANGER WHEEL BASE 3300MM(33W) TAILPIPE SINGLE HORIZONTAL TYPE<NC2> (B) L=37.5	9-22151-217-0	01	1	1407-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
