Sayfa 1-41 - Isuzu EPC

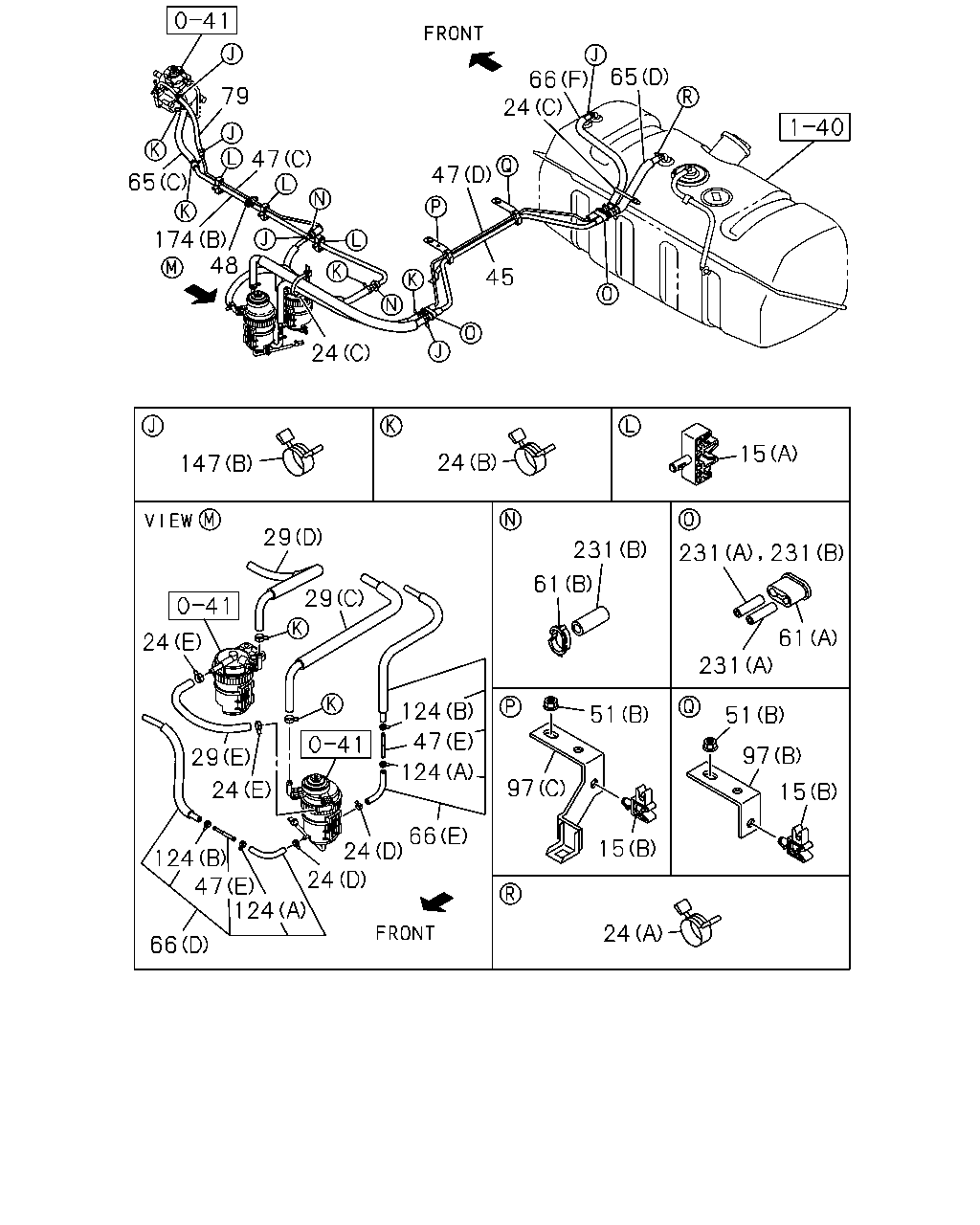

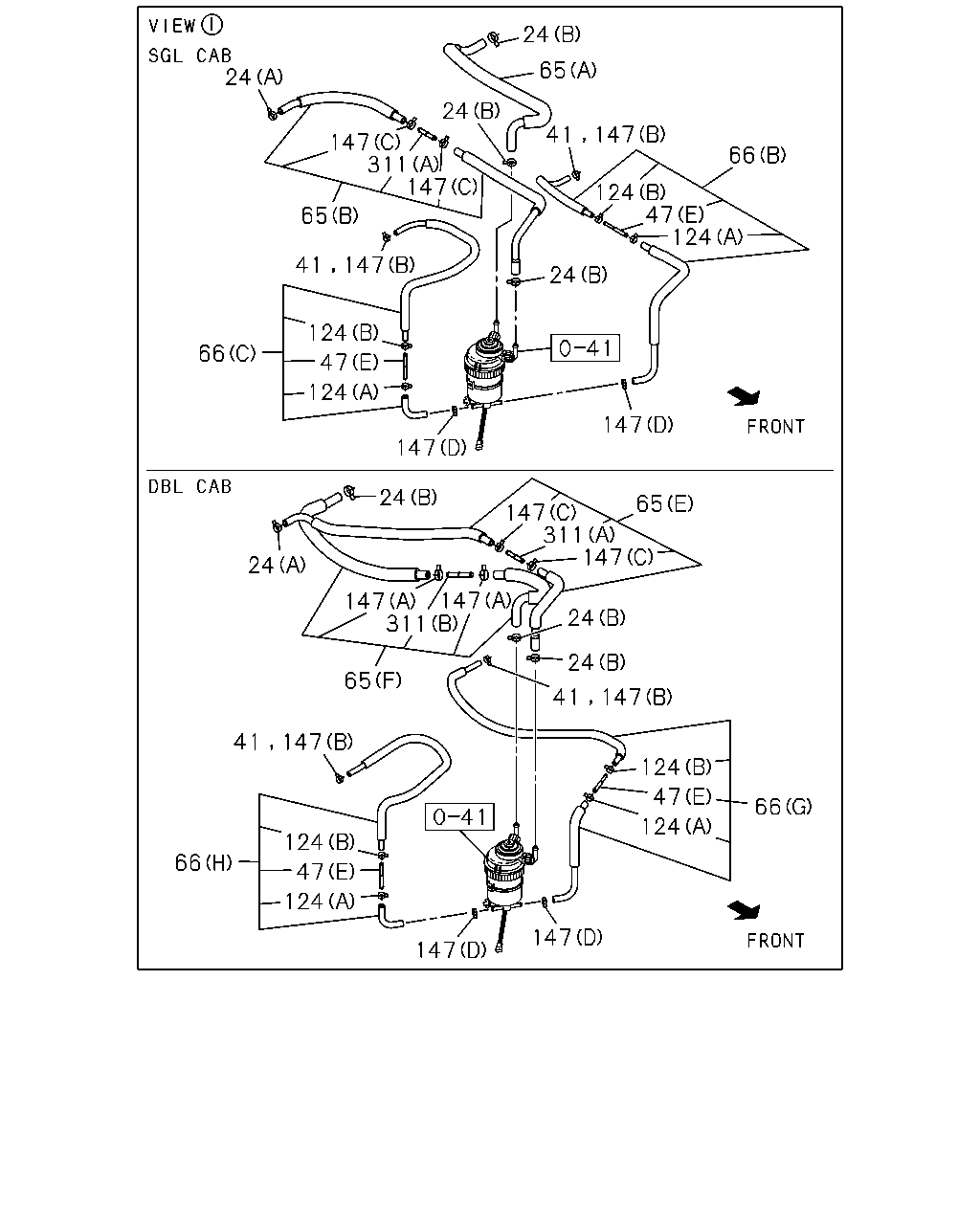

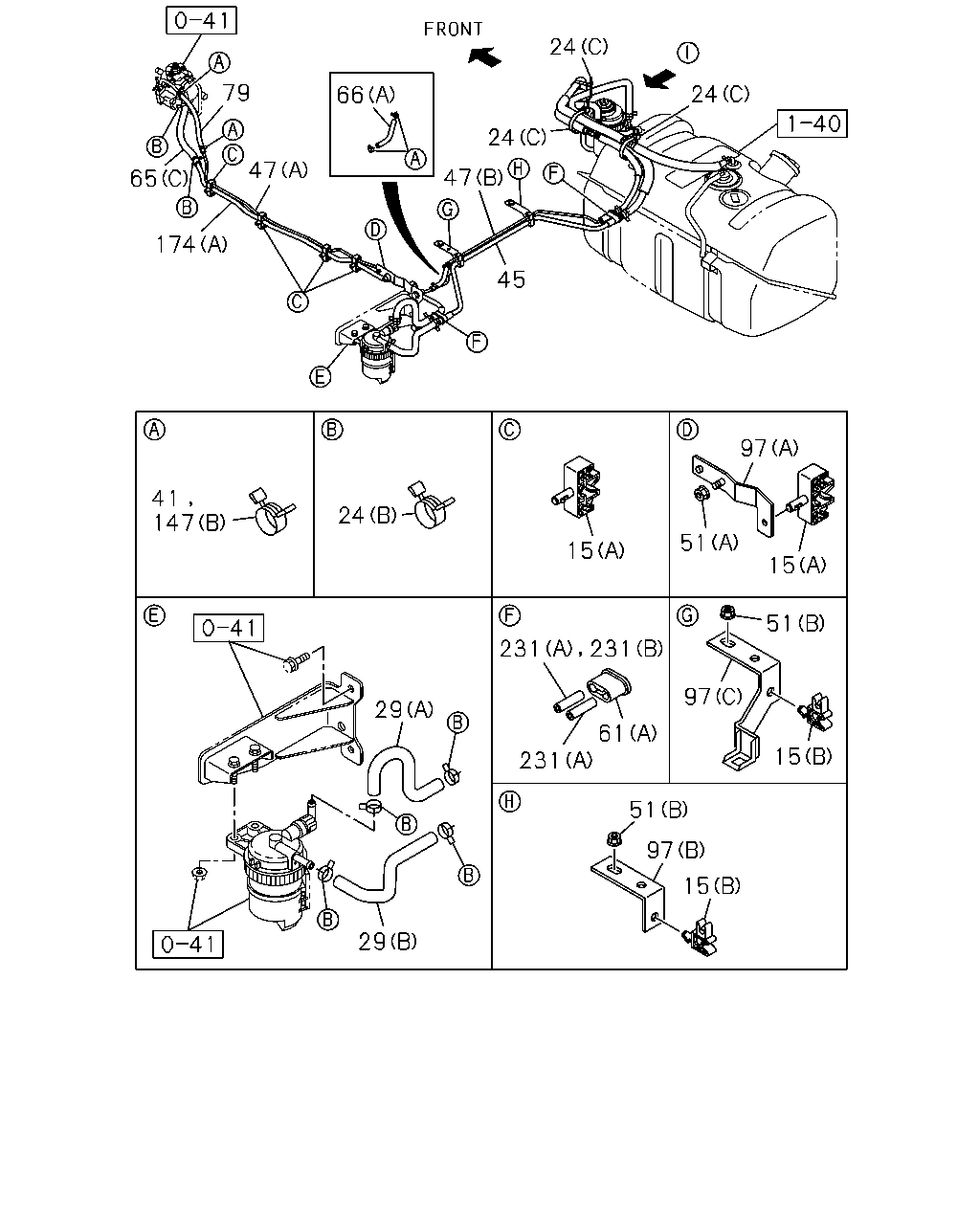

1-41 — FUEL PIPING; CHASSIS (#145574) — 344 parça

79 47 65 174 47 24 24 24 45 41 147 24 15 51 97 15 51 97 15 51 97 15 231 231 231 61 29 29 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	1407-	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 2400MM(24W) 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	1407-			●
15	03.162 CLIP; FUEL PIPE (B) ID=12 & 6.35	8-97215-437-0	02	1	1407-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	1407-			●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	01	1	1407-	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1407-1511	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 02.559 (C) L=250	5-09707-030-1	01	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (D) ID=13	8-98150-357-0	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 01.240 (E) ID=12	8-98150-358-0	02	1	1407-			●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (B)	8-98250-791-0	01	1	1407-	●
29	03.163 HOSE; FUEL (B)	8-98250-791-0	01	1	1407-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (A)	8-98250-793-1	01	1	1407-	●
29	03.163 HOSE; FUEL (A)	8-98250-793-1	01	1	1407-		●
29	03.163 HOSE; FUEL PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1407-1511	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1407-1511			●
29	03.163 HOSE; FUEL PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1512-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1512-			●
29	03.163 HOSE; FUEL PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1407-1511	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1407-1511			●
29	03.163 HOSE; FUEL PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1512-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1512-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98224-759-1	01	1	1407-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98225-129-1	01	1	1407-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98272-051-0	01	1	1407-			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1407-1511	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2400MM(24W) 01.240 ID=12	8-98150-358-0	02	1	1407-1511			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1512-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 ID=12	8-98150-358-0	02	1	1512-			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 ID=12	8-98150-358-0	02	1	1512-			●
45	03.163 PIPE; FUEL,DELIVERY	8-98219-341-0	01	1	1407-	●	●	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A)	8-98259-764-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (A)	8-98259-764-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB> (A)	8-98219-873-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (C)	8-98259-762-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (E) L=70	8-98036-483-0	02	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (E) L=70	8-98036-483-0	02	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (B) L=690	8-98083-666-2	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (B) L=690	8-98083-666-2	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (D)	8-98219-342-0	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1512-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (E) L=70	8-98036-483-0	01	1	1512-			●
51	03.162 NUT; CLIP,PIPE (A) M10 FLANGE	0-91180-110-0	01	1	1407-	●	●
51	03.162 NUT; CLIP,PIPE WHEEL BASE 2400MM(24W) (A) M10 FLANGE	0-91180-110-0	01	1	1407-			●
51	03.162 NUT; CLIP,PIPE 00.787 (B) M10	0-91111-510-0	02	1	1407-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME (A)	8-98038-801-0	02	1	1407-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME WHEEL BASE 3300MM(33W) 02.343 (B) ID=17	8-94128-319-2	02	1	1407-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98250-797-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98250-798-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98250-789-0	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98250-789-0	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-98219-893-0	01	1	1407-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98250-795-1	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98250-796-1	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98219-884-2	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-98219-884-2	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98219-885-1	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (C)	8-98219-885-1	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE (G)	8-98219-886-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (H)	8-98219-887-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (F) L=500	8-98057-029-0	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (E)	8-98219-891-1	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D)	8-98271-950-0	01	1	1407-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=220 SERVICED BY L=3000	0-01855-300-0	01	1	1407-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98064-442-1	01	1	1407-	●	●
97	03.162 BRACKET; CLIP WHEEL BASE 2400MM(24W) (A)	8-98064-442-1	01	1	1407-			●
97	03.162 BRACKET; CLIP (B)	8-98006-480-1	01	1	1407-	●	●	●
97	03.162 BRACKET; CLIP (C)	8-98039-929-1	01	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	04	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	1407-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (C) ID=16	8-98008-098-0	02	1	1407-			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1407-1511	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (D) ID=13	8-98150-357-0	02	1	1407-1511			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> (A)	8-98259-763-0	01	1	1407-	●	●
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) (A)	8-98259-763-0	01	1	1407-			●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB> (A)	8-98219-870-1	01	1	1407-	●	●
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM(33W) (B)	8-98259-761-1	01	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1407-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 2400MM(24W) (B) OD=17 L=50	8-94157-054-1	01	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1407-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 2400MM(24W) (A) OD=16.5 L=50	8-97214-235-0	03	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 3300MM(33W) (B) OD=17 L=50	8-94157-054-1	03	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 3300MM(33W) (A) OD=16.5 L=50	8-97214-235-0	02	1	1407-			●

24 147 311 147 65 41 147 66 124 47 124 147 147 124 24 47 124 66 147 41 65 24 24 24 24 147 311 147 147 311 65 147 24 24 41 147 124 47 124 66 147 147 124 47 124 66 41 147 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	01	1	1407-	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1407-1511	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 02.559 (C) L=250	5-09707-030-1	01	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (D) ID=13	8-98150-357-0	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 01.240 (E) ID=12	8-98150-358-0	02	1	1407-			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1407-1511	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2400MM(24W) 01.240 ID=12	8-98150-358-0	02	1	1407-1511			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1512-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 ID=12	8-98150-358-0	02	1	1512-			●
41	03.162 CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 ID=12	8-98150-358-0	02	1	1512-			●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A)	8-98259-764-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (A)	8-98259-764-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB> (A)	8-98219-873-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (C)	8-98259-762-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (E) L=70	8-98036-483-0	02	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (E) L=70	8-98036-483-0	02	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (B) L=690	8-98083-666-2	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (B) L=690	8-98083-666-2	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (D)	8-98219-342-0	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1512-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (E) L=70	8-98036-483-0	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98250-797-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98250-798-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98250-789-0	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98250-789-0	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-98219-893-0	01	1	1407-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98250-795-1	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98250-796-1	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98219-884-2	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-98219-884-2	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98219-885-1	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (C)	8-98219-885-1	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE (G)	8-98219-886-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (H)	8-98219-887-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (F) L=500	8-98057-029-0	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (E)	8-98219-891-1	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D)	8-98271-950-0	01	1	1407-			●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	02	1	1407-	●	●
124	03.162 CLIP; HOSE WHEEL BASE 2400MM(24W) (A) ID=13	8-98150-357-0	02	1	1407-			●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1407-	●	●
124	03.162 CLIP; HOSE WHEEL BASE 2400MM(24W) 01.240 (B) ID=12	8-98150-358-0	02	1	1407-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) ID=13	8-98150-357-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 (B) ID=12	8-98150-358-0	01	1	1512-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	04	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	1407-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (C) ID=16	8-98008-098-0	02	1	1407-			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1407-1511	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (D) ID=13	8-98150-357-0	02	1	1407-1511			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
311	03.163 JOINT; HOSE (A)	8-97353-668-0	01	1	1407-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) (A)	8-97353-668-0	01	1	1407-			●
311	03.163 JOINT; HOSE (B)	8-98105-080-0	01	1	1407-		●

79 47 65 174 48 24 47 24 66 65 45 147 24 29 29 124 47 124 29 24 24 24 66 124 47 124 66 61 231 231 15 24 231 231 61 51 97 15 15 97 51 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	1407-	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 2400MM(24W) 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	1407-			●
15	03.162 CLIP; FUEL PIPE (B) ID=12 & 6.35	8-97215-437-0	02	1	1407-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 04.686 (A) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	1407-			●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	01	1	1407-	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1407-1511	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	07	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B) ID=19	8-98150-356-0	07	1	1512-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	03	1	1407-1511			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=250	5-09707-030-1	03	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 02.559 (C) L=250	5-09707-030-1	03	1	1512-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 02.559 (C) L=250	5-09707-030-1	01	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (D) ID=13	8-98150-357-0	02	1	1407-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) 01.240 (E) ID=12	8-98150-358-0	02	1	1407-			●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (B)	8-98250-791-0	01	1	1407-	●
29	03.163 HOSE; FUEL (B)	8-98250-791-0	01	1	1407-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (A)	8-98250-793-1	01	1	1407-	●
29	03.163 HOSE; FUEL (A)	8-98250-793-1	01	1	1407-		●
29	03.163 HOSE; FUEL PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1407-1511	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1407-1511			●
29	03.163 HOSE; FUEL PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1512-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-892-1	01	1	1512-			●
29	03.163 HOSE; FUEL PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1407-1511	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1407-1511			●
29	03.163 HOSE; FUEL PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1512-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98225-128-0	01	1	1512-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98224-759-1	01	1	1407-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98225-129-1	01	1	1407-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98272-051-0	01	1	1407-			●
45	03.163 PIPE; FUEL,DELIVERY	8-98219-341-0	01	1	1407-	●	●	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A)	8-98259-764-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (A)	8-98259-764-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB> (A)	8-98219-873-1	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (C)	8-98259-762-1	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (E) L=70	8-98036-483-0	02	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (E) L=70	8-98036-483-0	02	1	1407-			●
47	03.163 PIPE; FUEL,RETURN (B) L=690	8-98083-666-2	01	1	1407-	●	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (B) L=690	8-98083-666-2	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (D)	8-98219-342-0	01	1	1407-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1407-1511			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (E) L=70	8-98036-483-0	01	1	1512-			●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (E) L=70	8-98036-483-0	01	1	1512-			●
48	03.162 BOLT; BRKT HEAVY DUTY FRAME<6WB> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1407-	●	●
48	03.162 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1407-			●
51	03.162 NUT; CLIP,PIPE (A) M10 FLANGE	0-91180-110-0	01	1	1407-	●	●
51	03.162 NUT; CLIP,PIPE WHEEL BASE 2400MM(24W) (A) M10 FLANGE	0-91180-110-0	01	1	1407-			●
51	03.162 NUT; CLIP,PIPE 00.787 (B) M10	0-91111-510-0	02	1	1407-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME (A)	8-98038-801-0	02	1	1407-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME WHEEL BASE 3300MM(33W) 02.343 (B) ID=17	8-94128-319-2	02	1	1407-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98250-797-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98250-798-1	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98250-789-0	01	1	1407-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98250-789-0	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98271-935-0	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-876-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1407-1511			●
65	03.163 HOSE; FUEL,DELIVERY PIPE PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A)	8-98219-878-2	01	1	1512-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-98219-893-0	01	1	1407-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98250-795-1	01	1	1407-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98250-796-1	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (B)	8-98219-884-2	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98219-884-2	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-98219-884-2	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (C)	8-98219-885-1	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98219-885-1	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (C)	8-98219-885-1	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE (G)	8-98219-886-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (H)	8-98219-887-2	01	1	1407-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1511			●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1512-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (F) L=500	8-98057-029-0	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (E)	8-98219-891-1	01	1	1407-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D)	8-98271-950-0	01	1	1407-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=220 SERVICED BY L=3000	0-01855-300-0	01	1	1407-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98064-442-1	01	1	1407-	●	●
97	03.162 BRACKET; CLIP WHEEL BASE 2400MM(24W) (A)	8-98064-442-1	01	1	1407-			●
97	03.162 BRACKET; CLIP (B)	8-98006-480-1	01	1	1407-	●	●	●
97	03.162 BRACKET; CLIP (C)	8-98039-929-1	01	1	1407-	●	●	●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	02	1	1407-	●	●
124	03.162 CLIP; HOSE WHEEL BASE 2400MM(24W) (A) ID=13	8-98150-357-0	02	1	1407-			●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1407-	●	●
124	03.162 CLIP; HOSE WHEEL BASE 2400MM(24W) 01.240 (B) ID=12	8-98150-358-0	02	1	1407-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) (A) ID=13	8-98150-357-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (A) ID=13	8-98150-357-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1407-1511			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) 01.240 (B) ID=12	8-98150-358-0	01	1	1512-			●
124	03.162 CLIP; HOSE WHEEL BASE 3300MM(33W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) 01.240 (B) ID=12	8-98150-358-0	01	1	1512-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	04	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	02	1	1407-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	1407-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (C) ID=16	8-98008-098-0	02	1	1407-			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1407-1511	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (D) ID=13	8-98150-357-0	02	1	1407-1511			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=13	8-98150-357-0	02	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) (D) ID=13	8-98150-357-0	02	1	1512-			●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> (A)	8-98259-763-0	01	1	1407-	●	●
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) (A)	8-98259-763-0	01	1	1407-			●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB> (A)	8-98219-870-1	01	1	1407-	●	●
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM(33W) (B)	8-98259-761-1	01	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1407-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 2400MM(24W) (B) OD=17 L=50	8-94157-054-1	01	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1407-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 2400MM(24W) (A) OD=16.5 L=50	8-97214-235-0	03	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 3300MM(33W) (B) OD=17 L=50	8-94157-054-1	03	1	1407-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE WHEEL BASE 3300MM(33W) (A) OD=16.5 L=50	8-97214-235-0	02	1	1407-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
