1-40 — FUEL TANK (#145573) — 57 parça

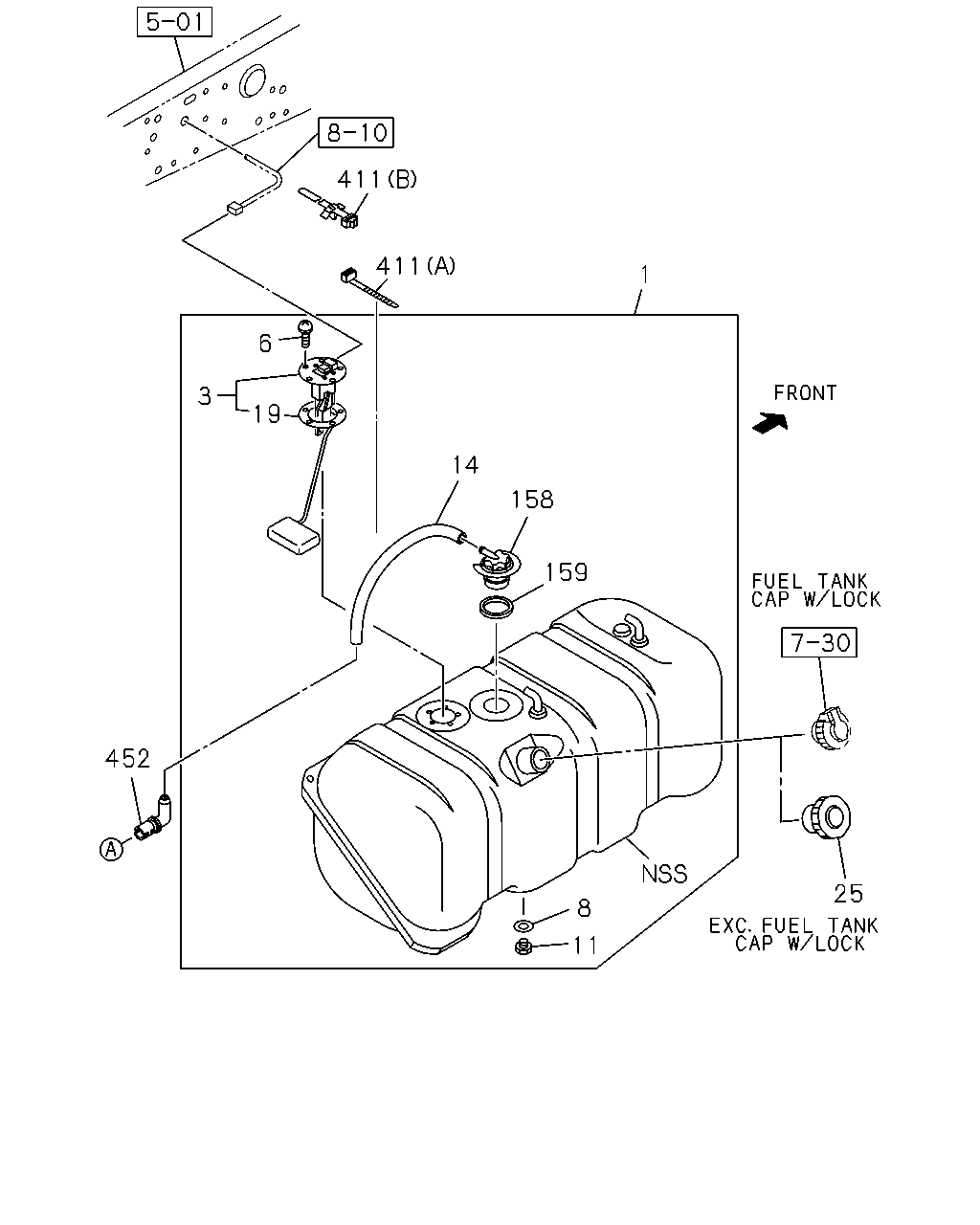

411 411 6 3 19 452 14 158 159 8 11 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1407-	●
1	03.001 TANK; FUEL FUEL TANK 75L<7GX> EXC. MOROCCO EQUIPMENT(CGA) 756X375X375 75L	8-98021-294-5	01	1	1407-		●
1	03.001 TANK; FUEL MOROCCO EQUIPMENT(CGA) FUEL TANK 75L<7GX> 756X375X375 70L	8-98104-005-4	01	1	1407-		●
1	03.001 TANK; FUEL FUEL TANK 100L<N02> EXC. MOROCCO EQUIPMENT(CGA) 1003X375X380 100L	8-98021-295-6	01	1	1407-		●
1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1407-			●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	1407-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75L<7GX> EXC. MOROCCO EQUIPMENT(CGA)	8-98056-703-0	01	1	1407-		●
3	03.107 UNIT; FUEL TANK,SUB MOROCCO EQUIPMENT(CGA) FUEL TANK 75L<7GX>	8-98113-177-0	01	1	1407-		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100L<N02> EXC. MOROCCO EQUIPMENT(CGA)	8-98056-704-0	01	1	1407-		●
3	03.107 UNIT; FUEL TANK,SUB	8-98213-753-0	01	1	1407-			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1407-	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1407-	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1407-	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1407-	●		●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1407-		●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100L<N02> EXC. MOROCCO EQUIPMENT(CGA) L=420	8-98157-809-0	01	1	1407-		●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1407-	●		●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. MOROCCO EQUIPMENT(CGA)	8-98051-797-0	01	1	1407-		●
19	03.112 GASKET; FUEL TANK UNIT MOROCCO EQUIPMENT(CGA) FUEL TANK 75L<7GX> ID=42 OD=71	5-83148-001-0	01	1	1407-		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1407-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1407-	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1407-	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1407-1510	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (B) L=170.3	1-09987-182-0	01	1	1407-1510		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> (B) L=170.3	1-09987-182-0	01	1	1407-1510		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1511-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	1407-1510	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> 03.162 (A) L=140	5-09707-031-1	02	1	1407-1510		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 03.162 (A) L=140	5-09707-031-1	02	1	1407-1510		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	1511-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1407-			●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1407-	●		●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-97357-261-0	01	1	1407-		●

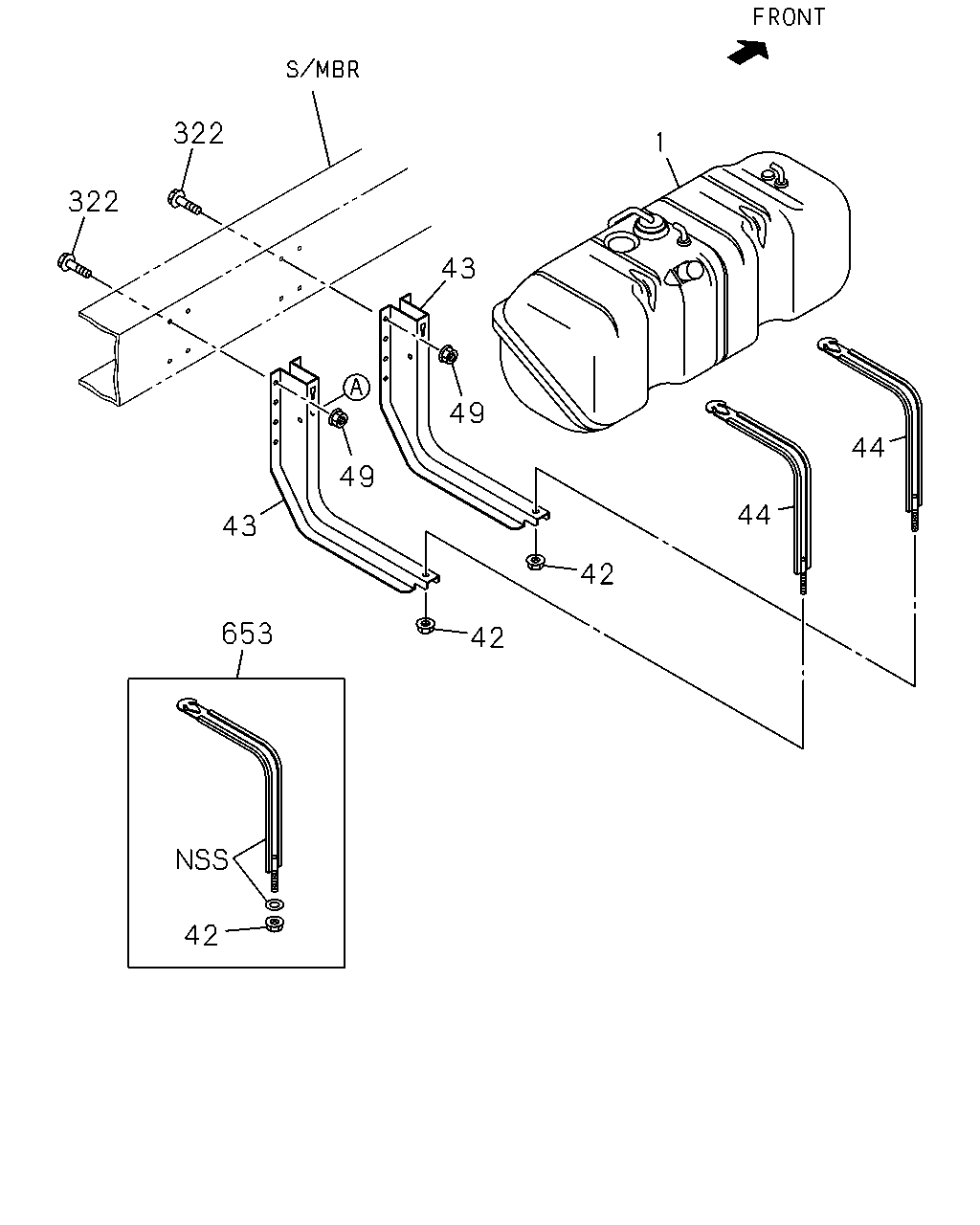

322 322 43 1 49 49 43 653 42 42 44 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1407-	●
1	03.001 TANK; FUEL FUEL TANK 75L<7GX> EXC. MOROCCO EQUIPMENT(CGA) 756X375X375 75L	8-98021-294-5	01	1	1407-		●
1	03.001 TANK; FUEL MOROCCO EQUIPMENT(CGA) FUEL TANK 75L<7GX> 756X375X375 70L	8-98104-005-4	01	1	1407-		●
1	03.001 TANK; FUEL FUEL TANK 100L<N02> EXC. MOROCCO EQUIPMENT(CGA) 1003X375X380 100L	8-98021-295-6	01	1	1407-		●
1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1407-			●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1407-	●		●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> M8 FLANGE	9-09130-408-0	02	1	1407-		●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> FRONT	8-97384-056-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> REAR	8-97384-081-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> FRONT	8-98061-738-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> REAR	8-98061-739-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-055-1	01	1	1407-			●
43	03.015 BRACKET; FUEL TANK REAR	8-98055-905-2	01	1	1407-			●
44	03.023 BAND; FUEL TANK L=613	8-98245-202-0	02	1	1407-			●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1407-	●
49	03.023 NUT; BRKT WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1407-		●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE	0-91180-210-0	06	1	1407-		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	03	1	1407-			●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1407-	●		●
322	03.895 BOLT; BRKT FIX FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1407-		●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1407-	●
653	03.022 BAND KIT; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1407-		●
