◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#145571) — 192 parça

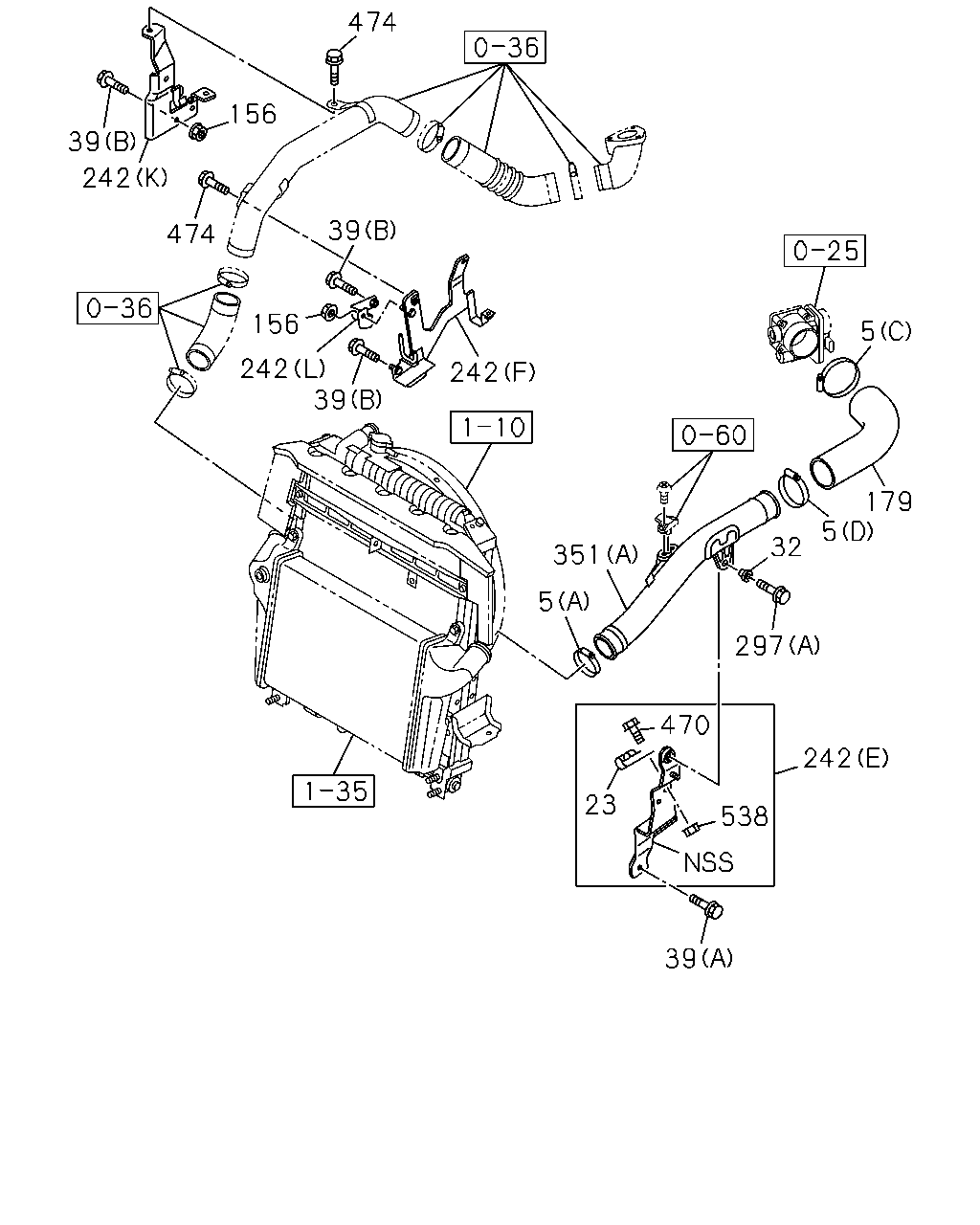

çizim 431363
32 297 242 538 39 470 23 5 351 5 179 5 242 39 242 474 242 39 156 39 474 156
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1407- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1407- ●
23 03.417 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 		8-98040-023-0 01 1 1407- ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 1407- ● ● ●
39 03.417 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1407- ● ● ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 1407- ● ● ●
156 03.417 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
179 03.417 HOSE; AIR INT 8-98245-592-1 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
MOROCCO EQUIPMENT(CGA) (M) 		8-98242-327-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98250-000-2 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1407-1408 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
EXC. MOROCCO EQUIPMENT(CGA) (C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98220-381-1 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98220-382-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98253-026-0 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98220-384-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1407- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1407- ● ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1407- ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1407- ● ●
351 03.407 DUCT; AIR
(A) 		8-98245-589-0 01 1 1407- ● ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1407- ●
351 03.407 DUCT; AIR
(D) 		8-98245-587-0 01 1 1407- ●
470 03.417 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1407- ● ● ●
474 03.417 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407- ● ● ●
538 03.417 NUT; PLATE,AIR DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1407- ● ● ●

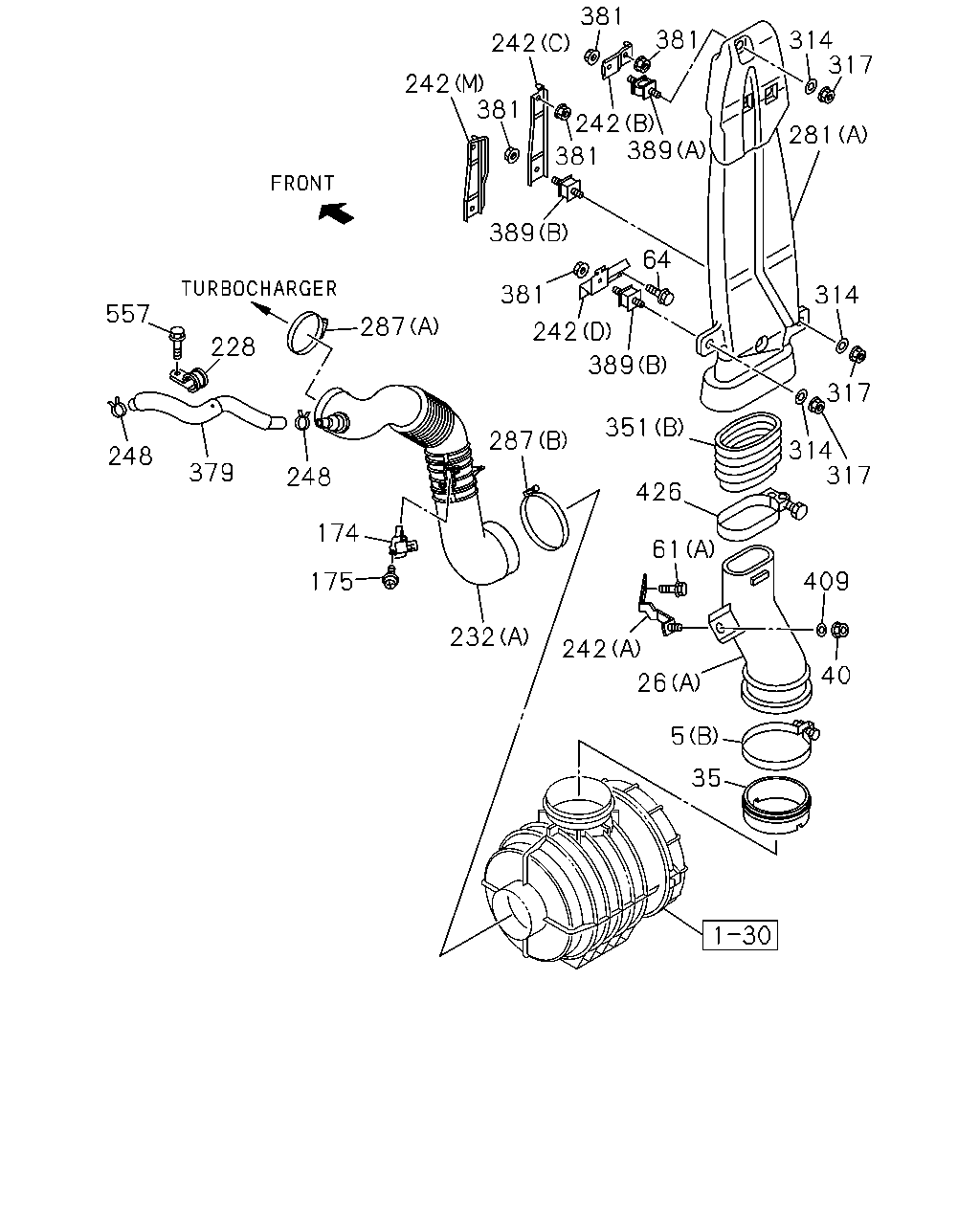

çizim 431804
381 381 242 389 381 381 242 242 557 228 287 248 379 248 174 175 232 287 242 381 389 314 317 281 314 389 64 351 426 61 242 26 5 35 40 409 317 314 317
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1407- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1407- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 1407- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1407- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1407- ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1407- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1407- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1407- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1407- ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1407- ● ● ●
228 03.278 CLIP; PCV HOSE
ID=31 L=44 		8-98170-379-0 01 1 1407- ● ● ●
232 03.417 HOSE; CONN
(A) 		8-98245-586-1 01 1 1407- ● ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1407- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
MOROCCO EQUIPMENT(CGA) (M) 		8-98242-327-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98250-000-2 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1407-1408 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
EXC. MOROCCO EQUIPMENT(CGA) (C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98220-381-1 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98220-382-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98253-026-0 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98220-384-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1407- ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1407- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98101-994-2 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1407- ●
287 03.417 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1407- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 1407- ● ●
287 03.417 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1407- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1407- ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ● ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1407- ● ●
351 03.407 DUCT; AIR
(A) 		8-98245-589-0 01 1 1407- ● ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1407- ●
351 03.407 DUCT; AIR
(D) 		8-98245-587-0 01 1 1407- ●
379 03.675 HOSE; RUBBER 8-98245-593-2 01 1 1407- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1407- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1407- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1407- ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1407- ● ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 1407- ● ●
557 03.403 BOLT; HOSE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●

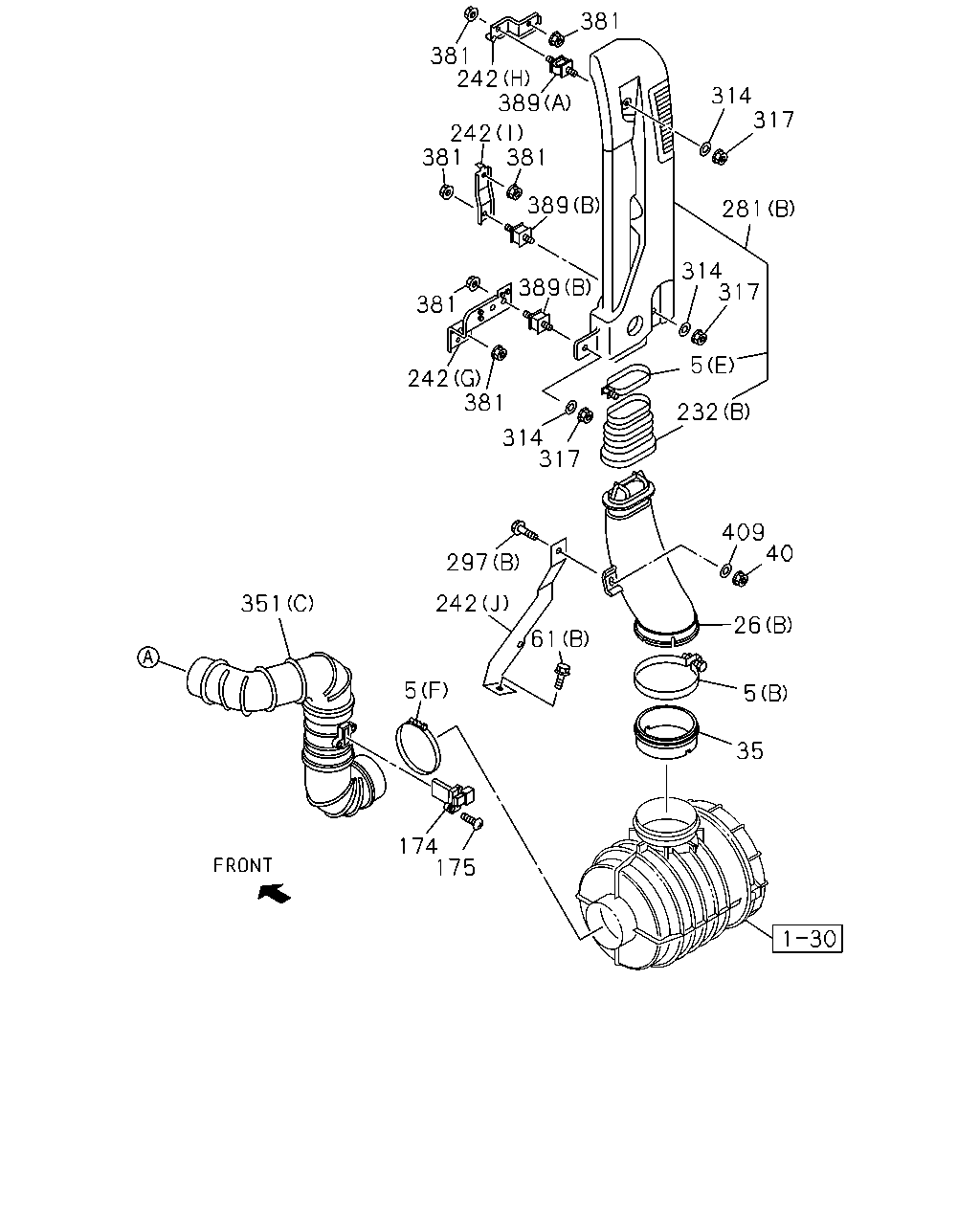

çizim 431939
381 314 281 317 314 317 5 232 409 40 26 5 35 61 297 242 5 174 175 351 317 314 381 242 381 389 389 381 242 381 389 242 381
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1407- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1407- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 1407- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1407- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1407- ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1407- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1407- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1407- ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1407- ● ● ●
232 03.417 HOSE; CONN
(A) 		8-98245-586-1 01 1 1407- ● ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1407- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
MOROCCO EQUIPMENT(CGA) (M) 		8-98242-327-0 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98250-000-2 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1407-1408 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
EXC. MOROCCO EQUIPMENT(CGA) (C) 		8-98067-765-1 01 1 1409- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1407- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98220-381-1 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98220-382-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98253-026-0 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98220-384-3 01 1 1407- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1407- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98101-994-2 01 1 1407- ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1407- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1407- ● ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1407- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1407- ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ● ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1407- ● ●
351 03.407 DUCT; AIR
(A) 		8-98245-589-0 01 1 1407- ● ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1407- ●
351 03.407 DUCT; AIR
(D) 		8-98245-587-0 01 1 1407- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1407- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1407- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1407- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1407- ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1407- ● ● ●
çizim 432031
5 351 232 48 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1407- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1407- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1407- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1407- ●
48 03.417 BOLT; AIR DUCT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98245-586-1 01 1 1407- ● ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1407- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1407- ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1407- ● ●
351 03.407 DUCT; AIR
(A) 		8-98245-589-0 01 1 1407- ● ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1407- ●
351 03.407 DUCT; AIR
(D) 		8-98245-587-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
