Sayfa 1-11 - Isuzu EPC

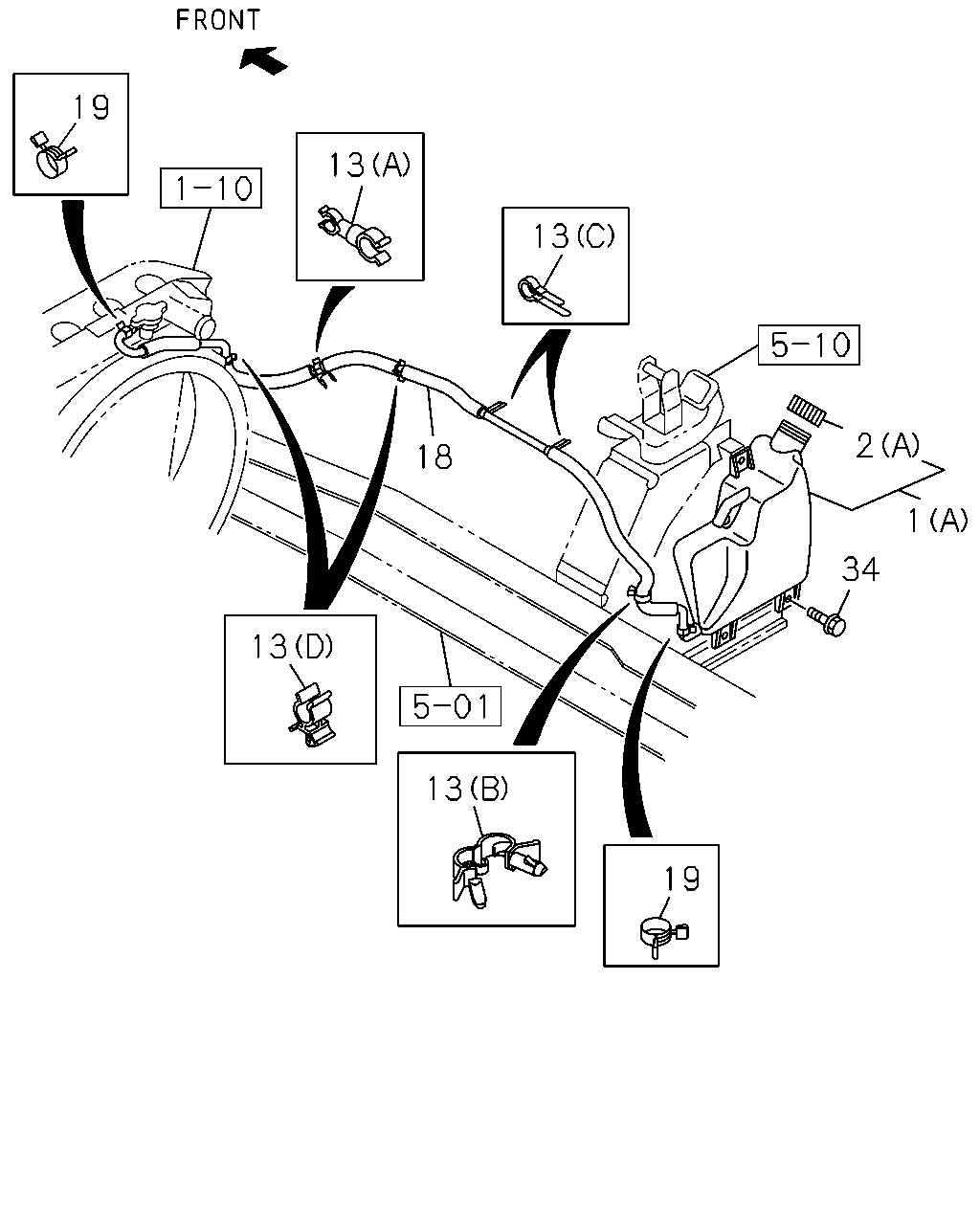

1-11 — RADIATOR HOSE AND SUB TANK (#145569) — 33 parça

19 13 13 18 2 1 34 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1407-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1407-			●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1407-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1407-			●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1407-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1407-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	1407-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	02	1	1407-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98227-642-2	01	1	1407-	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98227-643-2	01	1	1407-			●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1407-	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1407-	●	●	●

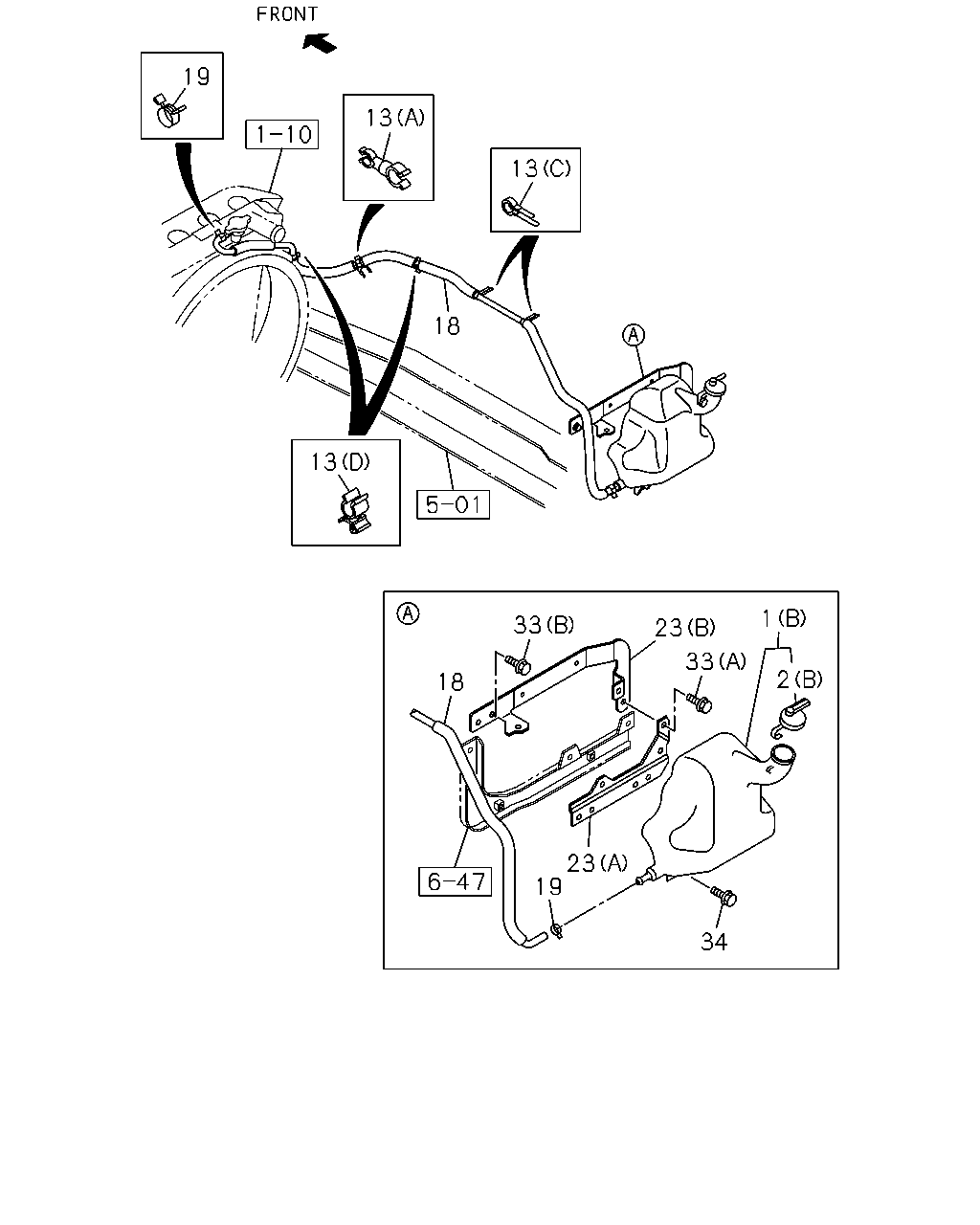

19 13 13 18 13 33 23 1 2 33 18 23 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1407-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1407-			●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1407-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1407-			●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1407-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1407-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	1407-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	02	1	1407-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98227-642-2	01	1	1407-	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-98227-643-2	01	1	1407-			●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1407-	●	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1407-			●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1407-			●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1407-			●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1407-	●	●	●

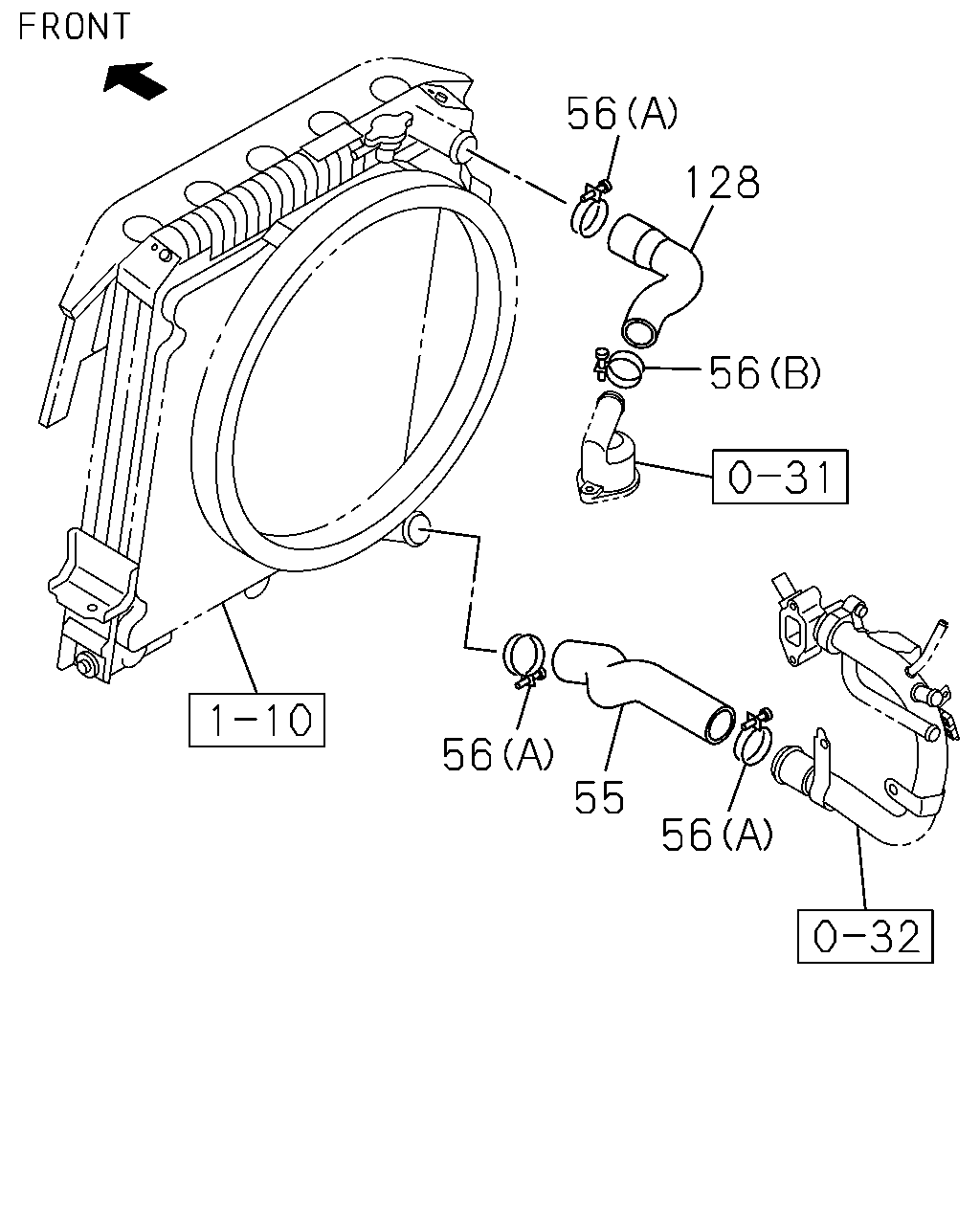

56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET	8-97260-187-2	01	1	1407-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	01	1	1407-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1407-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-98133-958-0	01	1	1407-	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97289-369-1	01	1	1407-	●	●	●
