1-10 — RADIATOR (#145568) — 44 parça

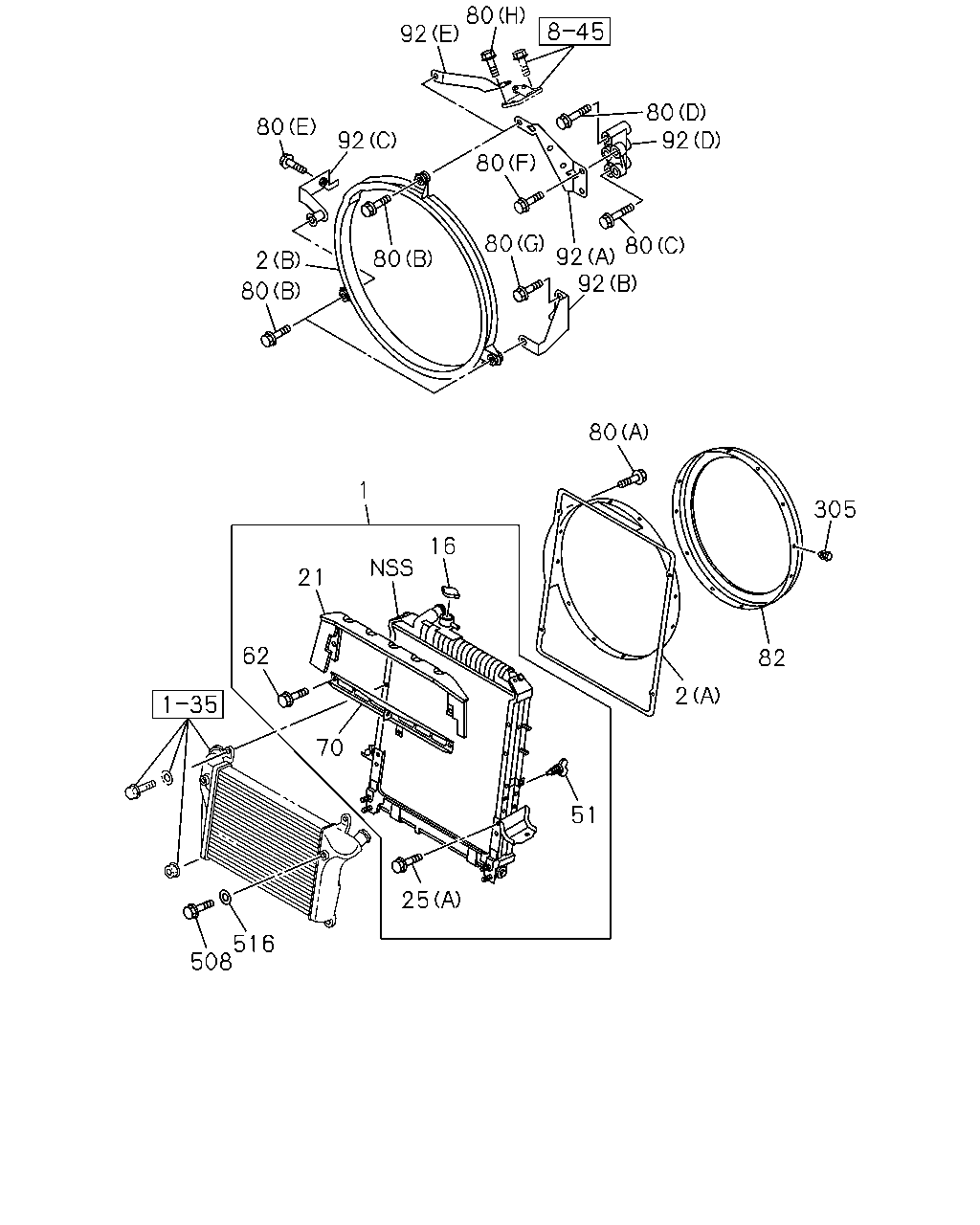

80 92 80 92 2 80 80 80 80 92 80 92 92 80 305 80 82 2 51 25 70 21 1 16 62 516 508

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM	8-98236-397-2	01	1	1407-	●	●	●
2	01.277 GUIDE; FAN (B)	8-97287-037-2	01	1	1407-	●	●	●
2	01.277 GUIDE; FAN (A)	8-97350-179-0	01	1	1407-	●	●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1407-	●	●	●
21	01.276 SEAL; RAD	8-98227-081-0	01	1	1407-	●	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1407-	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1407-	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1407-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1407-	●	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.403 (H) M8X30 FLANGE	0-28650-830-0	02	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (G) M8X80 FLANGE	0-28050-880-0	02	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE 01.540 (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE (A) M6X12	8-98039-672-0	04	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE EXC. AIR CONDITIONER MANUAL CONT(C60) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	1407-	●	●	●
80	01.277 BOLT; FAN GUIDE EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	1407-	●	●	●
82	01.277 COVER; FAN,RAD	8-97260-451-1	01	1	1407-	●	●	●
92	01.277 BRACKET; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) (E)	8-97319-478-0	01	1	1407-	●	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97240-139-3	01	1	1407-	●	●	●
92	01.277 BRACKET; FAN GUIDE (C)	8-97289-749-1	01	1	1407-	●	●	●
92	01.277 BRACKET; FAN GUIDE EXC. AIR CONDITIONER MANUAL CONT(C60) (D)	8-94478-881-1	01	1	1407-	●	●	●
92	01.277 BRACKET; FAN GUIDE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97253-495-1	01	1	1407-	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE	1-09470-009-0	12	1	1407-	●	●	●
508	01.271 PLUG 01.519 M10X10	1-09604-074-0	01	1	1407-	●	●	●
516	08.951 GASKET; PLUG 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1407-	●	●	●

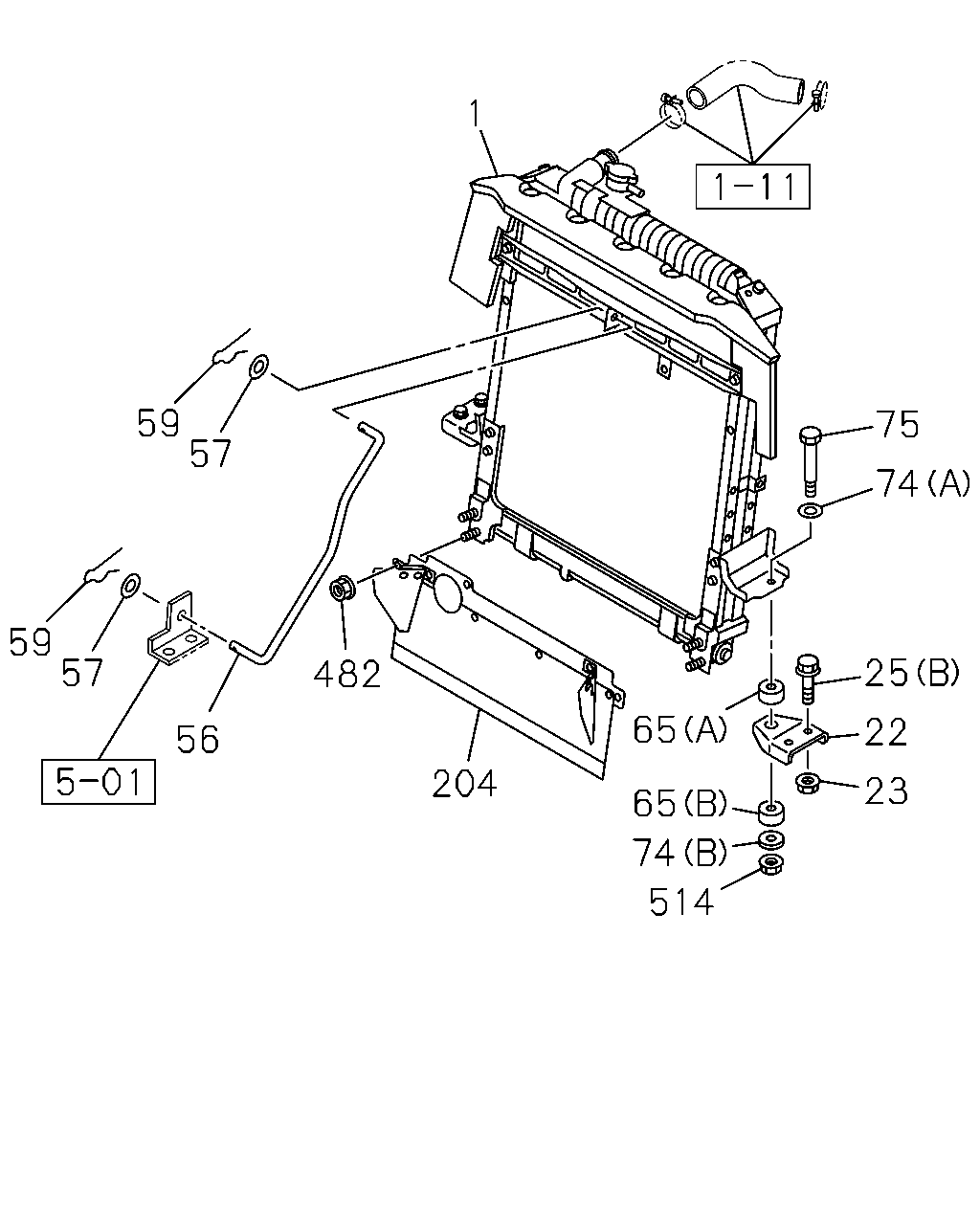

1 59 57 59 57 56 482 204 65 65 74 514 23 22 25 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM	8-98236-397-2	01	1	1407-	●	●	●
22	01.270 BRACKET; RAD MTG	8-98040-358-0	01	1	1407-	●	●	●
22	01.270 BRACKET; RAD MTG	8-98040-359-0	01	1	1407-	●	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1407-	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1407-	●	●	●
56	01.270 STAY; RAD	8-98040-357-1	01	1	1407-	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1407-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1407-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1407-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1407-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=10.5	0-91610-710-0	01	1	1407-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (B) ID=8.5 OD=36	8-97359-049-1	02	1	1407-	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1407-	●	●	●
204	01.267 GUIDE ASM; AIR	8-98165-477-1	01	1	1407-	●	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●	●	●
