0-66 — GENERATOR (#145565) — 32 parça

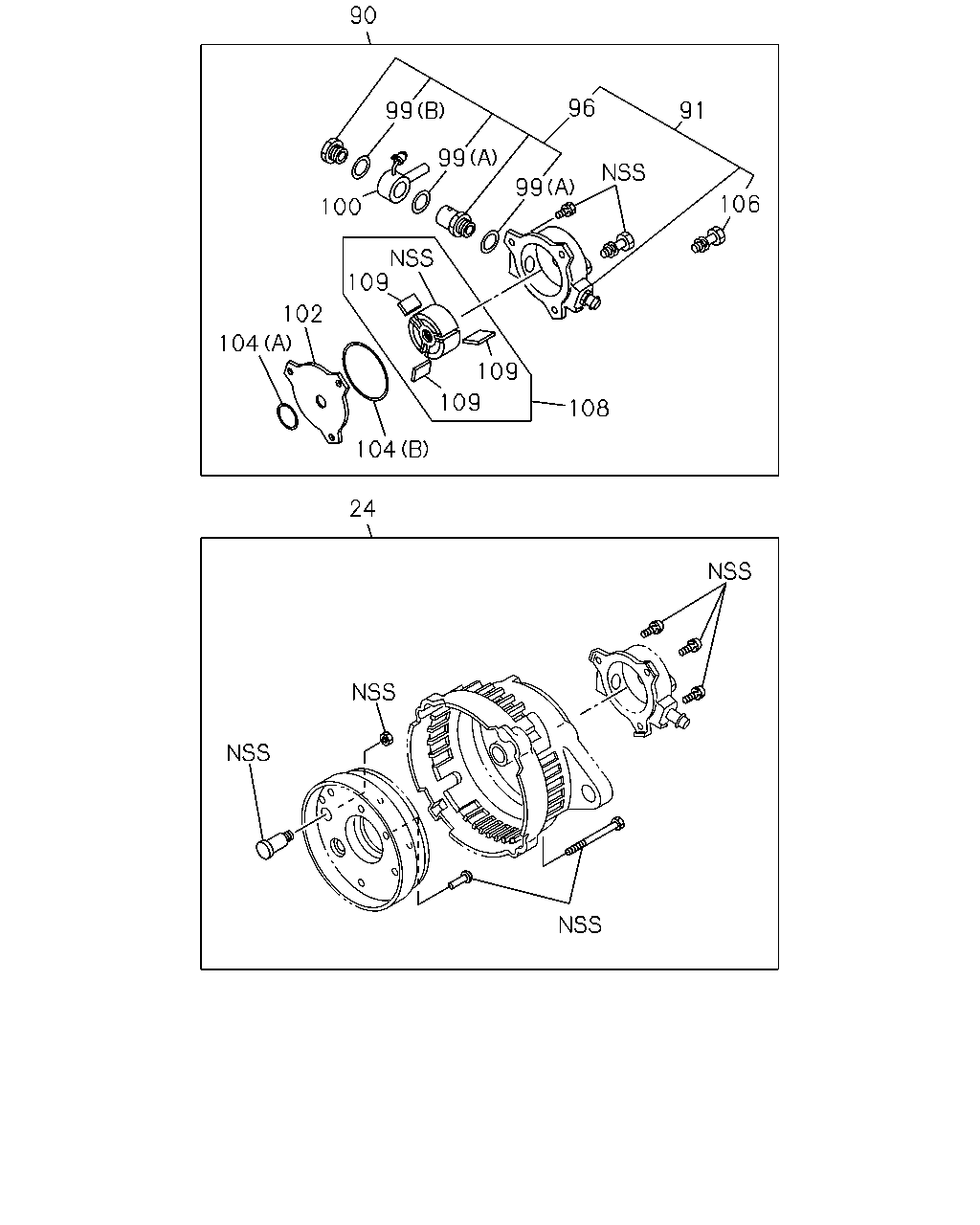

91 96 106 99 99 99 90 100 109 109 109 108 104 102 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97240-270-2, 97240270	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97240-270-2, 97240270	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97240-270-2, 97240270	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97240-270-2, 97240270	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-985-0	03	1	-

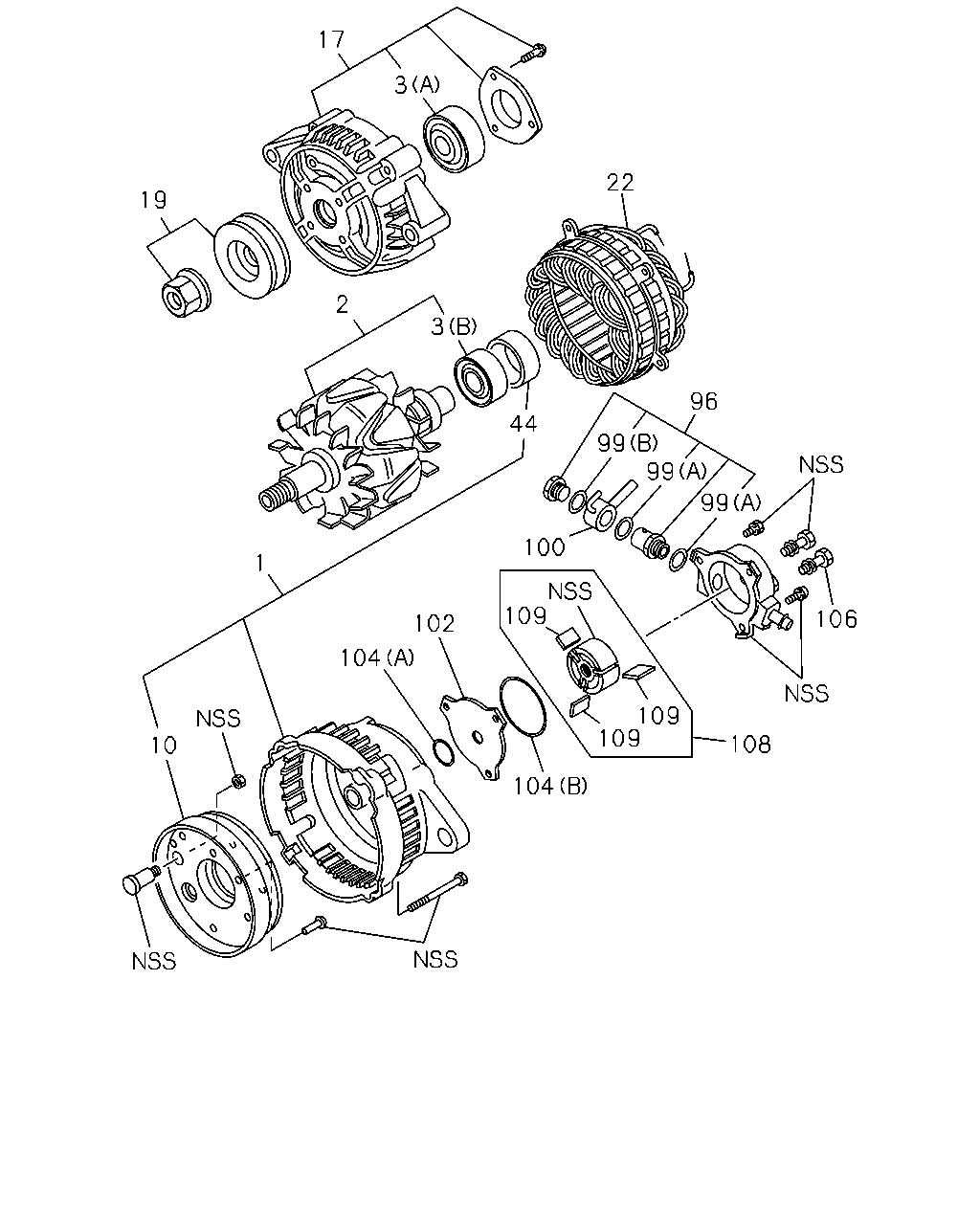

17 3 19 2 3 22 44 1 10 104 102 100 109 109 104 109 108 106 99 99 99 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97240-270-2, 97240270	8-98230-323-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: A = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97240-270-2, 97240270	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97240-270-2, 97240270	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97240-270-2, 97240270	8-98230-332-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97240-270-2, 97240270	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97240-270-2, 97240270	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97240-270-2, 97240270	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97240-270-2, 97240270	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97240-270-2, 97240270	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-94223-985-0	03	1	-
