Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

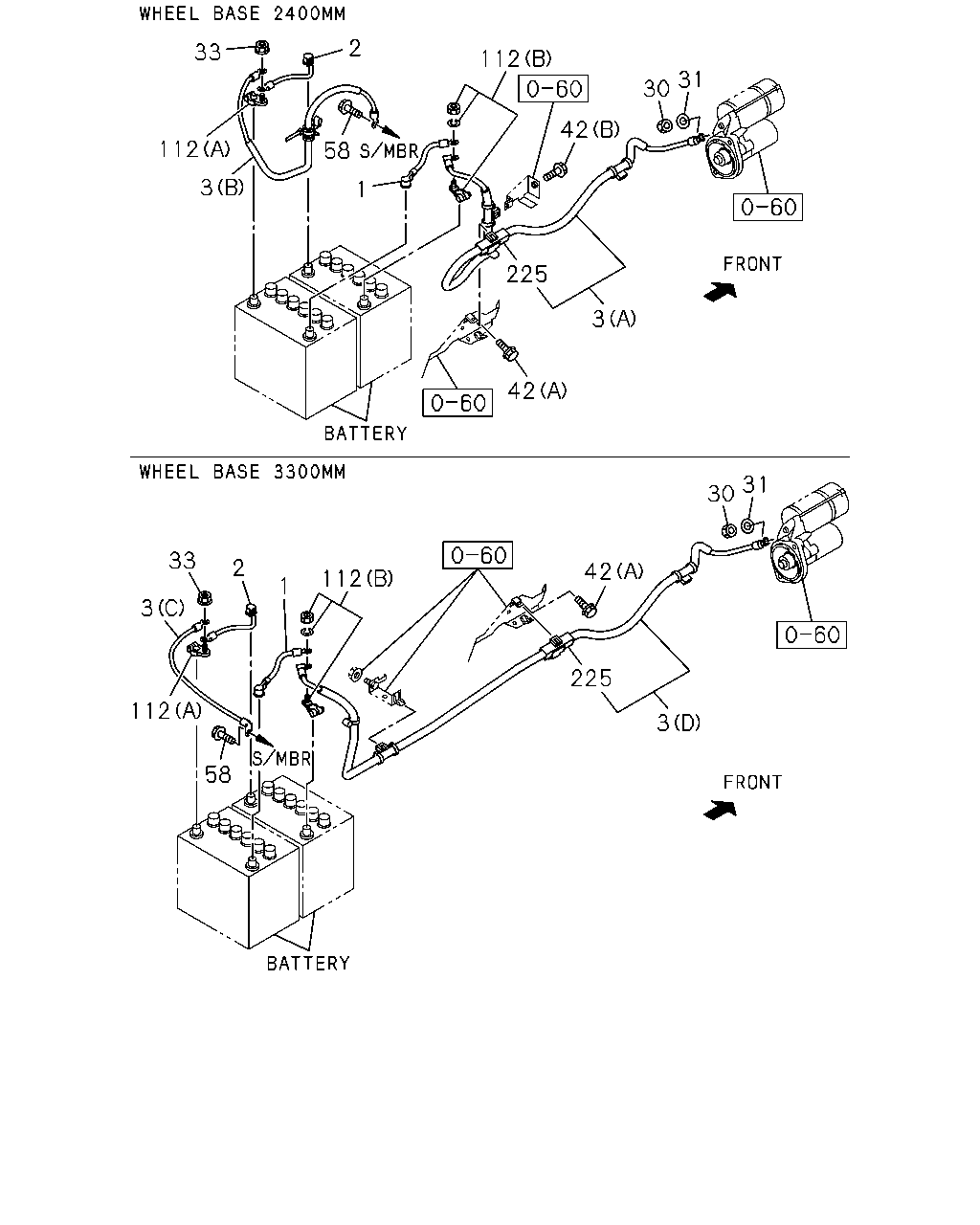

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#145563) — 18 parça
33
112
112
2
42
30
31
3
225
1
58
3
42
2
33
3
1
112
112
42
30
31
3
225
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
8-98241-495-0
01
1
1407-
2
02.341 CABLE; BATTERY
02.525 L=200
8-98056-337-1
01
1
1407-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A)
8-98241-463-0
01
1
1407-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A)
8-98295-695-0
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (B)
8-98241-465-1
01
1
1407-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (C)
8-98120-101-0
01
1
1407-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (D)
8-98241-464-0
01
1
1407-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (D)
8-98295-696-0
01
1
1410-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1407-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1407-
33
02.049 CAP; INSULATOR
01.062 M8 FLANGE
0-91180-108-0
01
1
1407-
42
02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE
0-28650-625-0
01
1
1407-
42
02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE
8-97329-599-0
01
1
1407-
58
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1407-
112
02.343 TERMINAL; BATTERY
(A) <+>
8-97365-771-0
01
1
1407-
112
02.343 TERMINAL; BATTERY
(B) <->
8-98228-976-0
01
1
1407-
225
02.343 BLOCK; TERMINAL
8-98029-689-0
01
1
1407-1409
225
02.343 BLOCK; TERMINAL
8-98294-524-0
01
1
1410-
