0-52 — OIL AND VACUUM PIPING; ENGINE (#145559) — 47 parça

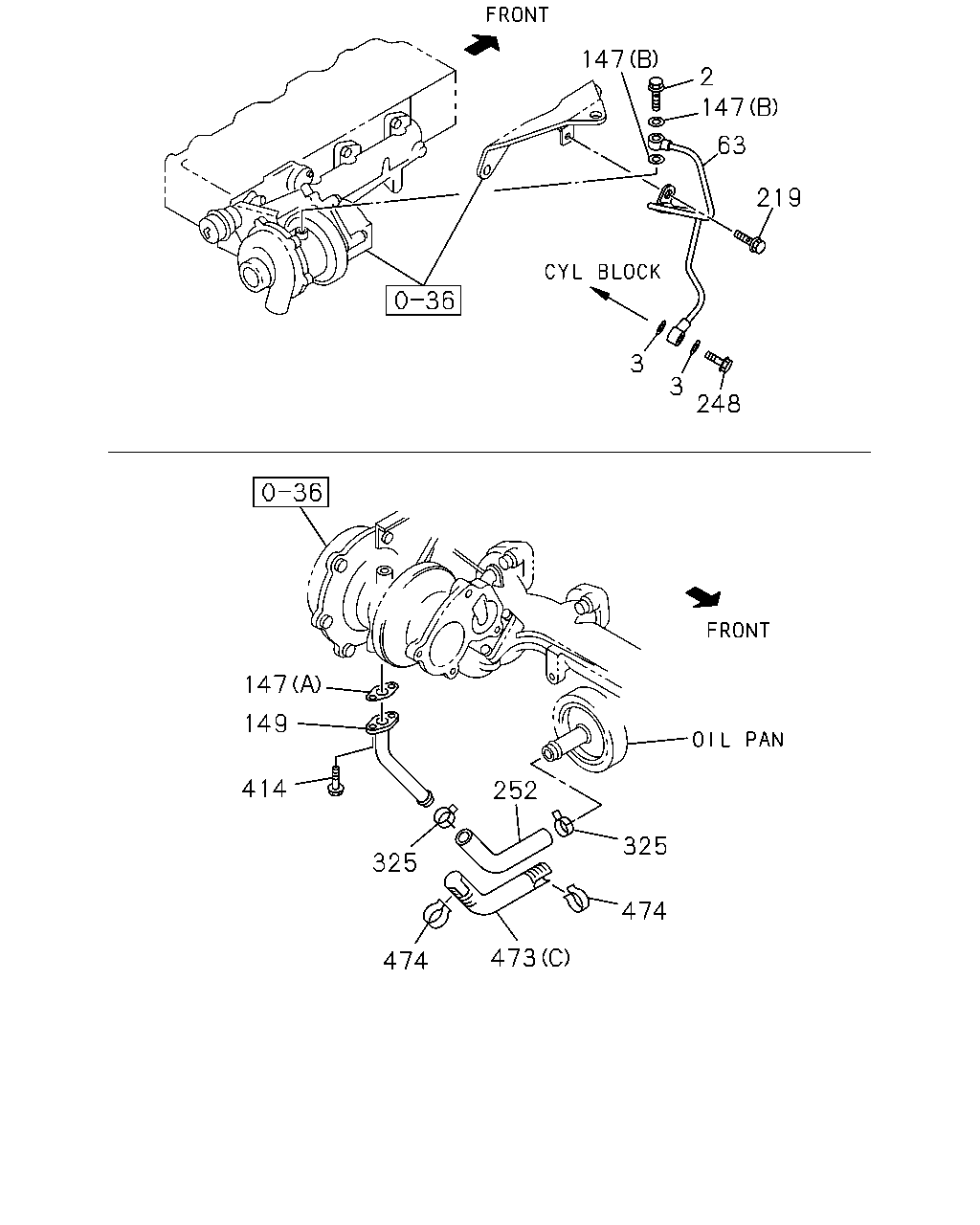

çizim 431397
248 3 219 63 2 147 147 3 325 474 252 473 474 325 414 149 147
BalonParca AdiParca NoAdetTipApplied Date
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 1407-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1407-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98242-280-1 01 1 1407-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 1407-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1407-
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98242-281-0 01 1 1407-
219 01.531 BOLT; CLIP FIX,OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1407-
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 1407-
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-98214-088-1 01 1 1407-
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 1407-
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1407-
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 1407-
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 1407-
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 1407-
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 1407-

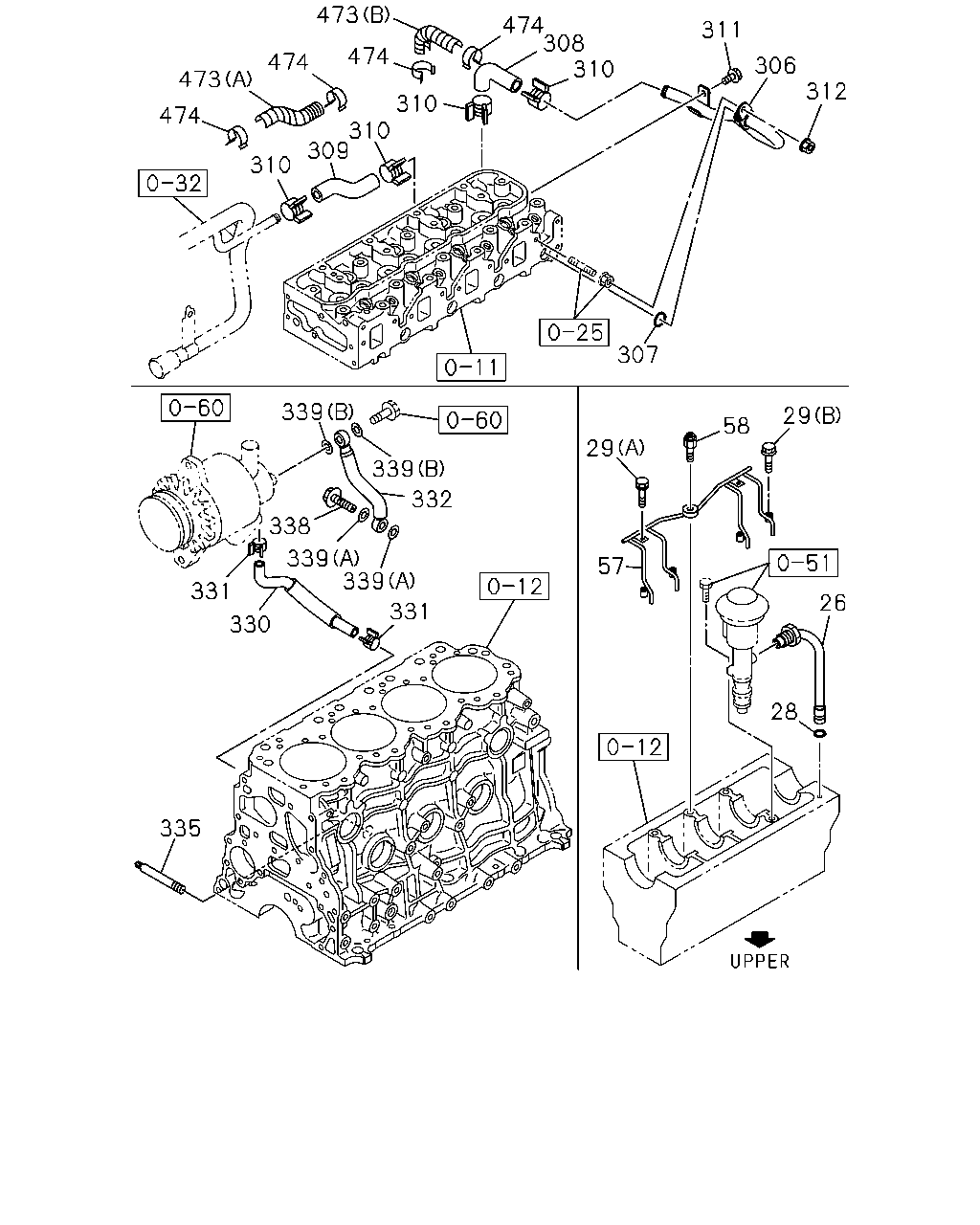

çizim 431653
308 311 310 306 312 307 58 29 26 28 57 29 331 330 335 331 338 332 339 339 339 339 310 309 310 310 473 473 474 474 474 474
BalonParca AdiParca NoAdetTipApplied Date
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 1407-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 1407-
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1407-
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1407-
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 1407-
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98227-004-0 01 1 1407-
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-98214-057-1 01 1 1407-
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 1407-
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 1407-
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 1407-
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 1407-
311 01.531 BOLT; PIPE FIX
04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1407-
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1407-
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 1407-
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 1407-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 1407-
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 1407-
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 1407-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1407-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1407-
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 1407-
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 1407-
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 1407-
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 1407-

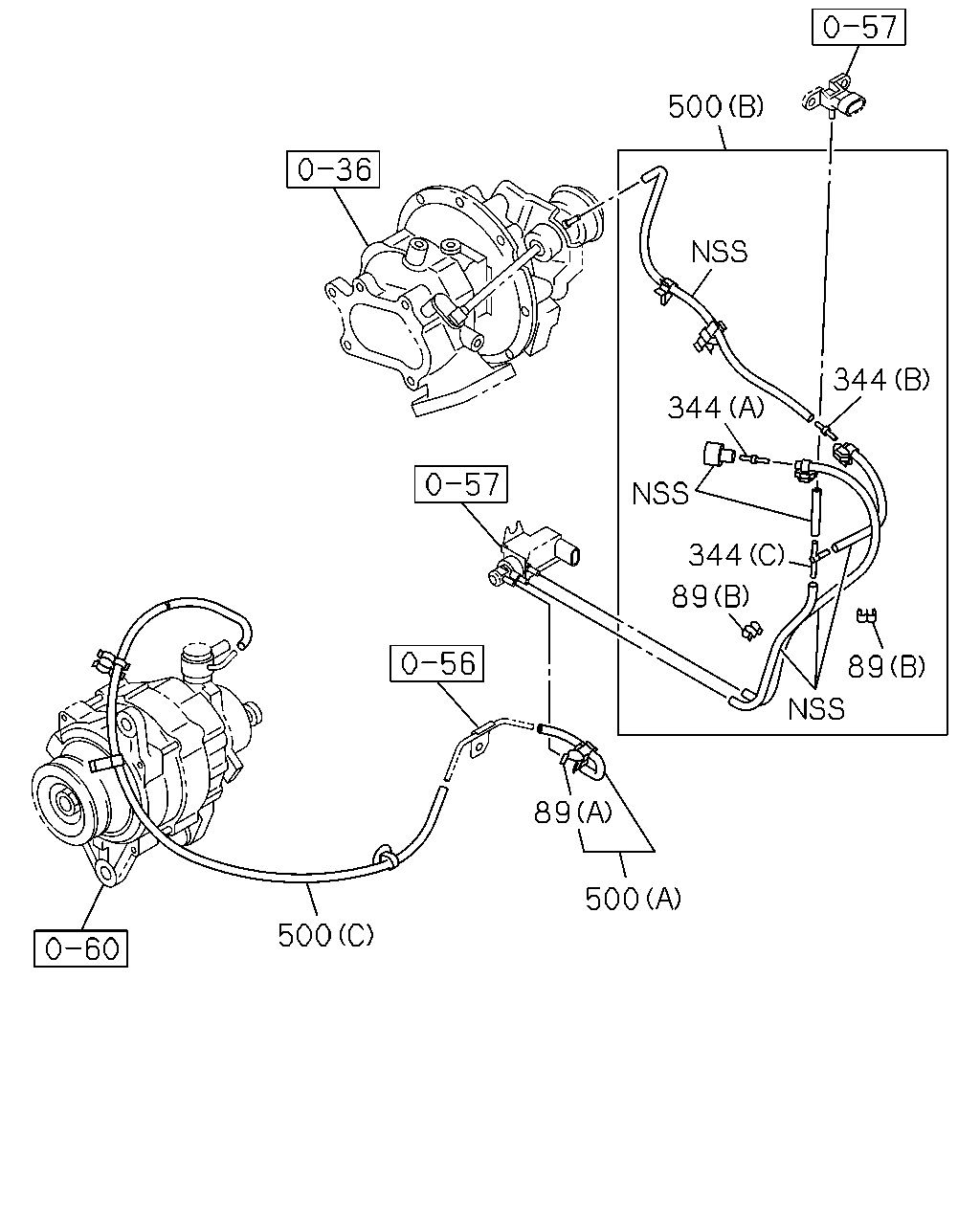

çizim 432246
344 344 344 89 89 89 500 500 500
BalonParca AdiParca NoAdetTipApplied Date
89 04.681 CLIP; VAC HOSE
00.854 (A) ID=11.8 & 7.5 		1-09709-182-0 01 1 1407-
89 04.681 CLIP; VAC HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 1407-
344 01.531 JOINT; RUBBER HOSE
03.680 (A) 2WAY 		8-94313-805-0 01 1 1407-
344 01.531 JOINT; RUBBER HOSE
03.680 (B) 2WAY 		8-97165-694-0 01 1 1407-
344 01.531 JOINT; RUBBER HOSE
03.680 (C) 3WAY 		8-98045-385-0 01 1 1407-
500 04.681 HOSE; VACUUM
(A) 		8-98188-619-0 01 1 1407-
500 04.681 HOSE; VACUUM
(B) 		8-98242-363-2 01 1 1407-
500 04.681 HOSE; VACUUM
(C) 		8-98242-364-3 01 1 1407-
