◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#145558) — 12 parça

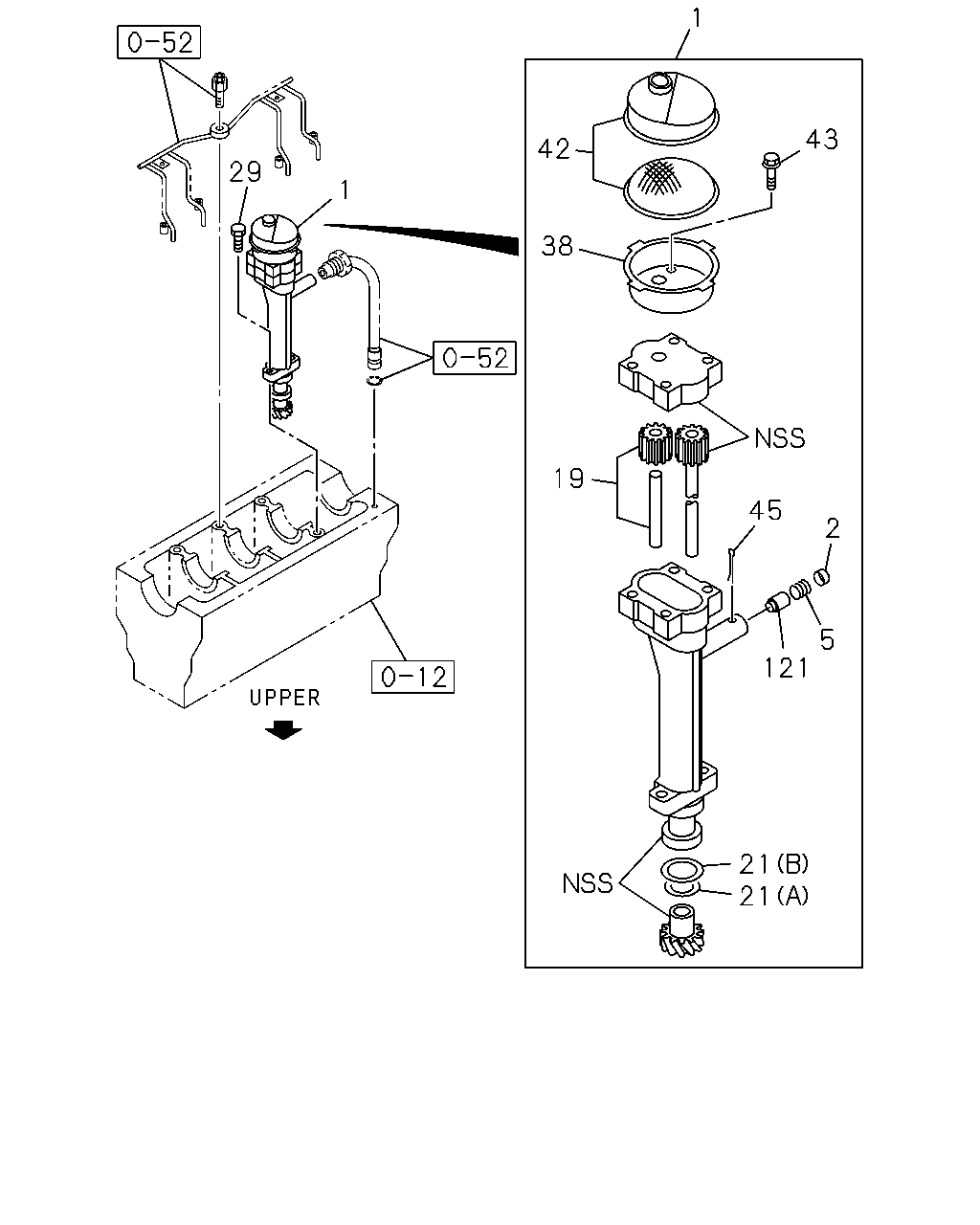

çizim 431507
1 43 42 38 19 45 2 5 121 21 21 1 29
BalonParca AdiParca NoAdetTipApplied Date
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 1407-
2 01.609 SEAT; SPR 5-13165-004-0 01 1 1407-
5 01.609 SPRING; COIL 8-97036-834-0 01 1 1407-
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1407-
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 1407-
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 1407-
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1407-
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 1407-
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 1407-
43 01.656 BOLT; CASE
03.275 M8X30 FLANGE 		0-28080-830-0 04 1 1407-
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 1407-
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 1407-
