◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#145557) — 14 parça

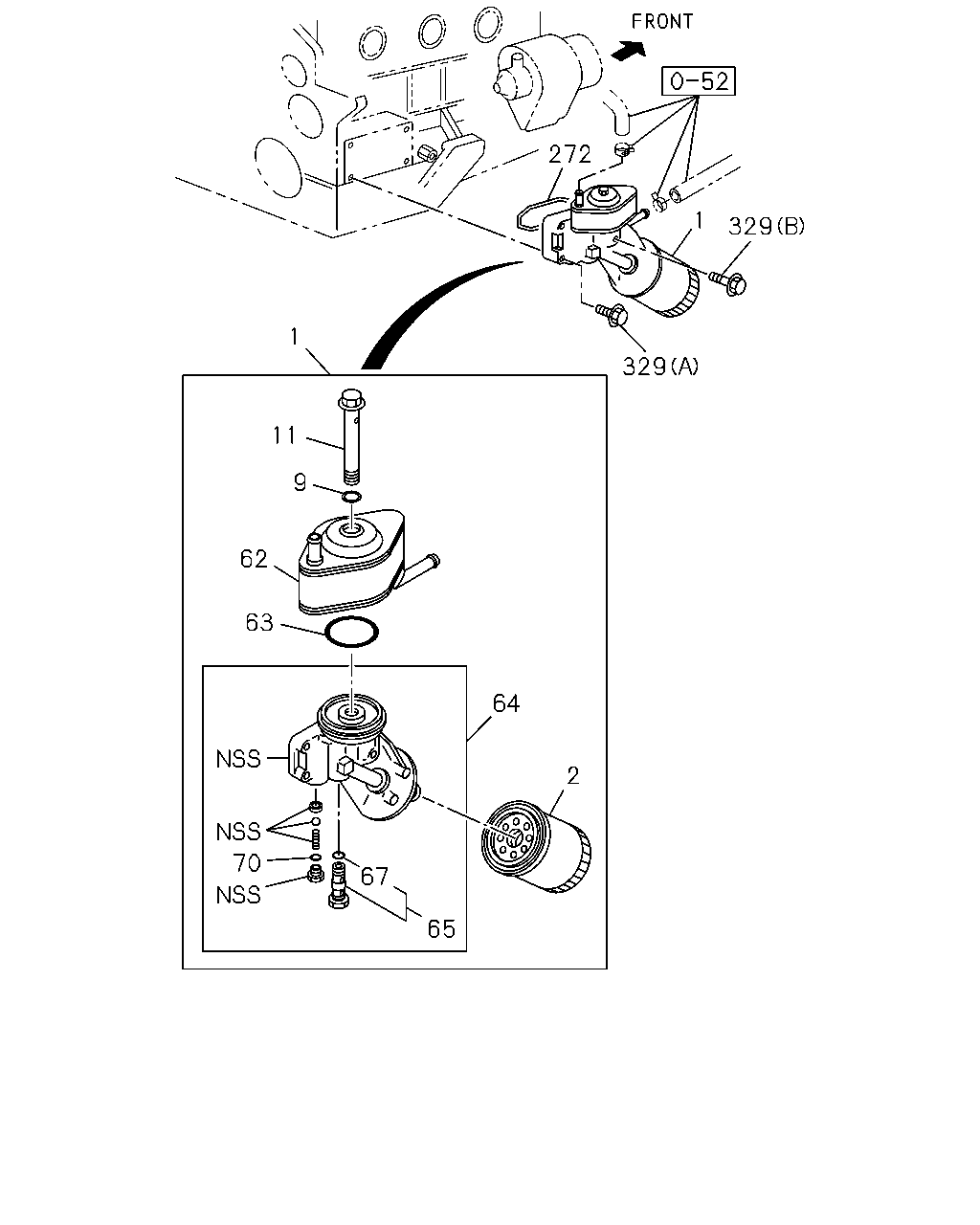

çizim 431312
272 1 329 329 1 11 9 62 63 64 2 65 67 70
BalonParca AdiParca NoAdetTipApplied Date
1 01.540 FILTER & COOLER ASM; OIL 8-97239-978-2 01 1 1407-
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 1407-
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 1407-
9 01.840 GASKET; CENTER BOLT 8-97047-000-0 01 1 1407-
11 01.840 BOLT; CENTER 8-97094-724-1 01 1 1407-
62 01.540 COOLER ASM; OIL 8-97301-588-0 01 1 1407-
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 1407-
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97313-207-2 01 1 1407-
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 1407-
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 1407-
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 1407-
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 1407-
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1407-
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 1407-
