Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

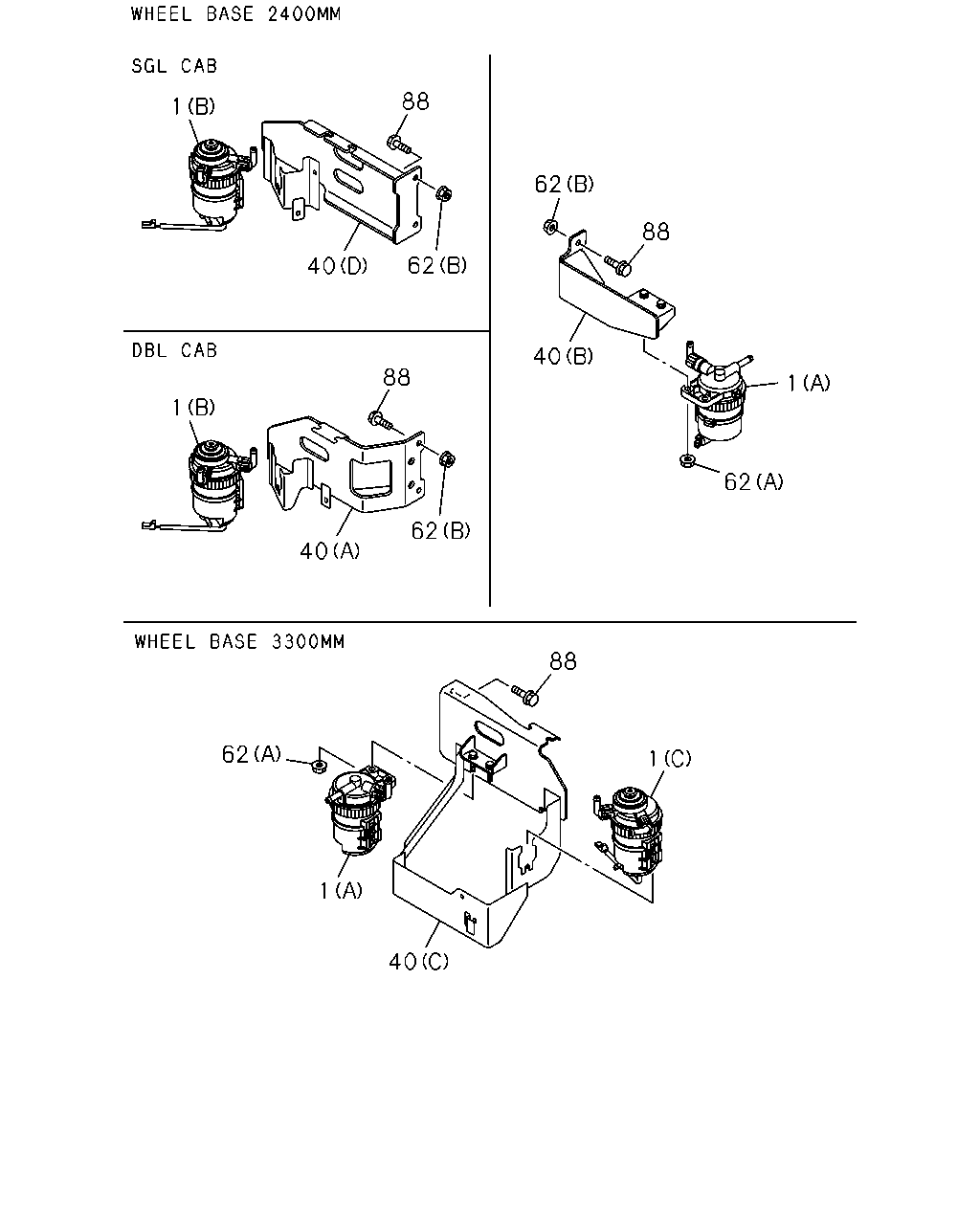

0-41 — FUEL FILTER AND BRACKET
(#145555) — 32 parça
◀
[041A] FUEL FILTER BRACKET (12 parça)
[041A] FUEL FILTER(NO.1) (10 parça)
[041A] FUEL FILTER(NO.2) (10 parça)
▶
1
88
62
40
62
88
40
62
1
1
88
62
40
62
1
40
88
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
WHEEL BASE 2400MM(24W) (B)
8-98211-343-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
(A)
8-98184-212-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
WHEEL BASE 3300MM(33W) (C)
8-98184-213-0
01
1
1407-
40
03.890 BRACKET; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (D)
8-98219-481-0
01
1
1407-
40
03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) (B)
8-98219-480-0
01
1
1407-
40
03.890 BRACKET; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (C)
8-98219-483-1
01
1
1407-
40
03.890 BRACKET; FUEL FILTER
DBL CAB(NM**W*) (A)
8-98219-482-2
01
1
1407-
62
03.895 NUT; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 03.162 (B) M10 FLANGE
0-91180-110-0
02
1
1407-
62
03.895 NUT; FUEL FILTER
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1407-
62
03.895 NUT; FUEL FILTER
DBL CAB(NM**W*) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
1407-
88
03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1407-
88
03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1407-
1
2
119
39
1
39
119
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
WHEEL BASE 2400MM(24W) (B)
8-98211-343-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
(A)
8-98184-212-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
WHEEL BASE 3300MM(33W) (C)
8-98184-213-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98159-693-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98194-119-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS (IMIT LCV ONLY)
5-87615-017-0
01
1
1407-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1407-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1407-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1407-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1407-
1
39
119
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
WHEEL BASE 2400MM(24W) (B)
8-98211-343-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
(A)
8-98184-212-1
01
1
1407-
1
03.890 FILTER ASM; FUEL
WHEEL BASE 3300MM(33W) (C)
8-98184-213-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98159-693-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98194-119-0
01
1
1407-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS (IMIT LCV ONLY)
5-87615-017-0
01
1
1407-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1407-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1407-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1407-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1407-
