0-36 — TURBOCHARGER SYSTEM
(#145552) — 33 parça
◀

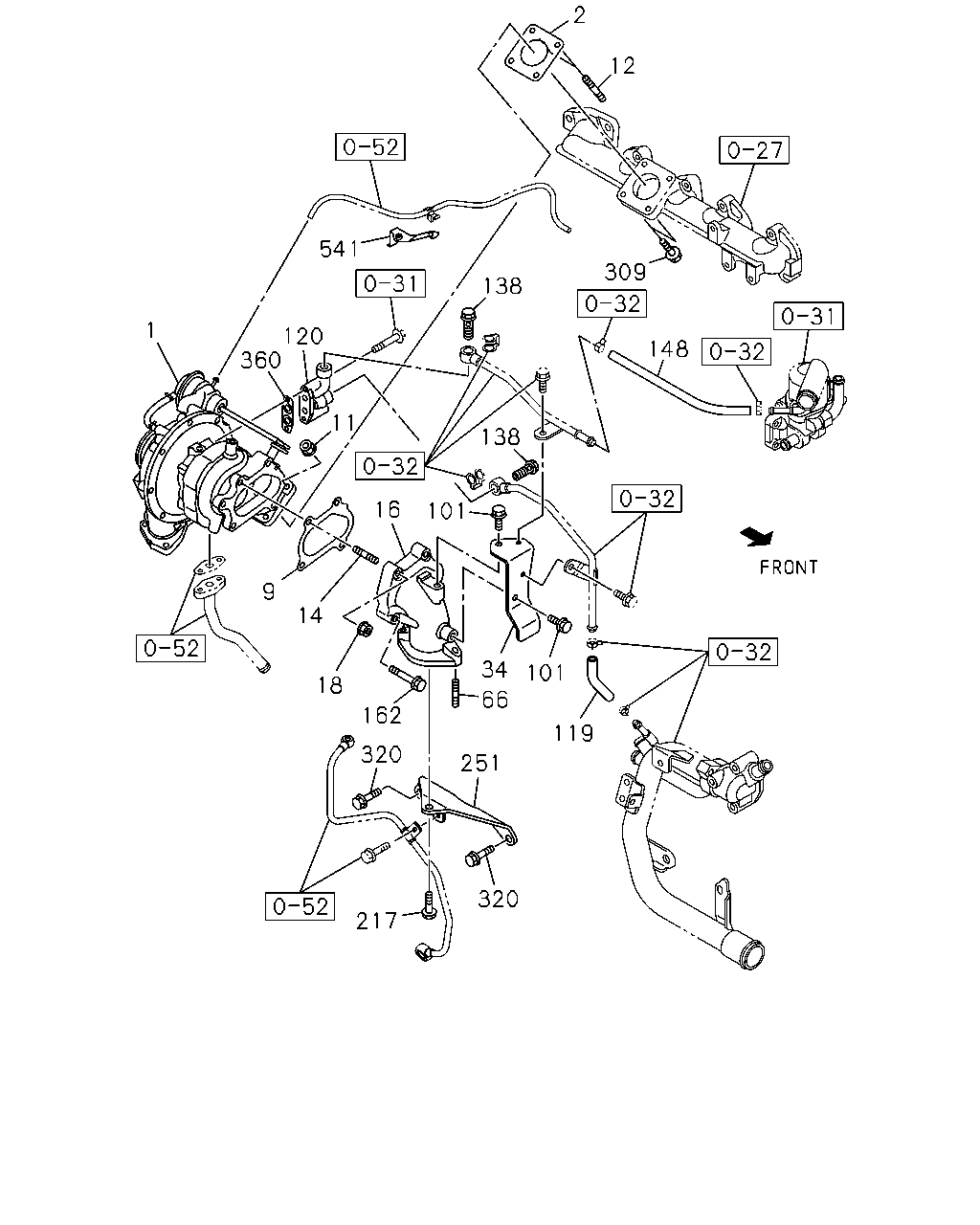

[036A] NO.1 (22 parça)

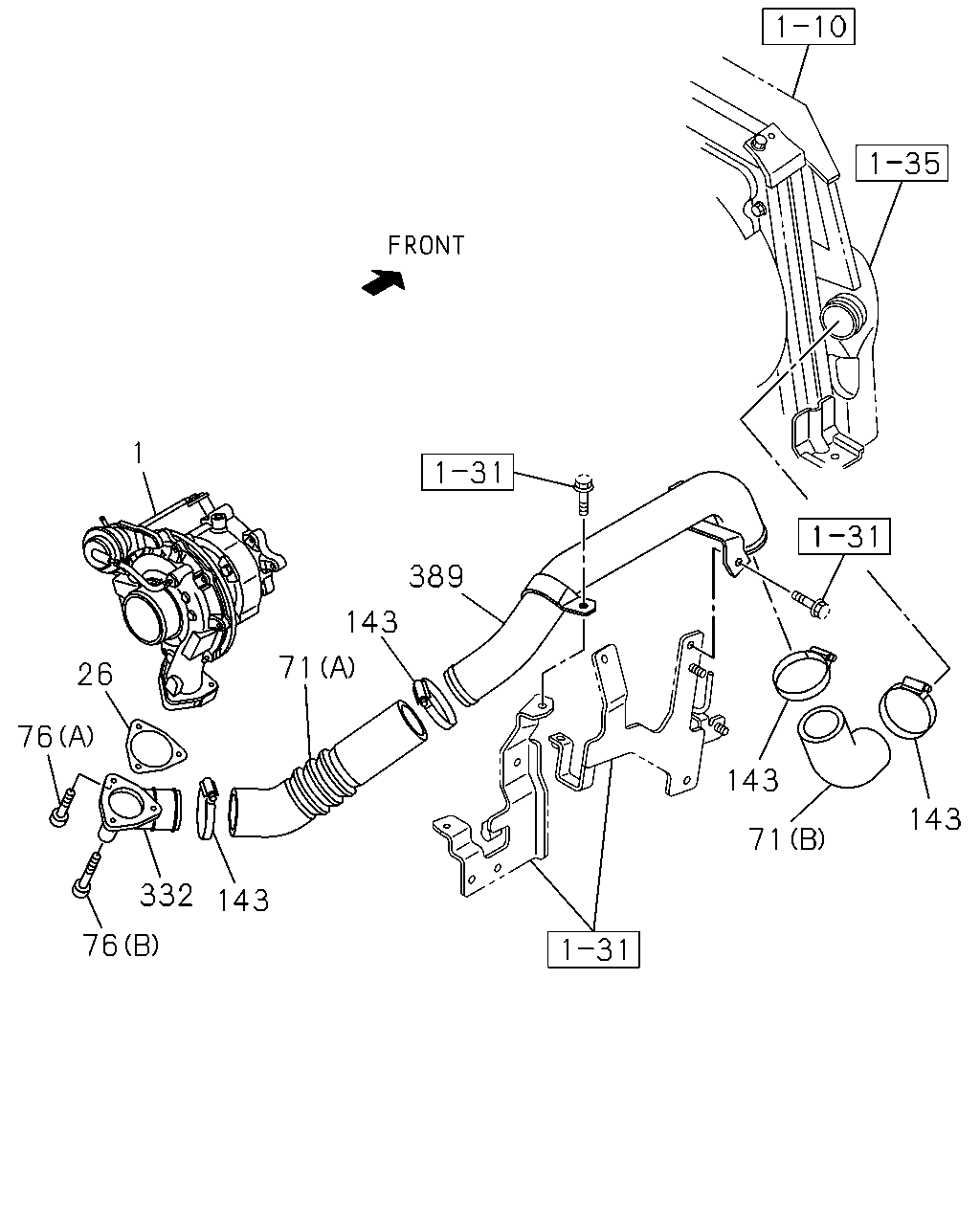

[036A] NO.2 (11 parça)
▶
2
12
309
148
138
541
120
360
1
11
138
101
16
9
14
18
162
320
217
320
251
66
119
101
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98243-561-0
01
1
1407-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
1407-
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98015-116-3
01
1
1407-
11
03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE
8-97161-607-0
02
1
1407-
12
03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36
8-97378-062-0
02
1
1407-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
03.604 M8X35 L=46
8-97378-065-0
02
1
1407-
16
03.609 ADAPTER; EXH PIPE
8-98244-754-0
01
1
1407-
18
03.613 NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
1407-
34
03.342 BRACKET; HEAT PROTECTOR
8-98242-284-0
01
1
1407-
66
03.342 STUD; EXH PIPE
03.417 M10X28 L=43
0-44011-028-0
02
1
1407-
101
03.602 BOLT; HEAT PROTECTOR
03.613 M8X14 FLANGE
8-97378-075-0
02
1
1407-
119
03.342 HOSE; WATER,TURBOCHARGER
03.675
8-97312-730-0
01
1
1407-
120
01.097 ADAPTER; WATER
8-98242-285-0
01
1
1407-
138
03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT
8-98037-067-0
02
1
1407-
148
03.417 HOSE; TURBOCHARGER,INL
01.097 L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1407-
162
03.613 BOLT; ADAPTER
M8X43 HEX SOCKET
8-98065-481-0
02
1
1407-
217
03.417 BOLT; BRKT
03.604 M10X30 FLANGE
8-98032-158-0
01
1
1407-
251
03.417 BRACKET; ADAPTER
8-98214-071-1
01
1
1407-
309
03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE
8-98043-528-0
02
1
1407-
320
03.342 BOLT; BRKT,TURBOCHARGER
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1407-
360
03.342 GASKET; ADAPTER TO TURBOCHARGER
01.519
8-97352-985-0
01
1
1407-
541
03.616 BRACKET; HOSE
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07)
8-98242-362-1
01
1
1407-
1
389
143
71
26
76
332
143
76
143
71
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98243-561-0
01
1
1407-
26
03.342 GASKET; DUCT
8-98089-661-0
01
1
1407-
71
03.417 HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-98253-027-0
01
1
1407-
71
03.417 HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98253-028-0
01
1
1407-
76
03.417 BOLT; AIR DUCT
03.358 (A) M6X20 HEX SOCKET
0-58330-620-0
01
1
1407-
76
03.417 BOLT; AIR DUCT
(B)
0-58330-645-0
02
1
1407-
143
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
SGL CAB(NM**S*) IDENTIFICATION LABEL FOR KD<6UT> ID=45-65
8-98133-348-0
04
1
1407-
143
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
DBL CAB(NM**W*) ID=45-65
8-98133-348-0
04
1
1407-
143
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
SGL CAB(NM**S*) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65
8-98096-418-0
04
1
1407-
332
03.616 DUCT; AIR,TURBOCHARGER
8-98237-776-1
01
1
1407-
389
03.342 PIPE; INL,TURBOCHARGER TO CAC
8-98220-377-1
01
1
1407-
