Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#145549) — 14 parça
◀

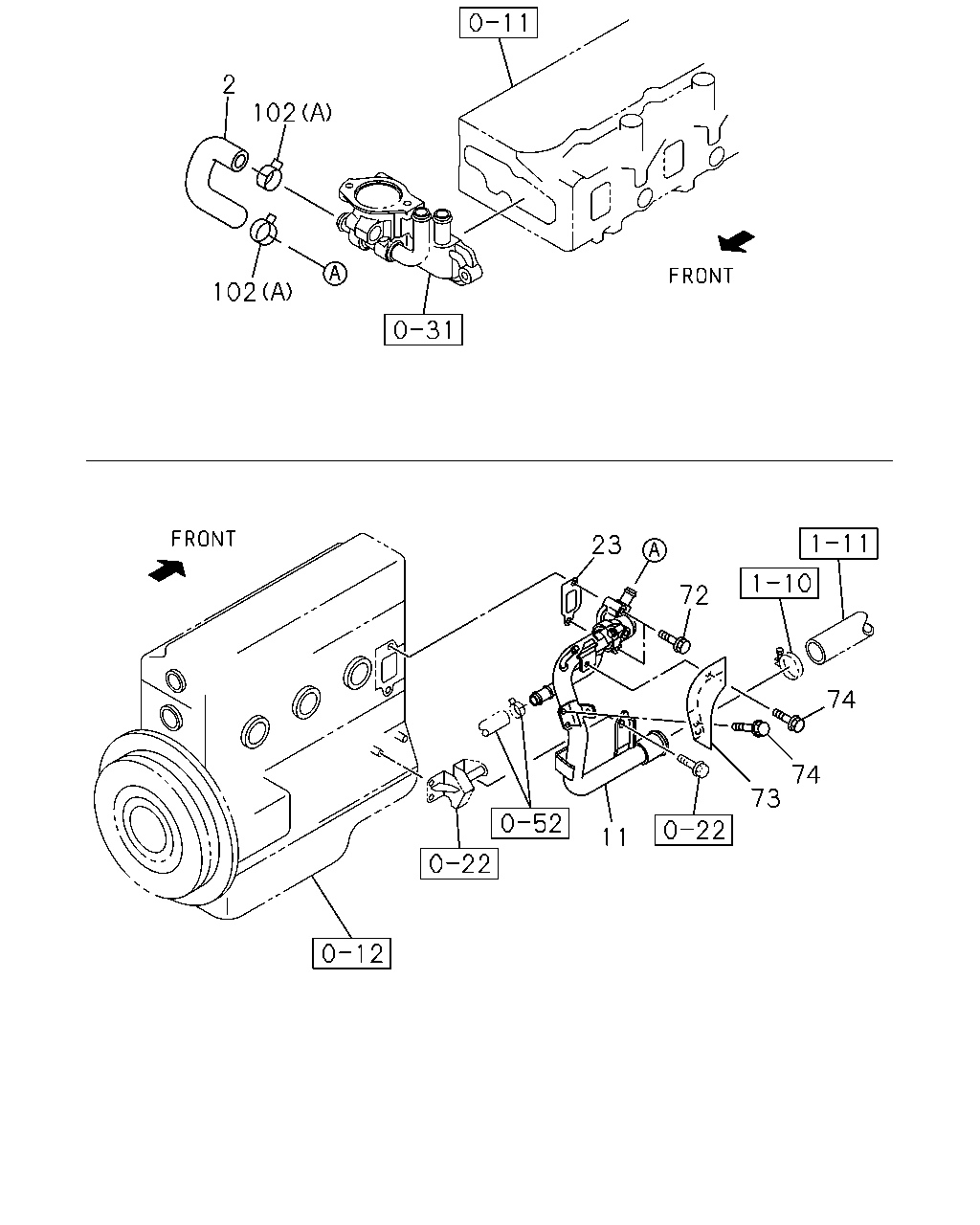

[032A] NO.1 (8 parça)
[032A] NO.2 (6 parça)
▶
72
74
74
73
11
102
102
2
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.097 HOSE; WATER,BY-PASS
8-98214-089-0
01
1
1407-
11
01.097 PIPE; INL,WATER PUMP
8-98214-060-0
01
1
1407-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1407-
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER
0-50540-850-0
02
1
1407-
73
01.097 PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1407-
74
01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1407-
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1407-
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1407-

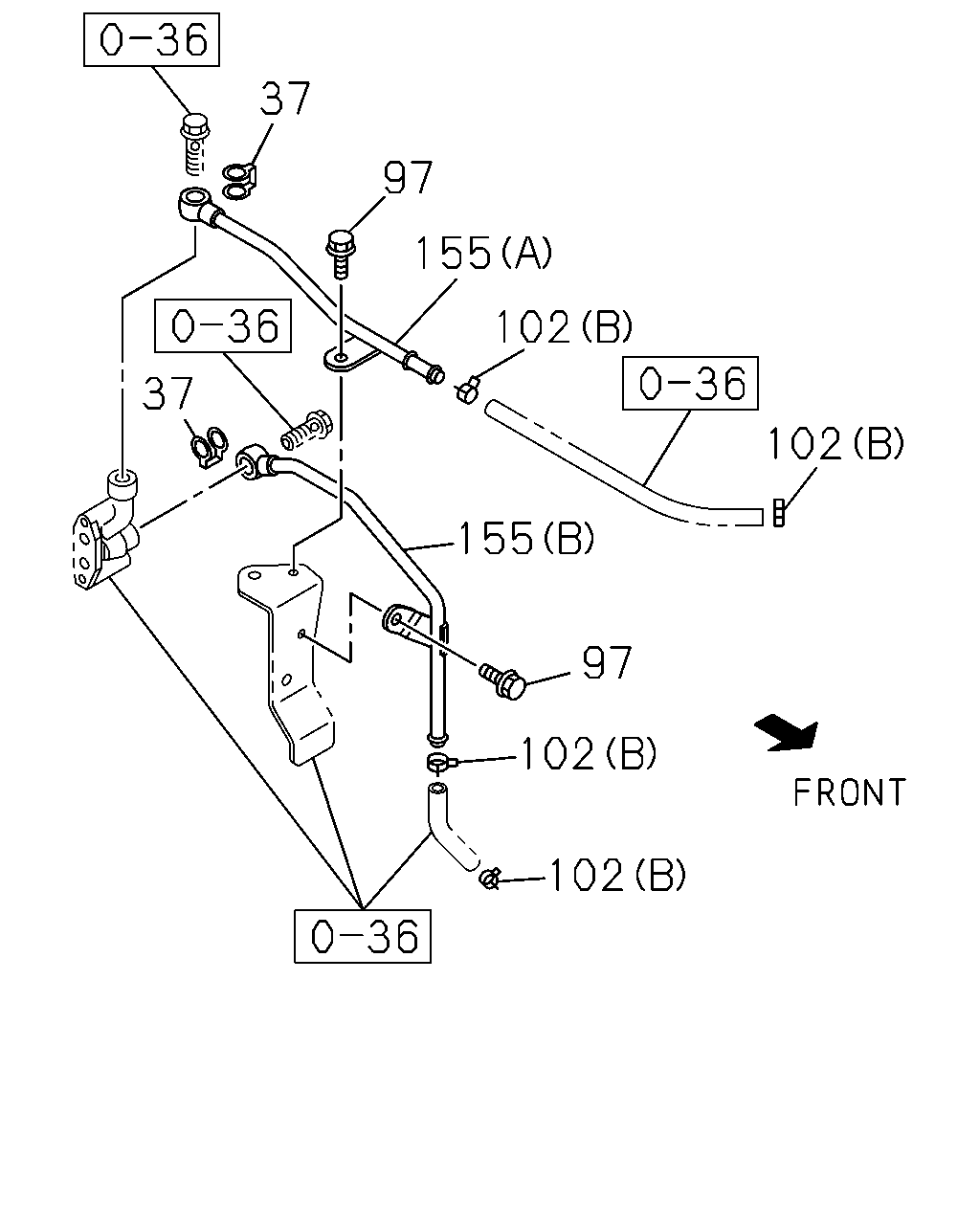

102
102
155
97
37
155
97
102
102
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=20.0
8-98113-762-0
02
1
1407-
97
04.866 BOLT; WATER PIPE
06.308 M6X14 FLANGE
8-97136-157-0
02
1
1407-
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1407-
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1407-
155
01.153 PIPE ASM; WATER
(A)
8-98242-282-0
01
1
1407-
155
01.153 PIPE ASM; WATER
(B)
8-98242-283-1
01
1
1407-
