1 |

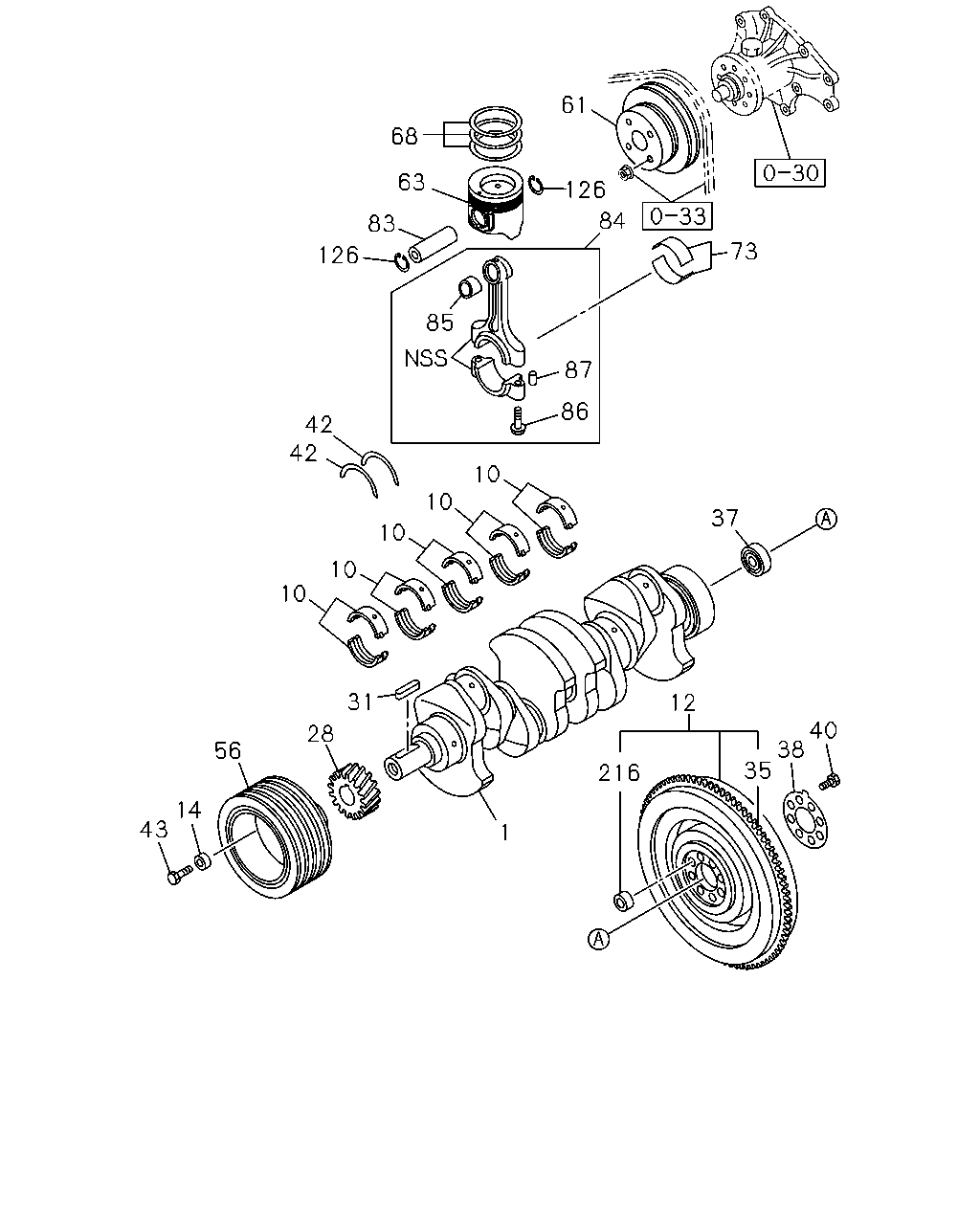

00.646 CRANKSHAFT
|
8-97254-611-2 |
01 |
1 |
1407- |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97387-964-0 |
05 |
1 |
1407- |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97387-965-0 |
05 |
1 |
1407- |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97387-966-0 |
05 |
1 |
1407- |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 4
|
8-97387-967-0 |
05 |
1 |
1407- |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 5
|
8-97387-968-0 |
05 |
1 |
1407- |
| |
12 |
00.666 FLYWHEEL
|
8-98214-087-0 |
01 |
1 |
1407- |
| |
14 |
00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
|
5-09503-127-1 |
01 |
1 |
1407- |
| |
28 |
00.728 GEAR; CR/SHF
Z=30
|
8-97240-011-2 |
01 |
1 |
1407- |
| |
31 |
00.662 KEY; FEATHER,CR/SHF
00.729
|
8-94201-641-0 |
01 |
1 |
1407- |
| |
35 |
00.673 GEAR; RING
Z=108
|
8-94419-602-1 |
01 |
1 |
1407- |
| |
37 |
00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649
NSK
|
9-00090-679-0 |
01 |
1 |
1407- |
| |
37 |
00.096 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
|
5-87610-165-0 |
01 |
1 |
1407- |
| |
38 |
00.862 WASHER; FLYWHEEL
ID=50.5 OD=97
|
8-98171-700-0 |
01 |
1 |
1407- |
| |
40 |
00.669 BOLT; FLYWHEEL
M13X36
|
8-97065-984-1 |
08 |
1 |
1407- |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
|
8-98040-704-0 |
02 |
1 |
1407- |
| |
43 |
00.662 BOLT; CR/SHF PULLEY
M16X43
|
5-09000-273-2 |
01 |
1 |
1407- |
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97254-844-0 |
01 |
1 |
1407- |
| |
61 |
00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120
|
8-94459-815-4 |
01 |
1 |
1407- |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-98202-778-0 |
04 |
1 |
1407- |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-98202-779-0 |
04 |
1 |
1407- |
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98188-644-0 |
04 |
1 |
1407- |
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
|
8-97184-534-0 |
04 |
1 |
1407- |
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94454-479-0 |
04 |
1 |
1407- |
| |
84 |
00.603 ROD ASM; CONN
|
8-98012-602-2 |
04 |
1 |
1407- |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
AFTER PRESS FITTING,SHAPE THE BUSHING.
|
8-97352-889-0 |
04 |
1 |
1407- |
| |
86 |
00.623 BOLT; CONNROD
M11X44.5
|
8-98048-538-0 |
08 |
1 |
1407- |
| |
87 |
00.613 PIN; CONNROD BIG END
OD=5 L=8
|
9-08160-508-0 |
08 |
1 |
1407- |
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
ID=33.9
|
8-94133-969-0 |
08 |
1 |
1407- |
| |
216 |
00.293 DOWEL
|
8-97378-354-0 |
01 |
1 |
1407- |
