◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#14554) — 151 parça

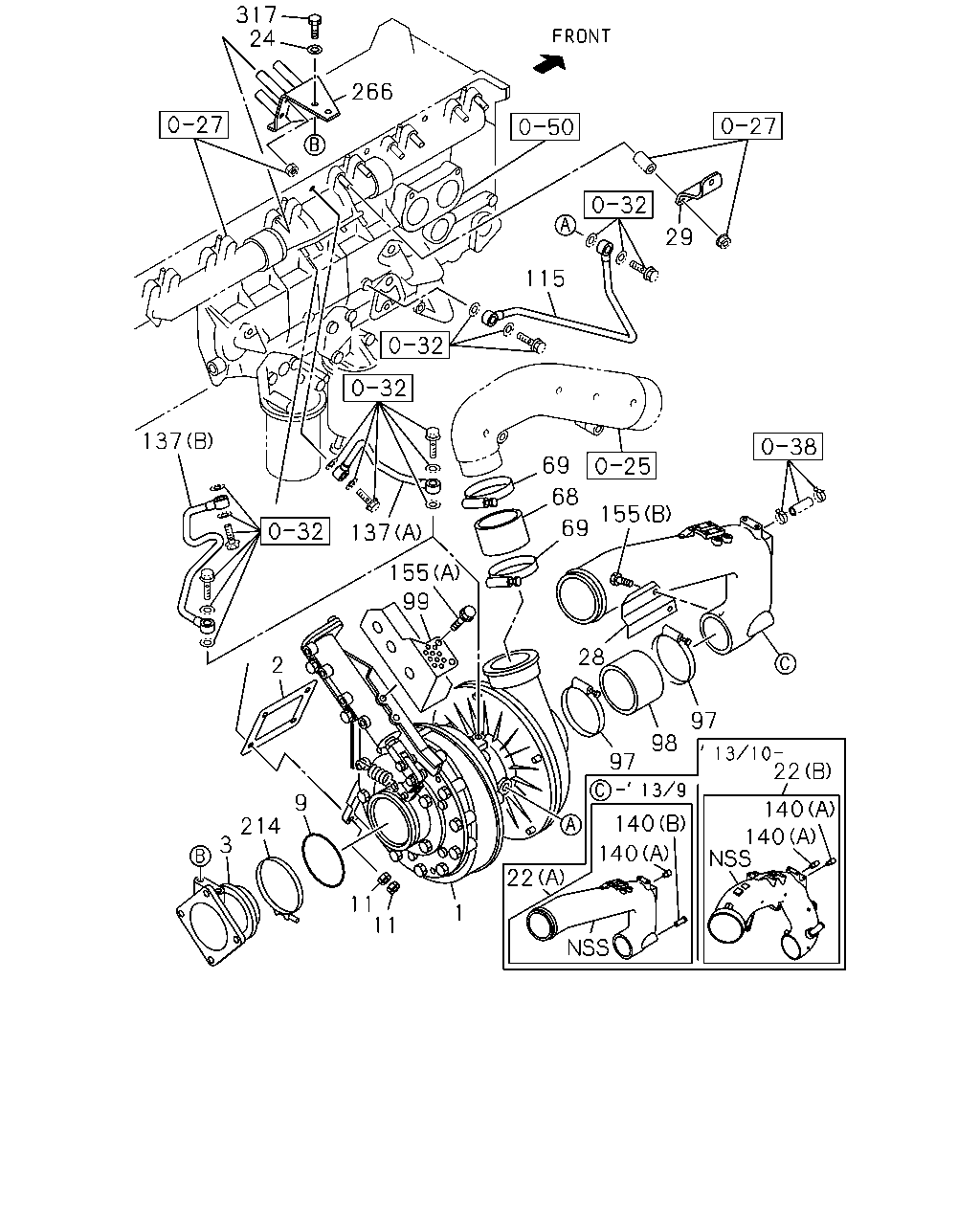

çizim 141438
317 24 266 29 115 137 137 155 99 2 9 214 3 11 11 1 22 140 140 97 28 22 140 140 69 68 69 155 97 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 1-14400-457-7 01 1 1108- ●
1 TURBOCHARGER ASM 1-14400-447-4 01 1 0710-1005 ●
1 TURBOCHARGER ASM 1-14400-447-5 01 1 1006- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0710-0804 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0805-1001 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002-1005 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1006-1107 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1108- ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0710-1005 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1006-1107 ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1108- ● ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 0710-1005 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1006-1107 ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1108- ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0710-1005 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1006-1107 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1108- ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-2 01 1 0710-1005 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 1006-1107 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 1108-1309 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-98254-521-1 01 1 1310- ● ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0710-1005 ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1006-1107 ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1108- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0710-1005 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1006-1107 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1108- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0710-1005 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1006-1107 ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1108- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0710-1005 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 1006-1007 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008-1107 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1108- ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0710-1005 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 1006-1007 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008-1107 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1108- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0710-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=120-140 		8-98133-367-0 02 1 0901-0902 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0903-1005 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1006-1107 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1108- ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0710-1005 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1006-1107 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1108- ● ● ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 0710-1005 ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 1006- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0710-1005 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1006-1107 ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1108- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-1 01 1 0710-1005 ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-1 01 1 1006-1107 ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 1108-1412 ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501- ● ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0710-1005 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1006-1107 ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1108-1309 ● ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0710-1005 ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1006-1107 ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1108- ● ● ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 0710-1005 ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 1006- ● ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0710-1005 ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1006-1107 ● ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 0710-1005 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 1006-1107 ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 1108- ● ● ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0710-1005 ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1006-1107 ● ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1108- ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0710-1005 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1006-1107 ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1108- ● ● ●

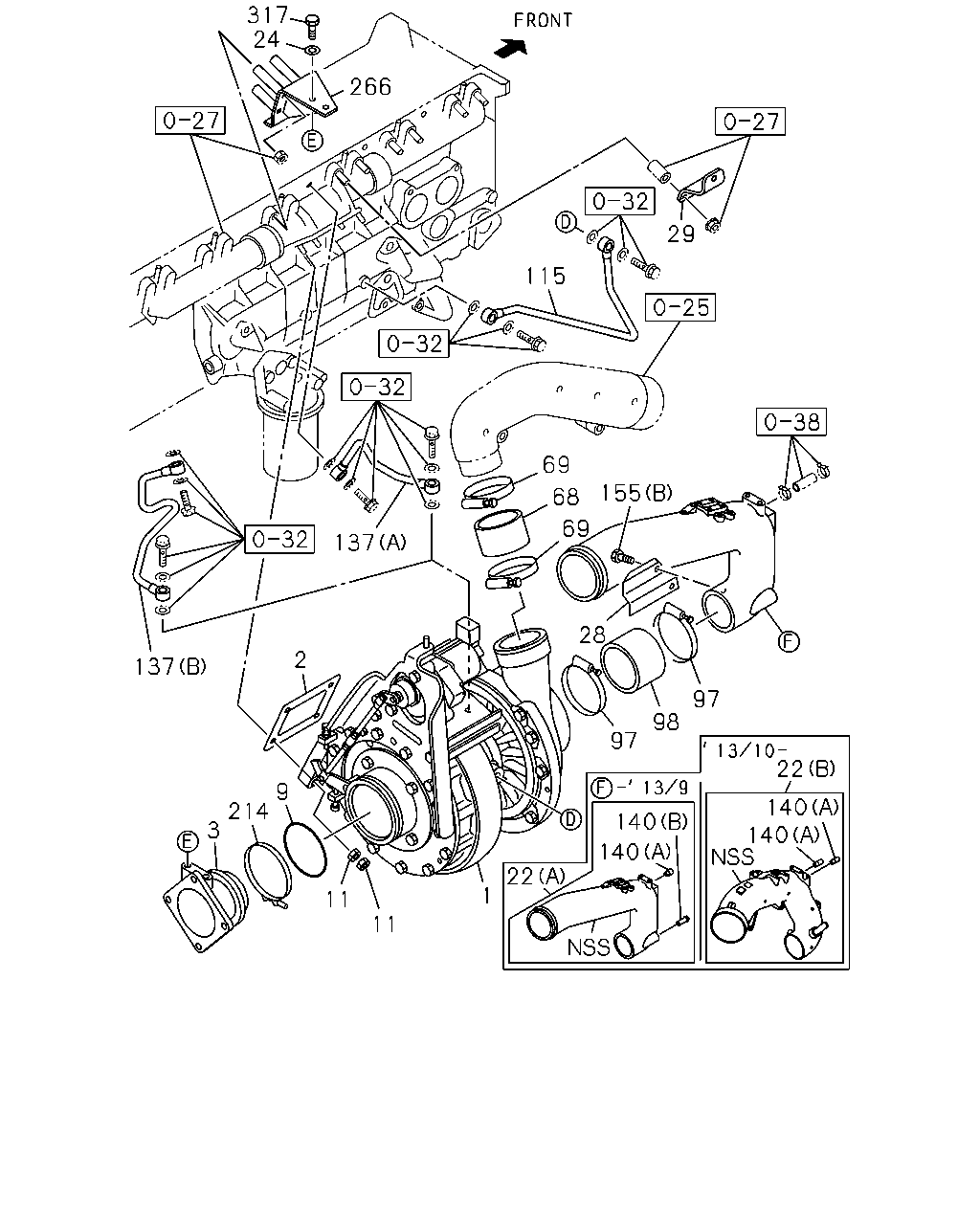

çizim 141836
317 266 24 115 29 137 2 137 214 11 11 3 9 1 22 140 140 22 140 140 98 97 97 28 69 68 69 155
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 1-14400-457-7 01 1 1108- ●
1 TURBOCHARGER ASM 1-14400-447-4 01 1 0710-1005 ●
1 TURBOCHARGER ASM 1-14400-447-5 01 1 1006- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0710-0804 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0805-1001 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002-1005 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1006-1107 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1108- ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0710-1005 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1006-1107 ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1108- ● ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 0710-1005 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1006-1107 ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1108- ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0710-1005 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1006-1107 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1108- ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-2 01 1 0710-1005 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 1006-1107 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 1108-1309 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-98254-521-1 01 1 1310- ● ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0710-1005 ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1006-1107 ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1108- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0710-1005 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1006-1107 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1108- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0710-1005 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1006-1107 ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1108- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0710-1005 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 1006-1007 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008-1107 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1108- ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0710-1005 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 1006-1007 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008-1107 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1108- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0710-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=120-140 		8-98133-367-0 02 1 0901-0902 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0903-1005 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1006-1107 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1108- ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0710-1005 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1006-1107 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1108- ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0710-1005 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1006-1107 ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1108- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-1 01 1 0710-1005 ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-1 01 1 1006-1107 ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 1108-1412 ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501- ● ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0710-1005 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1006-1107 ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1108-1309 ● ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0710-1005 ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1006-1107 ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1108- ● ● ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 0710-1005 ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 1006- ● ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0710-1005 ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1006-1107 ● ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 0710-1005 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 1006-1107 ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 1108- ● ● ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0710-1005 ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1006-1107 ● ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1108- ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0710-1005 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1006-1107 ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1108- ● ● ●
çizim 141842
309
BalonParca AdiParca NoAdetTipApplied Date A B C
309 BOLT; TURBOCHARGER
M6X20 FLANGE 		0-28650-620-0 02 1 1108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
