0-33 — FAN AND FAN BELT (#14552) — 172 parça

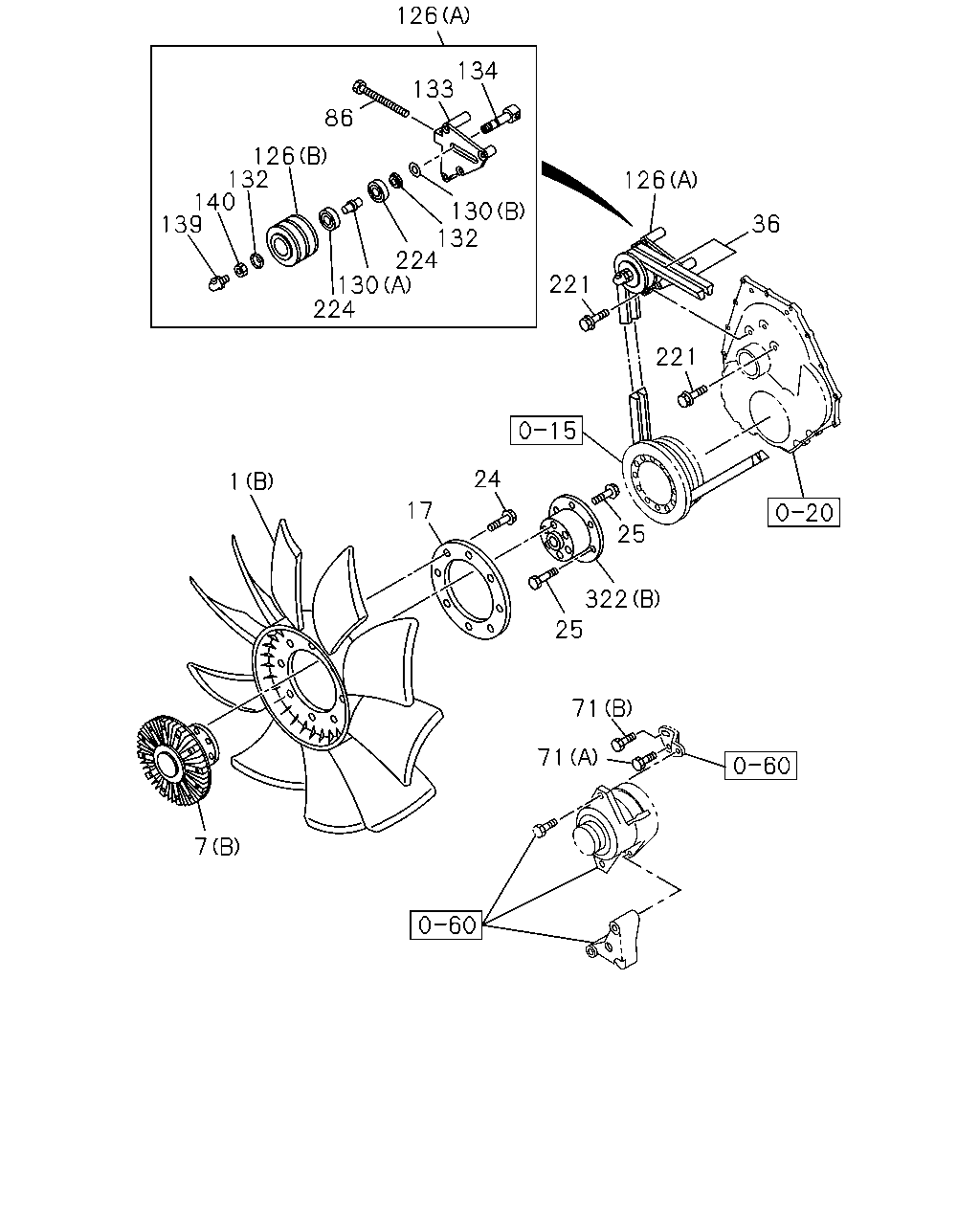

126 134 133 86 126 132 140 139 126 130 132 224 130 224 36 221 221 24 1 17 25 322 25 71 71 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FAN; COOLING (B)	8-98100-767-0	01	1	1008-	●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	0710-1005		●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1006-1007	●	●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1008-1107		●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1108-1510		●	●
1	FAN; COOLING (A)	8-98296-792-0	01	1	1511-		●	●
7	COUPLING; FAN (B)	8-98100-758-0	01	1	1008-	●
7	COUPLING; FAN (A)	8-98071-043-0	01	1	0710-0806		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	0807-1005		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1006-1007	●	●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1008-1107		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1108-		●	●
17	WASHER; LK,FAN TO COUPLING	8-98100-761-0	01	1	1008-	●
24	BOLT; FAN M10X20 FLANGE	0-28151-020-0	08	1	1008-	●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	0710-1005		●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1006-1007	●	●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1008-1107		●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1108-		●	●
25	BOLT; ADAPTER M10X80 FLANGE	0-28061-080-0	06	1	1008-	●
25	BOLT; ADAPTER M10X35	0-28161-035-0	06	1	1008-	●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	0710-1005		●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1006-1007	●	●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1008-1107		●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1108-		●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	0710-1005		●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1006-1107	●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1108-	●	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1006-1107	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1108-	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	0710-1005		●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	1006-1107	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	1108-	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	0710-1005		●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	1006-1107	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	1108-	●	●	●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	0710-1005		●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	1006-1107	●	●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	1108-	●	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	0710-1005		●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1006-1107	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1108-	●	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	0710-1005		●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1006-1107	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1108-	●	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	0710-1005		●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	1006-1107	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	1108-	●	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	0710-1005		●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	1006-1107	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	1108-	●	●	●
132	COVER; DUST	1-13664-009-2	02	1	0710-1005		●
132	COVER; DUST	1-13664-009-2	02	1	1006-1107	●	●
132	COVER; DUST	1-13664-009-2	02	1	1108-	●	●	●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	0710-1005		●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	1006-1107	●	●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	1108-	●	●	●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	0710-1005		●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	1006-1107	●	●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	1108-	●	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	0710-1005		●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	1006-1107	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	1108-	●	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	0710-1005		●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	1006-1107	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X40 FLANGE	0-28151-040-0	01	1	1104-1107	●	●
221	BOLT; IDLE PULLEY M10X40 FLANGE	0-28151-040-0	01	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X50 FLANGE	0-28151-050-0	02	1	1104-1107	●	●
221	BOLT; IDLE PULLEY M10X50 FLANGE	0-28151-050-0	02	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	0710-1005		●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	1006-1107	●	●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	1108-	●	●	●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0710-0907		●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	0908-1005		●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	1006-1107	●	●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	1108-	●	●	●
322	ADAPTER; COUPLING (B)	8-98097-545-0	01	1	1008-	●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	0710-1005		●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1006-1007	●	●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1008-1107		●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1108-		●	●

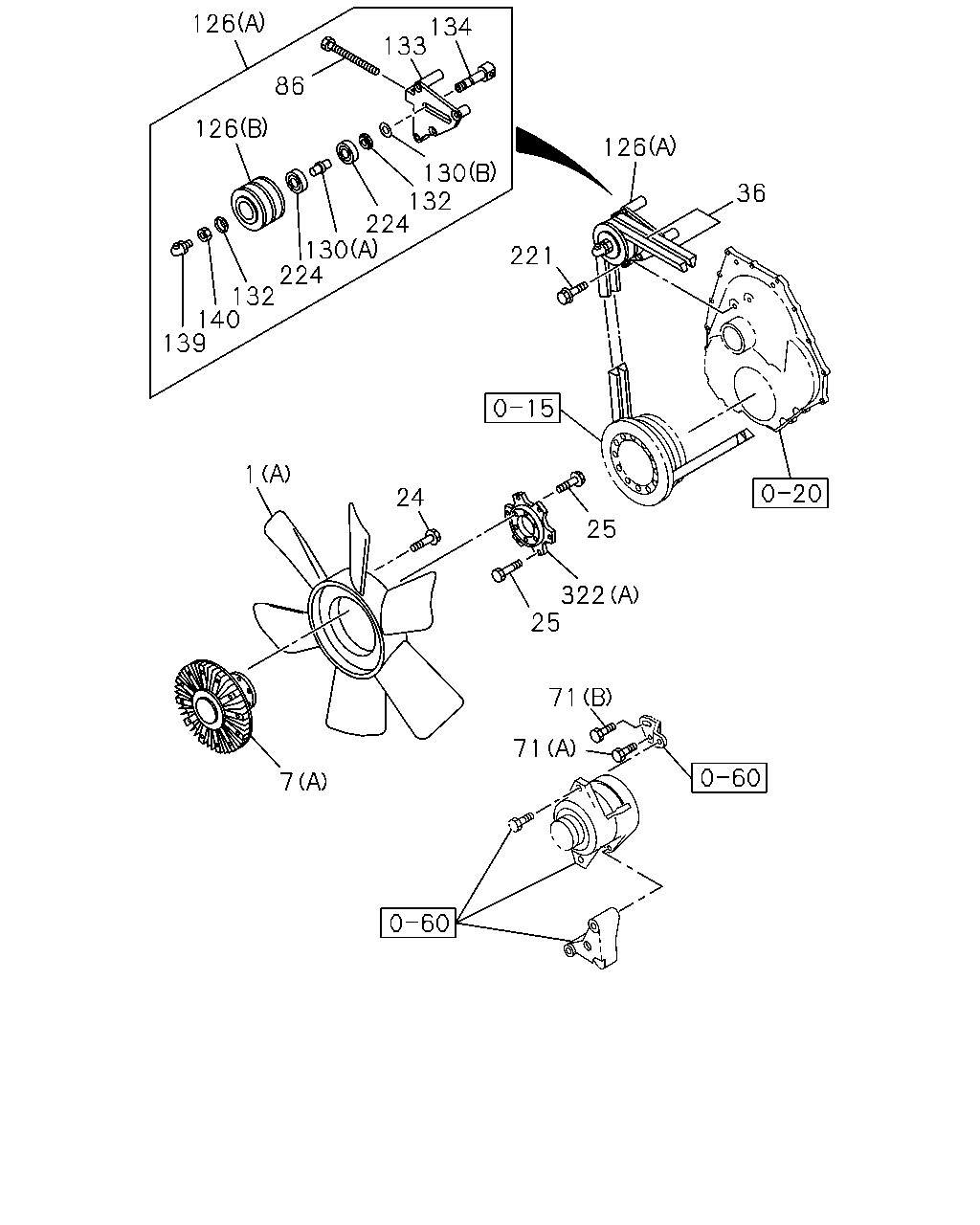

126 134 133 86 126 126 130 132 224 36 130 224 132 140 139 221 1 24 25 322 25 71 71 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FAN; COOLING (B)	8-98100-767-0	01	1	1008-	●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	0710-1005		●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1006-1007	●	●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1008-1107		●
1	FAN; COOLING (A) OD=700	1-13660-286-1	01	1	1108-1510		●	●
1	FAN; COOLING (A)	8-98296-792-0	01	1	1511-		●	●
7	COUPLING; FAN (B)	8-98100-758-0	01	1	1008-	●
7	COUPLING; FAN (A)	8-98071-043-0	01	1	0710-0806		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	0807-1005		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1006-1007	●	●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1008-1107		●
7	COUPLING; FAN (A)	8-98119-742-0	01	1	1108-		●	●
24	BOLT; FAN M10X20 FLANGE	0-28151-020-0	08	1	1008-	●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	0710-1005		●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1006-1007	●	●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1008-1107		●
24	BOLT; FAN M10X16 FLANGE	0-28161-016-0	06	1	1108-		●	●
25	BOLT; ADAPTER M10X80 FLANGE	0-28061-080-0	06	1	1008-	●
25	BOLT; ADAPTER M10X35	0-28161-035-0	06	1	1008-	●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	0710-1005		●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1006-1007	●	●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1008-1107		●
25	BOLT; ADAPTER M10X30 FLANGE	0-28161-030-0	12	1	1108-		●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	0710-1005		●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1006-1107	●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1108-	●	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1006-1107	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1108-	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	0710-1005		●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	1006-1107	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	1108-	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	0710-1005		●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	1006-1107	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	1108-	●	●	●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	0710-1005		●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	1006-1107	●	●
86	BOLT; ADJ M10X135	1-09009-113-1	01	1	1108-	●	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	0710-1005		●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1006-1107	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1108-	●	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	0710-1005		●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1006-1107	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1108-	●	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	0710-1005		●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	1006-1107	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	1108-	●	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	0710-1005		●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	1006-1107	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	1108-	●	●	●
132	COVER; DUST	1-13664-009-2	02	1	0710-1005		●
132	COVER; DUST	1-13664-009-2	02	1	1006-1107	●	●
132	COVER; DUST	1-13664-009-2	02	1	1108-	●	●	●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	0710-1005		●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	1006-1107	●	●
133	BRACKET; IDLE PULLEY	1-13669-197-2	01	1	1108-	●	●	●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	0710-1005		●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	1006-1107	●	●
134	SPINDLE; IDLE PULLEY	1-13665-060-1	01	1	1108-	●	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	0710-1005		●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	1006-1107	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	1108-	●	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	0710-1005		●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	1006-1107	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X40 FLANGE	0-28151-040-0	01	1	1104-1107	●	●
221	BOLT; IDLE PULLEY M10X40 FLANGE	0-28151-040-0	01	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X50 FLANGE	0-28151-050-0	02	1	1104-1107	●	●
221	BOLT; IDLE PULLEY M10X50 FLANGE	0-28151-050-0	02	1	1108-	●	●	●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	0710-1005		●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	1006-1107	●	●
221	BOLT; IDLE PULLEY M10X80 FLANGE	0-28151-080-0	04	1	1108-	●	●	●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0710-0907		●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	0908-1005		●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	1006-1107	●	●
224	BEARING; IDLE PULLEY	8-97633-017-0	02	1	1108-	●	●	●
322	ADAPTER; COUPLING (B)	8-98097-545-0	01	1	1008-	●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	0710-1005		●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1006-1007	●	●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1008-1107		●
322	ADAPTER; COUPLING (A)	8-97606-264-0	01	1	1108-		●	●

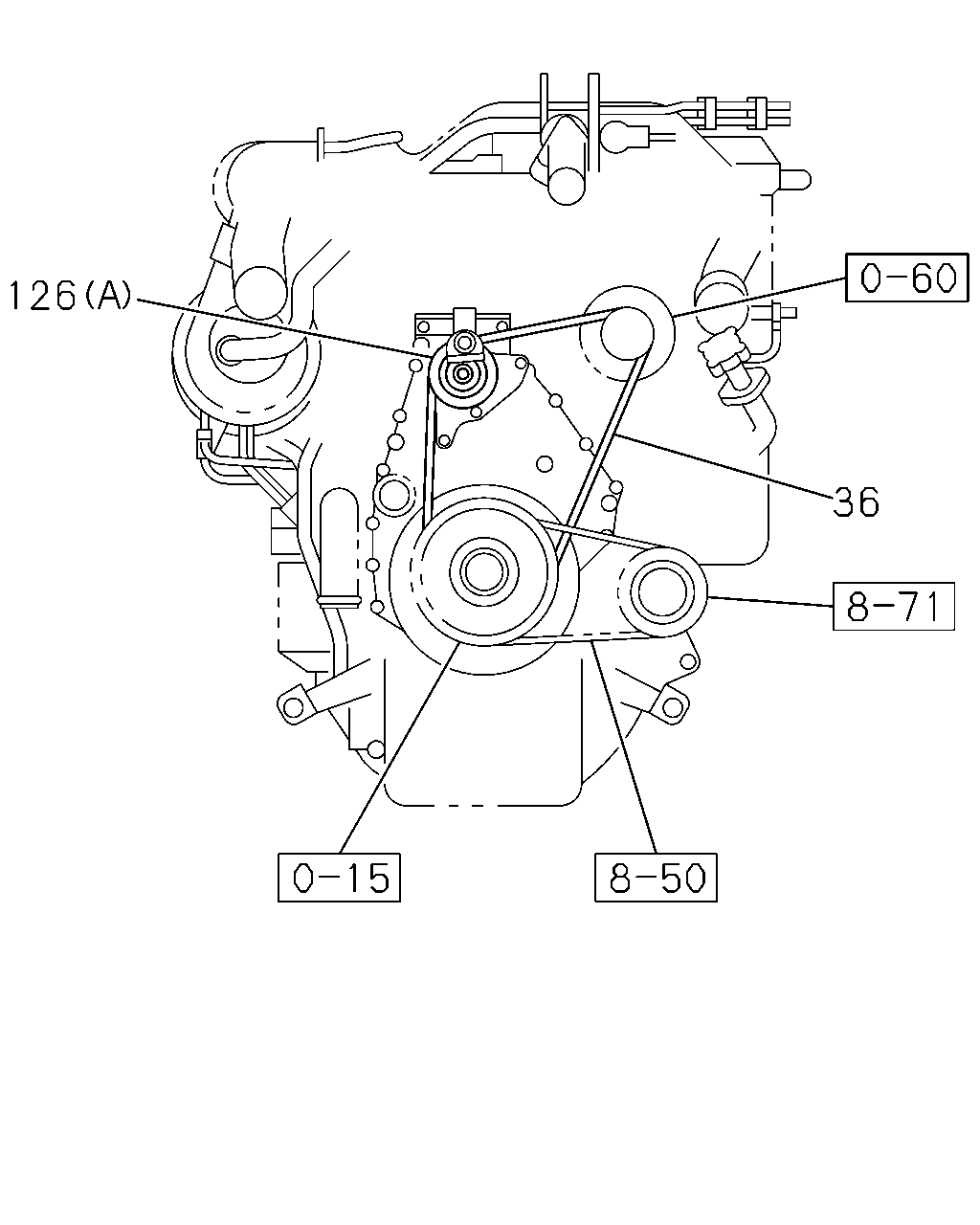

126 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	0710-1005		●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1006-1107	●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714651) MITSUBOSHI	1-13671-463-1	01	1	1108-	●	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1006-1107	●	●
36	BELT; COOLING FAN BEST VALUE PARTS	1-87610-098-0	01	1	1108-	●	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	0710-1005		●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1006-1107	●	●
126	PULLEY; IDLE (A)	1-13660-352-2	01	1	1108-	●	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	0710-1005		●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1006-1107	●	●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	1108-	●	●	●
