Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#14551) — 858 parça

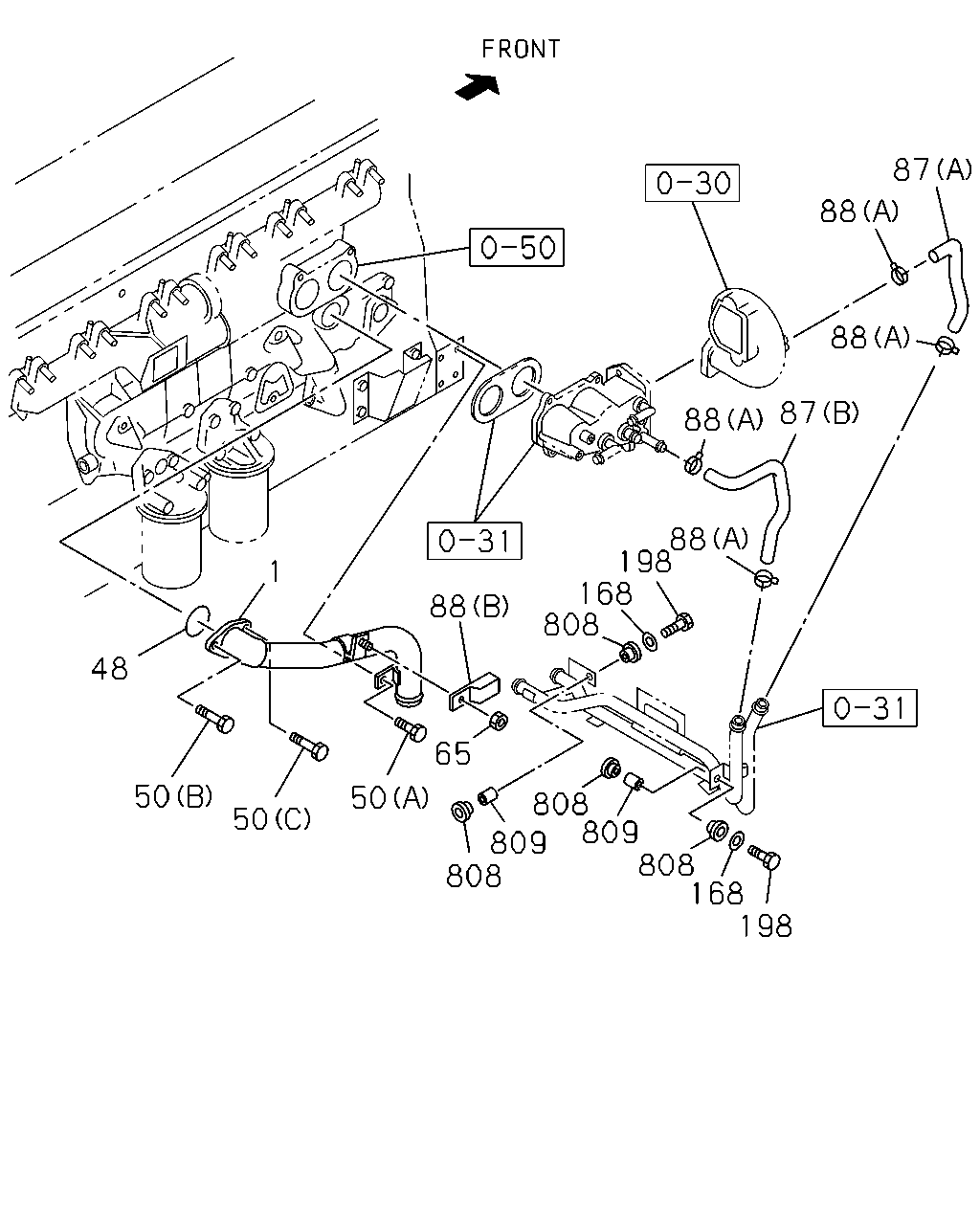

87 88 88 87 88 88 198 168 808 1 88 48 65 50 50 808 809 808 168 198 50 809 808

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; WATER PUMP,INL	8-97606-255-1	01	1	0710-1005	●
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1006-1107	●	●
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1108-	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0710-1005	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1006-1107	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1108-	●	●	●
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28051-090-0	01	1	1108-1306			●
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28151-090-0	01	1	1307-			●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0710-1005	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1006-1107	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1108-	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0710-1005	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	1006-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0710-1005	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1006-1107	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1108-	●	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0710-1005	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1006-1107	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1108-	●	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0710-1005	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1006-1107	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1108-	●	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0710-1005	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1006-1107	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1108-	●	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0710-1005	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1006-1107	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1108-	●	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0710-1005	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	1006-1107	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	1108-1206	●	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0710-1005	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1006-1107	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1108-	●	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0710-1005	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1006-1107	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1108-	●	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	0710-1005	●
808	RUBBER; MTG	1-09337-017-0	04	1	1006-1107	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	1108-	●	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0710-1005	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1006-1107	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1108-	●	●	●

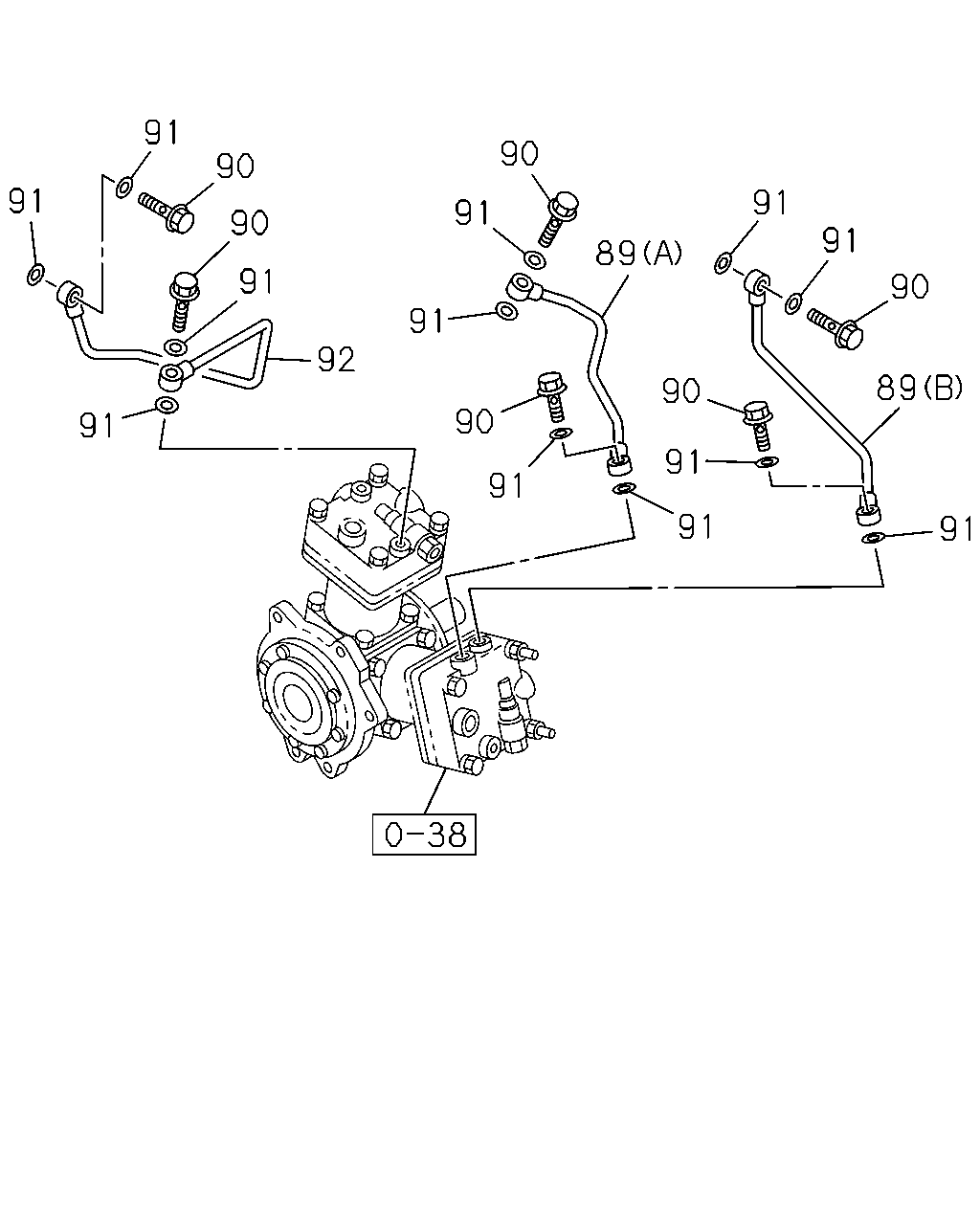

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	0710-1005	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1006-1107	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1108-	●	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	0710-1005	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1006-1107	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1108-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0710-1005	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1006-1107	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1108-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0710-1005	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1006-1107	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1108-	●	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0710-1005	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1006-1107	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1108-	●	●	●

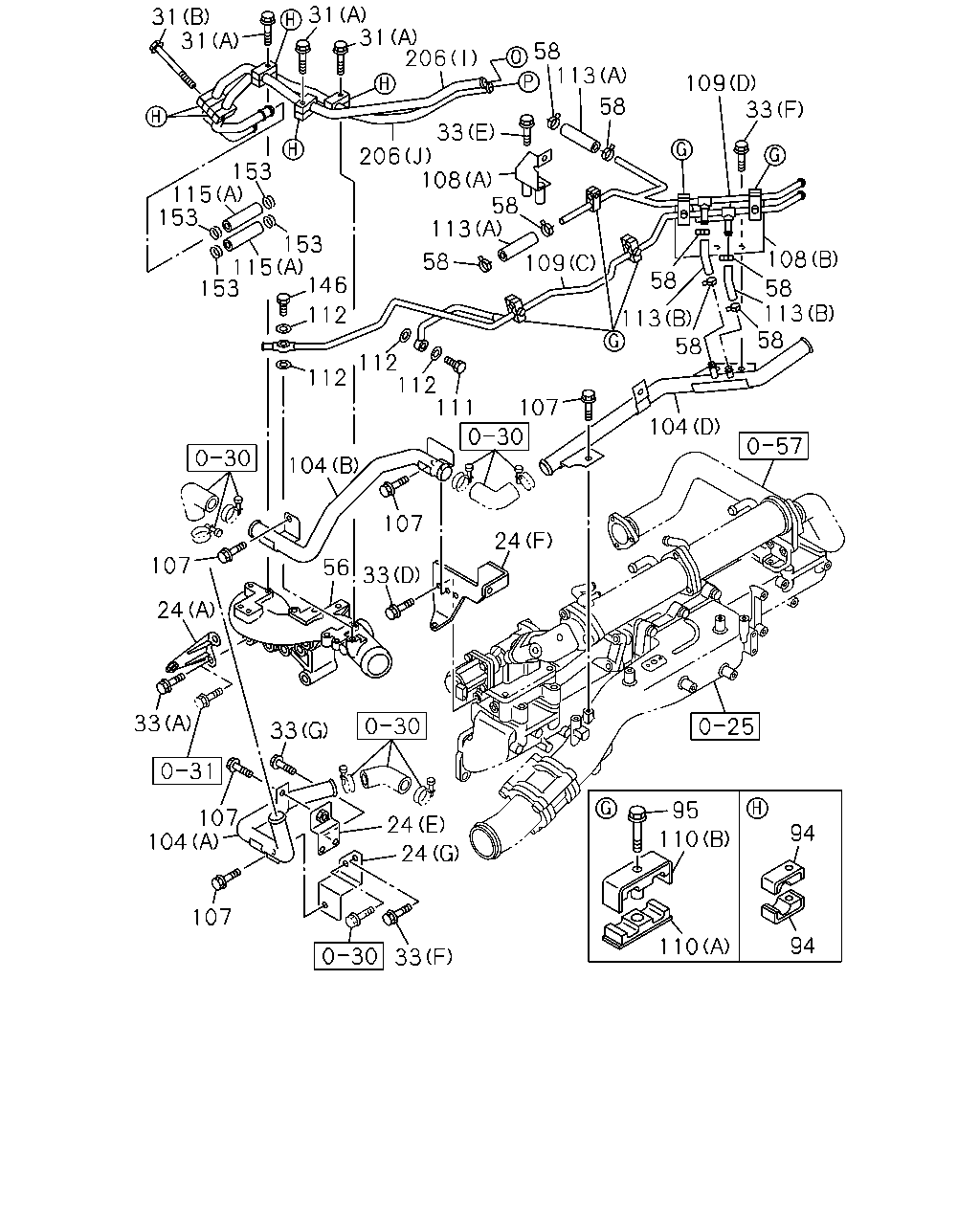

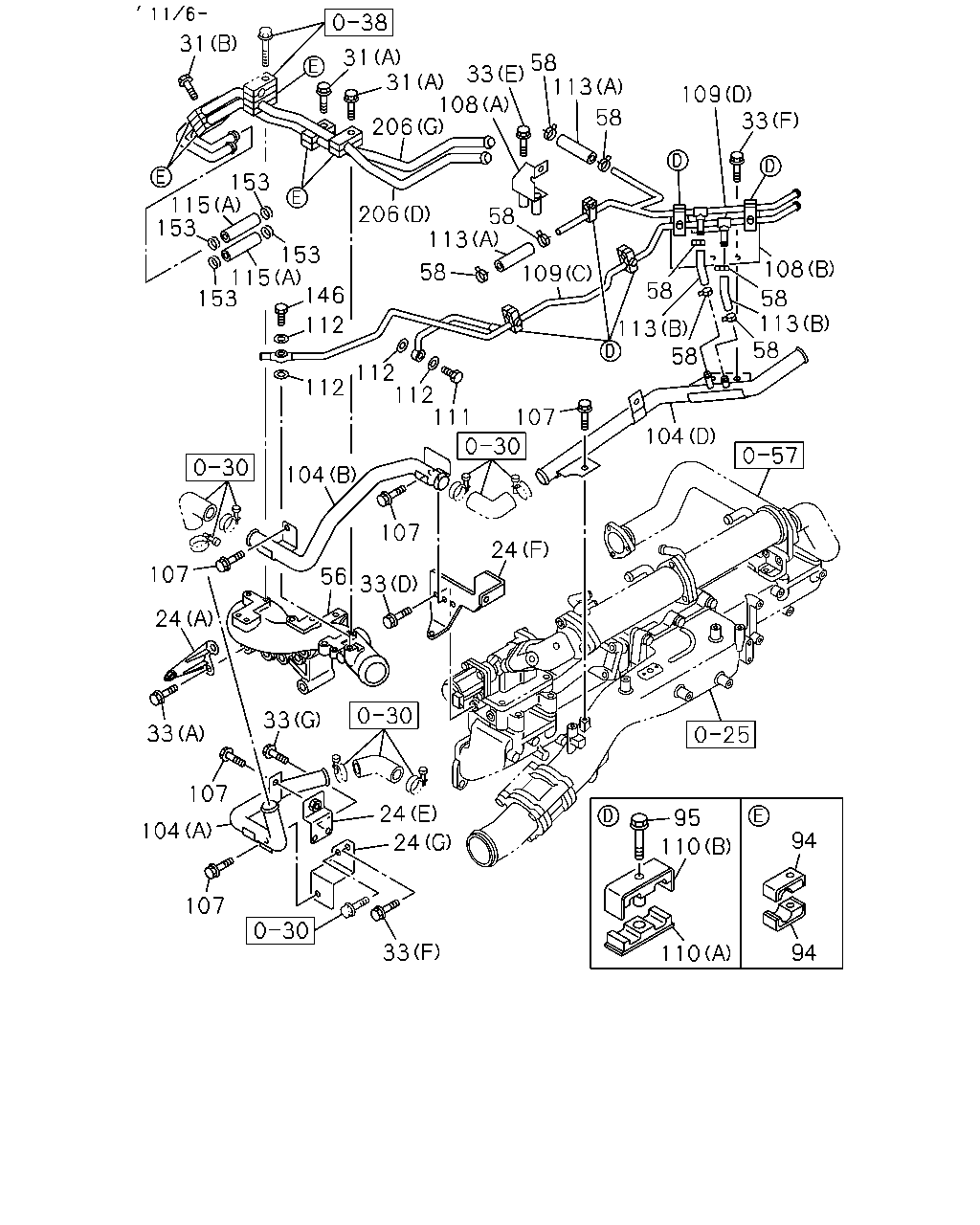

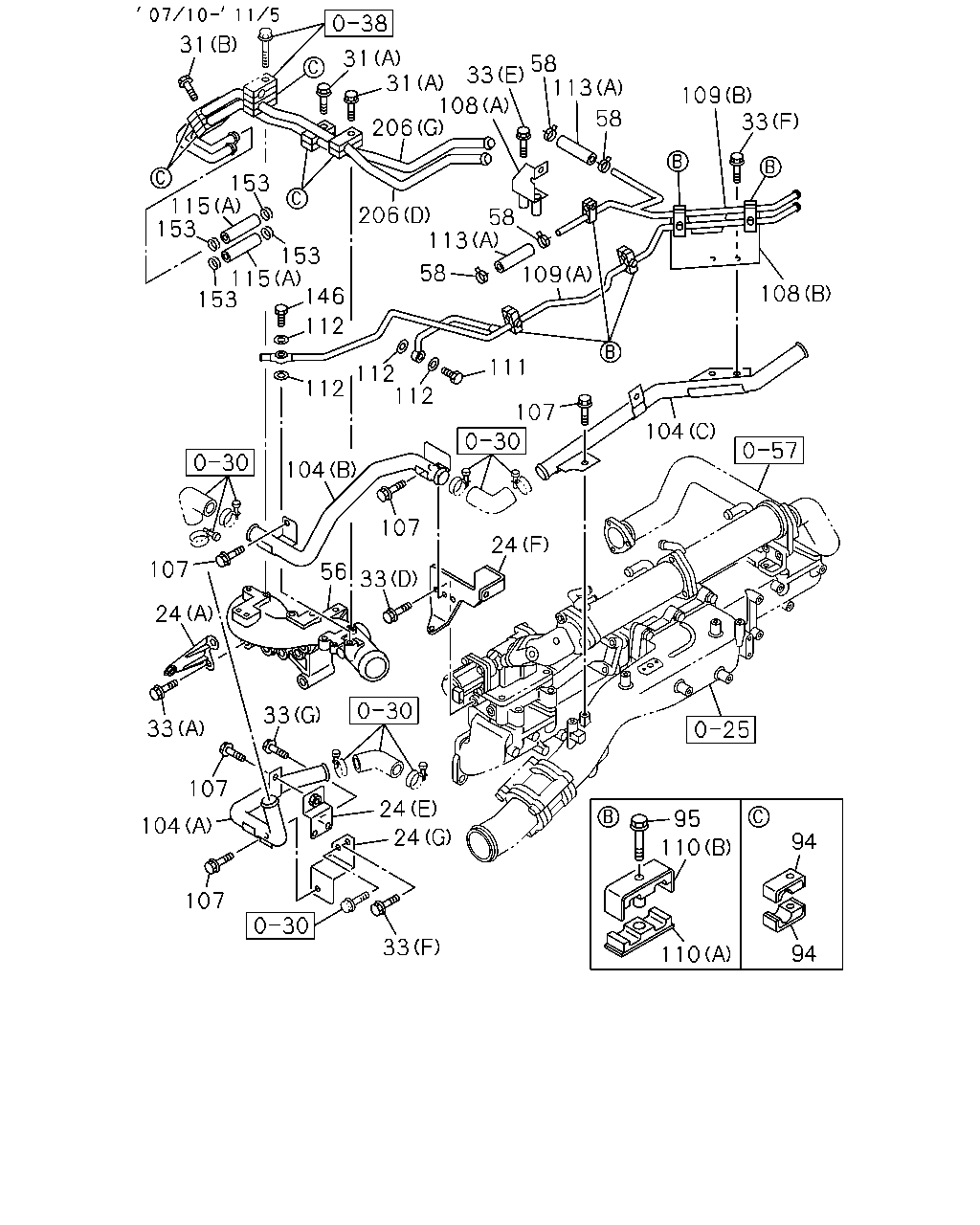

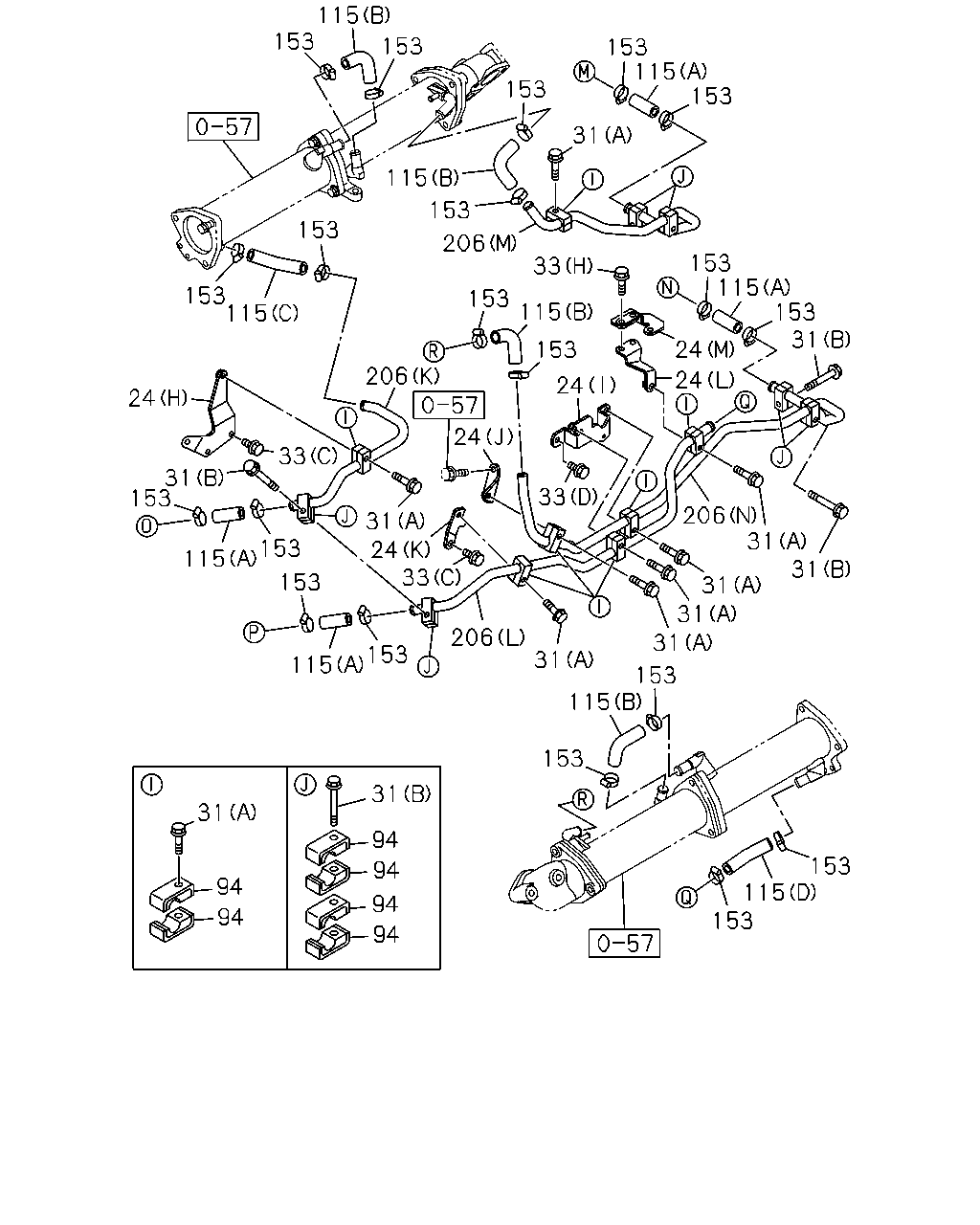

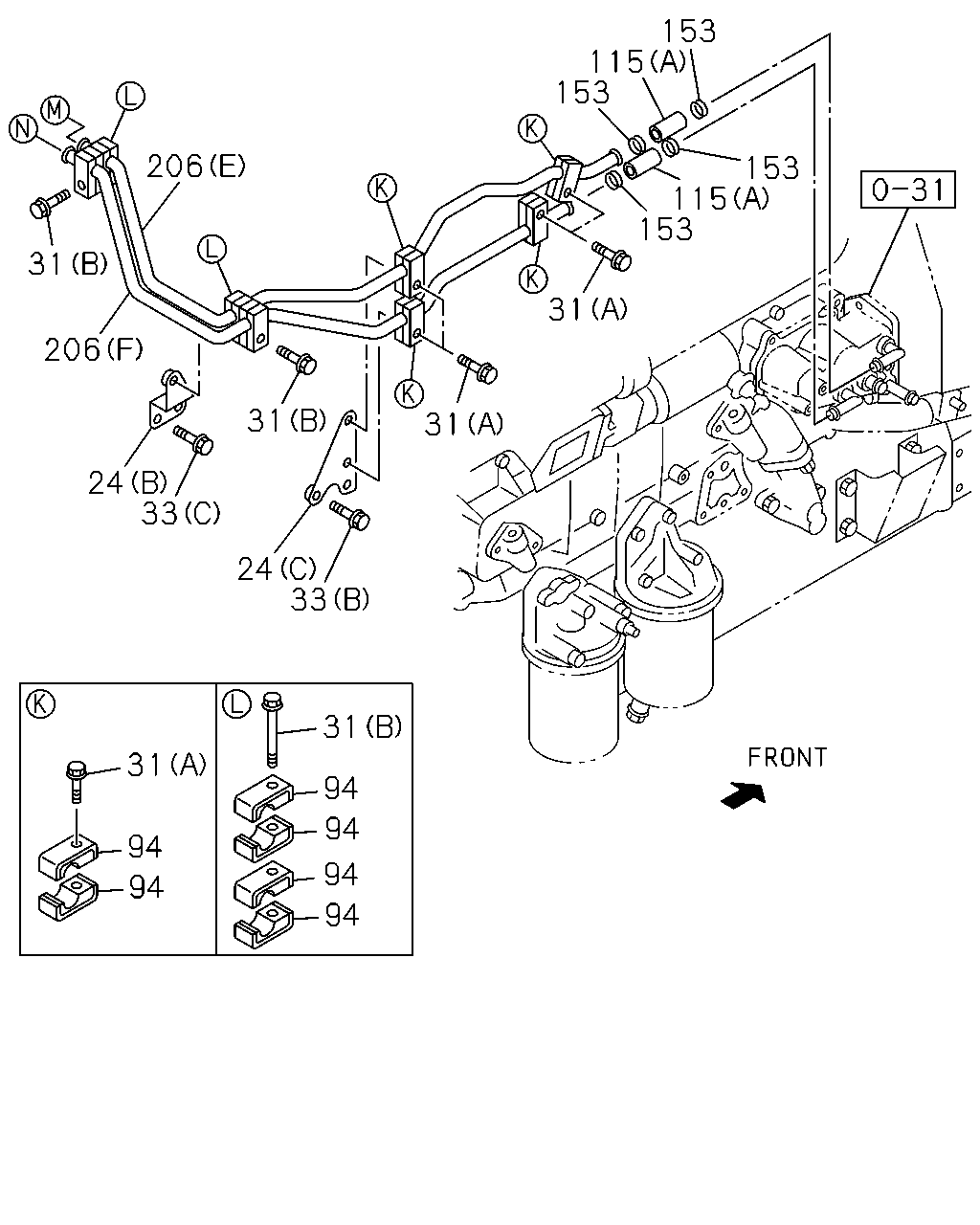

31 31 31 58 33 113 108 109 33 58 206 153 115 153 206 113 58 153 115 153 146 58 109 108 112 111 112 112 112 107 104 104 107 24 107 56 33 24 33 33 107 24 95 104 24 94 110 107 33 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0710-1005	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1006-1107	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1108-	●	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0710-1005	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1006-1105	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-1107	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1108-			●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0710-1005	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	1006-	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	1006-1105	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1106-1107	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0710-1005	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1108-	●	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1108-	●	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-343-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-497-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-495-0	01	1	1106-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-496-0	01	1	1106-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1108-			●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1108-			●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0710-1005	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	1006-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0710-1005	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	1006-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0710-1005	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1006-1107	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-1107	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1108-			●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0710-1005	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1006-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

33 24 153 115 153 153 115 153 153 115 153 31 115 153 153 153 153 115 206 153 115 153 153 206 115 31 153 153 206 206 115 153 31 31 115 153 31 153 24 24 33 115 206 206 33 24 31 31 94 94 24 33 24 94 94 94 94 33 153 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

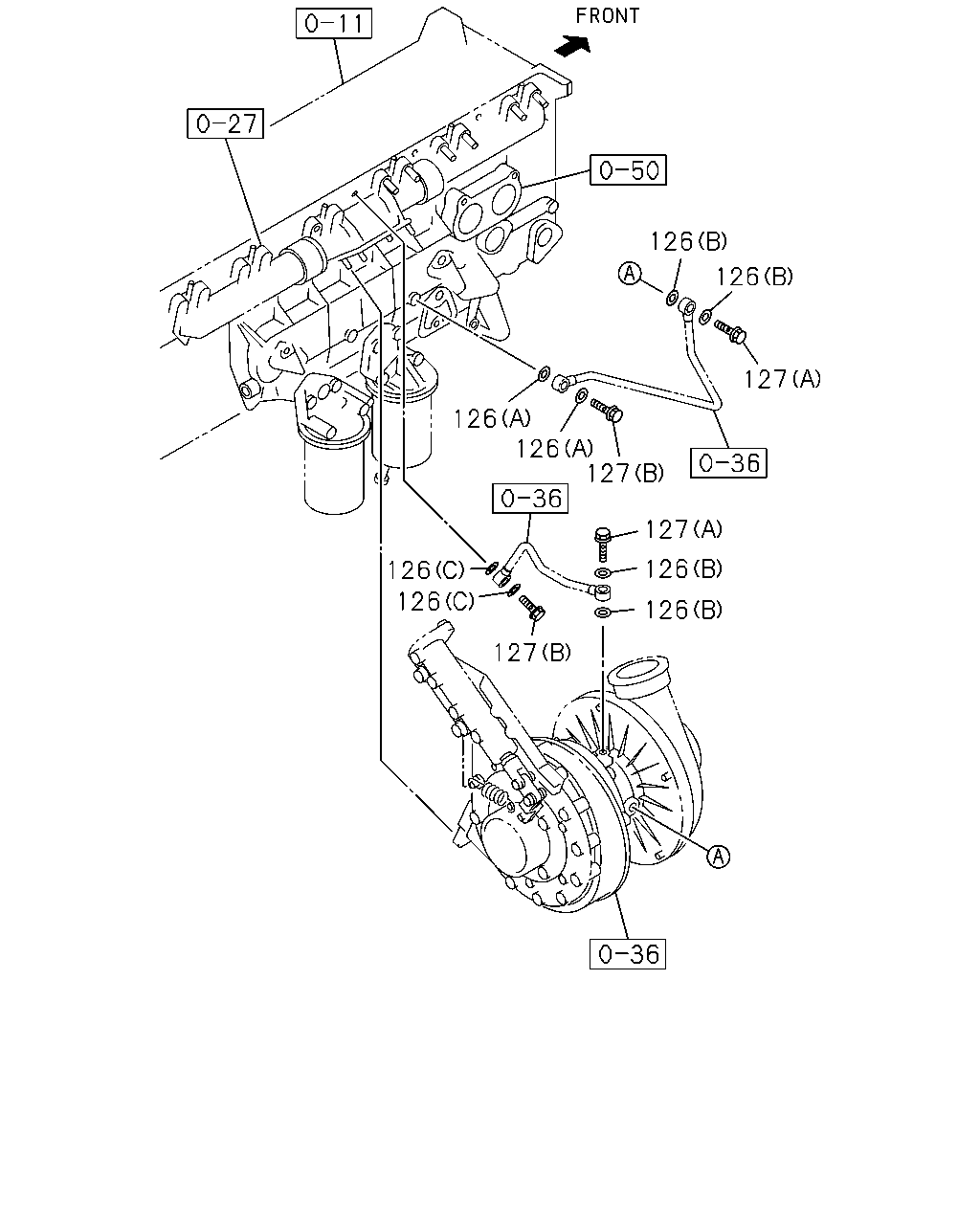

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1108-			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1005	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1006-1107	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1108-1312	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0710-1005	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1006-1107	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1108-	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0710-1005	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1006-	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	0710-1005	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1006-1107	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1108-	●	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0710-1005	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1006-1107	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1108-	●	●	●

31 31 31 58 33 113 108 109 33 58 206 153 115 153 206 113 58 153 115 153 146 108 58 109 58 58 113 58 112 113 58 112 112 111 112 107 104 104 107 24 107 56 33 24 33 33 107 24 95 104 94 24 110 107 33 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0710-1005	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1006-1107	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1108-	●	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0710-1005	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1006-1105	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-1107	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1108-			●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0710-1005	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	1006-	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	1006-1105	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1106-1107	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0710-1005	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1108-	●	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1108-	●	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-343-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-497-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-495-0	01	1	1106-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-496-0	01	1	1106-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1108-			●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1108-			●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0710-1005	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	1006-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0710-1005	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	1006-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0710-1005	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1006-1107	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-1107	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1108-			●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0710-1005	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1006-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

153 115 153 206 153 115 153 31 31 206 31 31 24 33 24 33 31 31 94 94 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

115 153 153 153 115 153 153 31 115 153 153 206 153 115 153 31 33 153 115 153 115 24 153 206 24 24 24 24 33 31 153 33 206 31 31 31 24 33 153 115 153 31 31 31 206 31 153 115 153 115 153 31 31 94 153 115 153 94 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

31 31 206 31 31 58 113 109 33 58 33 206 108 153 58 115 153 113 153 115 153 146 108 58 109 58 58 113 58 112 113 58 112 112 111 112 107 104 104 107 24 107 56 33 24 33 33 95 107 104 24 94 110 24 107 94 110 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (M)	8-97628-207-0	01	1	1108-			●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1108-			●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1006-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0710-1005	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1108-	●	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0710-1005	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1006-1107	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1108-	●	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1108-	●	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0710-1005	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1006-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0710-1005	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1006-1107	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1108-1507			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1108-			●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1108-			●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0710-1005	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1006-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0710-1005	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1006-1107	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1108-	●	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-1005	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1006-1107	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1108-	●	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0710-1005	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1006-1107	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1108-	●	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0710-1005	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1006-1107	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1108-	●	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0710-1005	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1006-1107	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1108-	●	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0710-1005	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1006-1107	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1108-	●	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0710-1005	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1006-1105	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-1107	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1108-	●	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0710-1005	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1006-1107	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1108-	●	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1108-			●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0710-1005	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	1006-	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0710-1005	●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	1006-1105	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1106-1107	●	●
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1108-	●	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0710-1005	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1006-1107	●	●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1108-	●	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0710-1005	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1006-1107	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1108-	●	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0710-1005	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1006-1107	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1108-	●	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-343-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-497-0	01	1	1108-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-495-0	01	1	1106-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0710-1005	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	1006-1105	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-496-0	01	1	1106-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1108-			●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1108-			●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0710-1005	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	1006-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0710-1005	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	1006-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0710-1005	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1006-1107	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-1107	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1108-			●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1108-	●	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0710-1005	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1006-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1108-			●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1108-			●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1108-			●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0710-0805	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1005	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1006-1107	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1108-	●	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0710-0805	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1005	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1006-	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-1005	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1006-1107	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1108-	●	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0710-1005	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1006-1107	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (J)	8-97623-511-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (K)	8-97628-203-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (L)	8-97628-204-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (M)	8-97628-205-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (N)	8-97628-206-1	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (I)	8-97629-442-0	01	1	1108-			●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1006-1107	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1108-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1006-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0710-1005	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
