4-31 — STEERING COLUMN AND SHAFT (#1455) — 42 parça

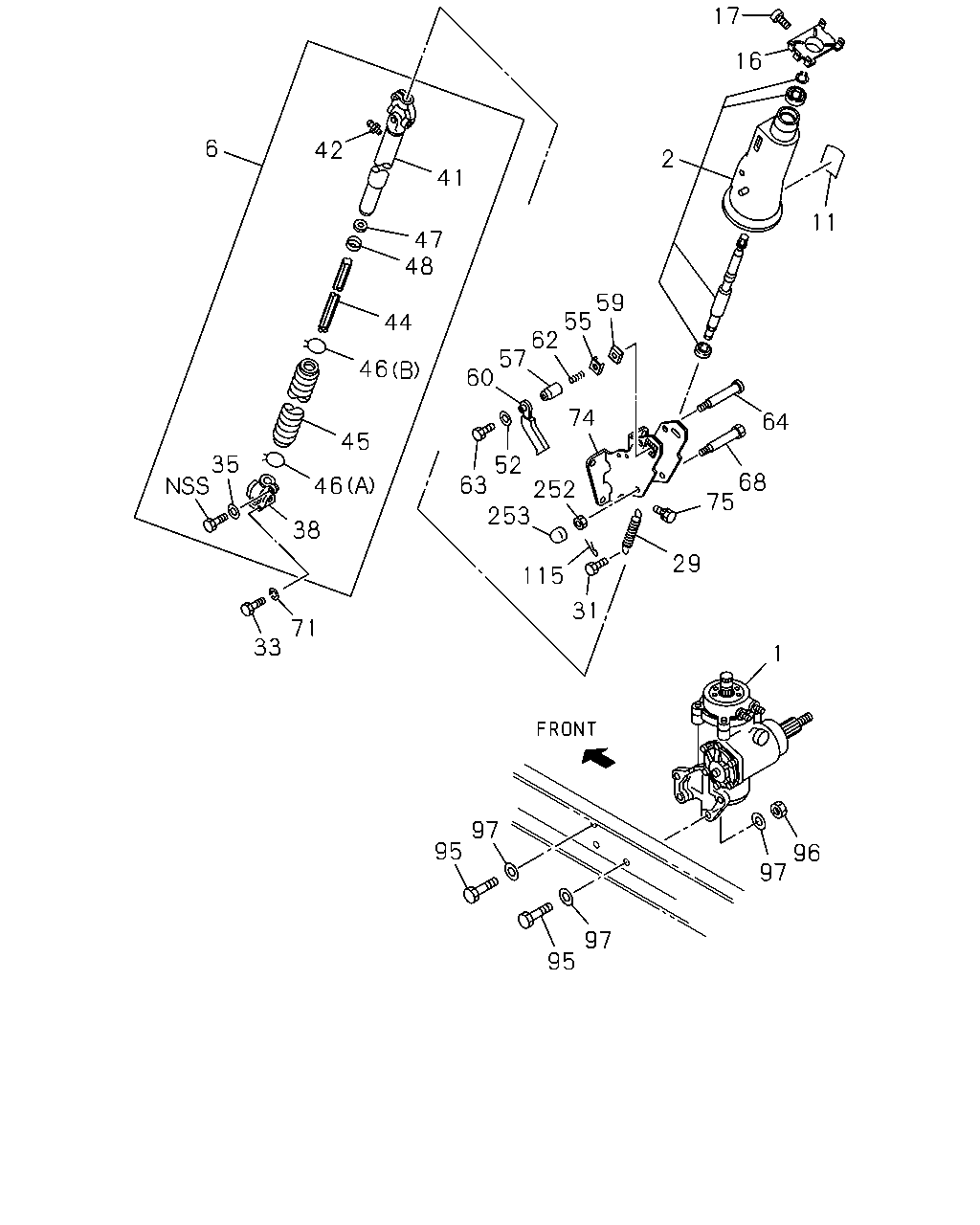

çizim 27923
17 16 6 42 2 41 11 47 48 59 55 62 57 60 44 74 64 45 35 52 63 68 75 46 252 253 38 29 115 31 71 33 1 97 95 96 97 97 95 46
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-808-2 01 1 9203-
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-524-0 01 1 9203-9504
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-607-0 01 1 9505-
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-510-0 01 1 9203-9504
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-606-0 01 1 9505-
6 SHAFT; STRG LWR 1-44135-258-0 01 1 9203-
11 SEAL; JOURNAL,STRG 1-44229-049-0 01 1 9203-
16 BRACKET; COMB SW
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44227-124-0 01 1 9203-
16 BRACKET; COMB SW
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44227-123-0 01 1 9203-
17 SCREW; BRKT
M5X10 W/LK WASHER 		9-03910-510-0 03 1 9203-
29 SPRING; COLUMN 1-09583-274-0 02 1 9203-
31 SCREW; HOOK 9-01045-620-0 02 1 9203-9504
31 SCREW; HOOK
M6X20 		0-20800-620-0 02 1 9505-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9203-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9203-
38 JOURNAL; STRG SHAFT 1-44135-209-0 01 1 9203-
41 YOKE; SLEEVE,STRG 1-44135-262-0 01 1 9203-
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9203-
44 SHAFT; SPLINE,STRG 1-44135-228-0 01 1 9203-
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9203-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9203-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9203-
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9203-
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9203-
52 WASHER; PL,ADJ LEVER 1-09503-229-0 01 1 9203-
55 PLATE; GUIDE 1-44227-109-0 01 1 9203-
57 NUT; ADJ BOLT 1-44227-106-1 01 1 9203-
59 COLLAR; DIST,ADJ BOLT 1-44227-107-0 01 1 9203-
60 LEVER; ADJ,STRG COLUMN 1-44227-121-0 01 1 9203-
62 SPRING; LK,LEVER 1-09580-455-1 01 1 9203-
63 BOLT; ADJ LEVER,TILT STRG 1-44227-108-0 01 1 9203-
64 BOLT; ADJ,PROTECTOR 1-44227-104-0 01 1 9203-
68 PIN; TILT CENTER 1-44227-102-2 01 1 9203-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9203-
74 BRACKET; SUPPORT,STRG 1-44220-026-1 01 1 9203-
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9203-
95 BOLT; STRG UNIT
M14X60 		9-92061-460-0 05 1 9203-
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9203-
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 10 1 9203-
115 PIN; SPLIT,TILT CENTER BOLT
OD=1.8 L=15 		9-08112-015-0 01 1 9203-
252 NUT; TILT CENTER BOLT
M10 		9-09116-510-0 01 1 9203-
253 NUT; CAP 1-71736-199-0 01 1 9203-
