0-28 — VENTILATION SYSTEM (#14548) — 236 parça

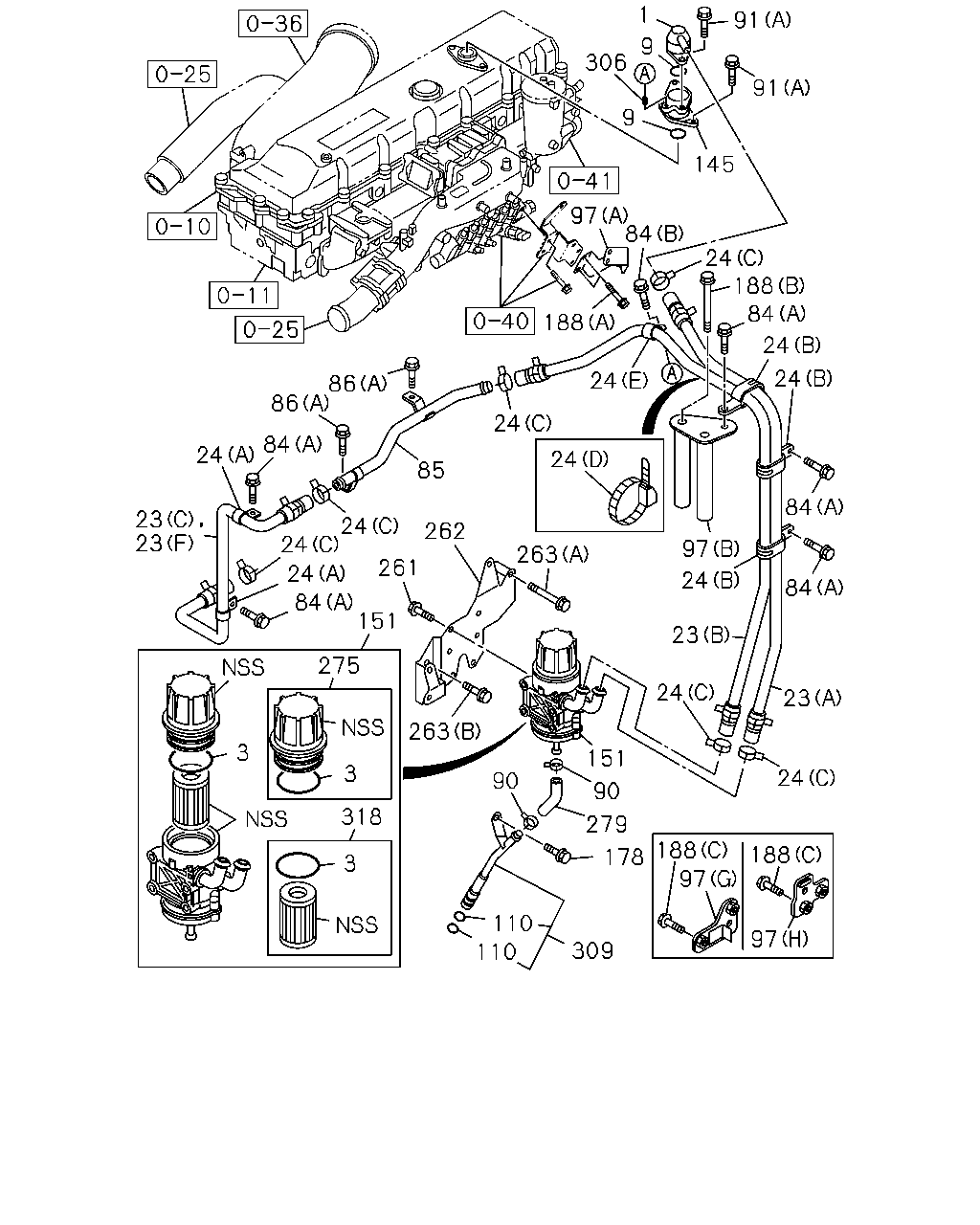

çizim 141435
1 9 91 91 306 9 145 97 84 24 188 84 24 24 84 84 97 24 23 24 23 24 188 97 97 188 178 279 90 151 309 110 110 90 263 3 318 3 3 275 151 261 263 262 24 24 24 84 23 23 24 84 86 86 85 24 24 24 188
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0710-1005 ●
1 BREATHER; AIR 1-11740-181-1 01 1 1006-1107 ● ●
1 BREATHER; AIR 1-11740-181-1 01 1 1108- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0710-1005 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1006-1107 ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1108- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 0710-1005 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1006-1107 ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1108- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(D) 		8-98122-987-1 01 1 1108- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(E) 		8-98122-988-0 01 1 1108- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98122-989-0 01 1 1108-1210 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98122-989-0 01 1 1211-1309 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98254-532-0 01 1 1310- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-2 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-3 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-1 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-2 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98227-927-0 01 1 1211- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-2 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-3 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98227-928-0 01 1 1211- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 05 1 1108- ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 1006-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 01 1 1211-1212 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 08 1 1301- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1006-1107 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1108-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1006-1107 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1108- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 1006-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 01 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 1006-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1211- ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 1108- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0710-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1006-1210 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 0710-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 1006-1107 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 1108-1210 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 1211- ● ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 0710-1005 ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1006-1107 ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1108- ● ● ●
86 BOLT; BREATHER PIPE
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1108- ●
86 BOLT; BREATHER PIPE
(B) 		8-97377-804-0 01 1 1108- ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1005 ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1006- ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0710-1005 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1006-1107 ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1108- ● ● ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ●
91 BOLT; AIR BREATHER
(B) M10X25 FLANGE 		0-28151-025-0 02 1 1108- ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0710-1005 ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 04 1 1006- ● ●
97 BRACKET; HOSE
(G) 		8-98227-930-0 01 1 1211- ● ●
97 BRACKET; HOSE
(H) 		8-98227-931-0 01 1 1211- ● ●
97 BRACKET; HOSE
(C) 		8-97628-209-0 01 1 1108- ●
97 BRACKET; HOSE
(D) 		8-98122-983-0 01 1 1108- ●
97 BRACKET; HOSE
(E) 		8-98122-984-0 01 1 1108- ●
97 BRACKET; HOSE
(F) 		8-98122-985-1 01 1 1108- ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0710-1005 ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 1006- ● ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 0710-1005 ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 1006-1210 ● ●
97 BRACKET; HOSE
(B) 		8-98227-929-0 01 1 1211- ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0710-1005 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1006-1107 ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1108- ● ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 0710-1005 ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1006-1107 ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1108- ● ● ●
151 SEPARATOR; OIL,PCV 8-98126-690-0 01 1 1108- ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0710-1005 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 1006- ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1006-1107 ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1108- ● ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1211- ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 05 1 1108- ●
188 BOLT; BRKT
(D) M8X45 FLANGE 		0-28050-845-0 01 1 1108- ●
188 BOLT; BRKT
(E) M10X130 FLANGE 		0-28156-013-0 02 1 1108- ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 0710-1005 ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 1006- ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1006-1107 ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1108- ● ● ●
262 BRACKET; OIL SEPARETOR 8-98122-426-0 01 1 1108- ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0710-1005 ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 1006- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0710-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1006-1107 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1108- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0710-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1006-1107 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1108- ● ● ●
275 CAP; PCV 8-97625-726-0 01 1 1108- ●
275 CAP; PCV 8-97385-918-0 01 1 0710-1005 ●
275 CAP; PCV 8-97385-918-0 01 1 1006- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0710-1005 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1006-1107 ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1108- ● ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 0710-1005 ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1006-1107 ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1108- ● ● ●
309 PIPE ASM; OIL SEPARATOR 8-98122-427-0 01 1 1108- ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0710-1005 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 1006- ● ●
318 ELEMENT KIT; PCV 8-97625-725-0 01 1 1108- ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0710-1005 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 1006- ● ●

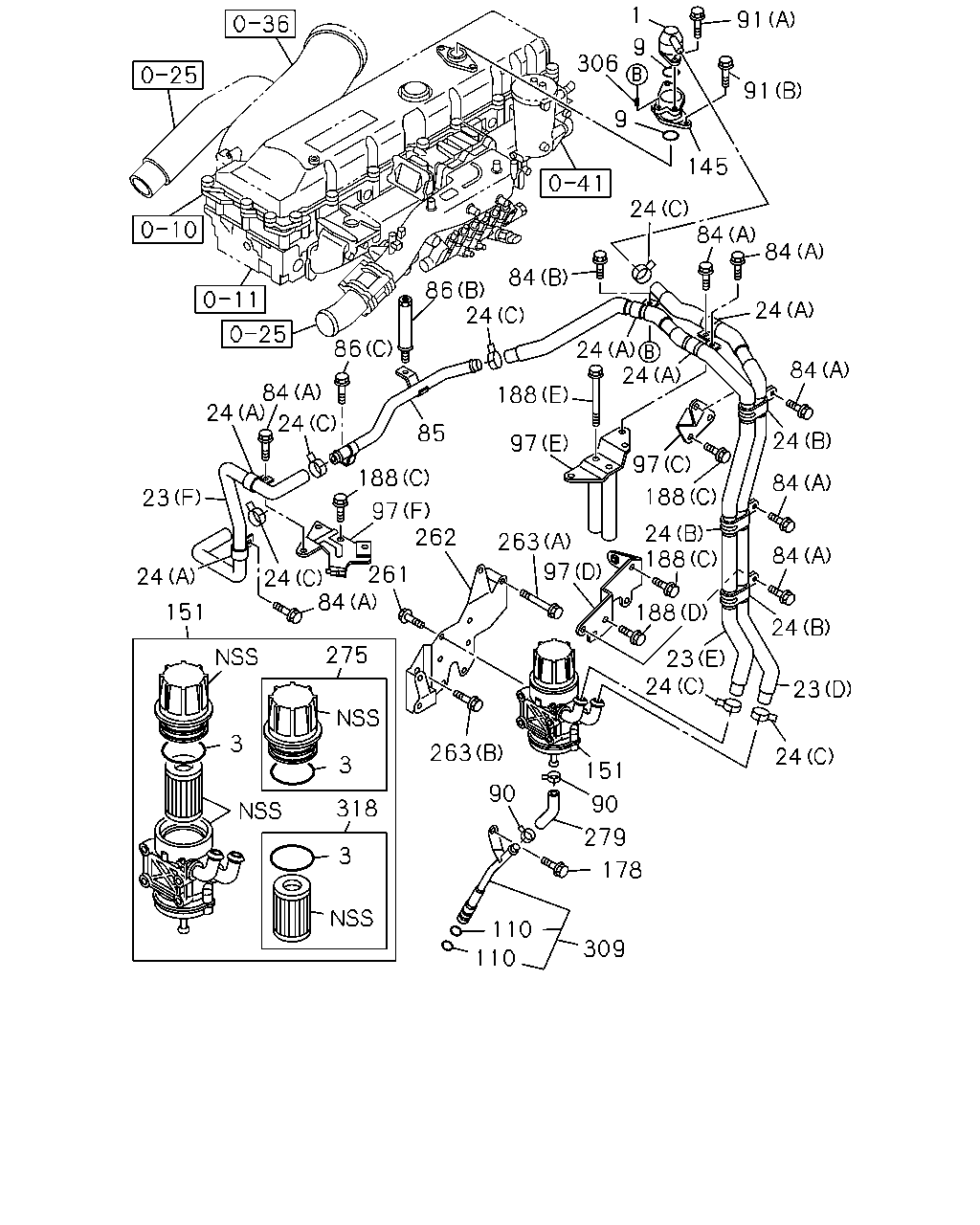

çizim 141847
91 1 91 9 306 9 145 84 84 24 24 84 24 24 24 84 86 24 188 84 84 24 23 24 24 23 188 188 24 188 97 97 86 84 24 188 24 97 262 261 84 24 23 24 151 275 3 3 318 3 110 110 309 178 279 90 151 263 263 97 85 90
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0710-1005 ●
1 BREATHER; AIR 1-11740-181-1 01 1 1006-1107 ● ●
1 BREATHER; AIR 1-11740-181-1 01 1 1108- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0710-1005 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1006-1107 ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1108- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 0710-1005 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1006-1107 ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1108- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(D) 		8-98122-987-1 01 1 1108- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(E) 		8-98122-988-0 01 1 1108- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98122-989-0 01 1 1108-1210 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98122-989-0 01 1 1211-1309 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(F) 		8-98254-532-0 01 1 1310- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-2 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-3 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-1 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-2 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98227-927-0 01 1 1211- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-2 01 1 0710-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-3 01 1 1006-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98227-928-0 01 1 1211- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 05 1 1108- ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 1006-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 01 1 1211-1212 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 08 1 1301- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1006-1107 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1108-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1006-1107 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1108- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 1006-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 01 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 0710-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 1006-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1211- ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 1108- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0710-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1006-1210 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 0710-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X50 FLANGE 		0-28050-850-0 01 1 1006-1107 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 1108-1210 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 1211- ● ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 0710-1005 ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1006-1107 ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1108- ● ● ●
86 BOLT; BREATHER PIPE
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1108- ●
86 BOLT; BREATHER PIPE
(B) 		8-97377-804-0 01 1 1108- ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1005 ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1006- ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0710-1005 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1006-1107 ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1108- ● ● ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ●
91 BOLT; AIR BREATHER
(B) M10X25 FLANGE 		0-28151-025-0 02 1 1108- ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0710-1005 ●
91 BOLT; AIR BREATHER
(A) M10X20 FLANGE 		0-28151-020-0 04 1 1006- ● ●
97 BRACKET; HOSE
(G) 		8-98227-930-0 01 1 1211- ● ●
97 BRACKET; HOSE
(H) 		8-98227-931-0 01 1 1211- ● ●
97 BRACKET; HOSE
(C) 		8-97628-209-0 01 1 1108- ●
97 BRACKET; HOSE
(D) 		8-98122-983-0 01 1 1108- ●
97 BRACKET; HOSE
(E) 		8-98122-984-0 01 1 1108- ●
97 BRACKET; HOSE
(F) 		8-98122-985-1 01 1 1108- ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0710-1005 ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 1006- ● ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 0710-1005 ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 1006-1210 ● ●
97 BRACKET; HOSE
(B) 		8-98227-929-0 01 1 1211- ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0710-1005 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1006-1107 ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1108- ● ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 0710-1005 ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1006-1107 ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1108- ● ● ●
151 SEPARATOR; OIL,PCV 8-98126-690-0 01 1 1108- ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0710-1005 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 1006- ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1006-1107 ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1108- ● ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1211- ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 05 1 1108- ●
188 BOLT; BRKT
(D) M8X45 FLANGE 		0-28050-845-0 01 1 1108- ●
188 BOLT; BRKT
(E) M10X130 FLANGE 		0-28156-013-0 02 1 1108- ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 0710-1005 ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 1006- ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1006-1107 ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1108- ● ● ●
262 BRACKET; OIL SEPARETOR 8-98122-426-0 01 1 1108- ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0710-1005 ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 1006- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0710-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1006-1107 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1108- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0710-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1006-1107 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1108- ● ● ●
275 CAP; PCV 8-97625-726-0 01 1 1108- ●
275 CAP; PCV 8-97385-918-0 01 1 0710-1005 ●
275 CAP; PCV 8-97385-918-0 01 1 1006- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0710-1005 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1006-1107 ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1108- ● ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 0710-1005 ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1006-1107 ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1108- ● ● ●
309 PIPE ASM; OIL SEPARATOR 8-98122-427-0 01 1 1108- ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0710-1005 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 1006- ● ●
318 ELEMENT KIT; PCV 8-97625-725-0 01 1 1108- ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0710-1005 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
