0-25 — INLET MANIFOLD (#14546) — 113 parça

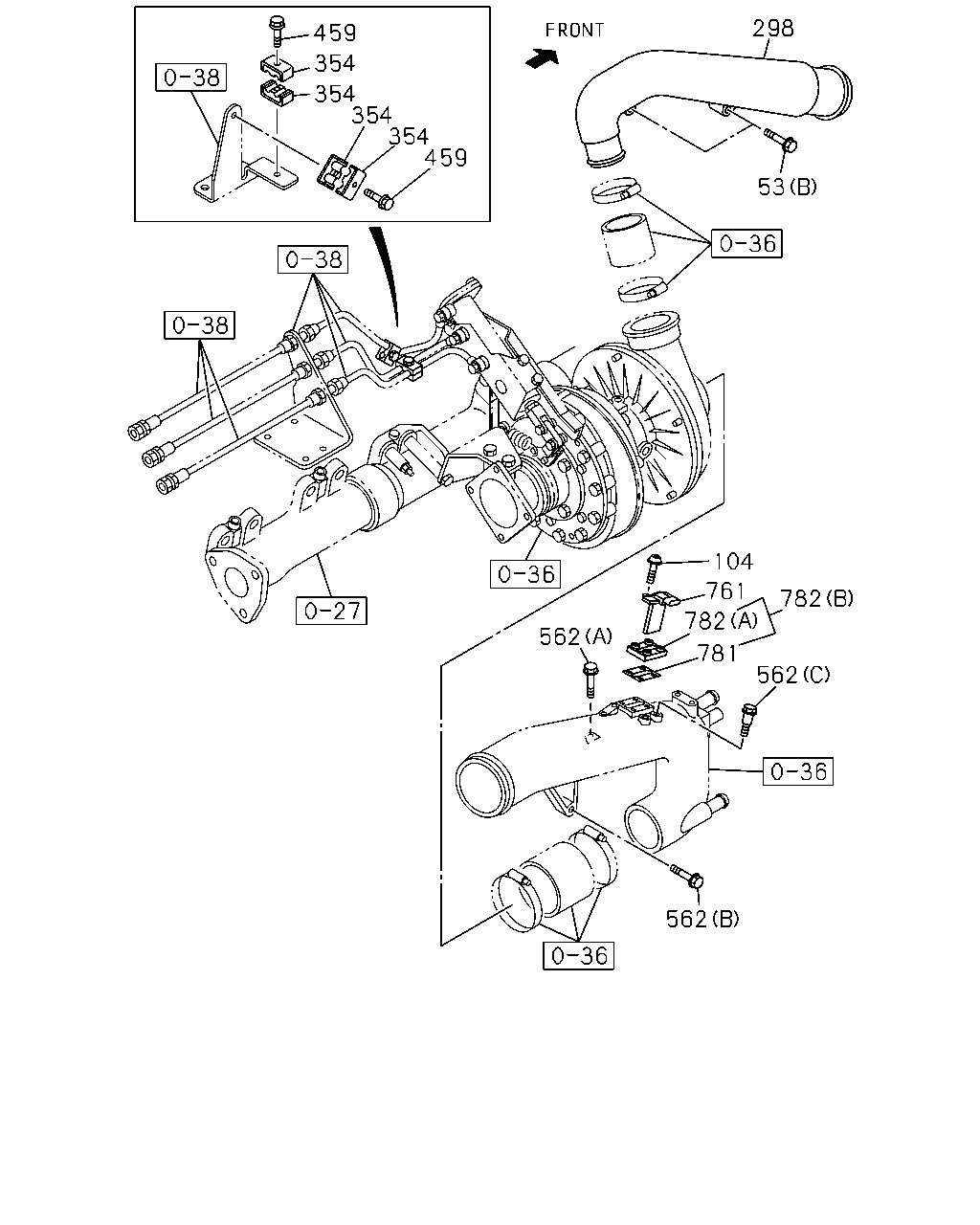

çizim 141431
298 459 354 354 354 354 459 53 104 761 782 782 562 781 562 562
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 0710-1005 ●
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 1006-1107 ● ●
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 1108- ● ● ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710-1005 ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1006-1107 ● ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1108- ● ● ●
104 SCREW
M4X20 W/LK&PL WASHER 		9-03920-420-0 04 1 0710-1005 ●
104 SCREW
M4X20 W/LK&PL WASHER 		9-03920-420-0 04 1 1006-1107 ● ●
104 SCREW
M4X20 W/LK&PL WASHER 		9-03920-420-0 04 1 1108- ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 0710-1005 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 1006-1107 ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 1108-1309 ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 8-98254-536-0 01 1 1310- ● ● ●
354 CLIP; AIR PIPE 1-09701-240-0 04 1 0710-1005 ●
354 CLIP; AIR PIPE 1-09701-240-0 04 1 1006- ● ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28050-635-0 02 1 0710-1005 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28050-635-0 02 1 1006- ● ●
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 0710-1005 ●
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 1006-1107 ● ●
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ● ● ●
562 BOLT; INL DUCT
(B) M10X70 FLANGE 		0-28151-070-0 01 1 0710-1005 ●
562 BOLT; INL DUCT
(B) M10X70 FLANGE 		0-28151-070-0 01 1 1006-1107 ● ●
562 BOLT; INL DUCT
(B) M10X70 FLANGE 		0-28151-070-0 01 1 1108- ● ● ●
562 BOLT; INL DUCT
(C) M10X51.4 		8-94436-943-0 02 1 0710-1003 ●
562 BOLT; INL DUCT
(C) M10X49.8 		8-97039-586-0 02 1 1004-1005 ●
562 BOLT; INL DUCT
(C) M10X49.8 		8-97039-586-0 02 1 1006-1107 ● ●
562 BOLT; INL DUCT
(C) M10X49.8 		8-97039-586-0 02 1 1108- ● ● ●
761 SENSOR; MANIF 8-97601-967-0 01 1 0710-1005 ●
761 SENSOR; MANIF 8-97601-967-0 01 1 1006-1107 ● ●
761 SENSOR; MANIF 8-97601-967-0 01 1 1108- ● ● ●
781 GASKET; SENSOR 8-98212-728-0 01 1 1204- ● ● ●
781 GASKET; SENSOR 8-97611-157-2 01 1 0710-1005 ●
781 GASKET; SENSOR 8-97611-157-2 01 1 1006-1107 ● ●
781 GASKET; SENSOR 8-97611-157-2 01 1 1108-1201 ● ● ●
782 ADAPTER; SENSOR
(A) 		8-97609-808-4 01 1 0710-1005 ●
782 ADAPTER; SENSOR
(A) 		8-97609-808-4 01 1 1006-1107 ● ●
782 ADAPTER; SENSOR
(A) 		8-97609-808-4 01 1 1108-1201 ● ● ●
782 ADAPTER; SENSOR
(B) 		8-98169-371-0 01 1 1202- ● ● ●

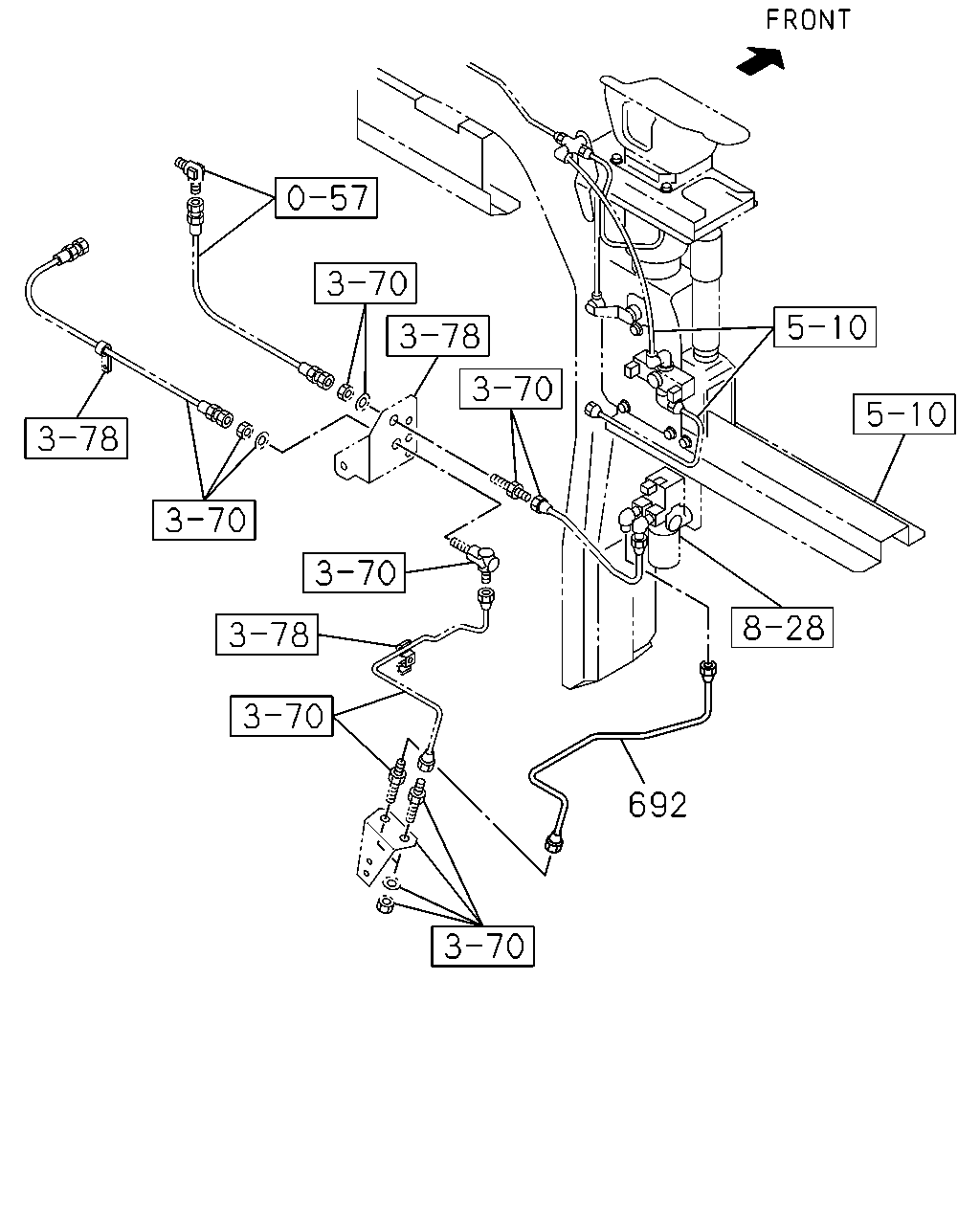

çizim 141433
692
BalonParca AdiParca NoAdetTipApplied Date A B C
692 PIPE; AIR,MAG VLV
L=559 SERVICED BY L=600 		1-47428-809-0 01 1 0710-0808 ●

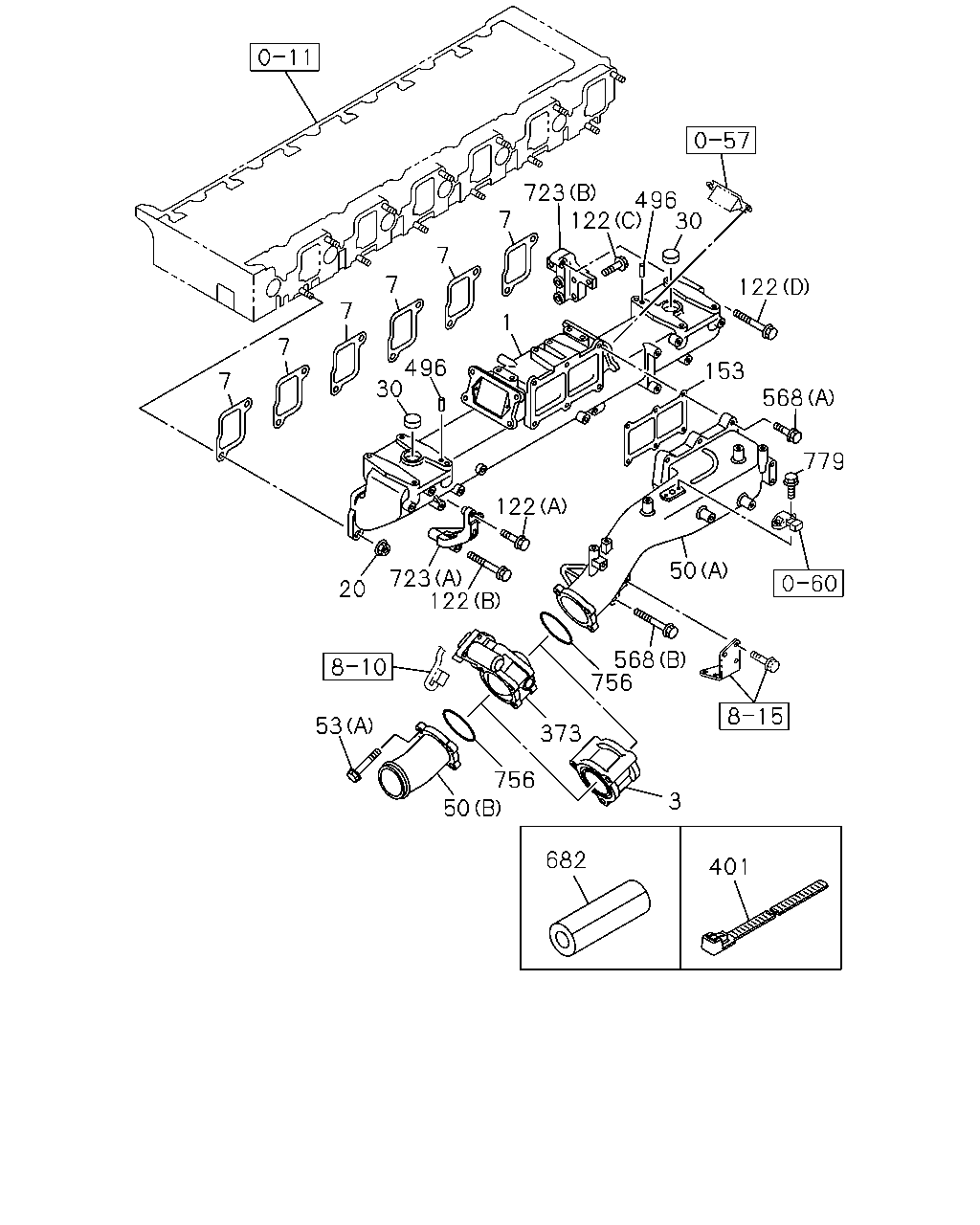

çizim 141443
723 496 122 30 7 7 7 122 7 1 7 496 30 153 7 568 779 122 50 723 122 20 568 756 53 373 756 50 3 682 401
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 8-97608-509-6 01 1 0710-0904 ●
1 MANIFOLD; INL 8-98119-442-0 01 1 0905-1005 ●
1 MANIFOLD; INL 8-98119-442-1 01 1 1006-1107 ● ●
1 MANIFOLD; INL 8-98119-442-2 01 1 1108- ● ● ●
3 DUCT; INT 8-97606-246-0 01 1 1108- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97615-623-0 06 1 0710-1005 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97615-623-0 06 1 1006-1107 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97615-623-1 06 1 1108- ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0710-1005 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 1006-1107 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 1108- ● ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0710-1005 ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 1006-1107 ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 1108- ● ● ●
50 PIPE; INL
(A) 		8-97608-882-0 01 1 0710-1005 ●
50 PIPE; INL
(A) 		8-97608-882-0 01 1 1006-1006 ● ●
50 PIPE; INL
(A) 		8-98133-285-1 01 1 1007-1107 ● ●
50 PIPE; INL
(A) 		8-98133-285-1 01 1 1108- ● ● ●
50 PIPE; INL
(B) 		8-97608-883-0 01 1 0710-1005 ●
50 PIPE; INL
(B) 		8-97608-883-0 01 1 1006-1107 ● ●
50 PIPE; INL
(B) 		8-97608-883-0 01 1 1108- ● ● ●
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 0710-1005 ●
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 1006-1107 ● ●
53 BOLT; INL PIPE
(A) M8X80 FLANGE 		0-28050-880-0 03 1 1108- ● ● ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710-1005 ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1006-1107 ● ●
53 BOLT; INL PIPE
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1108- ● ● ●
122 BOLT; BRKT
(B) M10X100 FLANGE 		0-28151-000-0 01 1 0710-1005 ●
122 BOLT; BRKT
(B) M10X100 FLANGE 		0-28151-000-0 01 1 1006-1107 ● ●
122 BOLT; BRKT
(B) M10X100 FLANGE 		0-28151-000-0 01 1 1108-1111 ● ● ●
122 BOLT; BRKT
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0710-1005 ●
122 BOLT; BRKT
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1006-1107 ● ●
122 BOLT; BRKT
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1108-1111 ● ● ●
122 BOLT; BRKT
(D) M10X110 FLANGE 		0-28156-011-0 01 1 0710-1005 ●
122 BOLT; BRKT
(D) M10X110 FLANGE 		0-28156-011-0 01 1 1006-1107 ● ●
122 BOLT; BRKT
(D) M10X110 FLANGE 		0-28156-011-0 01 1 1108- ● ● ●
122 BOLT; BRKT
(C) M12X60 FLANGE 		0-28161-260-0 02 1 0710-1005 ●
122 BOLT; BRKT
(C) M12X60 FLANGE 		0-28161-260-0 02 1 1006-1107 ● ●
122 BOLT; BRKT
(C) M12X60 FLANGE 		0-28161-260-0 02 1 1108- ● ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 0710-1005 ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 1006-1107 ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 1108- ● ● ●
373 THROTTLE ASM; INT 8-97610-959-4 01 1 0710-1005 ●
373 THROTTLE ASM; INT 8-97610-959-4 01 1 1006- ● ●
401 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-1005 ●
401 CLIP; BAND
L=250 		5-09707-030-1 01 1 1006-1107 ● ●
401 CLIP; BAND
L=250 		5-09707-030-1 01 1 1108-1205 ● ● ●
401 CLIP; BAND
L=250 		8-98216-430-0 01 1 1206- ● ● ●
496 PIN; INL MANIF
OD=4 L=12 		1-09740-032-0 02 1 0710-1005 ●
496 PIN; INL MANIF
OD=4 L=12 		1-09740-032-0 02 1 1006-1107 ● ●
496 PIN; INL MANIF
OD=4 L=12 		1-09740-032-0 02 1 1108- ● ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0710-1005 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 1006-1107 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 1108- ● ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 0710-1005 ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 1006-1107 ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 1108- ● ● ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-1005 ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1006-1107 ● ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1108- ● ● ●
723 BRACKET; INL MANIF
(A) 		8-97608-884-1 01 1 0710-1005 ●
723 BRACKET; INL MANIF
(A) 		8-97608-884-1 01 1 1006-1107 ● ●
723 BRACKET; INL MANIF
(A) 		8-97608-884-1 01 1 1108-1111 ● ● ●
723 BRACKET; INL MANIF
(B) 		8-97618-557-0 01 1 0710-1005 ●
723 BRACKET; INL MANIF
(B) 		8-97618-557-0 01 1 1006-1107 ● ●
723 BRACKET; INL MANIF
(B) 		8-97618-557-0 01 1 1108- ● ● ●
756 GASKET; INTAKE,THROTTLE
ID=94.6 		1-09623-593-0 02 1 0710-0910 ●
756 GASKET; INTAKE,THROTTLE
ID=89.6 		8-98004-323-0 02 1 0911-1005 ●
756 GASKET; INTAKE,THROTTLE
ID=89.6 		8-98004-323-0 02 1 1006-1105 ● ●
756 GASKET; INTAKE,THROTTLE
ID=94.6 		1-09623-593-0 02 1 1106-1107 ● ●
756 GASKET; INTAKE,THROTTLE
ID=94.6 		1-09623-593-0 02 1 1108- ● ● ●
779 BOLT; SENSOR
M4X10 W/PL WASHER 		8-97316-615-0 02 1 0710-1005 ●
779 BOLT; SENSOR
M4X10 W/PL WASHER 		8-97316-615-0 02 1 1006-1107 ● ●
779 BOLT; SENSOR
M4X10 W/PL WASHER 		8-97316-615-0 02 1 1108- ● ● ●
