Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
9 - Tools
▶
9-01 - TOOLS
▶

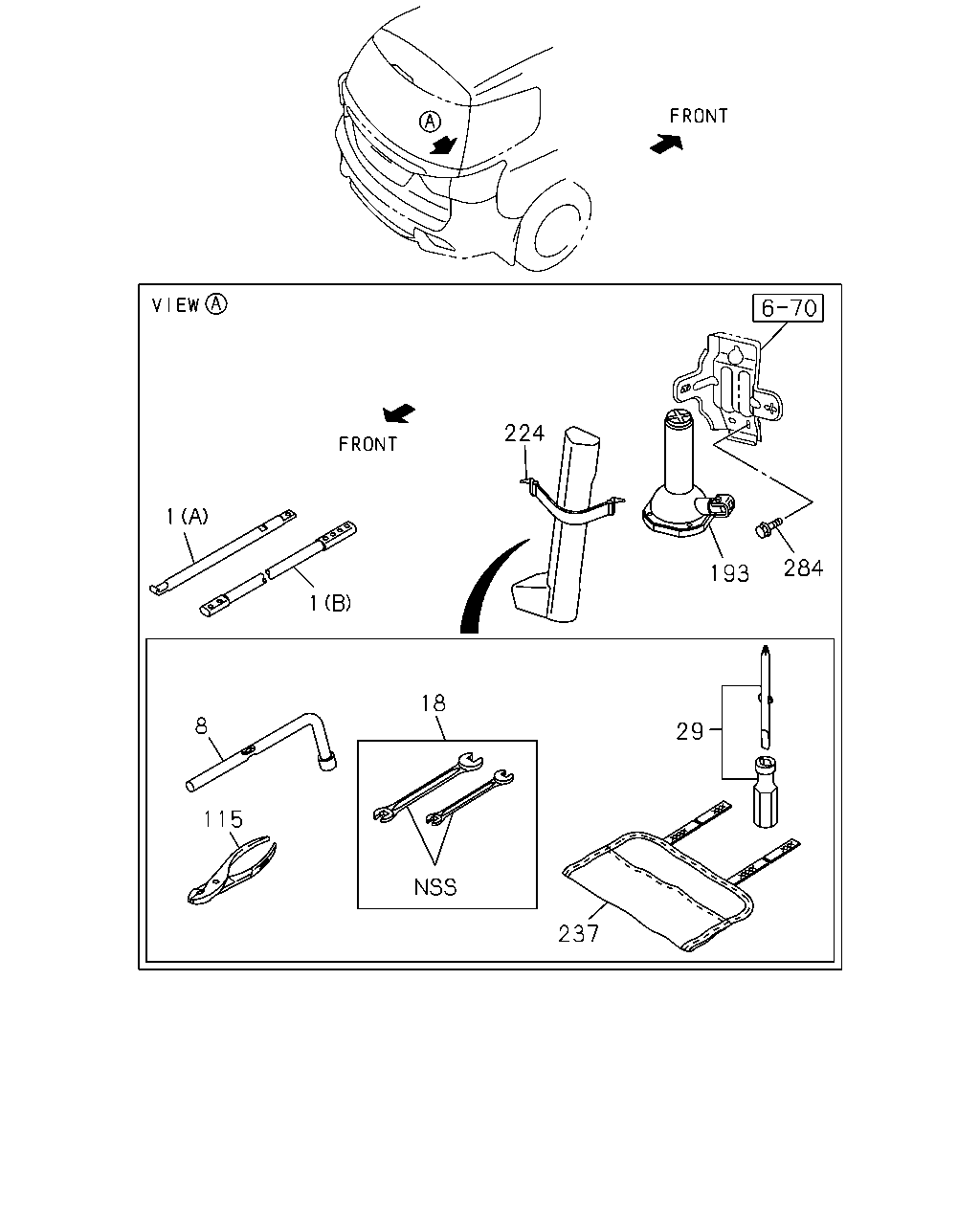

9-01 — TOOLS
(#145454) — 26 parça
Tümü
A - UCB5VC
B - UCS5VC
1
1
224
193
284
29
18
237
115
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.629 HANDLE; SPARE TIRE CARRIER
4JK1-TCX ENG(LR0) (A)
8-98153-978-0
01
1
1407-1508
●
●
1
07.629 HANDLE; SPARE TIRE CARRIER
(A)
8-98153-978-0
01
1
1509-
●
1
07.629 HANDLE; SPARE TIRE CARRIER
4JK1-TCX ENG(LR0) (A)
8-98153-978-0
01
1
1509-
●
1
07.629 HANDLE; SPARE TIRE CARRIER
4JK1-TCX ENG(LR0) (B)
8-98153-999-0
03
1
1407-1508
●
●
1
07.629 HANDLE; SPARE TIRE CARRIER
(B)
8-98153-999-0
03
1
1509-
●
1
07.629 HANDLE; SPARE TIRE CARRIER
4JK1-TCX ENG(LR0) (B)
8-98153-999-0
03
1
1509-
●
8
08.821 WRENCH; WHEEL
4JK1-TCX ENG(LR0) L=19
8-98027-834-0
01
1
1407-1508
●
●
8
08.821 WRENCH; WHEEL
L=19
8-98027-834-0
01
1
1509-
●
8
08.821 WRENCH; WHEEL
4JK1-TCX ENG(LR0) L=19
8-98027-834-0
01
1
1509-
●
18
08.821 WRENCH KIT
4JK1-TCX ENG(LR0) 8X10,12X14
8-97945-273-0
01
1
1407-1508
●
●
18
08.821 WRENCH KIT
8X10,12X14
8-97945-273-0
01
1
1509-
●
18
08.821 WRENCH KIT
4JK1-TCX ENG(LR0) 8X10,12X14
8-97945-273-0
01
1
1509-
●
29
08.821 DRIVER; SCREW
4JK1-TCX ENG(LR0)
8-98027-833-0
01
1
1407-1508
●
●
29
08.821 DRIVER; SCREW
8-98027-833-0
01
1
1509-
●
29
08.821 DRIVER; SCREW
4JK1-TCX ENG(LR0)
8-98027-833-0
01
1
1509-
●
115
08.821 PLIER
4JK1-TCX ENG(LR0)
8-98099-659-0
01
1
1407-1508
●
●
115
08.821 PLIER
8-98099-659-0
01
1
1509-
●
115
08.821 PLIER
4JK1-TCX ENG(LR0)
8-98099-659-0
01
1
1509-
●
193
08.820 JACK ASM
8-98269-209-0
01
1
1407-
●
●
224
08.821 BAND; RUBBER,JACK
4JK1-TCX ENG(LR0)
8-98225-108-0
01
1
1407-1508
●
●
224
08.821 BAND; RUBBER,JACK
8-98225-108-0
01
1
1509-
●
224
08.821 BAND; RUBBER,JACK
4JK1-TCX ENG(LR0)
8-98225-108-0
01
1
1509-
●
237
08.821 BAG; TOOL
4JK1-TCX ENG(LR0)
8-97945-395-0
01
1
1407-1508
●
●
237
08.821 BAG; TOOL
8-97945-395-0
01
1
1509-
●
237
08.821 BAG; TOOL
4JK1-TCX ENG(LR0)
8-97945-395-0
01
1
1509-
●
284
08.821 BOLT; TOOL BOX
8-98208-786-0
03
1
1407-
●
●
