Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#145453) — 26 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

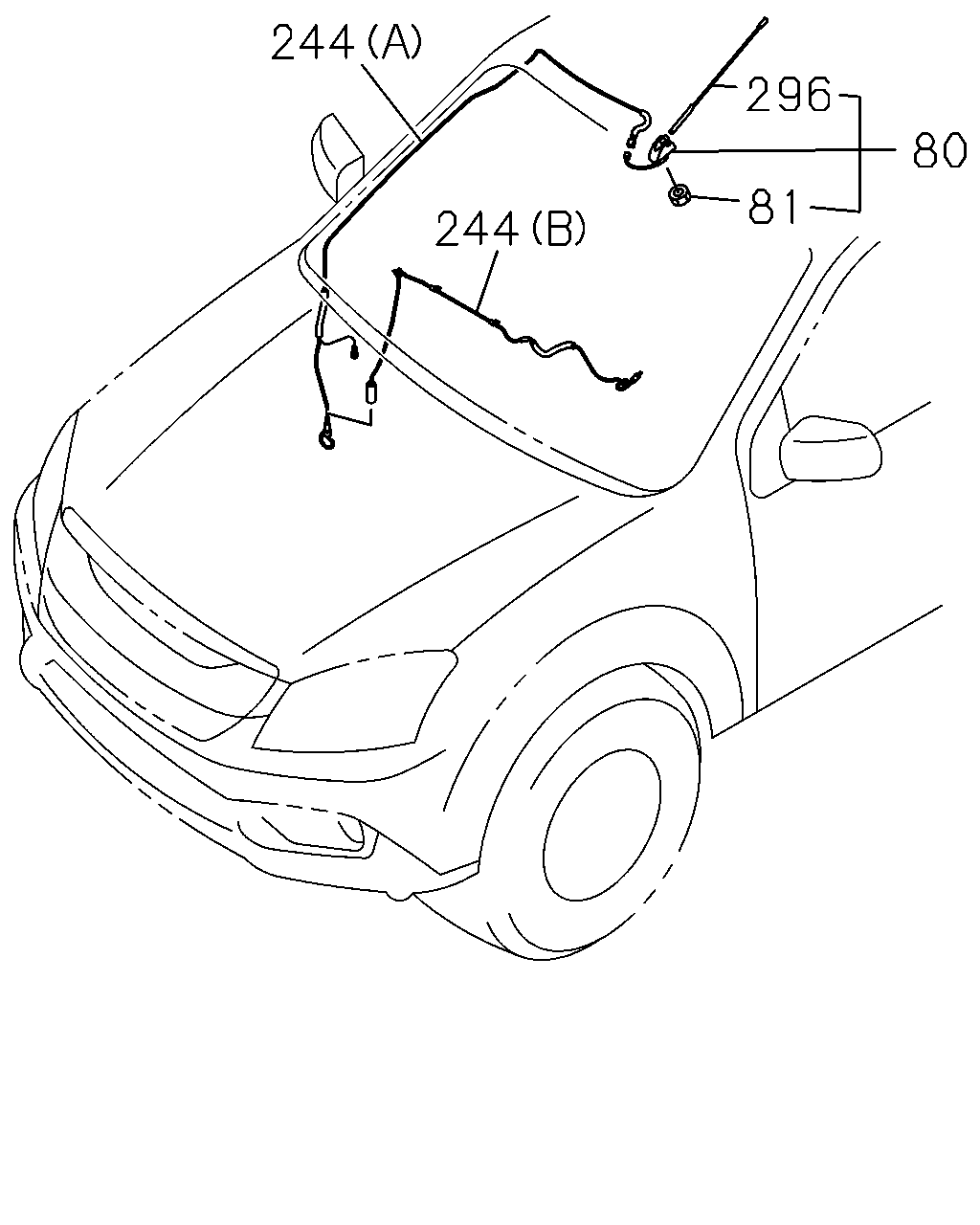

[890A] ANTENNA (5 parça)

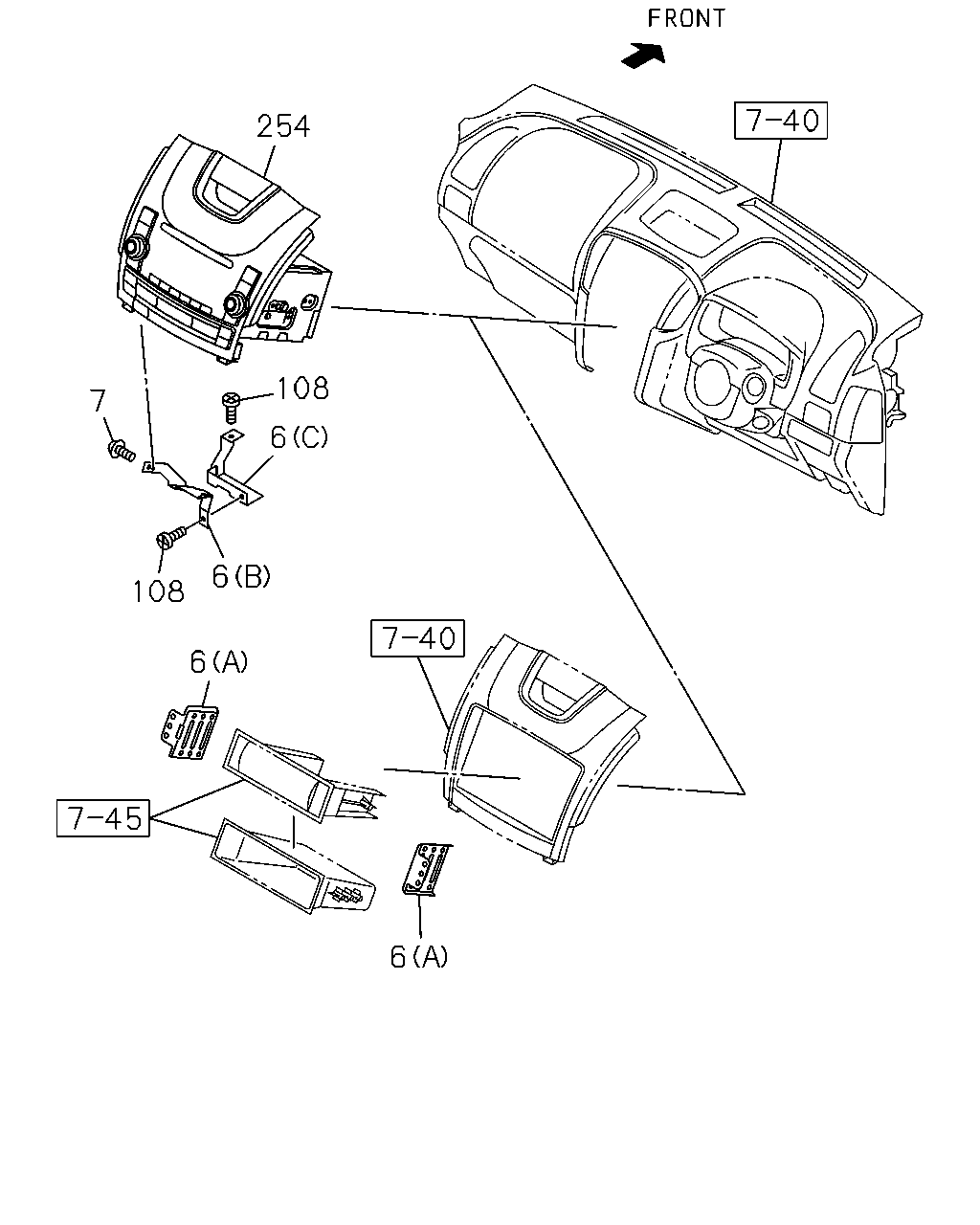

[890A] RADIO (7 parça)

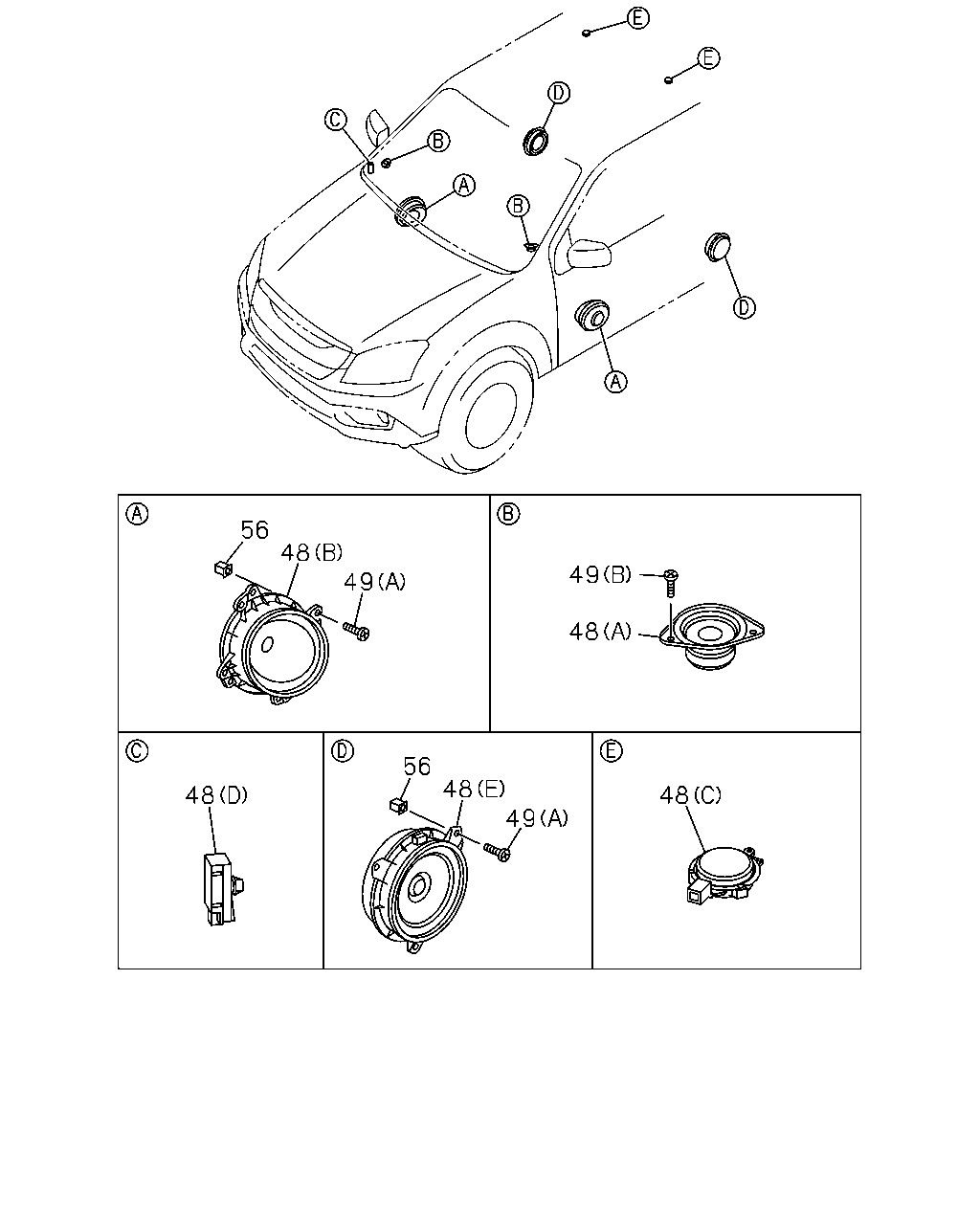

[890A] SPEAKER (14 parça)
▶
244
244
296
81
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
80
09.645 ANTENNA
8-98053-048-0
01
1
1407-
●
●
81
09.647 NUT; ANTENNA POLE
8-98165-971-0
01
1
1407-
●
●
244
09.647 CABLE; FEEDER
(B)
8-98053-051-1
01
1
1407-
●
●
244
09.647 CABLE; FEEDER
(A)
8-98218-163-0
01
1
1407-
●
●
296
09.665 ROD; ANTENNA
8-98165-969-0
01
1
1407-
●
●
254
108
7
108
6
6
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C)
8-98106-390-3
01
1
1407-
●
6
09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)
8-98227-139-1
01
1
1407-
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5) (A)
8-98102-188-2
02
1
1407-
●
6
09.645 BRACKET; RADIO TO PANEL
(A)
8-98102-188-2
02
1
1407-
●
7
09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER
0-36230-510-0
01
1
1407-
●
108
09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING
8-98167-449-0
02
1
1407-
●
254
09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
8-98228-730-2
01
1
1407-
●
56
48
49
48
56
48
49
49
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B)
8-98052-937-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
(B)
8-98052-937-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (A)
8-98052-940-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
(A)
8-98052-940-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (E)
8-98052-941-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
(E)
8-98052-941-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (C)
8-98052-942-0
02
1
1407-
●
48
09.650 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (D)
8-98064-704-0
01
1
1407-
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1407-
●
49
09.655 SCREW; SPEAKER
08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1407-
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING
8-98184-363-0
14
1
1407-
●
49
09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING
8-98184-363-0
14
1
1407-
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>
8-98163-895-0
14
1
1407-
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
14
1
1407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
