8-85 — REAR WIPER AND WASHER (#145452) — 9 parça

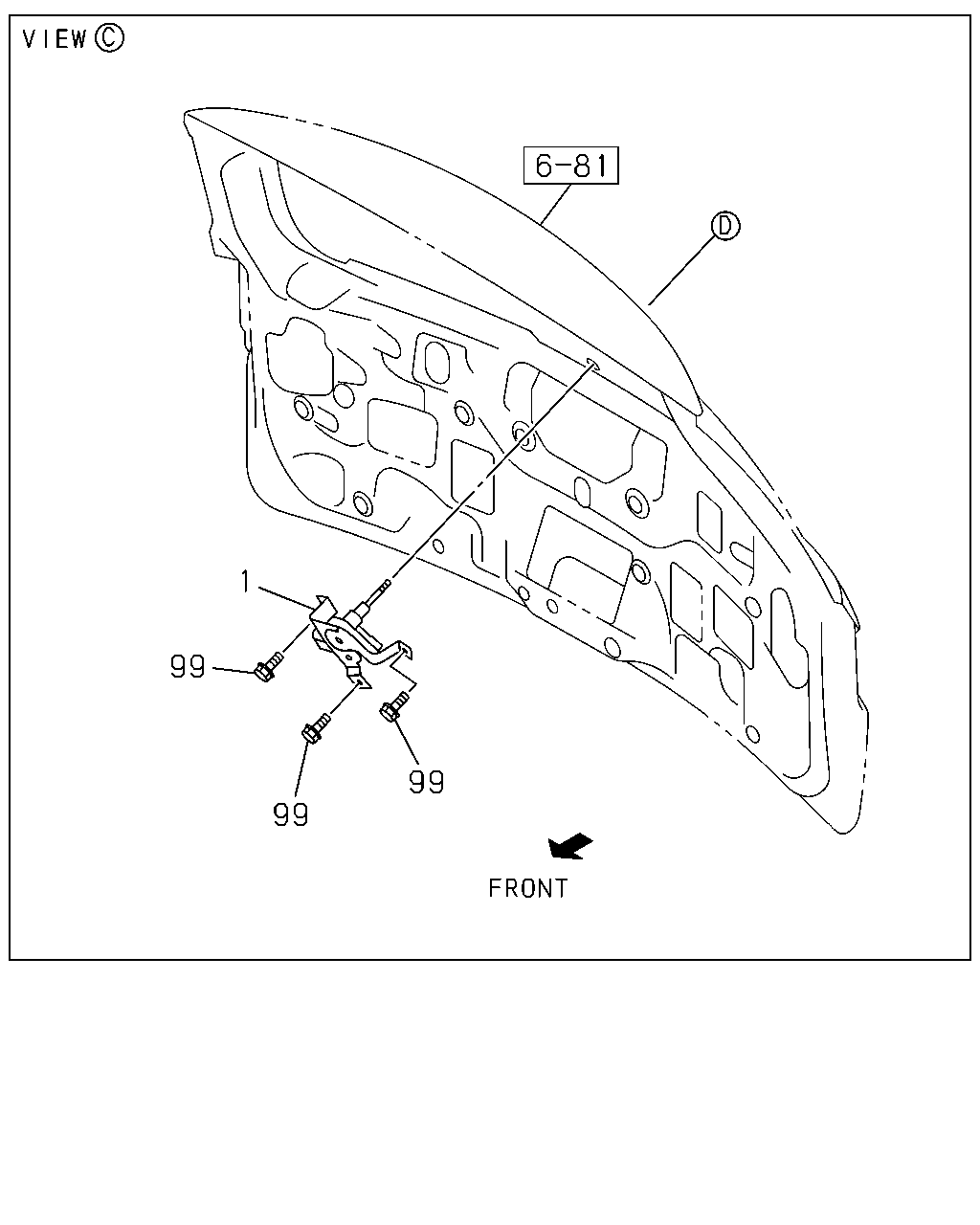

çizim 432735
99 99 99 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.064 MOTOR ASM; RR WIPER 8-98187-251-0 01 1 1407-
99 16.064 BOLT; WIPER MOTOR
02.762 M6X23.5 W/LK&PL WASHER 		8-98164-723-0 03 1 1407-

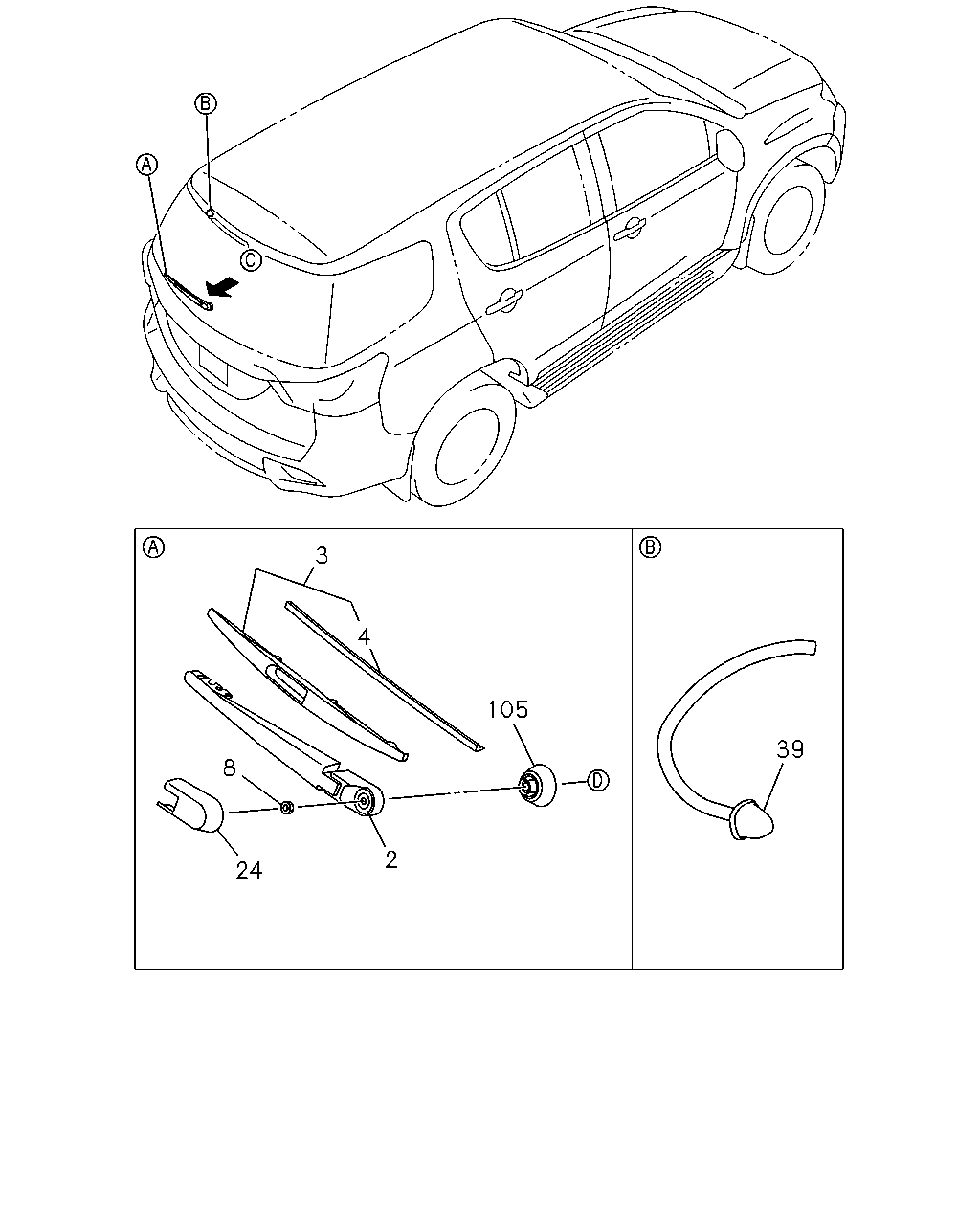

çizim 434258
3 4 105 2 8 24 39
BalonParca AdiParca NoAdetTipApplied Date
2 16.064 ARM ASM; REAR WIPER 8-98222-258-0 01 1 1407-
3 16.062 BLADE ASM; REAR WIPER 8-98222-259-0 01 1 1407-
4 16.062 RUBBER; BLADE,RR WIPER 8-98253-585-0 01 1 1407-
8 16.064 NUT; RR WIPER ARM TO WIPER MOTOR
08.155 M6 		0-91111-506-0 01 1 1407-
24 16.065 CAP; WASHER TANK,RR 8-98210-717-0 01 1 1407-
39 16.065 NOZZLE; RR WINDSHIELD,WASHER 8-98201-496-1 01 1 1407-
105 16.065 GROMMET; RR WIPER MOTOR 8-98210-508-0 01 1 1407-
