Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#145451) — 48 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

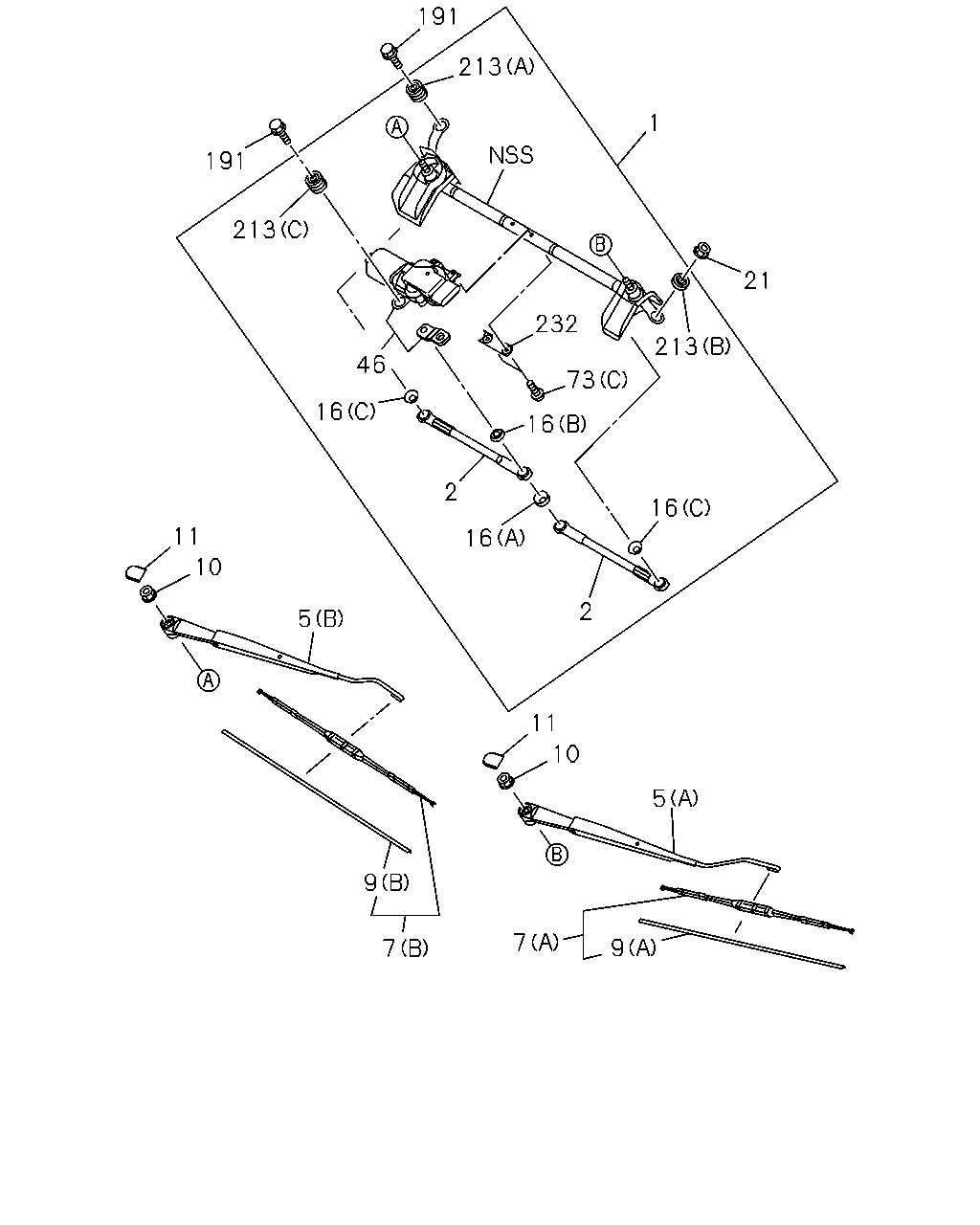

[880A] ARM AND MOTOR (24 parça)

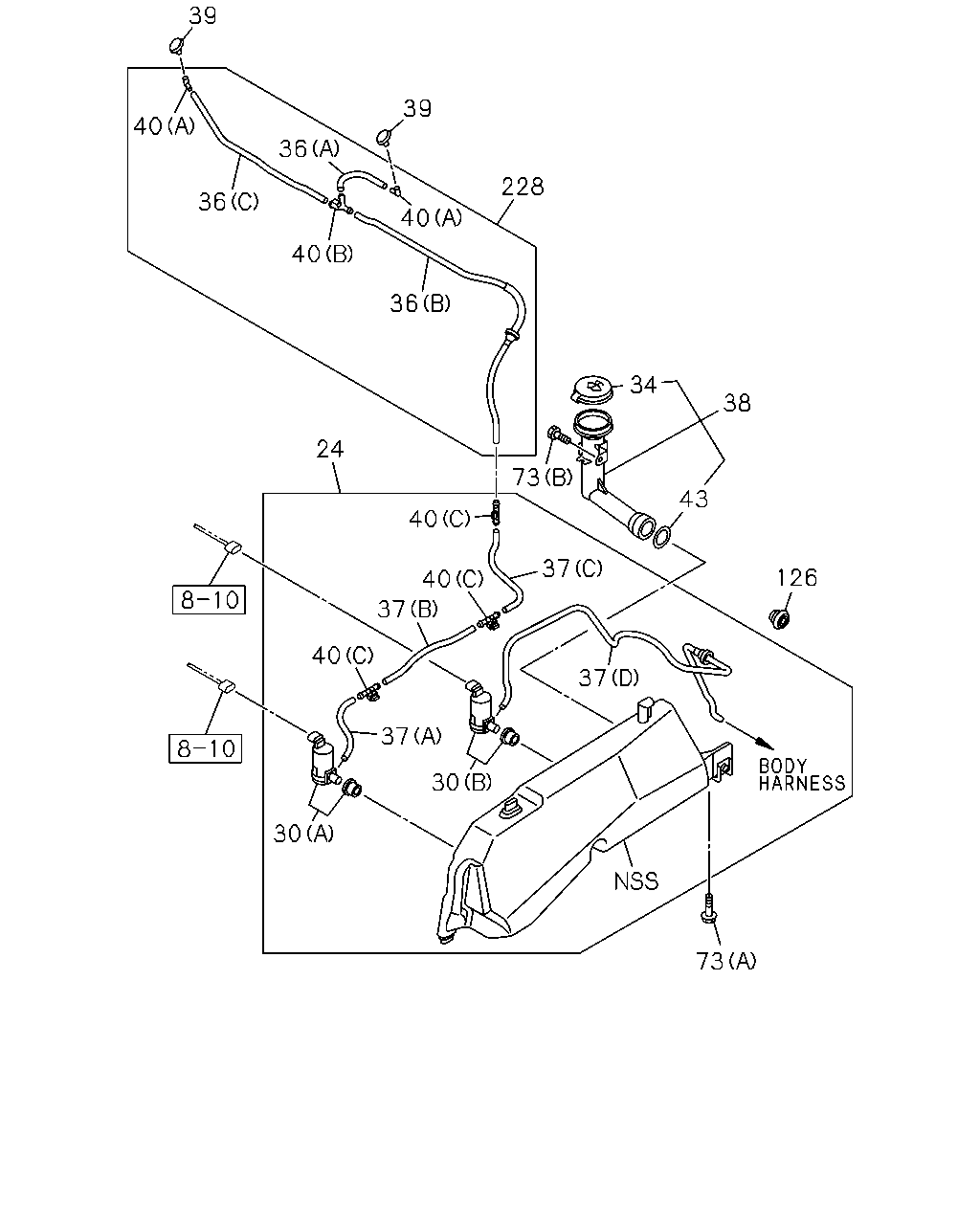

[880A] TANK AND NOZZLE (24 parça)
▶
191
213
1
21
213
232
73
16
16
2
16
2
16
46
213
191
11
10
5
9
7
7
9
5
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.063 LINK ASM; FRT WIPER
8-98057-449-1
01
1
1407-
●
●
2
16.063 LINK; FRT WIPER
8-98193-801-0
01
1
1407-
●
●
2
16.063 LINK; FRT WIPER
8-98193-802-0
01
1
1407-
●
●
5
16.063 ARM; WIPER
(B)
8-98193-629-0
01
1
1407-
●
●
5
16.063 ARM; WIPER
(A)
8-98193-813-0
01
1
1407-
●
●
7
16.062 BLADE; WIPER
(B) L=550
8-97349-900-0
01
1
1407-
●
●
7
16.062 BLADE; WIPER
(A) L=450
8-98193-815-0
01
1
1407-
●
●
9
16.062 RUBBER; FRT WIPER BLADE
(B) L=550
8-97349-901-0
01
1
1407-
●
●
9
16.062 RUBBER; FRT WIPER BLADE
(A) L=450
8-98193-819-0
01
1
1407-
●
●
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE
8-98049-367-0
02
1
1407-
●
●
11
16.063 COVER; WIPER ARM
8-98101-104-0
02
1
1407-
●
●
16
16.063 SEAL; BALL JOINT
(A)
8-98193-845-0
01
1
1407-
●
●
16
16.063 SEAL; BALL JOINT
(B)
8-98193-846-0
01
1
1407-
●
●
16
16.063 SEAL; BALL JOINT
(C)
8-98193-847-0
02
1
1407-
●
●
21
16.063 NUT; WIPER LINK PIVOT
16.065 M6 W/DISHED WASHER
8-98049-368-0
01
1
1407-
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98142-507-0
01
1
1407-
●
●
73
16.063 BOLT
03.895 (A) M6X16 FLANGE
8-98049-357-0
01
1
1407-
●
●
73
16.063 BOLT
02.762 (B) M6X18 TAPPING W/LK&PL WASHER
8-98062-140-0
01
1
1407-
●
●
73
16.063 BOLT
(C) M6X32
8-98193-851-0
02
1
1407-
●
●
191
16.063 BOLT; WIPER LINK
M6X33 W/PL WASHER
8-98048-997-0
02
1
1407-
●
●
213
16.065 RUBBER; MTG
(A)
8-98193-848-0
01
1
1407-
●
●
213
16.065 RUBBER; MTG
(B)
8-98193-849-0
01
1
1407-
●
●
213
16.065 RUBBER; MTG
(C)
8-98193-850-0
01
1
1407-
●
●
232
05.125 PLATE; FIXING
8-98196-564-0
01
1
1407-
●
●
39
40
36
36
40
36
40
39
228
34
38
43
126
37
73
40
24
40
37
40
37
30
30
37
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
16.065 TANK ASM; WASHER
8-98189-112-0
01
1
1407-
●
24
16.065 TANK ASM; WASHER
8-98057-455-0
01
1
1407-
●
30
16.065 MOTOR ASM; FRT WASHER TANK
(B)
8-98268-427-0
01
1
1407-
●
30
16.065 MOTOR ASM; FRT WASHER TANK
(A)
8-97314-350-0
01
1
1407-
●
●
34
16.065 CAP; WASHER TANK
8-98194-286-0
01
1
1407-
●
●
36
16.065 HOSE; WASHER
(A) L=110
8-98193-807-1
01
1
1407-
●
●
36
16.065 HOSE; WASHER
(B) L=630
8-98193-808-1
01
1
1407-
●
●
36
16.065 HOSE; WASHER
(C) L=380
8-98193-809-1
01
1
1407-
●
●
37
16.065 TUBE ASM; WASHER TANK
(D)
8-98268-278-0
01
1
1407-
●
37
16.065 TUBE ASM; WASHER TANK
(A) L=130
8-98193-853-0
01
1
1407-
●
●
37
16.065 TUBE ASM; WASHER TANK
(B) L=190
8-98193-854-0
01
1
1407-
●
●
37
16.065 TUBE ASM; WASHER TANK
(C) L=200
8-98193-855-0
01
1
1407-
●
●
38
16.065 HOSE; JOINT,TANK
8-98057-456-0
01
1
1407-
●
●
39
16.065 NOZZLE; WINDSHIELD WASHER
8-98067-859-3
02
1
1407-
●
●
40
16.065 JOINT; WASHER HOSE
(C)
8-97314-270-0
03
1
1407-
●
40
16.065 JOINT; WASHER HOSE
(B)
8-97855-163-0
01
1
1407-
●
●
40
16.065 JOINT; WASHER HOSE
(A)
8-98193-805-0
02
1
1407-
●
●
40
16.065 JOINT; WASHER HOSE
(C)
8-98193-811-0
03
1
1407-
●
43
16.065 RUBBER; GASKET,TANK
8-98194-287-0
01
1
1407-
●
●
73
16.063 BOLT
03.895 (A) M6X16 FLANGE
8-98049-357-0
01
1
1407-
●
●
73
16.063 BOLT
02.762 (B) M6X18 TAPPING W/LK&PL WASHER
8-98062-140-0
01
1
1407-
●
●
73
16.063 BOLT
(C) M6X32
8-98193-851-0
02
1
1407-
●
●
126
16.065 GROMMET; FRT WASHER TANK HOSE
16.575 OD=19
8-97365-823-0
01
1
1407-
●
228
16.065 HOSE ASM; WASHER
8-98057-506-1
01
1
1407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
