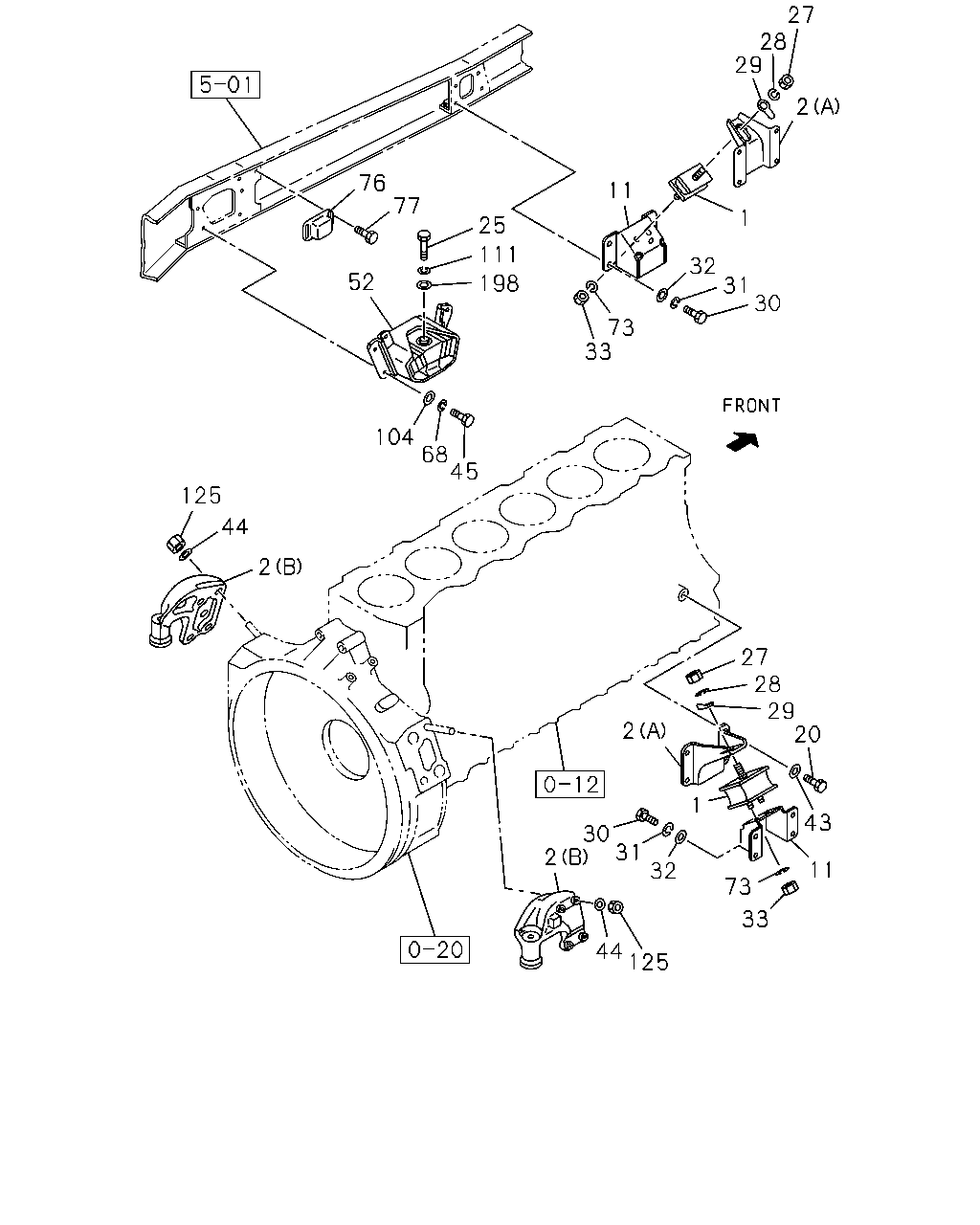

0-22 — ENGINE MOUNTING (#14545) — 85 parça

27 28 29 2 76 77 11 1 25 111 32 31 30 52 198 73 33 104 68 45 125 44 2 27 28 29 20 2 1 43 30 31 2 11 32 73 33 44 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	0710-1005	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	1006-1107	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	1108-	●	●	●
2	FOOT; ENG (A) FRONT	1-11771-220-0	02	1	0710-1005	●
2	FOOT; ENG (A) FRONT	1-11771-220-0	02	1	1006-1107	●	●
2	FOOT; ENG (A) FRONT	1-11771-220-0	02	1	1108-	●	●	●
2	FOOT; ENG (B) REAR	1-11777-197-1	01	1	0710-1005	●
2	FOOT; ENG (B) REAR	1-11777-197-1	01	1	1006-1107	●	●
2	FOOT; ENG (B) REAR	1-11777-197-1	01	1	1108-	●	●	●
2	FOOT; ENG (B) REAR	8-97617-886-0	01	1	0710-1005	●
2	FOOT; ENG (B) REAR	8-97617-886-0	01	1	1006-1107	●	●
2	FOOT; ENG (B) REAR	8-97617-886-0	01	1	1108-	●	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-272-0	02	1	0710-1005	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-272-0	02	1	1006-1107	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-272-0	02	1	1108-	●	●	●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	0710-1005	●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	1006-1107	●	●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	1108-	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	1-09000-773-0	02	1	0710-1005	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	1-09000-773-0	02	1	1006-1107	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	1-09000-773-0	02	1	1108-	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0710-1005	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	1006-1107	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	1108-	●	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0710-1005	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	1006-1107	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	1108-	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0710-1005	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	1006-1107	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	1108-	●	●	●
30	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	08	1	0710-1005	●
30	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	08	1	1006-1107	●	●
30	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	08	1	1108-	●	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	0710-1005	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	1006-1107	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	1108-	●	●	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	0710-0907	●
32	WASHER; PL,BRKT TO FRAME ID=15	8-98010-627-1	08	1	0908-1005	●
32	WASHER; PL,BRKT TO FRAME ID=15	8-98010-627-1	08	1	1006-1107	●	●
32	WASHER; PL,BRKT TO FRAME ID=15	8-98010-627-1	08	1	1108-	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0710-1005	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	1006-1107	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	1108-	●	●	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	0710-1005	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	1006-1107	●	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	1108-	●	●	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	0710-1005	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	1006-1107	●	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	1108-	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	10	1	0710-1005	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	10	1	1006-1107	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	10	1	1108-	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-370-1	01	1	0710-1005	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-370-1	01	1	1006-1107	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-370-1	01	1	1108-	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-371-1	01	1	0710-1005	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-371-1	01	1	1006-1107	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-371-1	01	1	1108-	●	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	10	1	0710-1005	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	10	1	1006-1107	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	10	1	1108-	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-514-0	04	1	0710-0907	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	04	1	0908-1005	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	04	1	1006-1107	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	04	1	1108-	●	●	●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	0710-1005	●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	1006-1107	●	●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	1108-	●	●	●
77	BOLT; STOPPER M8X16 FLANGE	0-28050-816-0	04	1	0710-1005	●
77	BOLT; STOPPER M8X16 FLANGE	0-28050-816-0	04	1	1006-1107	●	●
77	BOLT; STOPPER M8X16 FLANGE	0-28050-816-0	04	1	1108-	●	●	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	10	1	0710-0907	●
104	WASHER; PL,CUSHION RUBBER ID=15	8-98010-627-1	10	1	0908-1005	●
104	WASHER; PL,CUSHION RUBBER ID=15	8-98010-627-1	10	1	1006-1107	●	●
104	WASHER; PL,CUSHION RUBBER ID=15	8-98010-627-1	10	1	1108-	●	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	0-91510-622-0	02	1	0710-1005	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	0-91510-622-0	02	1	1006-1107	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	0-91510-622-0	02	1	1108-	●	●	●
125	NUT; ENG FOOT M18	0-91110-518-0	08	1	0710-1005	●
125	NUT; ENG FOOT M18	0-91110-518-0	08	1	1006-1107	●	●
125	NUT; ENG FOOT M18	0-91110-518-0	08	1	1108-	●	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	0710-0909	●
198	WASHER; PL,CUSHION TO BRKT,RR ID=22	0-91614-622-0	02	1	0910-1005	●
198	WASHER; PL,CUSHION TO BRKT,RR ID=22	0-91614-622-0	02	1	1006-1107	●	●
198	WASHER; PL,CUSHION TO BRKT,RR ID=22	0-91614-622-0	02	1	1108-	●	●	●
