8-60 — HEATER UNIT; FRONT (#145445) — 117 parça

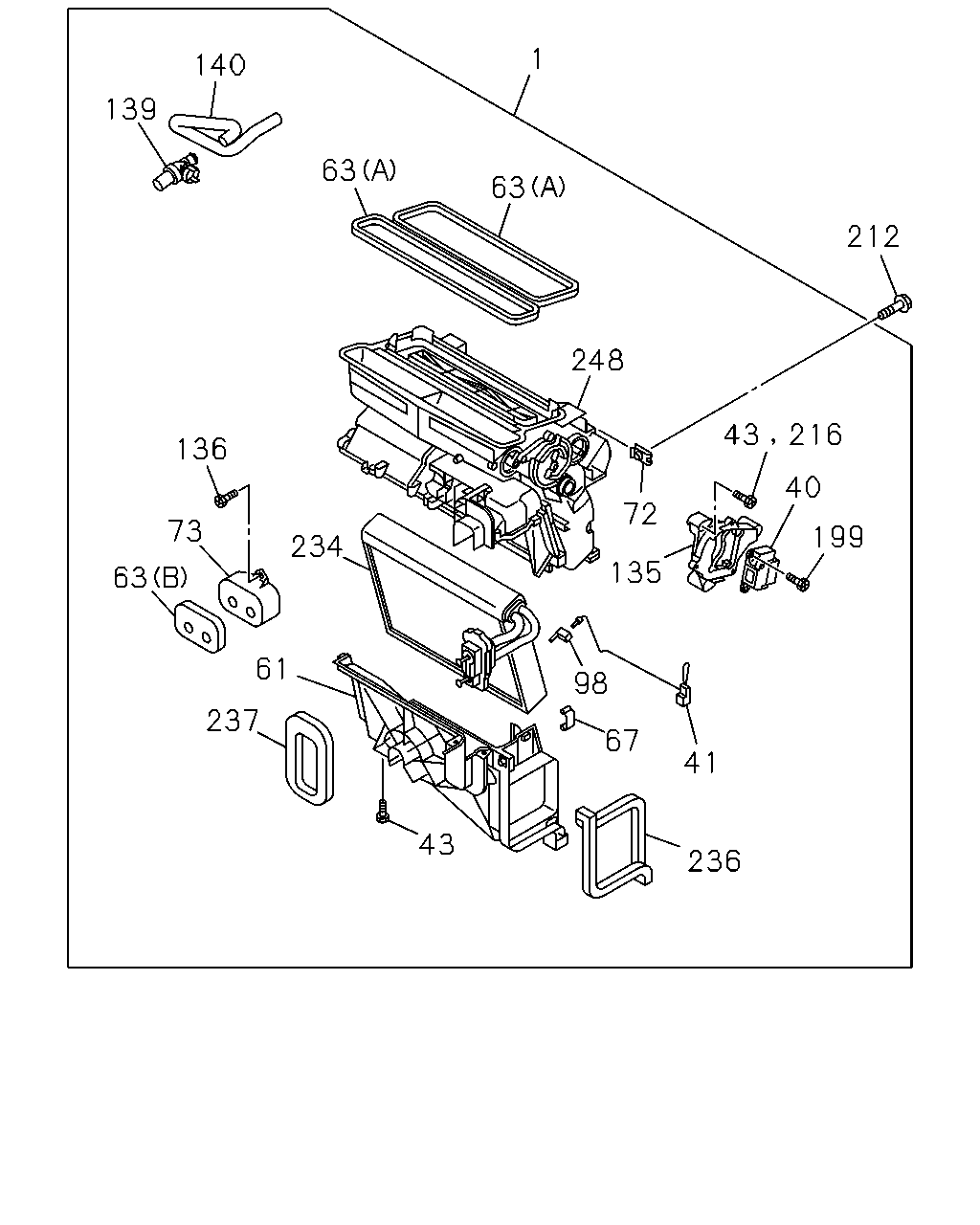

236 43 67 41 98 135 72 40 199 216 43 212 1 63 63 140 139 136 73 63 234 61 237 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AUTO COOLER SYSTEM(CJ2)	8-98274-149-1	01	1	1407-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65)	8-98233-025-1	01	1	1407-	●
1	08.845 HEATER UNIT	8-98233-024-1	01	1	1407-		●
40	08.854 ACTUATOR; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98139-385-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98139-382-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65)	8-98157-121-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT	8-98157-121-0	01	1	1407-		●
43	09.786 SCREW; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	15	1	1407-	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1407-		●
61	08.854 CASE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-572-0	01	1	1407-	●
61	08.854 CASE; HTR UNIT	8-98233-572-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2) (A)	8-98139-358-0	02	1	1407-	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65) (A)	8-98139-358-0	01	1	1407-	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B)	8-98157-118-1	01	1	1407-	●
63	08.856 LINING; HTR UNIT (B)	8-98157-118-1	01	1	1407-		●
67	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-123-0	01	1	1407-	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1407-		●
72	08.845 NUT; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-394-1	03	1	1407-	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1407-		●
73	08.845 PLATE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-591-0	01	1	1407-	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1407-		●
98	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-122-0	01	1	1407-	●
98	08.854 CLIP; HTR UNIT	8-98157-122-0	01	1	1407-		●
135	08.854 COVER; HTR AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-377-0	01	1	1407-	●
136	08.850 SCREW; PLATE AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	02	1	1407-	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1407-		●
139	08.845 ASPIRATOR; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98139-392-1	01	1	1407-	●
140	08.845 HOSE; AIR AUTO COOLER SYSTEM(CJ2)	8-98274-187-0	01	1	1407-	●
199	08.854 SCREW; ACTUATOR AUTO COOLER SYSTEM(CJ2) 08.852	8-98233-593-0	02	1	1407-	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1407-	●
212	09.262 BOLT; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-		●
216	08.845 SCREW; COVER,HEATER UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1407-	●
234	08.854 EVAPORATOR ASM; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-376-1	01	1	1407-	●
234	08.854 EVAPORATOR ASM; HEATER	8-98139-376-1	01	1	1407-		●
236	08.855 GASKET; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-357-0	01	1	1407-	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1407-		●
237	08.855 INSULATOR; EVAPORATOR AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-360-1	01	1	1407-	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1407-		●

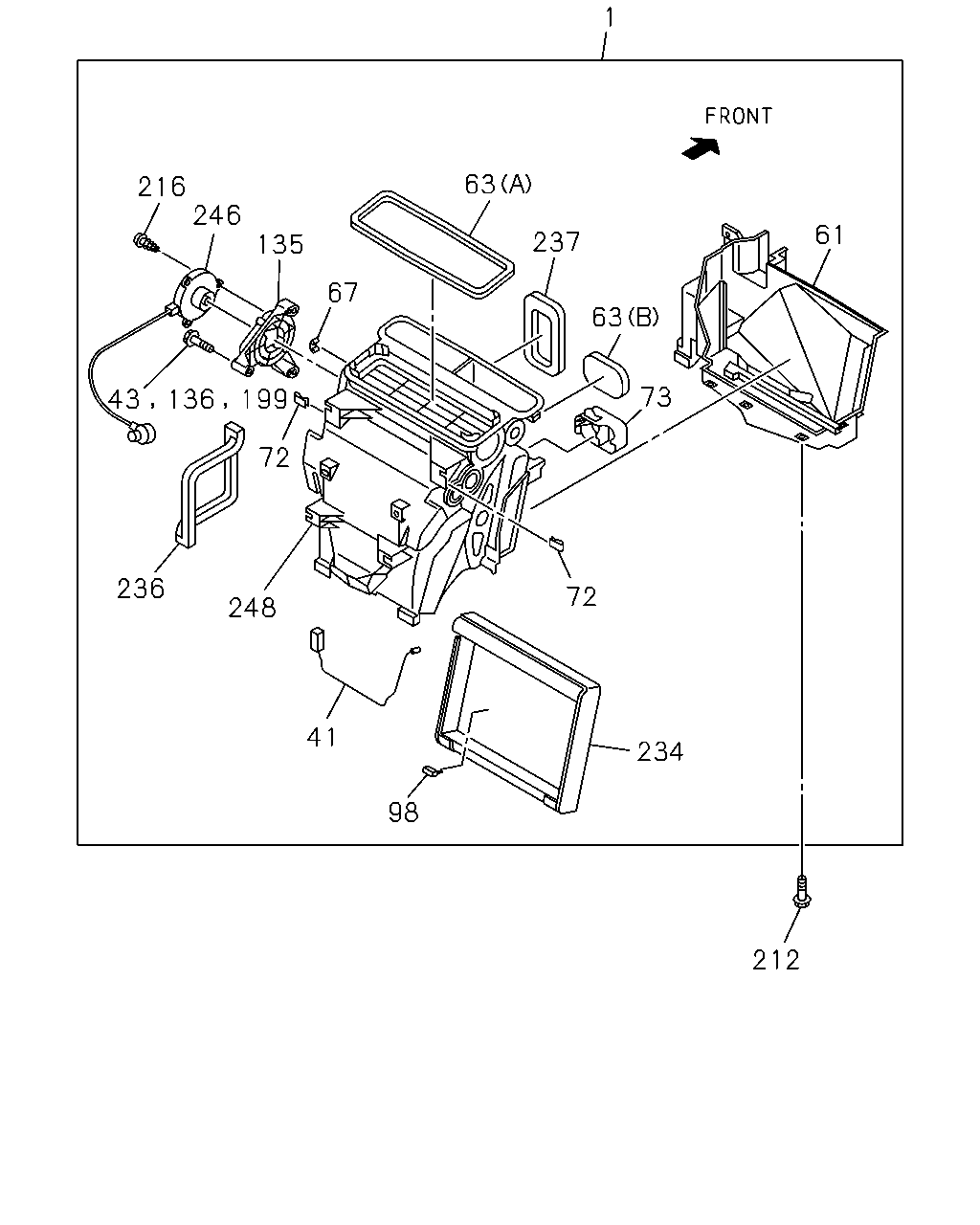

212 234 98 41 248 236 43 136 199 246 216 135 63 67 237 63 73 72 72 61 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AUTO COOLER SYSTEM(CJ2)	8-98274-149-1	01	1	1407-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65)	8-98233-025-1	01	1	1407-	●
1	08.845 HEATER UNIT	8-98233-024-1	01	1	1407-		●
41	08.852 THERMOSTAT; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98139-382-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65)	8-98157-121-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT	8-98157-121-0	01	1	1407-		●
43	09.786 SCREW; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	15	1	1407-	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1407-		●
61	08.854 CASE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-572-0	01	1	1407-	●
61	08.854 CASE; HTR UNIT	8-98233-572-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2) (A)	8-98139-358-0	02	1	1407-	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65) (A)	8-98139-358-0	01	1	1407-	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B)	8-98157-118-1	01	1	1407-	●
63	08.856 LINING; HTR UNIT (B)	8-98157-118-1	01	1	1407-		●
67	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-123-0	01	1	1407-	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1407-		●
72	08.845 NUT; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-394-1	03	1	1407-	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1407-		●
73	08.845 PLATE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-591-0	01	1	1407-	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1407-		●
98	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-122-0	01	1	1407-	●
98	08.854 CLIP; HTR UNIT	8-98157-122-0	01	1	1407-		●
135	08.854 COVER; HTR AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-377-0	01	1	1407-	●
136	08.850 SCREW; PLATE AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	02	1	1407-	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1407-		●
199	08.854 SCREW; ACTUATOR AUTO COOLER SYSTEM(CJ2) 08.852	8-98233-593-0	02	1	1407-	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1407-	●
212	09.262 BOLT; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-		●
216	08.845 SCREW; COVER,HEATER UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1407-	●
234	08.854 EVAPORATOR ASM; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-376-1	01	1	1407-	●
234	08.854 EVAPORATOR ASM; HEATER	8-98139-376-1	01	1	1407-		●
236	08.855 GASKET; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-357-0	01	1	1407-	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1407-		●
237	08.855 INSULATOR; EVAPORATOR AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-360-1	01	1	1407-	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1407-		●
246	08.852 ACTUATOR; MODE COOLER W/FRESH AIR(C65)	8-98139-397-1	01	1	1407-	●
248	08.854 CASE ASM; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98233-570-0	01	1	1407-	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1407-	●
248	08.854 CASE ASM; HTR UNIT	8-98233-563-0	01	1	1407-		●

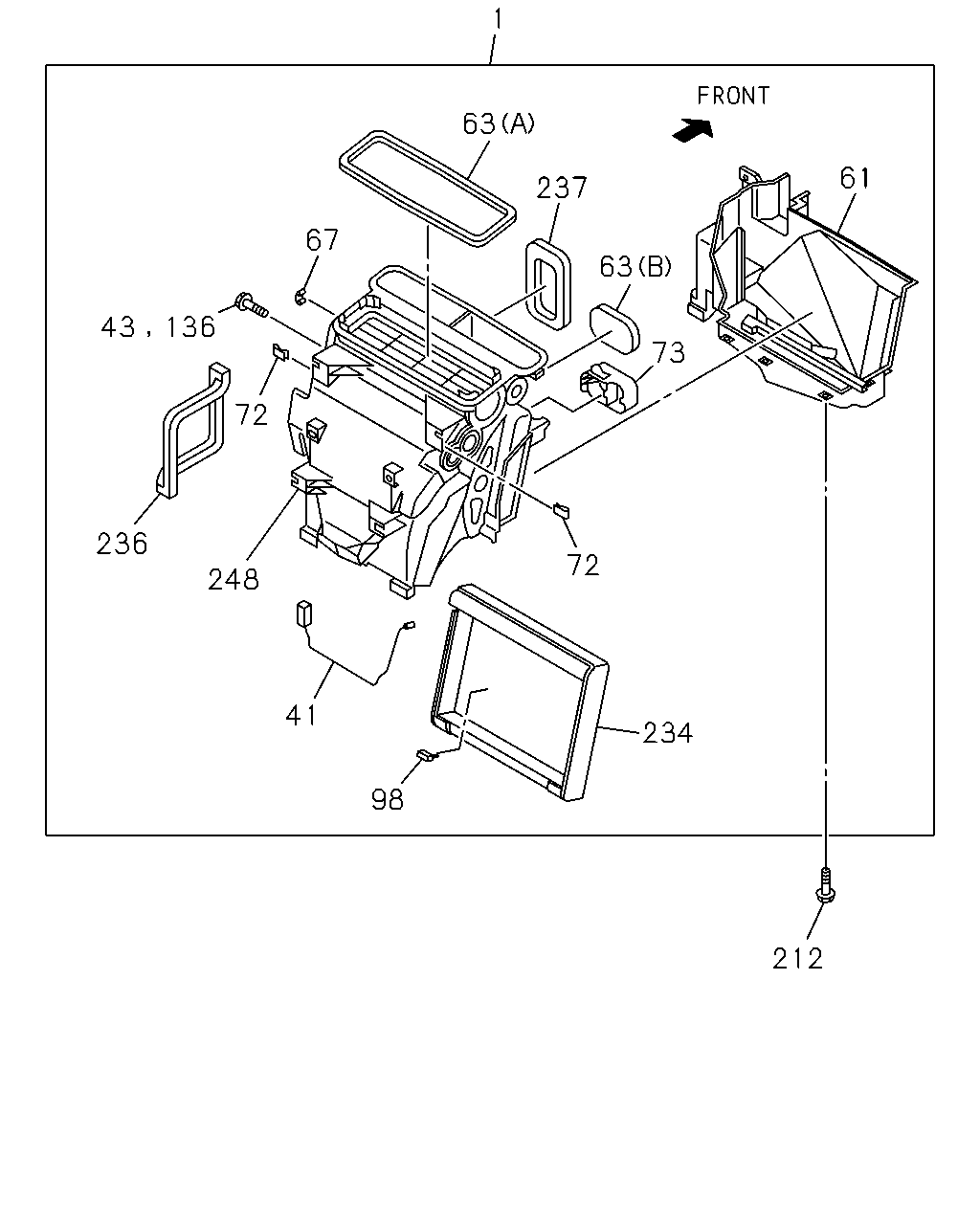

1 63 67 43 136 72 236 248 41 98 212 234 72 73 63 237 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AUTO COOLER SYSTEM(CJ2)	8-98274-149-1	01	1	1407-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65)	8-98233-025-1	01	1	1407-	●
1	08.845 HEATER UNIT	8-98233-024-1	01	1	1407-		●
41	08.852 THERMOSTAT; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98139-382-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65)	8-98157-121-0	01	1	1407-	●
41	08.852 THERMOSTAT; HTR UNIT	8-98157-121-0	01	1	1407-		●
43	09.786 SCREW; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	15	1	1407-	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1407-		●
61	08.854 CASE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-572-0	01	1	1407-	●
61	08.854 CASE; HTR UNIT	8-98233-572-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2) (A)	8-98139-358-0	02	1	1407-	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65) (A)	8-98139-358-0	01	1	1407-	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	01	1	1407-		●
63	08.856 LINING; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B)	8-98157-118-1	01	1	1407-	●
63	08.856 LINING; HTR UNIT (B)	8-98157-118-1	01	1	1407-		●
67	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-123-0	01	1	1407-	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1407-		●
72	08.845 NUT; CASE,HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-394-1	03	1	1407-	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1407-		●
73	08.845 PLATE; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98233-591-0	01	1	1407-	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1407-		●
98	08.854 CLIP; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98157-122-0	01	1	1407-	●
98	08.854 CLIP; HTR UNIT	8-98157-122-0	01	1	1407-		●
136	08.850 SCREW; PLATE AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	02	1	1407-	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1407-		●
212	09.262 BOLT; HTR UNIT AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1407-		●
234	08.854 EVAPORATOR ASM; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-376-1	01	1	1407-	●
234	08.854 EVAPORATOR ASM; HEATER	8-98139-376-1	01	1	1407-		●
236	08.855 GASKET; HEATER AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-357-0	01	1	1407-	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1407-		●
237	08.855 INSULATOR; EVAPORATOR AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98139-360-1	01	1	1407-	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1407-		●
248	08.854 CASE ASM; HTR UNIT AUTO COOLER SYSTEM(CJ2)	8-98233-570-0	01	1	1407-	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1407-	●
248	08.854 CASE ASM; HTR UNIT	8-98233-563-0	01	1	1407-		●
