8-50 — AIR CONDITIONING SYSTEM; FRONT (#145443) — 40 parça
çizim 434024
37 25 46 47 14 32 262 99 262 99
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1407-1508 ●
14 09.171 BOLT; CMPR
4JK1-TCX ENG(LR0) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1407-1508 ●
14 09.171 BOLT; CMPR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1509- ●
14 09.171 BOLT; CMPR
4JK1-TCX ENG(LR0) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1509- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98205-963-0 01 1 1407-1508 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) 		8-98205-963-0 01 1 1407-1508 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98205-963-0 01 1 1509- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) 		8-98205-963-0 01 1 1509- ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1407-1508 ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1407-1508 ●
32 01.066 BELT; A/C CMPR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1509- ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1509- ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1407-1508 ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) L=1445 BANDO 		8-97985-122-0 01 1 1407-1508 ●
32 01.066 BELT; A/C CMPR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1509- ●
32 01.066 BELT; A/C CMPR
4JK1-TCX ENG(LR0) L=1445 BANDO 		8-97985-122-0 01 1 1509- ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407-1508 ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407-1508 ●
37 09.173 BOLT; PULLEY BRKT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98226-839-0 01 1 1407-1508 ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0) 		8-98226-839-0 01 1 1407-1508 ●
46 09.171 BRACKET; CMPR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98226-839-0 01 1 1509- ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0) 		8-98226-839-0 01 1 1509- ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407-1508 ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407-1508 ●
47 09.173 BOLT; BRKT TO BODY
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
99 09.171 BOLT; BRKT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1407- ●
99 09.171 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1407- ●
262 09.190 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98103-644-0 01 1 1407- ●
262 09.190 BRACKET; CONDENSER
(B) 		8-98103-644-0 01 1 1407- ●
262 09.190 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98103-645-0 01 1 1407- ●
262 09.190 BRACKET; CONDENSER
(A) 		8-98103-645-0 01 1 1407- ●

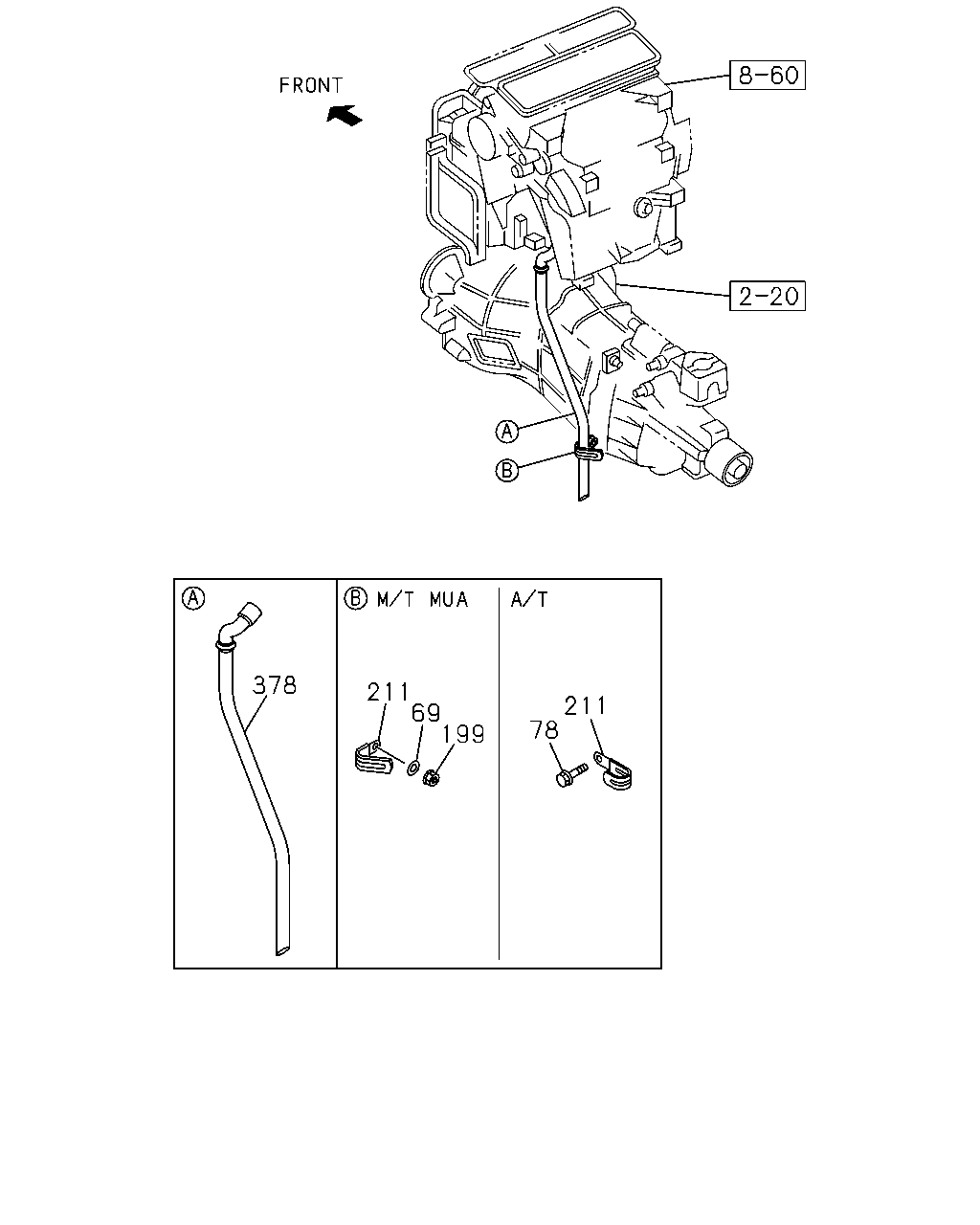

çizim 434052
378 211 69 199 211 78
BalonParca AdiParca NoAdetTipApplied Date A B
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1407- ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1407- ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1407- ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 02.343 ID=22 L=35 		8-97375-643-0 01 1 1407- ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ) 		8-98173-569-0 01 1 1407- ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1407- ● ●
