8-40 — HEATER SYSTEM (#145441) — 17 parça

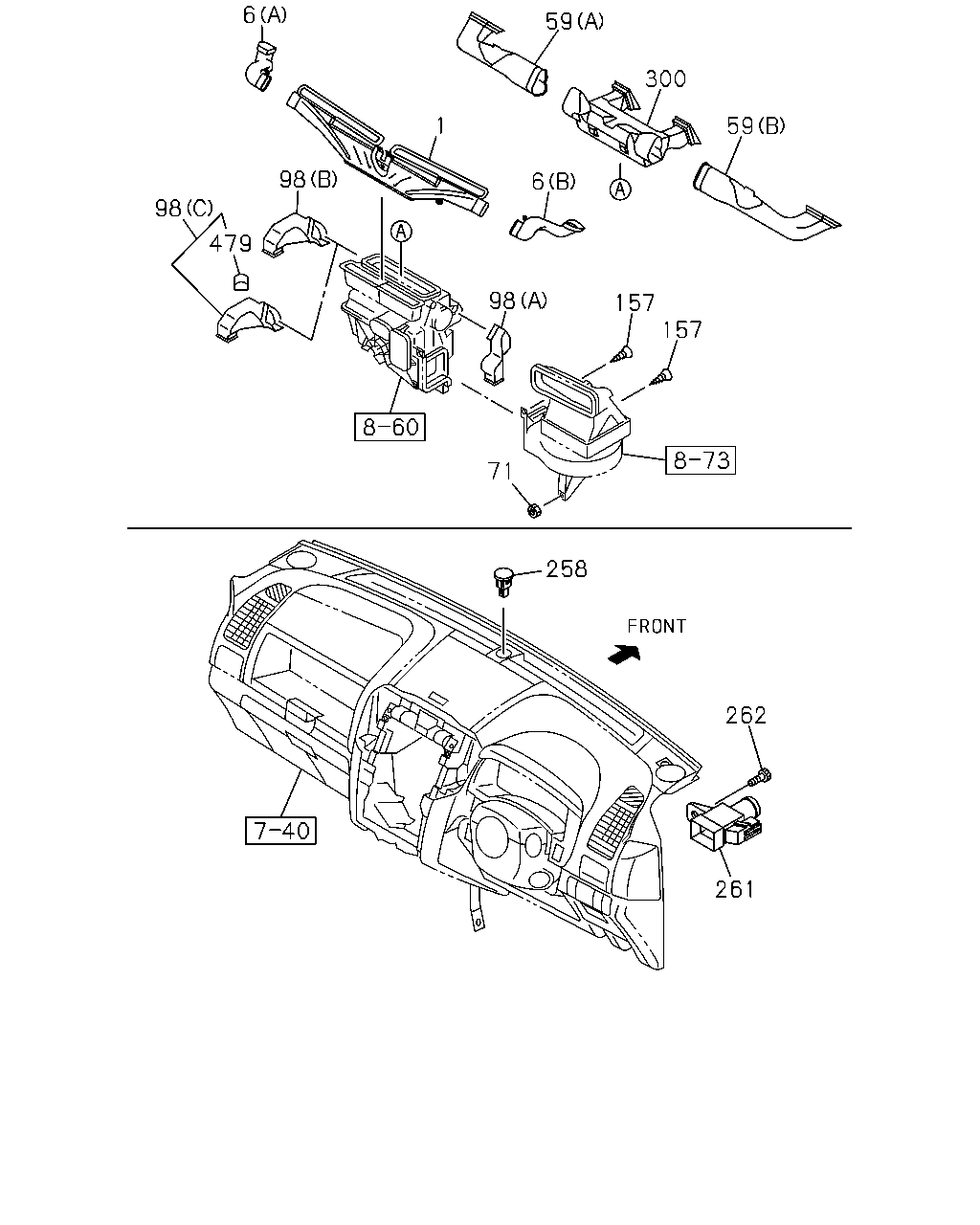

çizim 434021
6 59 300 59 1 6 98 98 479 98 157 157 71 258 262 261
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.779 NOZZLE; DEFROSTER,INST PNL
AUTO COOLER SYSTEM(CJ2) 		8-98187-101-2 01 1 1407- ●
6 09.779 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2) (A) 		8-98187-102-0 01 1 1407- ●
6 09.779 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2) (B) 		8-98187-103-0 01 1 1407- ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1407- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1407- ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 03.417 M6 FLANGE 		8-94279-514-0 01 1 1407- ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1407- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM(CJ2) (C) 		8-98274-165-0 01 1 1407- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98233-054-0 01 1 1407- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
COOLER W/FRESH AIR(C65) (B) 		8-98233-055-0 01 1 1407- ●
157 09.264 SCREW
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 16.650 M5X16 		8-98167-220-0 02 1 1407- ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1407- ●
258 08.845 SENSOR; SUN
AUTO COOLER SYSTEM(CJ2) 		8-98103-691-0 01 1 1407- ●
261 08.845 SENSOR; IN CAR
AUTO COOLER SYSTEM(CJ2) 		8-98103-694-0 01 1 1407- ●
262 08.845 SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM(CJ2) 16.345 M5X14 TAPPING 		8-98184-363-0 01 1 1407- ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1407- ● ●
479 09.262 SPONGE
AUTO COOLER SYSTEM(CJ2) 		8-98274-219-0 01 1 1407- ●
