8-28 — CHASSIS ELECTRICAL (#145440) — 44 parça

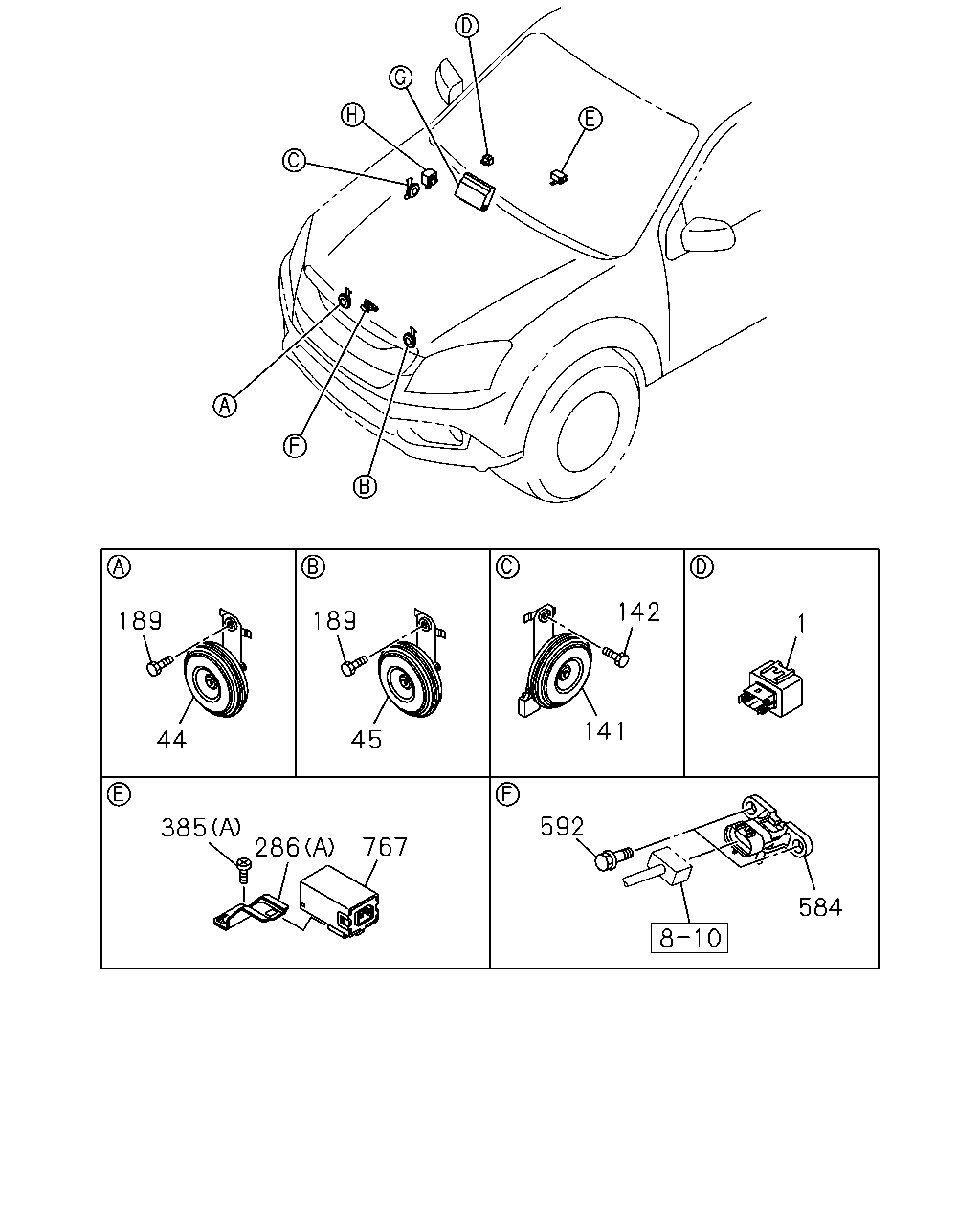

189 44 189 45 142 141 1 767 385 286 592 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.575 UNIT; FLASHER	8-98080-978-0	01	1	1407-	●	●
44	02.810 HORN; HIGH NOTE	8-98084-022-1	01	1	1407-	●
45	02.810 HORN; LOW NOTE	8-98084-023-0	01	1	1407-	●	●
141	02.810 HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98164-588-0	01	1	1407-	●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501	●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●
189	02.812 BOLT; HORN 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501	●	●
189	02.812 BOLT; HORN 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501	●
189	02.812 BOLT; HORN 02.559 M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●
189	02.812 BOLT; HORN 02.559 M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●
286	03.670 BRACKET PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98102-502-2	01	1	1407-	●
286	03.670 BRACKET PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-503-0	01	1	1407-	●
286	03.670 BRACKET (A)	8-98102-503-0	01	1	1407-		●
385	03.670 BOLT; CONT UNIT PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) M5X16 TAPPING	8-98167-449-0	02	1	1407-	●
385	03.670 BOLT; CONT UNIT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 08.083 (A) M5X16 TAPPING	8-98167-449-0	01	1	1407-	●
385	03.670 BOLT; CONT UNIT 08.083 (A) M5X16 TAPPING	8-98167-449-0	01	1	1407-		●
385	03.670 BOLT; CONT UNIT EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1407-	●
385	03.670 BOLT; CONT UNIT 02.510 (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1407-		●
584	02.440 SENSOR; PRESSURE 4JK1-TCX ENG(LR0) 03.331	8-98020-514-0	01	1	1407-1508	●	●
584	02.440 SENSOR; PRESSURE 03.331	8-98020-514-0	01	1	1509-	●
584	02.440 SENSOR; PRESSURE 4JK1-TCX ENG(LR0) 03.331	8-98020-514-0	01	1	1509-		●
592	02.490 BOLT; SENSOR 4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-1508	●	●
592	02.490 BOLT; SENSOR 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●
592	02.490 BOLT; SENSOR 4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3>	8-98076-337-1	01	1	1407-1506	●
767	07.450 RECEIVER ASM; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3>	8-98306-421-0	01	1	1507-	●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5>	8-98076-338-1	01	1	1407-	●
767	07.450 RECEIVER ASM; KEYLESS ENTRY	8-98076-338-1	01	1	1407-		●

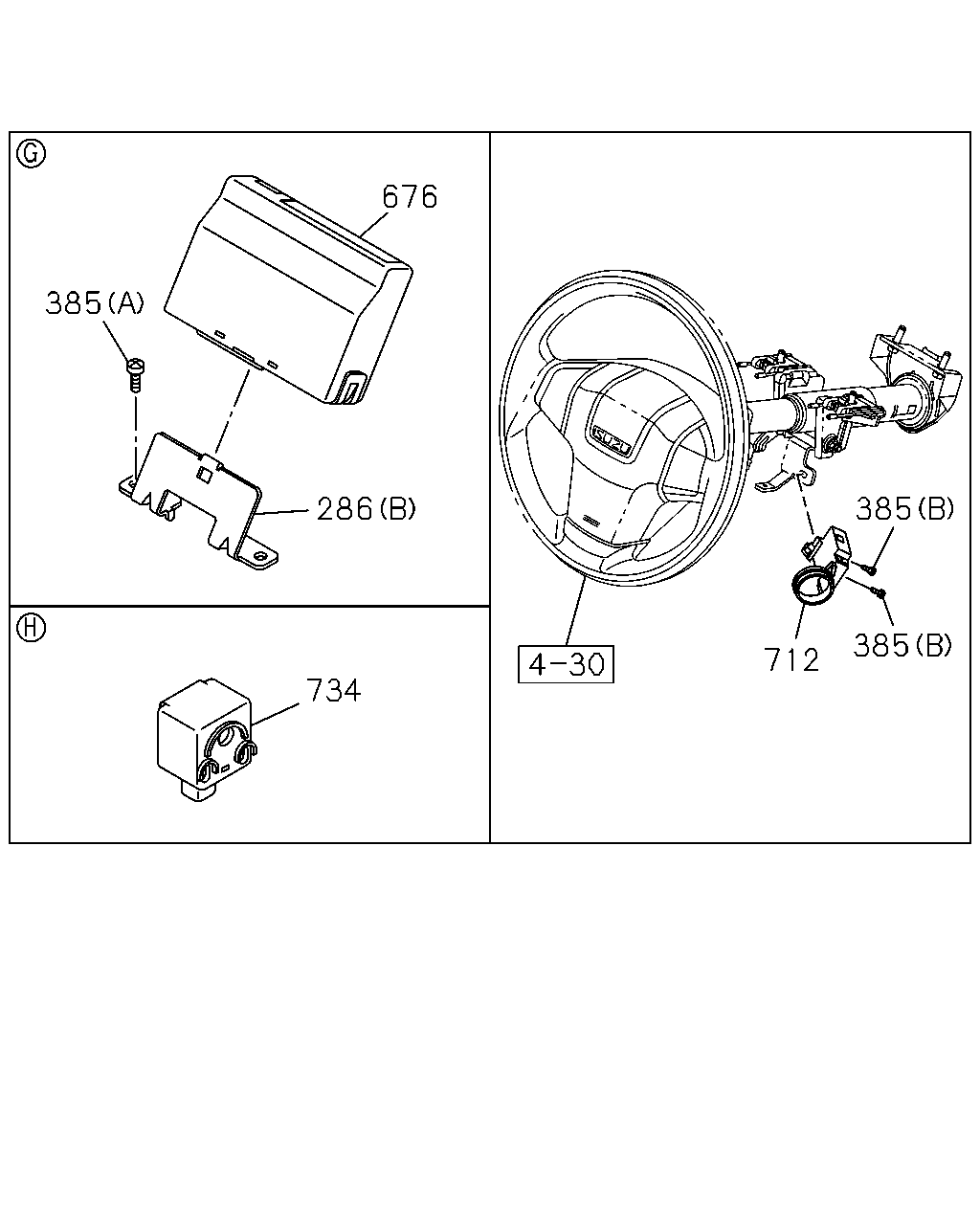

385 676 286 734 712 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
286	03.670 BRACKET PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98102-502-2	01	1	1407-	●
286	03.670 BRACKET PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-503-0	01	1	1407-	●
286	03.670 BRACKET (A)	8-98102-503-0	01	1	1407-		●
385	03.670 BOLT; CONT UNIT PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) M5X16 TAPPING	8-98167-449-0	02	1	1407-	●
385	03.670 BOLT; CONT UNIT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 08.083 (A) M5X16 TAPPING	8-98167-449-0	01	1	1407-	●
385	03.670 BOLT; CONT UNIT 08.083 (A) M5X16 TAPPING	8-98167-449-0	01	1	1407-		●
385	03.670 BOLT; CONT UNIT EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1407-	●
385	03.670 BOLT; CONT UNIT 02.510 (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1407-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3>	8-98243-994-1	01	1	1407-1408	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3>	8-98290-820-0	01	1	1409-1505	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3>	8-98306-213-0	01	1	1506-	●
712	03.670 CONTROL UNIT; ANTI THEFT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98123-260-5	01	1	1407-1411	●
712	03.670 CONTROL UNIT; ANTI THEFT	8-98123-260-5	01	1	1407-1411		●
712	03.670 CONTROL UNIT; ANTI THEFT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98293-154-0	01	1	1412-	●
712	03.670 CONTROL UNIT; ANTI THEFT	8-98293-154-0	01	1	1412-		●
734	02.588 ALARM; MULTI PASSIVE ENTRY AND START SYSTEM<AP3>	8-98192-897-0	01	1	1407-	●
