◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#145439) — 16 parça
çizim 432018
23 54 53 52
BalonParca AdiParca NoAdetTipApplied Date A B
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (C) 		8-98187-777-0 01 1 1407- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (C) 		8-98187-778-0 01 1 1407- ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1407- ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1407- ● ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 06 1 1407- ●
53 06.870 PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 16.165 		8-98232-399-0 01 1 1407- ●
53 06.870 PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 16.165 		8-98232-400-0 01 1 1407- ●
54 06.870 CLIP; PAD
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 16.650 BLACK 		8-97416-699-0 02 1 1407- ●

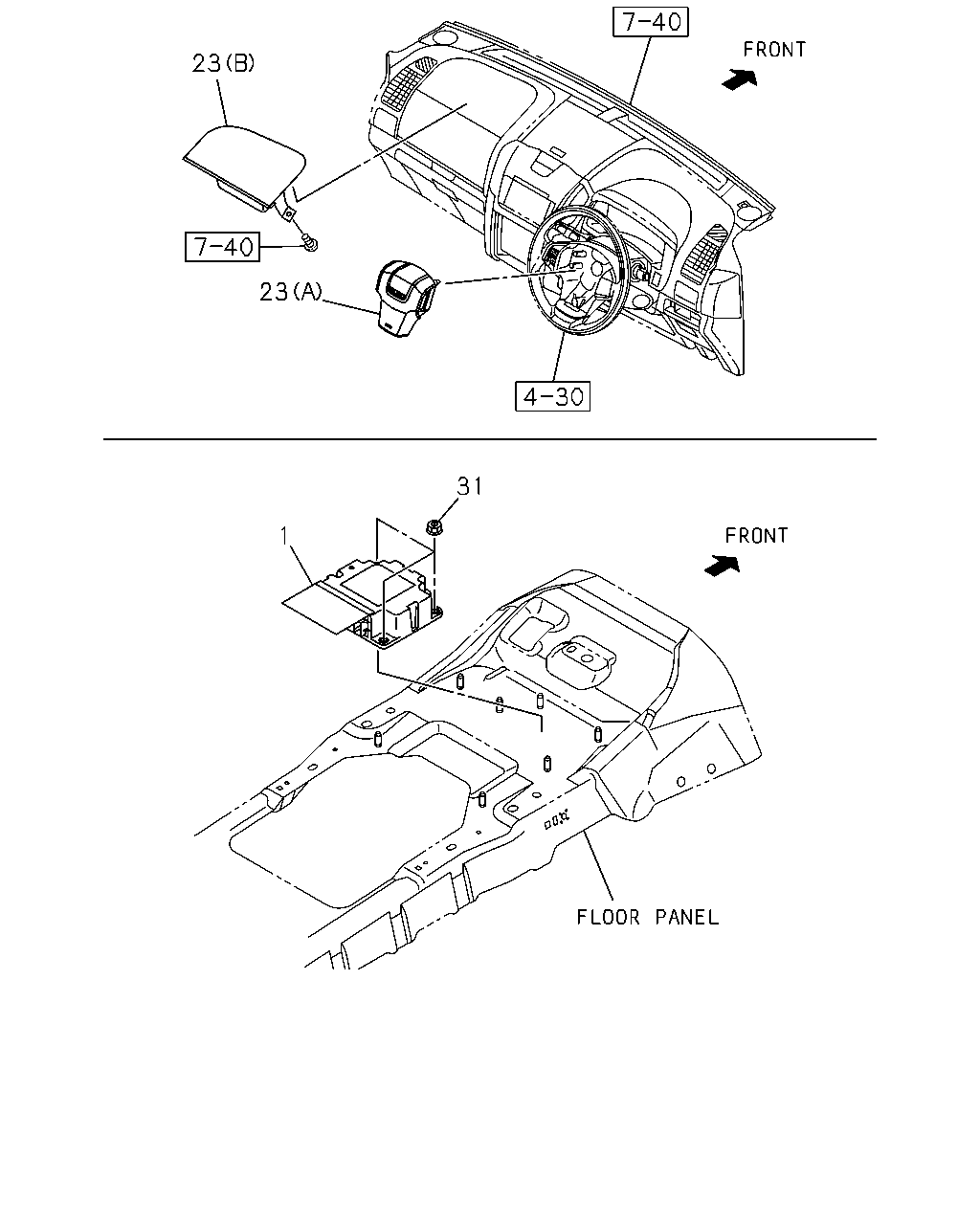

çizim 434115
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98261-126-0 01 1 1407- ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98220-041-1 01 1 1407- ●
1 02.559 CONTROL UNIT; SIR 8-98220-041-1 01 1 1407- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (C) 		8-98187-777-0 01 1 1407- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (C) 		8-98187-778-0 01 1 1407- ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1407- ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1407- ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
