8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#145438) — 34 parça

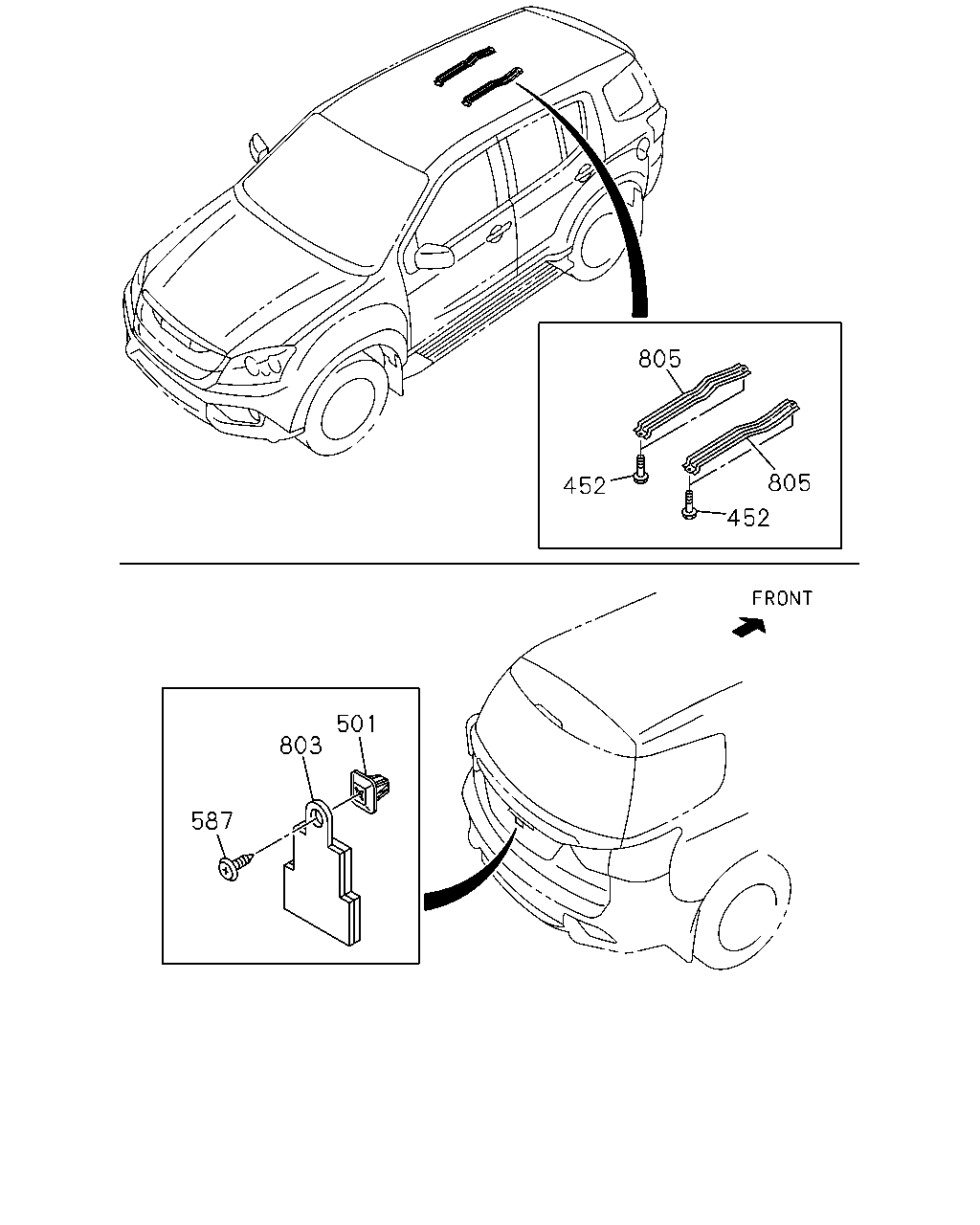

çizim 432158
805 452 452 805 501 803 587
BalonParca AdiParca NoAdetTipApplied Date A B
452 08.900 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1407- ● ●
501 04.342 GROMMET; SCREW
09.655 		8-98163-895-0 01 1 1407- ● ●
587 02.500 SCREW; CAMERA
12.182 M5X14 		8-94152-495-0 01 1 1407- ● ●
803 09.744 COVER; CAMERA 8-98210-821-0 01 1 1407- ● ●
805 02.510 BRACKET; DISPLAY 8-98197-956-1 01 1 1407- ● ●
805 02.510 BRACKET; DISPLAY 8-98211-399-1 01 1 1407- ● ●

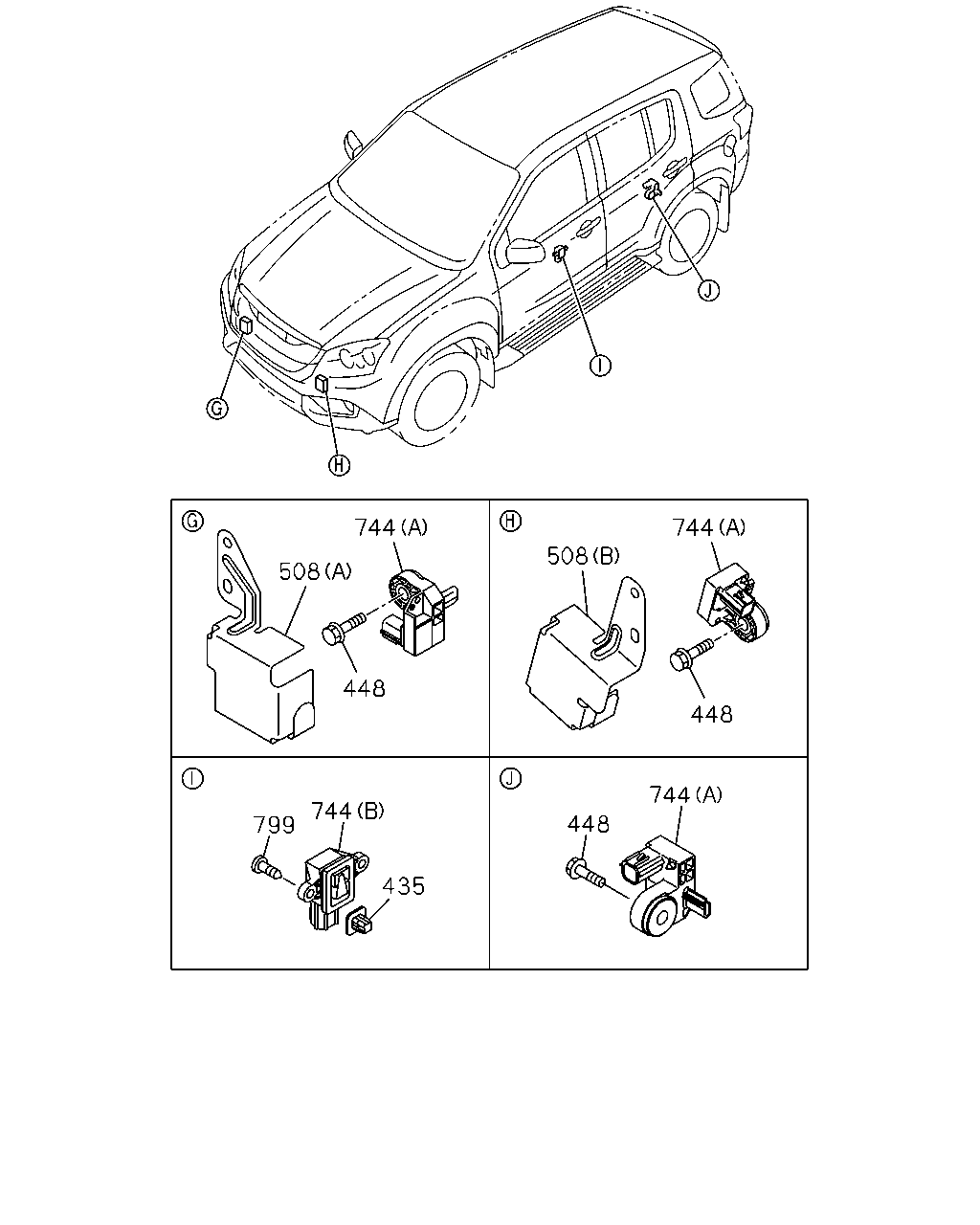

çizim 432848
744 508 448 508 744 448 744 448 744 435 799
BalonParca AdiParca NoAdetTipApplied Date A B
435 04.342 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1407- ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1407- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1407- ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1407- ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1407- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1407- ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98059-533-2 02 1 1407- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) 		8-98146-939-1 02 1 1407- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) 		8-98156-002-0 04 1 1407- ●
799 03.682 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1407- ●

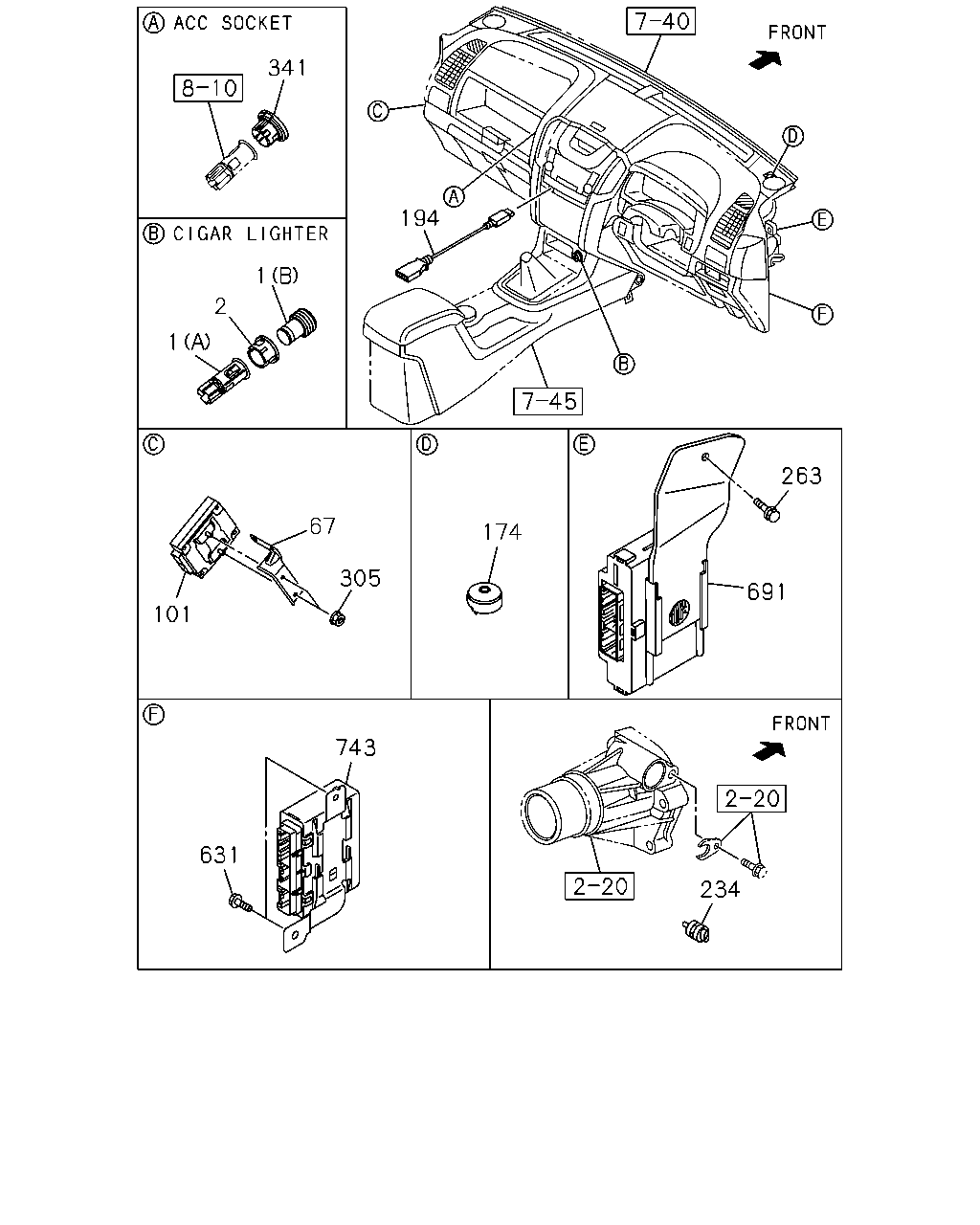

çizim 434018
341 2 101 67 305 743 631 234 263 691 174 194 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1407- ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1407- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1407- ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1407- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98300-510-0 01 1 1509- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98239-695-0 01 1 1407- ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1407- ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 		8-98193-631-0 01 1 1407- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1407- ●
263 04.115 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H(MWQ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1407- ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1407- ●
341 04.115 COVER ASM 8-98123-123-0 01 1 1407- ●
341 04.115 COVER ASM 8-98142-409-1 01 1 1407- ●
631 04.054 BOLT; CONT UNIT
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1407- ● ●
691 04.115 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98186-110-0 01 1 1407- ●
743 02.510 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-502-1 01 1 1407- ●
743 02.510 CONTROL UNIT; BCM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-500-1 01 1 1407- ●
743 02.510 CONTROL UNIT; BCM 8-98190-500-1 01 1 1407- ●
