Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#145434) — 221 parça

430 588

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
430	02.575 COVER ASM; SOCKET,ACCESSORY 04.115	8-98123-123-0	01	1	1407-	●
430	02.575 COVER ASM; SOCKET,ACCESSORY 04.115	8-98142-409-1	01	1	1407-		●
588	02.480 SEAL; LOCATION HOLE EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK	1-76798-019-0	03	1	1407-	●
588	02.480 SEAL; LOCATION HOLE 16.165 OD=25 BLACK	1-76798-019-0	03	1	1407-		●

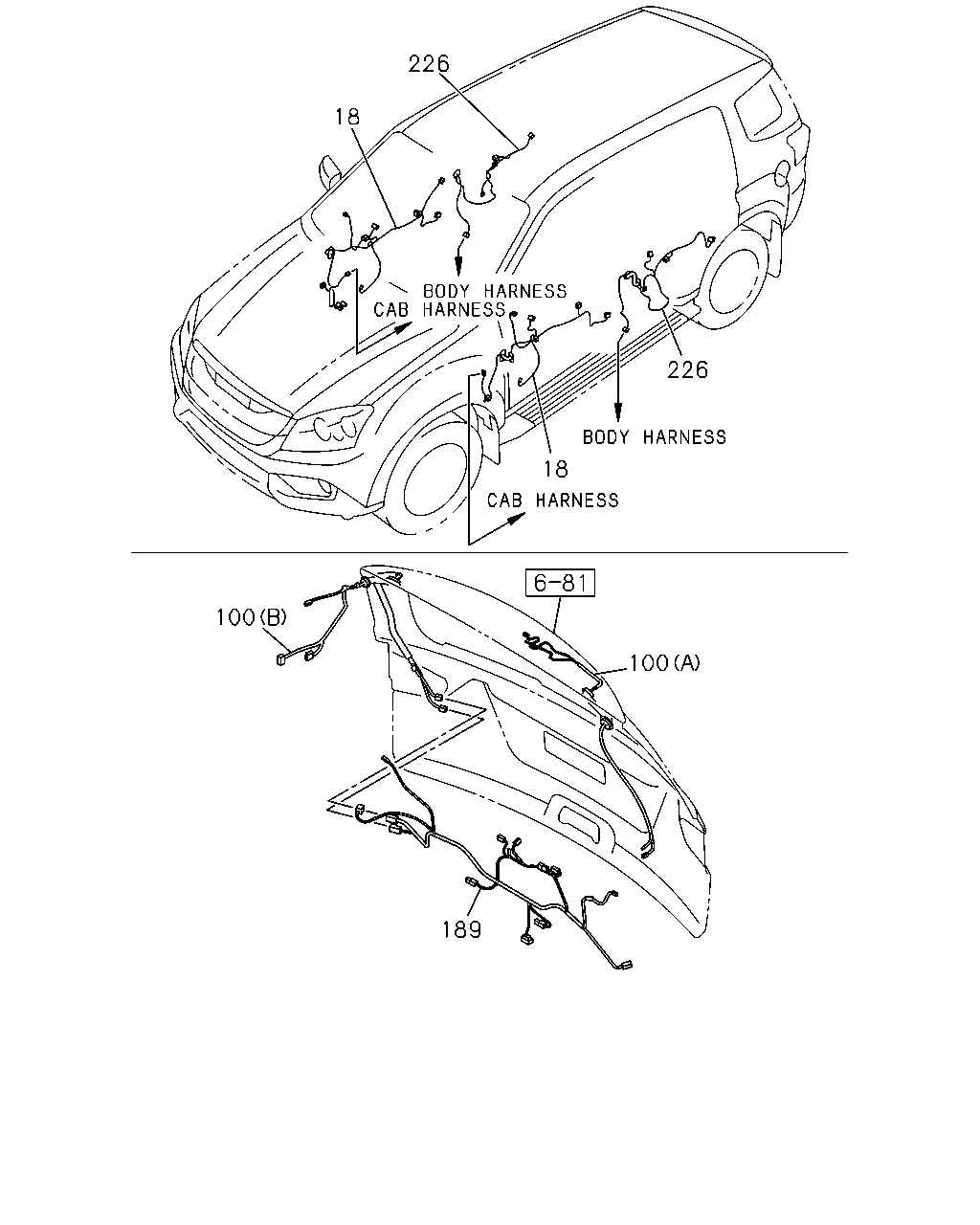

226 18 226 18 100 189 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98209-211-3	01	1	1407-	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-362-1	01	1	1407-	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-364-1	01	1	1407-	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-486-4	01	1	1407-	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-506-5	01	1	1407-	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-488-3	01	1	1407-1502	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-488-4	01	1	1503-	●
18	02.480 HARNESS; DOOR PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98209-213-3	01	1	1407-	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98230-580-1	01	1	1407-	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98230-581-1	01	1	1407-	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98200-116-2	01	1	1407-	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-505-3	01	1	1407-	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-487-3	01	1	1407-1502	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-487-4	01	1	1503-	●
18	02.480 HARNESS; DOOR	8-98159-490-3	01	1	1407-		●
18	02.480 HARNESS; DOOR	8-98225-365-1	01	1	1407-		●
100	02.480 HARNESS; RR GATE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B)	8-98274-807-0	01	1	1407-	●
100	02.480 HARNESS; RR GATE REAR COOLER WO/HEATER<C69> (B)	8-98274-807-0	01	1	1407-		●
100	02.480 HARNESS; RR GATE (A)	8-98198-222-2	01	1	1407-	●
100	02.480 HARNESS; RR GATE (A)	8-98206-101-2	01	1	1407-		●
100	02.480 HARNESS; RR GATE EXC. REAR COOLER WO/HEATER<C69> (B)	8-98274-808-0	01	1	1407-		●
189	02.480 HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-219-1	01	1	1407-	●
189	02.480 HARNESS; EXT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-221-1	01	1	1407-	●
189	02.480 HARNESS; EXT	8-98198-217-1	01	1	1407-		●
226	02.480 HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-213-3	01	1	1407-	●
226	02.480 HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-215-3	01	1	1407-	●
226	02.480 HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-212-3	01	1	1407-1502	●
226	02.480 HARNESS; RR DOOR	8-98198-212-3	01	1	1407-1502		●
226	02.480 HARNESS; RR DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-212-3	01	1	1503-	●
226	02.480 HARNESS; RR DOOR	8-98198-212-3	01	1	1503-		●
226	02.480 HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-214-3	01	1	1407-1502	●
226	02.480 HARNESS; RR DOOR	8-98198-214-3	01	1	1407-1502		●
226	02.480 HARNESS; RR DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-214-3	01	1	1503-	●
226	02.480 HARNESS; RR DOOR	8-98198-214-3	01	1	1503-		●

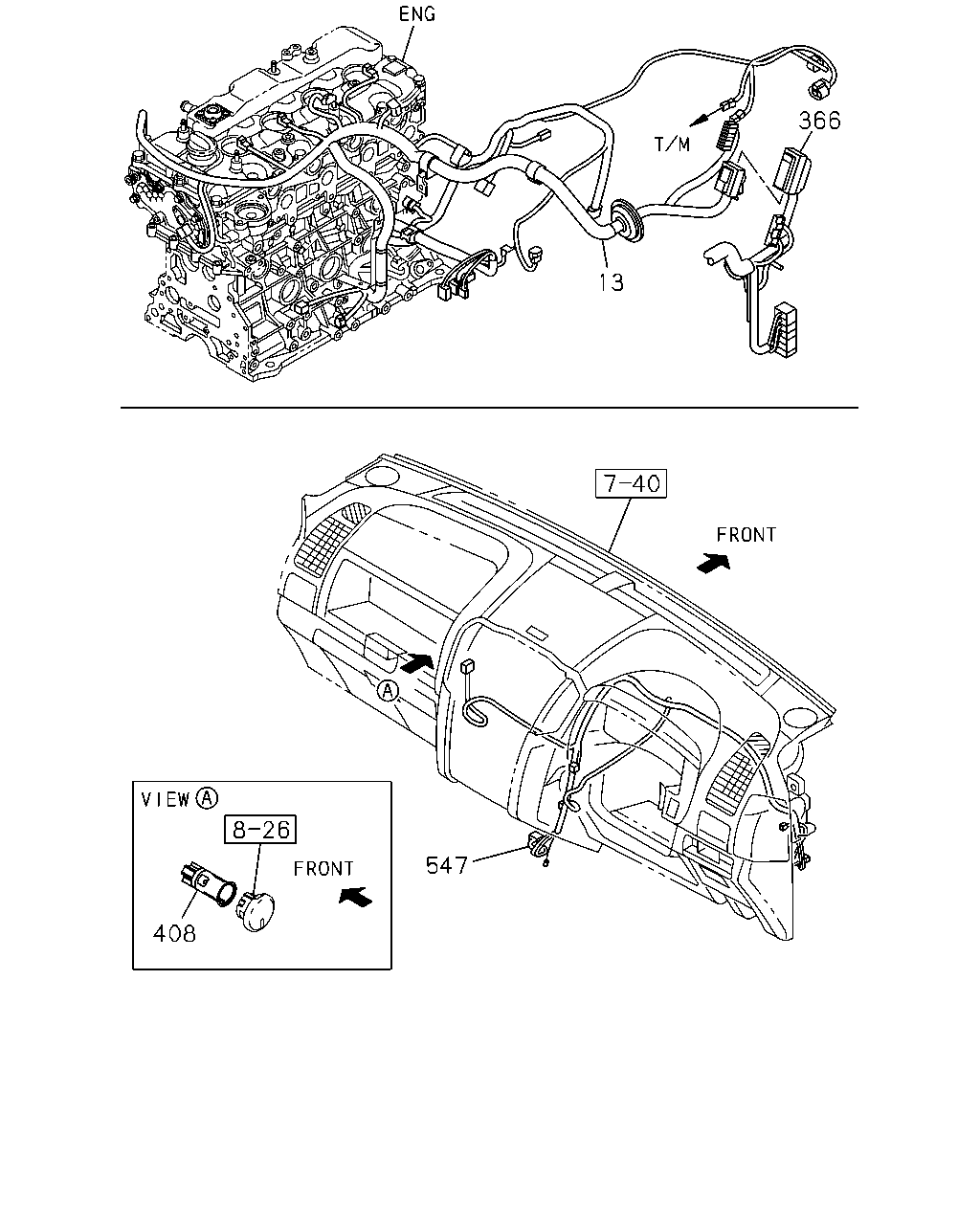

13 366 547 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98240-688-2	01	1	1509-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98206-415-3	01	1	1407-	●
13	02.525 HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98260-516-0	01	1	1407-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0)	8-98271-911-2	01	1	1407-		●
408	02.575 SOCKET ASM; ACCESSORY	8-98123-115-0	02	1	1407-	●
547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98258-880-1	01	1	1407-	●
547	02.480 HARNESS; CABLE,SRS	8-98258-880-1	01	1	1407-		●
547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98224-083-2	01	1	1407-	●

4 734 750 749 758 759 764 763 762 761

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1407-	●	●
734	02.694 RELAY; ACC SOCKET 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●
749	02.694 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
750	02.694 RELAY; RR DEFOGGER 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
758	02.694 RELAY; RR WIPER 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●
759	02.694 RELAY; RR COOLER REAR COOLER WO/HEATER<C69> 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-	●	●
761	02.694 RELAY; ACC PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●
762	02.694 RELAY; IG2 PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-	●
763	02.694 RELAY; IG1 PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●
764	02.694 RELAY; FRT WIPER PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-	●

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0)	8-98271-911-2	01	1	1407-		●
736	02.694 RELAY; STARTER CUT 4JK1-TCX ENG(LR0) 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-1508	●	●
736	02.694 RELAY; STARTER CUT 02.485 12V YAZAKI	8-97309-292-0	01	1	1509-	●
736	02.694 RELAY; STARTER CUT 4JK1-TCX ENG(LR0) 02.485 12V YAZAKI	8-97309-292-0	01	1	1509-		●
737	02.694 RELAY; DIMMER 4JK1-TCX ENG(LR0) 02.485 12V YAZAKI	8-97309-292-0	01	1	1407-1508	●	●
737	02.694 RELAY; DIMMER 02.485 12V YAZAKI	8-97309-292-0	01	1	1509-	●
737	02.694 RELAY; DIMMER 4JK1-TCX ENG(LR0) 02.485 12V YAZAKI	8-97309-292-0	01	1	1509-		●
738	02.694 RELAY; HEADLAMP 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-1508	●	●
738	02.694 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-	●
738	02.694 RELAY; HEADLAMP 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-		●
739	02.694 RELAY; TAIL LAMP 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-1508	●	●
739	02.694 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-	●
739	02.694 RELAY; TAIL LAMP 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-		●
741	02.694 RELAY; HORN 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-1508	●	●
741	02.694 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-	●
741	02.694 RELAY; HORN 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-		●
742	02.694 RELAY; THERMO 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-1508	●	●
742	02.694 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-	●
742	02.694 RELAY; THERMO 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-		●
743	02.694 RELAY; A/C COMPRESSOR 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1407-1508	●	●
743	02.694 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-	●
743	02.694 RELAY; A/C COMPRESSOR 4JK1-TCX ENG(LR0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1509-		●
745	02.694 RELAY; HEATER 4JK1-TCX ENG(LR0) 03.670 12V YAZAKI	8-98146-834-0	01	1	1407-1508	●	●
745	02.694 RELAY; HEATER 03.670 12V YAZAKI	8-98146-834-0	01	1	1509-	●
745	02.694 RELAY; HEATER 4JK1-TCX ENG(LR0) 03.670 12V YAZAKI	8-98146-834-0	01	1	1509-		●
746	02.694 RELAY; ECM,MAIN 4JK1-TCX ENG(LR0) 03.670 12V YAZAKI	8-98146-834-0	01	1	1407-1508	●	●
746	02.694 RELAY; ECM,MAIN 03.670 12V YAZAKI	8-98146-834-0	01	1	1509-	●
746	02.694 RELAY; ECM,MAIN 4JK1-TCX ENG(LR0) 03.670 12V YAZAKI	8-98146-834-0	01	1	1509-		●
747	02.694 RELAY; GLOW 4JK1-TCX ENG(LR0) 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-1508	●	●
747	02.694 RELAY; GLOW 02.100 12V YAZAKI	8-98146-837-0	01	1	1509-	●
747	02.694 RELAY; GLOW 4JK1-TCX ENG(LR0) 02.100 12V YAZAKI	8-98146-837-0	01	1	1509-		●
748	02.694 RELAY; STARTER 4JK1-TCX ENG(LR0) 02.100 12V YAZAKI	8-98146-837-0	01	1	1407-1508	●	●
748	02.694 RELAY; STARTER 02.100 12V YAZAKI	8-98146-837-0	01	1	1509-	●
748	02.694 RELAY; STARTER 4JK1-TCX ENG(LR0) 02.100 12V YAZAKI	8-98146-837-0	01	1	1509-		●

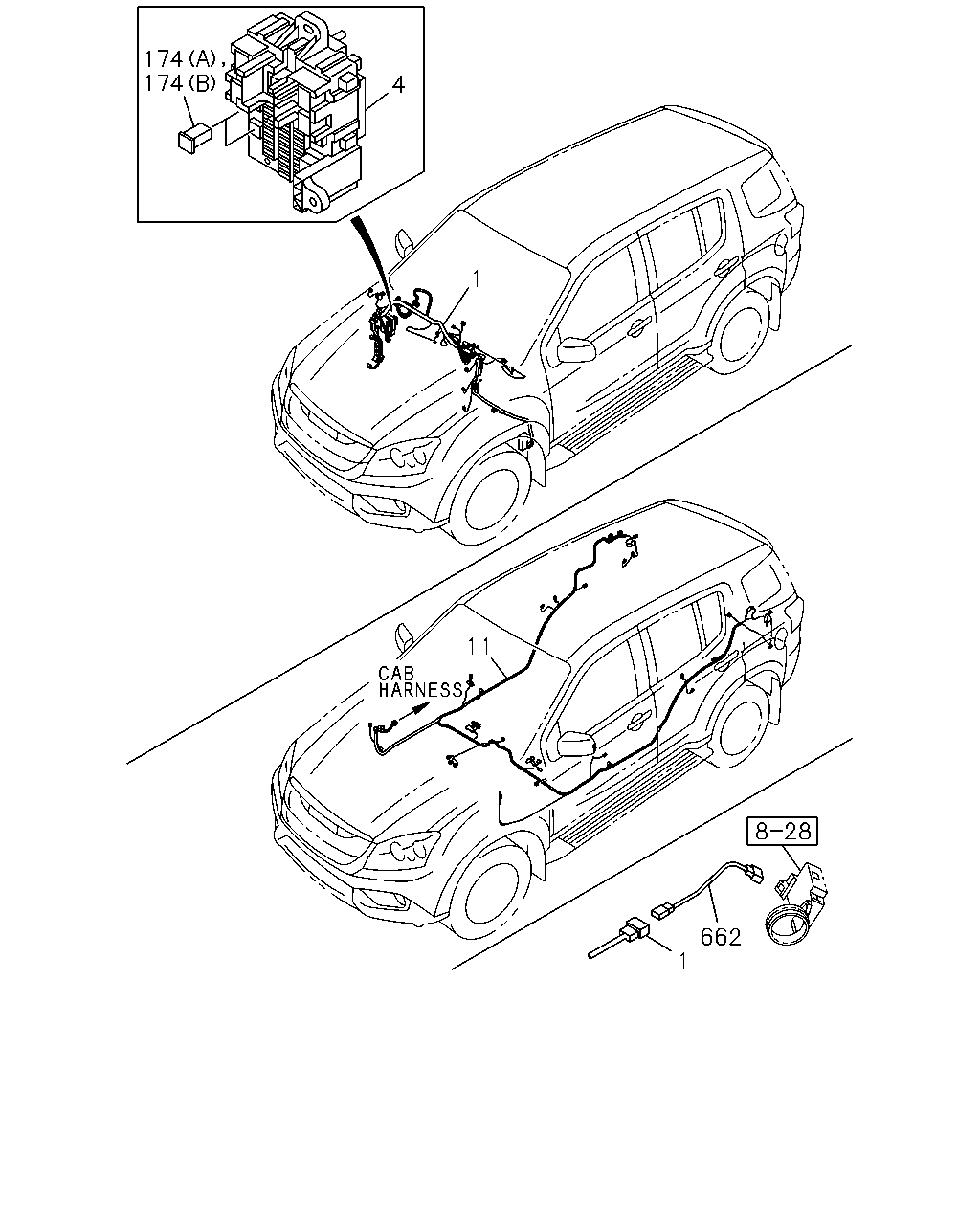

174 4 174 1 11 1 662

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98281-588-1	01	1	1407-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-335-2	01	1	1407-	●
1	02.480 HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98250-337-2	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-164-5	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-168-5	01	1	1407-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98198-170-5	01	1	1407-	●
1	02.480 HARNESS; CAB AUTO COOLER SYSTEM(CJ2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98220-978-5	01	1	1407-	●
1	02.480 HARNESS; CAB COOLER W/FRESH AIR(C65) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98220-979-5	01	1	1407-	●
1	02.480 HARNESS; CAB REAR COOLER WO/HEATER<C69>	8-98250-358-2	01	1	1407-		●
1	02.480 HARNESS; CAB EXC. REAR COOLER WO/HEATER<C69>	8-98250-359-2	01	1	1407-		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1407-	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98198-028-5	01	1	1407-	●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98198-030-5	01	1	1407-	●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-032-5	01	1	1407-	●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-033-5	01	1	1407-	●
11	02.480 HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98198-018-5	01	1	1407-	●
11	02.480 HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98198-020-5	01	1	1407-	●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-024-5	01	1	1407-	●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98221-398-5	01	1	1407-	●
11	02.480 HARNESS; BODY REAR COOLER WO/HEATER<C69>	8-98271-903-1	01	1	1407-		●
11	02.480 HARNESS; BODY EXC. REAR COOLER WO/HEATER<C69>	8-98271-905-1	01	1	1407-		●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1407-	●	●
662	02.525 HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98163-074-0	01	1	1407-1508	●
662	02.525 HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0)	8-98163-074-0	01	1	1407-1508		●
662	02.525 HARNESS; IMMOBILIZER EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98163-074-0	01	1	1509-	●
662	02.525 HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0)	8-98163-074-0	01	1	1509-		●

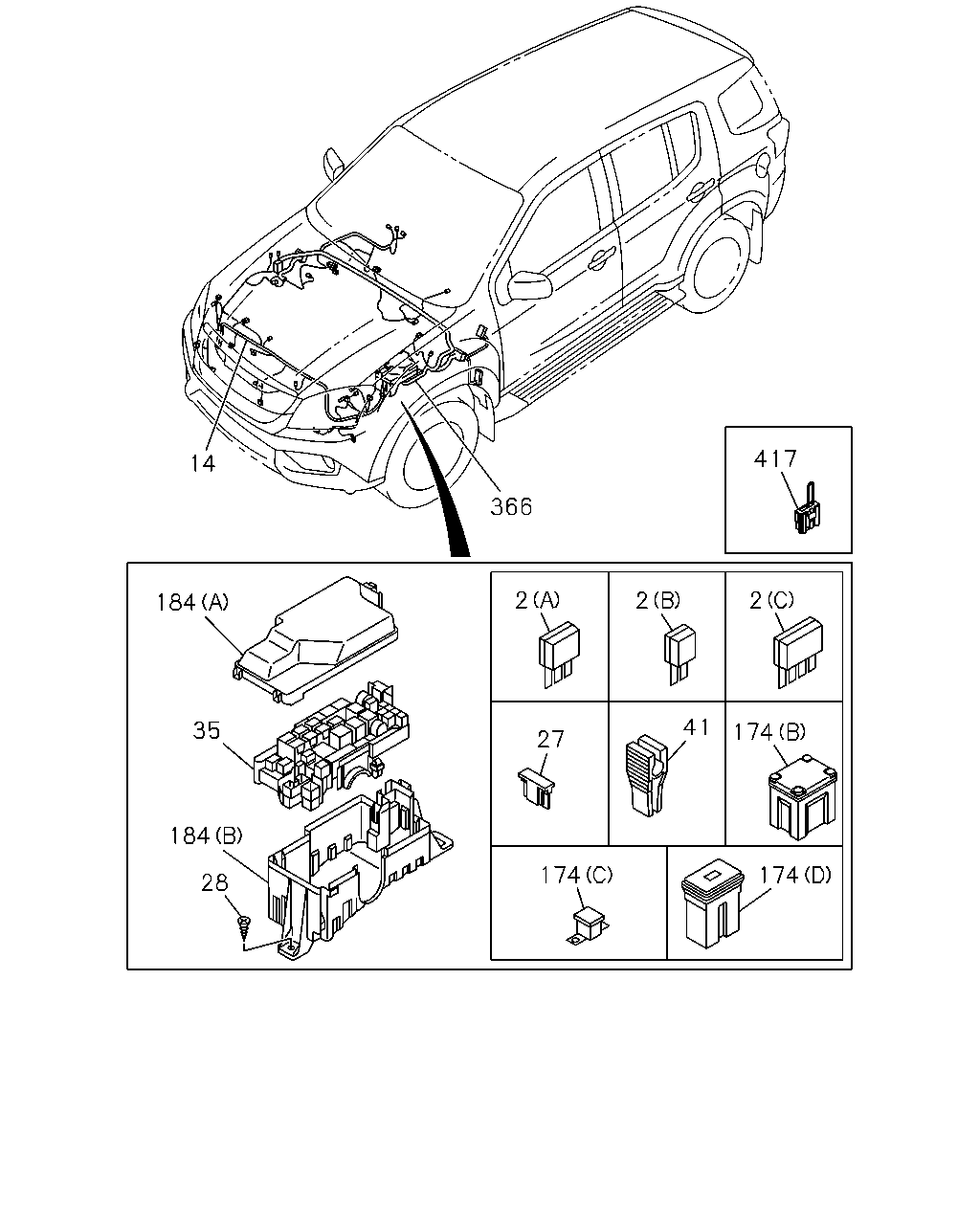

14 184 35 184 28 366 2 27 174 2 41 417 2 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1407-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1407-	●	●
2	02.483 DIODE; CABLE HARNESS (C) BLACK 4P-1.5A	8-94381-730-0	AR	1	1407-	●	●
14	02.727 HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-349-1	01	1	1407-	●
14	02.727 HARNESS; HEADLAMP EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1407-	●
14	02.727 HARNESS; HEADLAMP	8-98159-346-1	01	1	1407-		●
27	08.965 FUSE UNIT 5A ORANGE	8-98281-195-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 15A BLUE	8-98054-258-0	AR	1	1407-	●	●
27	08.965 FUSE UNIT 02.485 20A YELLOW	8-98054-259-0	AR	1	1407-	●	●
28	02.483 SCREW; FUSE BOX 4JK1-TCX ENG(LR0)	8-97249-192-0	02	1	1407-1508	●	●
28	02.483 SCREW; FUSE BOX	8-97249-192-0	02	1	1509-	●
28	02.483 SCREW; FUSE BOX 4JK1-TCX ENG(LR0)	8-97249-192-0	02	1	1509-		●
35	02.530 BOX; RELAY & FUSE 4JK1-TCX ENG(LR0)	8-98113-097-0	01	1	1407-1508	●	●
35	02.530 BOX; RELAY & FUSE	8-98113-097-0	01	1	1509-	●
35	02.530 BOX; RELAY & FUSE 4JK1-TCX ENG(LR0)	8-98113-097-0	01	1	1509-		●
41	08.821 PULLER; FUSE 4JK1-TCX ENG(LR0)	8-98054-260-0	01	1	1407-1508	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1509-	●
41	08.821 PULLER; FUSE 4JK1-TCX ENG(LR0)	8-98054-260-0	01	1	1509-		●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1407-	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1407-	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JK1-TCX ENG(LR0) (A)	8-98113-098-0	01	1	1407-1508	●	●
184	02.559 COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1509-	●
184	02.559 COVER; RELAY & FUSE BOX 4JK1-TCX ENG(LR0) (A)	8-98113-098-0	01	1	1509-		●
184	02.559 COVER; RELAY & FUSE BOX 4JK1-TCX ENG(LR0) (B)	8-98113-099-0	01	1	1407-1508	●	●
184	02.559 COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1509-	●
184	02.559 COVER; RELAY & FUSE BOX 4JK1-TCX ENG(LR0) (B)	8-98113-099-0	01	1	1509-		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9>	8-98250-392-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-397-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-590-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-592-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9>	8-98250-375-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98250-380-2	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98223-586-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1407-1508	●
366	02.525 HARNESS; CABLE,ENG ROOM AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>	8-98223-588-5	01	1	1509-	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0)	8-98271-911-2	01	1	1407-		●
417	02.530 CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65)	8-97362-918-0	01	1	1407-	●
417	02.530 CONNECTOR ASM; ENG HARNESS	8-97362-918-0	01	1	1407-		●

83 483 12 290 101 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER(AK5) 6-SPEAKER SYSTEM BASE<UW5>	8-98229-297-3	01	1	1407-	●
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER(AK5) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98198-181-3	01	1	1407-	●
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 6-SPEAKER SYSTEM BASE<UW5>	8-98238-469-3	01	1	1407-	●
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 8-SPEAKER SYSTEM CUSTOM<U87>	8-98198-179-4	01	1	1407-	●
12	02.480 HARNESS; ROOF	8-98229-296-3	01	1	1407-		●
38	02.480 HARNESS; CHAS	8-98198-065-2	01	1	1407-	●
38	02.480 HARNESS; CHAS	8-98198-063-2	01	1	1407-		●
83	02.480 HARNESS; AIR CONDITIONER	8-98198-188-2	01	1	1407-	●
83	02.480 HARNESS; AIR CONDITIONER REAR COOLER WO/HEATER<C69>	8-98198-188-2	01	1	1407-		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JK1-TCX ENG(LR0)	8-98102-999-0	01	1	1407-1508	●	●
101	02.483 BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1509-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JK1-TCX ENG(LR0)	8-98102-999-0	01	1	1509-		●
290	02.483 NUT; BRKT 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-1508	●	●
290	02.483 NUT; BRKT BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●
290	02.483 NUT; BRKT 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-		●
483	02.480 HARNESS; EXT,RADIO 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1407-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
