◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#14543) — 104 parça

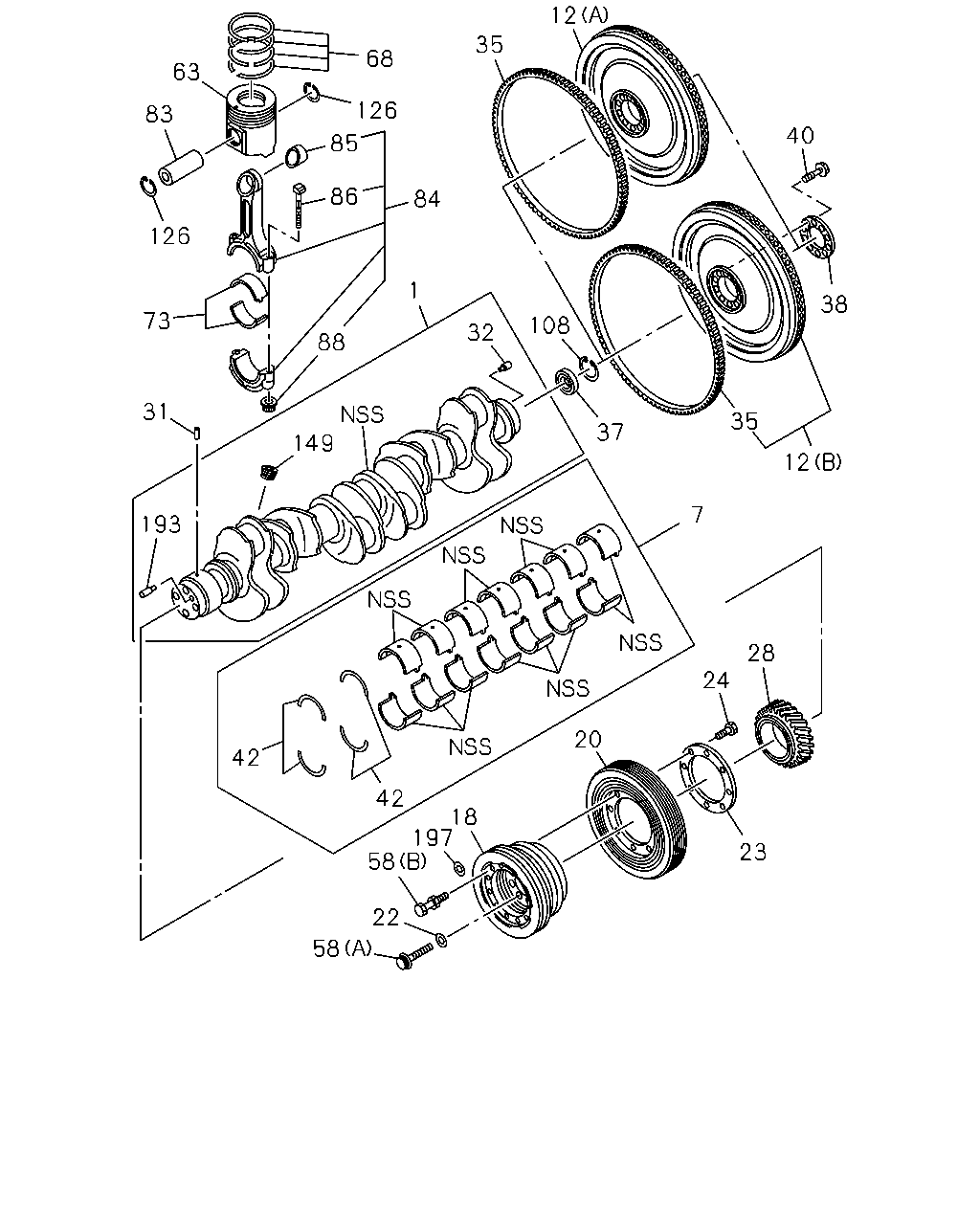

çizim 141425
68 126 63 83 85 126 86 84 35 12 40 38 35 108 1 32 88 73 31 149 37 7 12 28 24 20 23 193 42 42 18 197 58 22 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT 1-12310-715-1 01 1 0710-1005 ●
1 CRANKSHAFT 1-12310-715-1 01 1 1006-1106 ● ●
1 CRANKSHAFT 8-98172-014-0 01 1 1107-1107 ● ●
1 CRANKSHAFT 8-98172-014-0 01 1 1108- ● ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-97606-709-0 01 1 0710-1005 ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-97606-709-0 01 1 1006-1006 ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-98151-849-1 01 1 1007-1107 ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-98151-849-1 01 1 1108- ● ● ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) 		8-97610-231-0 01 1 0710-1107 ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) 		8-97610-231-0 01 1 1108- ●
12 FLYWHEEL
(B) 		8-97610-231-0 01 1 1108- ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) 		8-98063-835-0 01 1 0710-1005 ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) 		8-98063-835-0 01 1 1006- ●
12 FLYWHEEL
(A) 		8-98063-835-0 01 1 1006- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-321-0 01 1 0710-1005 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-321-0 01 1 1006-1107 ● ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-321-0 01 1 1108- ● ● ●
20 DAMPER; CR/SHF 1-12375-212-0 01 1 0710-0912 ●
20 DAMPER; CR/SHF 8-98147-154-0 01 1 1001-1005 ●
20 DAMPER; CR/SHF 8-98147-154-0 01 1 1006-1107 ● ●
20 DAMPER; CR/SHF 8-98147-154-0 01 1 1108- ● ● ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 08 1 0710-1005 ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 08 1 1006-1107 ● ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 08 1 1108- ● ● ●
23 WASHER; DAMPER 1-12379-039-1 01 1 0710-0912 ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28761-230-0 08 1 0710-1005 ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28761-230-0 08 1 1006-1107 ● ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28761-230-0 08 1 1108- ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 0710-1005 ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 1006-1107 ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 1108- ● ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 0710-1005 ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 1006-1107 ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 1108- ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0710-1005 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 1006-1107 ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 1108- ● ● ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 0710-1005 ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 1006-1107 ● ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 1108- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 0710-1005 ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 1006-1107 ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 1108- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-158-0 01 1 1006-1107 ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-158-0 01 1 1108- ● ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 0710-1005 ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 1006-1107 ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 1108- ● ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 10 1 0710-1005 ●
40 BOLT; FLYWHEEL 1-09070-017-1 10 1 1006-1107 ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 10 1 1108- ● ● ●
42 WASHER; THRUST,CR/SHF 8-97606-710-0 02 1 0710-1005 ●
42 WASHER; THRUST,CR/SHF 8-97606-710-0 02 1 1006-1006 ● ●
42 WASHER; THRUST,CR/SHF 8-98151-850-0 02 1 1007-1107 ● ●
42 WASHER; THRUST,CR/SHF 8-98151-850-0 02 1 1108- ● ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09070-017-1 08 1 0710-1005 ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09070-017-1 08 1 1006-1107 ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09070-017-1 08 1 1108- ● ● ●
58 BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE 		8-97603-593-0 06 1 0710-1005 ●
58 BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE 		8-97603-593-0 06 1 1006-1107 ● ●
58 BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE 		8-97603-593-0 06 1 1108- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98174-812-0 06 1 1008- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98028-808-1 06 1 0710-1005 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98028-808-1 06 1 1006-1007 ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98028-808-1 06 1 1008-1107 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98028-808-2 06 1 1108- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-1 06 1 0710-1005 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-1 06 1 1006-1107 ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-1 06 1 1108- ● ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-096-0 06 1 0710-1005 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-096-0 06 1 1006-1107 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-096-0 06 1 1108- ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 0710-1005 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 1006-1107 ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 1108- ● ● ●
84 ROD ASM; CONN 1-12230-176-2 06 1 0710-1004 ●
84 ROD ASM; CONN 8-98115-948-0 06 1 1005-1005 ●
84 ROD ASM; CONN 8-98115-948-0 06 1 1006-1107 ● ●
84 ROD ASM; CONN 8-98115-948-0 06 1 1108- ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 0710-1004 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98115-959-0 06 1 1005-1005 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98115-959-0 06 1 1006-1107 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98115-959-0 06 1 1108- ● ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 0710-1005 ●
86 BOLT; CONNROD 1-12235-036-3 12 1 1006-1107 ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 1108- ● ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 0710-1005 ●
88 NUT; CONNROD 1-12239-005-1 12 1 1006-1107 ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 1108- ● ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 0710-1005 ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 1006-1107 ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 1108- ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 0710-1005 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 1006-1107 ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 1108- ● ● ●
149 PLUG
PT1 		1-09605-021-1 06 1 0710-1005 ●
149 PLUG
PT1 		1-09605-021-1 06 1 1006-1107 ● ●
149 PLUG
PT1 		1-09605-021-1 06 1 1108- ● ● ●
193 PIN; FLANGE
OD=8 L=20 		9-08160-820-0 01 1 0710-1005 ●
193 PIN; FLANGE
OD=8 L=20 		9-08160-820-0 01 1 1006-1107 ● ●
193 PIN; FLANGE
OD=8 L=20 		9-08160-820-0 01 1 1108- ● ● ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 0710-1005 ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 1006-1107 ● ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 1108- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
