Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

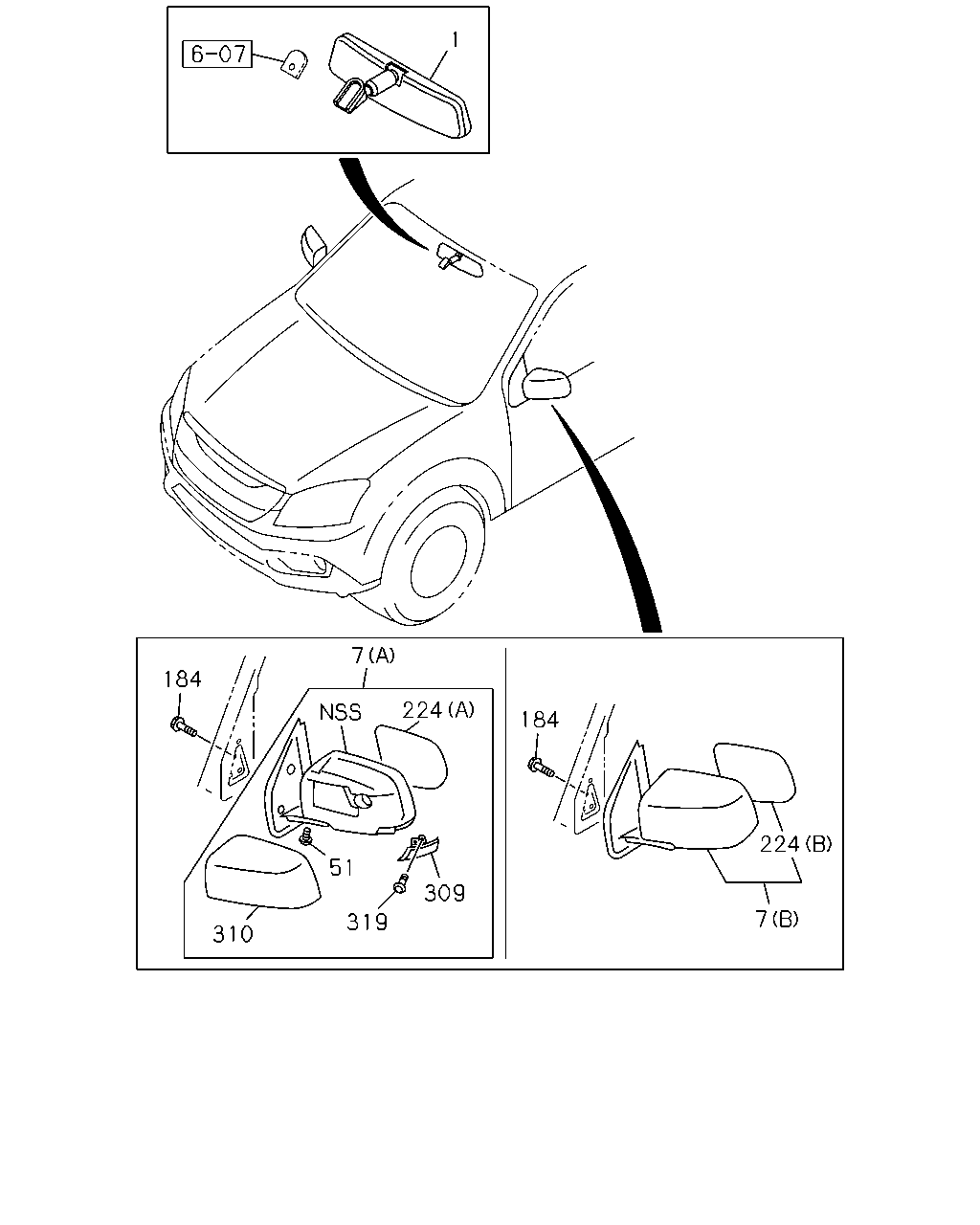

7-20 — MIRROR AND MIRROR STAY
(#145422) — 28 parça
Tümü
A - UCB5VC
B - UCS5VC
1
224
7
184
224
7
184
51
319
309
310
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.068 MIRROR; ROOM
8-97237-560-0
01
1
1407-
●
1
16.068 MIRROR; ROOM
8-98053-645-0
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> (A)
8-98065-333-4
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> (A)
8-98065-334-4
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)
8-98193-672-0
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)
8-98200-733-0
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
(B)
8-98065-317-3
01
1
1407-
●
7
16.068 MIRROR ASM; DOOR
(B)
8-98065-318-3
01
1
1407-
●
51
16.069 SCREW; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-685-0
02
1
1407-
●
51
16.069 SCREW; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98193-685-0
02
1
1407-
●
184
16.069 BOLT; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 17.455 M6X14 FLANGE
8-97247-698-0
06
1
1407-
●
184
16.069 BOLT; MIRROR
17.455 M6X14 FLANGE
8-97247-698-0
06
1
1407-
●
224
16.068 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> (A)
8-98193-681-0
01
1
1407-
●
224
16.068 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)
8-98193-681-0
01
1
1407-
●
224
16.068 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> (A)
8-98193-682-0
01
1
1407-
●
224
16.068 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)
8-98193-682-0
01
1
1407-
●
224
16.068 MIRROR; DOOR
(B)
8-98193-669-0
01
1
1407-
●
224
16.068 MIRROR; DOOR
(B)
8-98193-670-0
01
1
1407-
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-683-0
01
1
1407-
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98193-683-0
01
1
1407-
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-684-0
01
1
1407-
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98193-684-0
01
1
1407-
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-686-0
01
1
1407-
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-687-0
01
1
1407-
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98203-335-0
01
1
1407-
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98203-336-0
01
1
1407-
●
319
16.069 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-685-0
02
1
1407-
●
319
16.069 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98193-685-0
02
1
1407-
●
