Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶

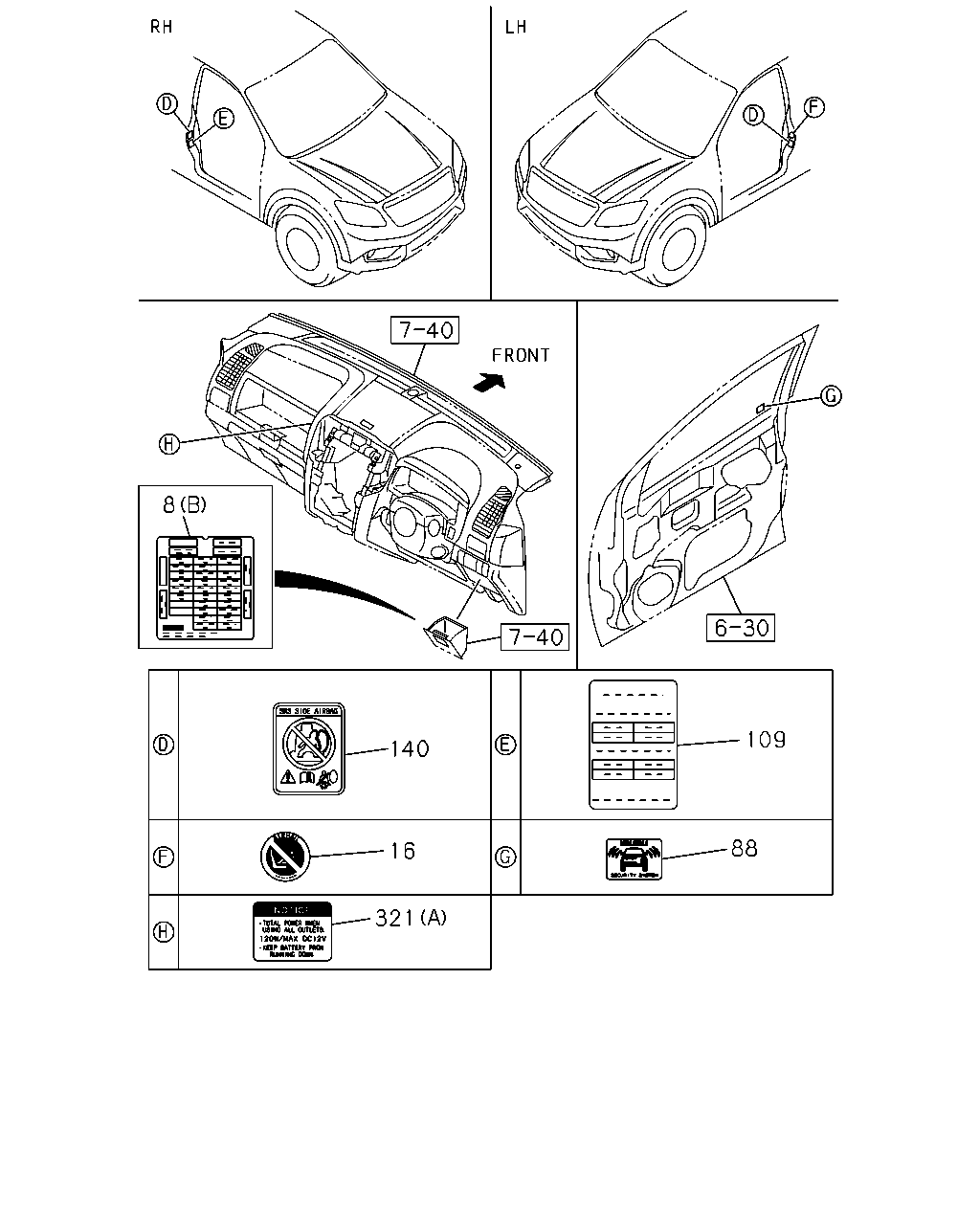

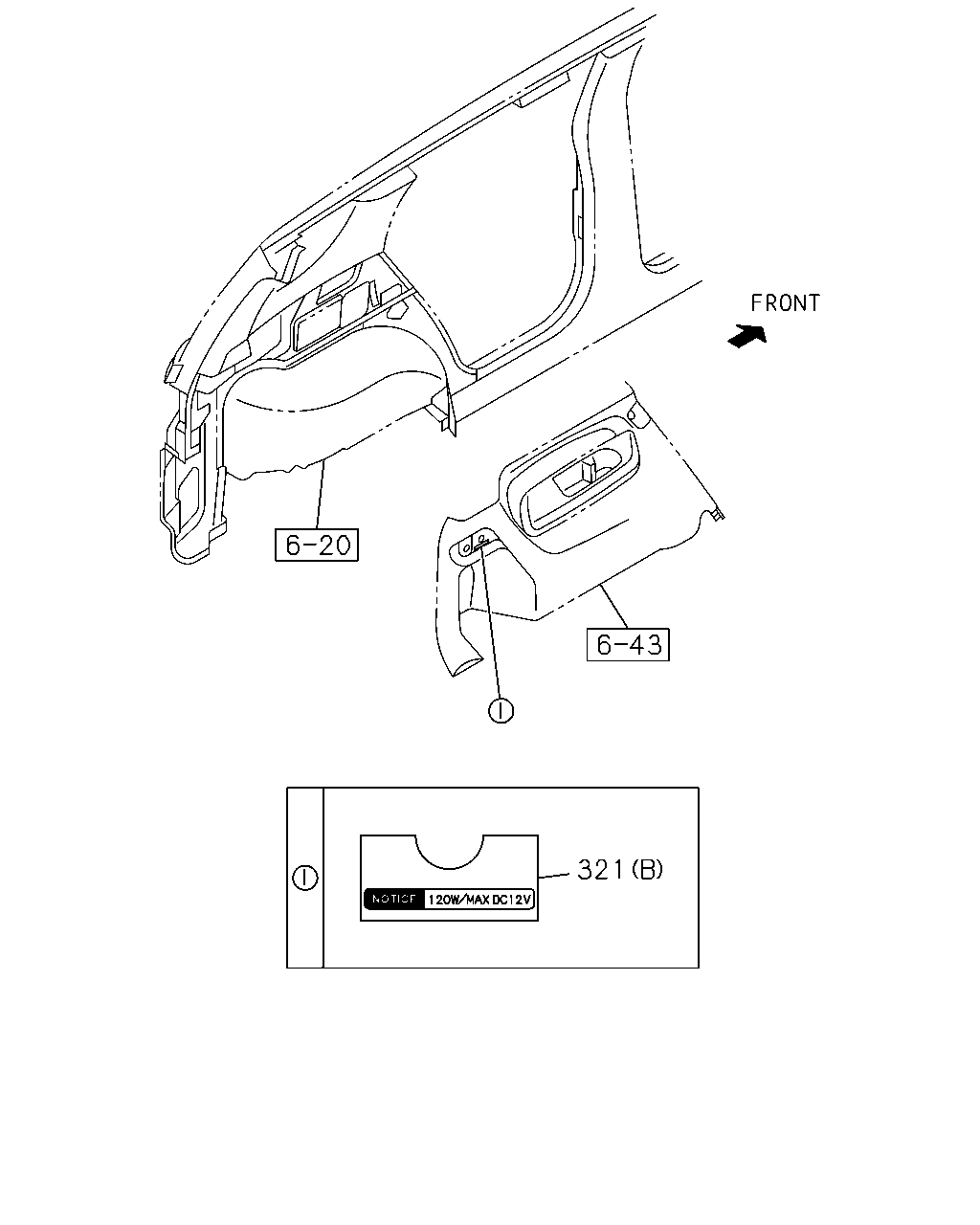

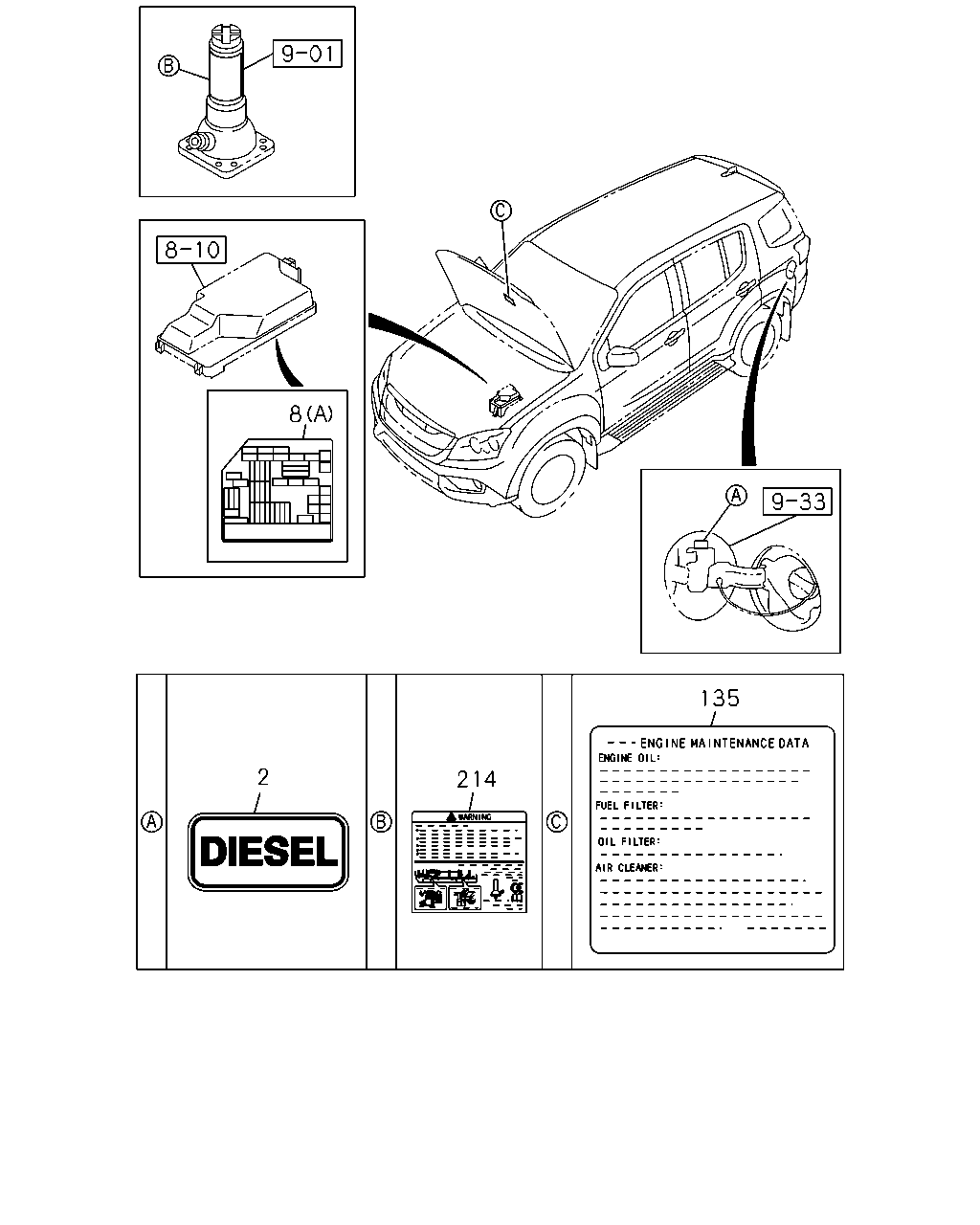

7-10 — CAUTION PLATE AND LABEL
(#145421) — 41 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[710A] NO.1 (19 parça)
[710A] NO.3 (2 parça)
[710A] NO.2 (20 parça)
▶
135
214
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
03.680 LABEL; FUEL CAUTION
8-98147-133-0
01
1
1407-1510
●
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (A)
8-98281-132-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (A)
8-98281-132-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98239-994-0
01
1
1407-1408
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98239-994-0
01
1
1407-1408
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-097-0
01
1
1409-1508
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98281-097-0
01
1
1409-1508
●
8
03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-097-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98281-097-0
01
1
1509-
●
135
08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0)
8-98200-830-0
01
1
1509-
●
135
08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0)
8-98200-831-0
01
1
1407-
●
●
214
08.808 LABEL; JACK
8-98245-069-0
01
1
1407-1501
●
●
214
08.808 LABEL; JACK
8-98304-658-0
01
1
1502-
●
●
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
321
08.808 LABEL; WARNING,POWER
(A)
8-98183-494-1
01
1
1407-
●
321
08.808 LABEL; WARNING,POWER
(B)
8-98215-396-0
01
1
1407-
●
109
88
16
140
321
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (A)
8-98281-132-0
01
1
1407-1508
●
8
03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (A)
8-98281-132-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98239-994-0
01
1
1407-1408
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98239-994-0
01
1
1407-1408
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-097-0
01
1
1409-1508
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98281-097-0
01
1
1409-1508
●
8
03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-097-0
01
1
1509-
●
8
03.680 LABEL; FUSE
4JK1-TCX ENG(LR0) (B)
8-98281-097-0
01
1
1509-
●
16
08.808 PLATE; CAUTION,SIR
8-97378-569-0
01
1
1407-
●
●
88
08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98141-993-2
02
1
1407-
●
109
08.808 PLATE; CAUTION,TIRE PLACARD
8-98197-215-0
01
1
1407-
●
●
140
08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)
8-98179-251-2
02
1
1407-
●
321
08.808 LABEL; WARNING,POWER
(A)
8-98183-494-1
01
1
1407-
●
321
08.808 LABEL; WARNING,POWER
(B)
8-98215-396-0
01
1
1407-
●
