6-86 — TRUNK OPENER AND FUEL LID (#145417) — 10 parça

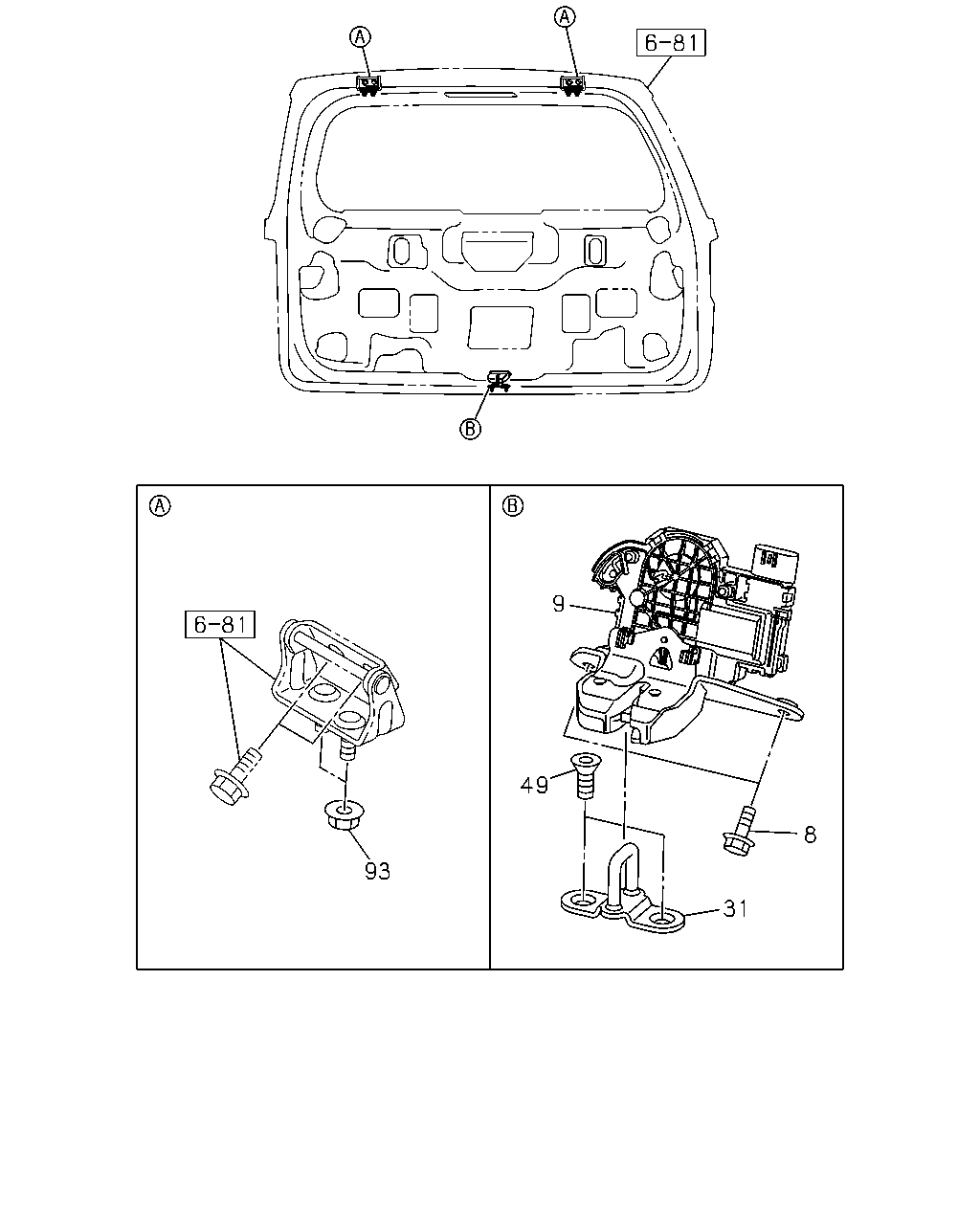

çizim 433593
9 49 8 31 93
BalonParca AdiParca NoAdetTipApplied Date A B
8 17.198 BOLT; TAIL GATE LOCK 8-98224-562-0 02 1 1407- ● ●
9 17.198 LOCK; TRUNK LID 8-98188-325-1 01 1 1407- ● ●
31 17.198 STRIKER; TAIL GATE 8-98188-326-0 01 1 1407- ● ●
49 17.208 SCREW; STRIKER TO TAIL GATE
M8X20 W/TORQUES 		8-98049-356-0 02 1 1407- ● ●
93 17.198 NUT; LOCK
M8 FLANGE 		8-98049-361-0 04 1 1407- ● ●

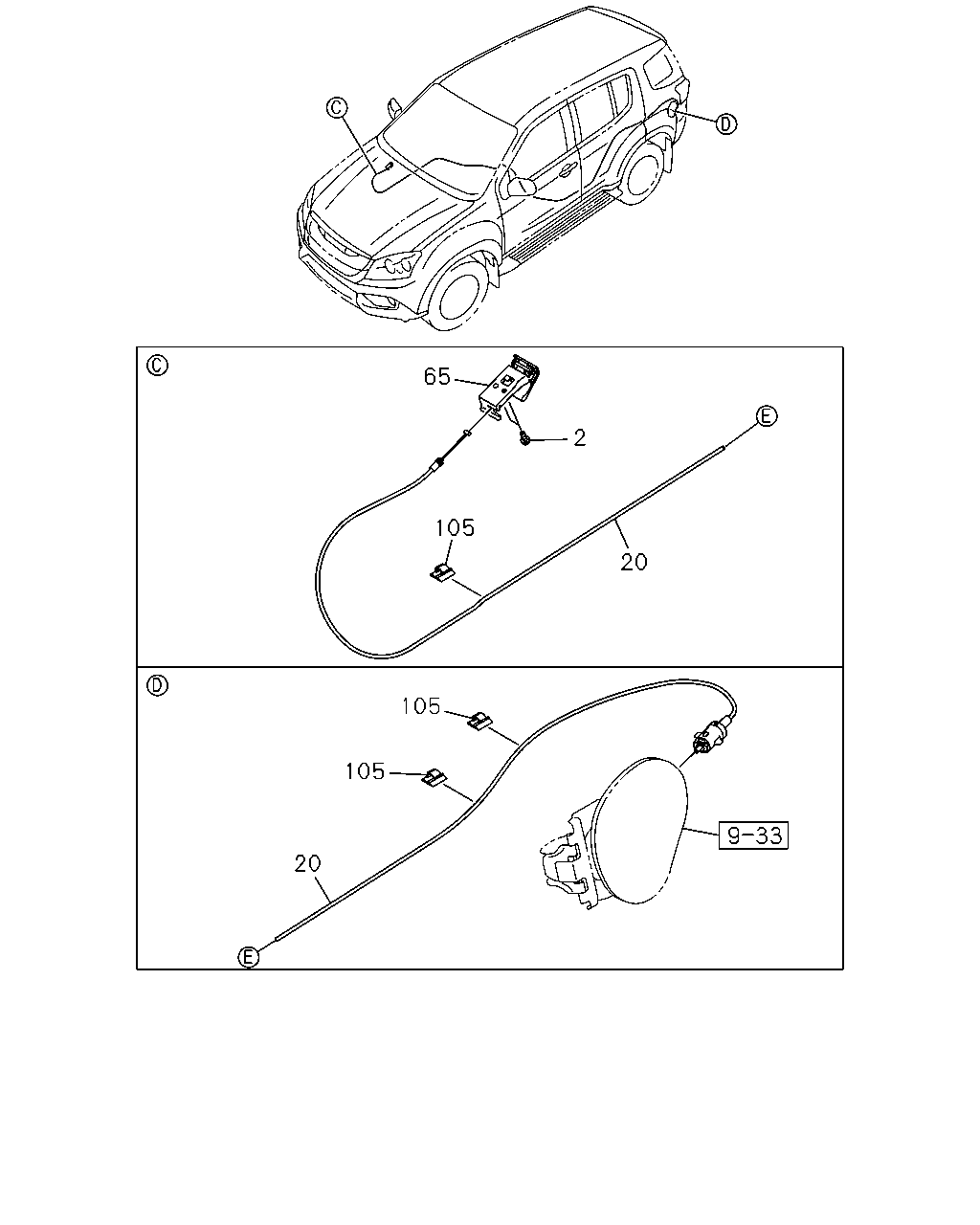

çizim 433629
65 2 105 20 105 105 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 17.225 SCREW; LEVER TO BODY
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1407- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER 8-98189-124-1 01 1 1407- ● ●
65 17.505 KNOB; FUEL FILLER DOOR
BLACK 		8-98103-120-0 01 1 1407- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
ID=7 		8-98158-303-0 09 1 1407-1407 ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
ID=7 		8-98158-303-0 10 1 1407- ● ●
