◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-81 - BACK DOOR AND HINGE ▶
6-81 — BACK DOOR AND HINGE (#145413) — 25 parça

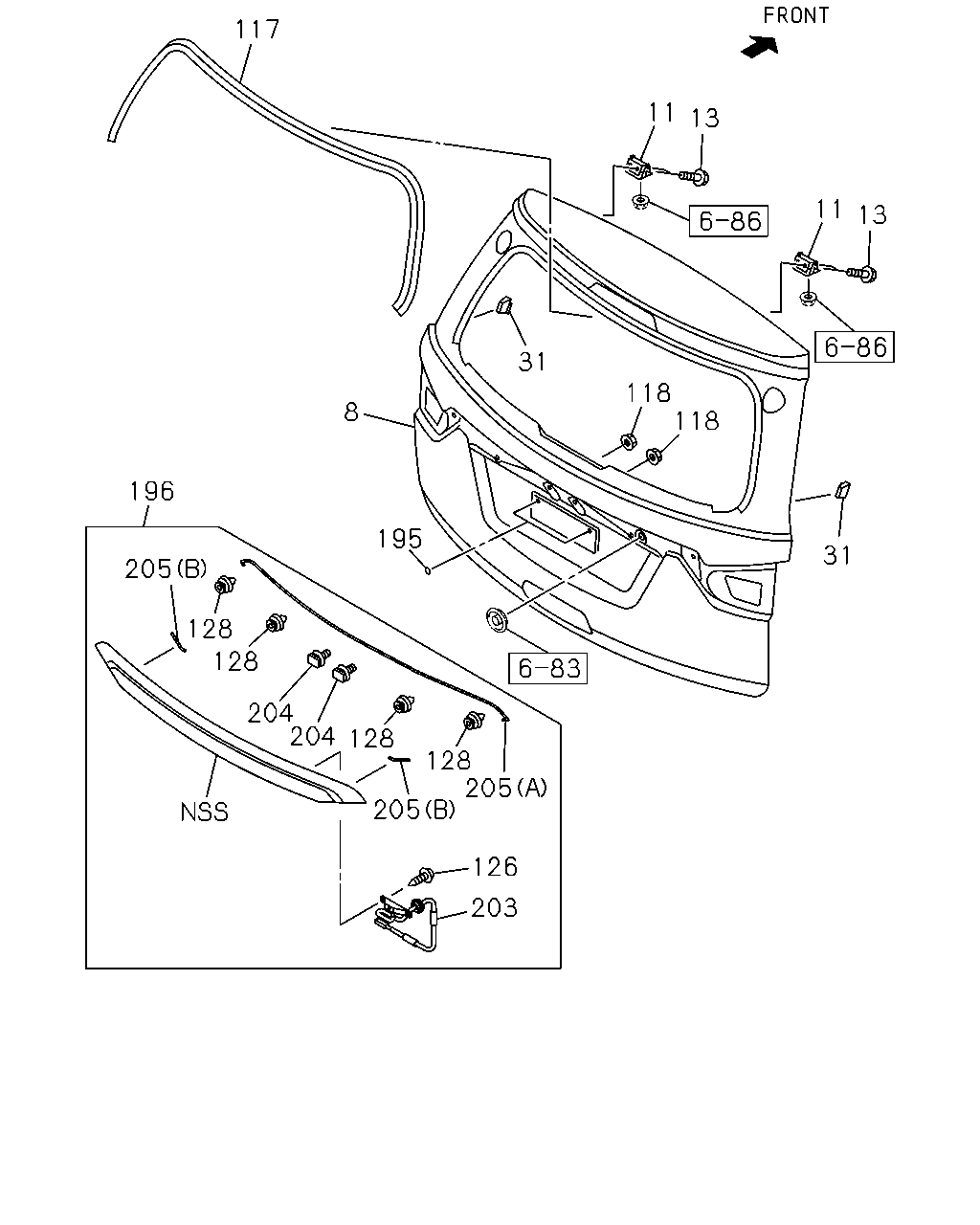

çizim 433446
117 13 11 13 11 31 118 118 31 8 195 196 205 128 128 204 204 128 128 205 205 126 203
BalonParca AdiParca NoAdetTipApplied Date A B
8 17.185 PANEL; TAIL GATE 8-98208-954-2 01 1 1407- ●
8 17.185 PANEL; TAIL GATE 8-98211-090-2 01 1 1407- ●
11 17.208 HINGE; TAIL GATE
16.320 		8-98189-934-0 01 1 1407- ● ●
11 17.208 HINGE; TAIL GATE
16.320 		8-98189-935-0 01 1 1407- ● ●
13 17.208 BOLT; HINGE TO TAIL GATE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1407- ● ●
31 16.165 BUFFER; BACK DOOR 8-98239-418-0 01 1 1407- ● ●
31 16.165 BUFFER; BACK DOOR 8-98239-419-0 01 1 1407- ● ●
117 17.208 GARNISH 8-98200-429-2 01 1 1407- ● ●
118 17.208 NUT; GARNISH
08.212 M6 FLANGE 		8-97065-431-0 02 1 1407- ● ●
126 17.208 SCREW; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3> 01.269 M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1407- ●
128 17.208 CLIP; GARNISH
07.829 		8-97359-942-0 04 1 1407- ● ●
195 17.185 SEAL; LOCATION HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1407- ● ●
196 16.165 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-291-2 01 1 1407-1511 ●
196 16.165 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98295-831-0 01 1 1512- ●
196 16.165 MOLDING; TAIL GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98188-916-2 01 1 1407-1511 ●
196 16.165 MOLDING; TAIL GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98295-830-0 01 1 1512- ●
196 16.165 MOLDING; TAIL GATE 8-98188-915-2 01 1 1407- ●
203 17.185 SWITCH; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-563-2 01 1 1407- ●
204 16.575 STUD; GARNISH 8-98250-593-0 02 1 1407- ● ●
205 16.183 SPONGE; GARNISH
(A) 		8-98296-179-0 01 1 1512- ●
205 16.183 SPONGE; GARNISH
(B) 		8-98296-180-0 02 1 1512- ●
205 16.183 SPONGE; GARNISH
(A) 		8-98250-590-0 01 1 1407-1511 ● ●
205 16.183 SPONGE; GARNISH
(A) 		8-98250-590-0 01 1 1512- ●
205 16.183 SPONGE; GARNISH
(B) 		8-98250-591-0 02 1 1407-1511 ● ●
205 16.183 SPONGE; GARNISH
(B) 		8-98250-591-0 02 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
