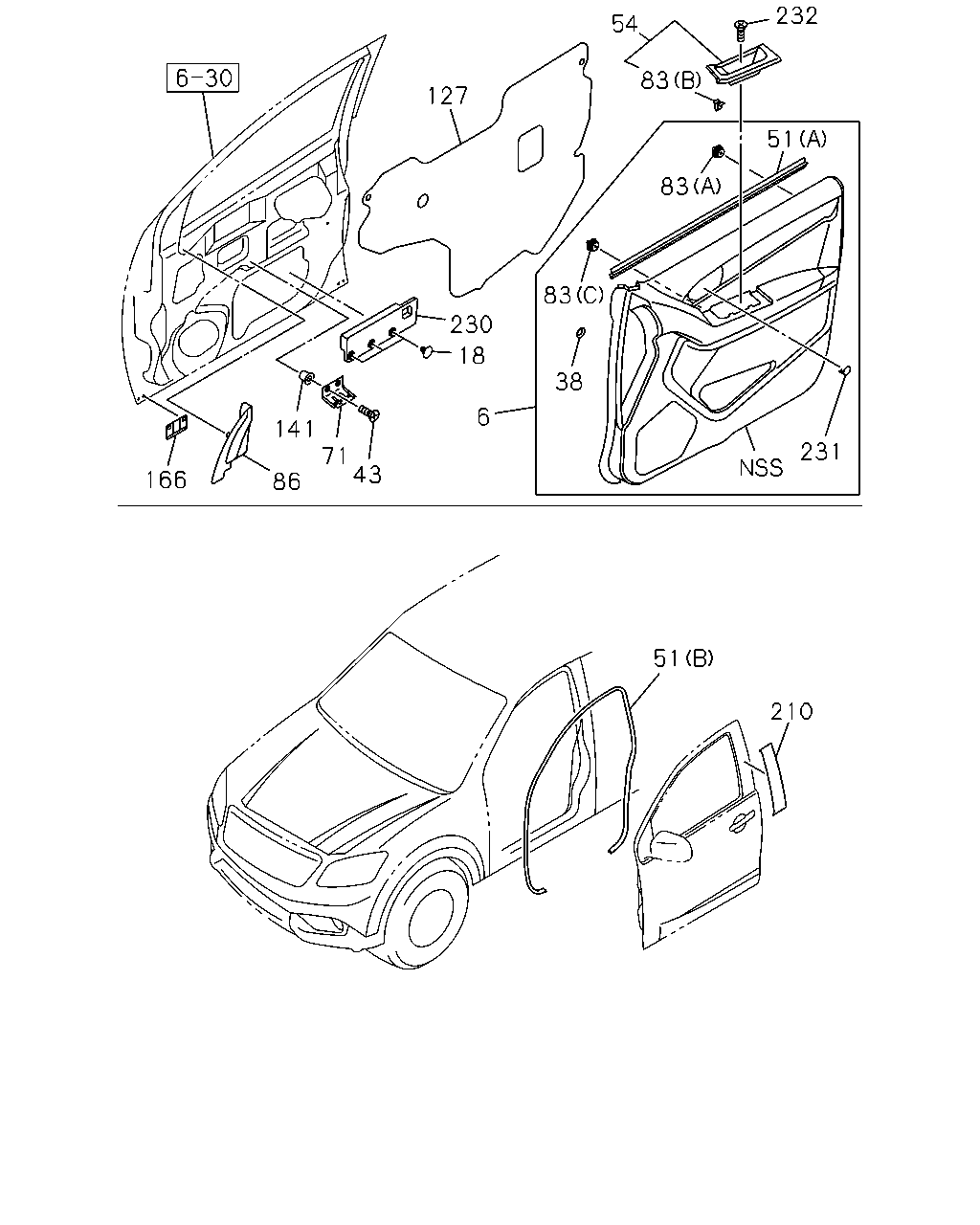

6-35 — FRONT DOOR TRIM (#145397) — 44 parça

127 54 232 83 83 51 83 38 231 6 18 230 141 71 43 86 166 51 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97427-719-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97427-725-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97427-718-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97427-724-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97427-722-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97427-728-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97427-721-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97427-727-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97427-720-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97427-726-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) LIGHT GRAY	8-97427-723-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) LIGHT GRAY	8-97427-729-0	01	1	1407-	●
6	16.165 TRIM; DOOR,UPR BLACK	8-97425-710-1	01	1	1407-		●
6	16.165 TRIM; DOOR,UPR BLACK	8-97425-714-1	01	1	1407-		●
18	16.165 CLIP; DOOR PAD AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 15.100 BLACK	8-94204-281-0	06	1	1407-	●
38	16.183 STOPPER; DOOR SEAL,FRT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 01.269	8-98211-687-0	02	1	1407-	●
43	16.165 SCREW; DOOR POCKET 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1407-	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98109-544-3	01	1	1407-	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1407-		●
51	16.225 WEATHERSTRIP; FRONT DOOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98109-545-3	01	1	1407-	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1407-		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1407-	●	●
54	16.165 BOX; FRT DOOR BLACK	8-97416-750-1	01	1	1407-	●	●
54	16.165 BOX; FRT DOOR BLACK	8-97416-751-1	01	1	1407-	●	●
71	14.690 BRACKET; ARM REST	8-98102-215-2	02	1	1407-	●	●
83	16.165 CLIP; DOOR TRIM SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98160-729-0	16	1	1407-	●
83	16.165 CLIP; DOOR TRIM (A)	8-98160-729-0	16	1	1407-		●
83	16.165 CLIP; DOOR TRIM SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C)	8-98166-326-0	02	1	1407-	●
83	16.165 CLIP; DOOR TRIM (C)	8-98166-326-0	02	1	1407-		●
83	16.165 CLIP; DOOR TRIM (B)	8-98164-677-0	02	1	1407-	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-748-3	01	1	1407-	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-749-3	01	1	1407-	●	●
127	16.183 SEAL; DOOR INNER	8-98192-454-1	01	1	1407-	●	●
127	16.183 SEAL; DOOR INNER	8-98192-455-1	01	1	1407-	●	●
141	16.165 GROMMET; SCREW,LWR COVER 10.565	8-94152-494-0	04	1	1407-	●	●
166	16.155 PLUG; HOLE	8-98197-448-0	04	1	1407-	●	●
210	01.303 DECAL; DOOR FRAME 16.176	8-98190-437-2	01	1	1407-	●
210	01.303 DECAL; DOOR FRAME 16.176	8-98190-438-2	01	1	1407-	●
230	16.165 PAD; FRT DOOR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98156-031-3	01	1	1407-	●
230	16.165 PAD; FRT DOOR AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98156-032-3	01	1	1407-	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1407-	●	●
231	16.165 COVER; HOLDER,BOLT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97416-610-0	02	1	1407-	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1407-		●
232	16.165 BOLT; DOOR TRIM 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1407-	●	●
