Sayfa 6-32 - Isuzu EPC

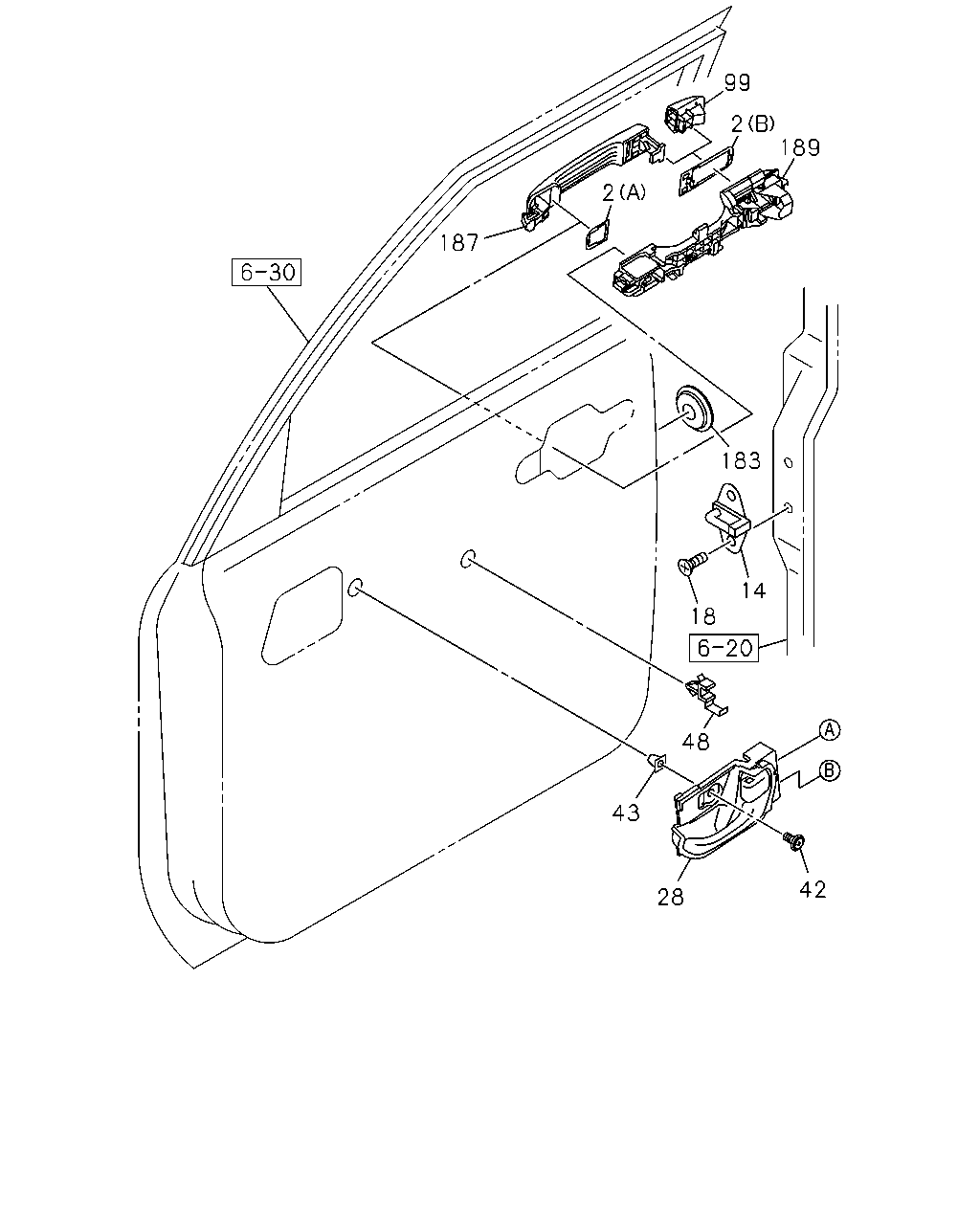

6-32 — FRONT DOOR LOCK AND HANDLE (#145396) — 151 parça

99 2 189 2 187 183 14 18 48 42 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.350 GASKET; OUTSIDE HANDLE,DOOR (A)	8-98176-466-0	01	1	1407-	●	●
2	16.350 GASKET; OUTSIDE HANDLE,DOOR (A)	8-98176-466-0	01	1	1407-	●	●
2	16.350 GASKET; OUTSIDE HANDLE,DOOR 16.360 (B)	8-98176-467-2	01	1	1407-	●	●
2	16.350 GASKET; OUTSIDE HANDLE,DOOR 16.360 (B)	8-98176-467-2	01	1	1407-	●	●
14	16.335 STRIKER; FRT DOOR	8-98012-203-0	02	1	1407-	●	●
18	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1407-	●	●
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-730-3	01	1	1407-	●
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-732-3	01	1	1407-	●
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-726-4	01	1	1407-		●
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-728-4	01	1	1407-		●
42	16.345 SCREW; TAPPING,INSIDE LEVER M5X14 TAPPING	8-98184-363-0	02	1	1407-	●	●
43	16.345 GROMMET; SCREW,INSIDE LEVER,DOOR 10.565	8-94152-494-0	02	1	1407-	●	●
48	16.345 ANTIRATTLER; DOOR LINK	8-97251-932-0	02	1	1407-	●	●
99	16.270 COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR CHROME<E20> PLATED	8-98176-465-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> BLACK	8-98176-463-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BLACK	8-98176-463-1	01	1	1407-		●
99	16.270 COVER; HOLE DOOR LOCK HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> PLATED	8-98176-462-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK HANDLE O/S DOOR CHROME<E20> PLATED	8-98176-462-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA(523) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK	8-97422-454-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> BLACK	8-97422-441-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK	8-97422-441-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SPLASH WHITE(527) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE	8-97422-463-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97422-450-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE	8-97422-450-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET(529) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER	8-97422-456-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> SILVER	8-97422-443-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER	8-97422-443-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL(531) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE	8-97422-464-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97422-451-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE	8-97422-451-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET(544) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN	8-97424-510-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> BROWN	8-97424-505-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN	8-97424-505-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET(545) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE	8-97424-512-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> LIGHT BLUE	8-97424-508-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE	8-97424-508-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20>	8-98176-460-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20>	8-98176-460-1	01	1	1407-	●
99	16.270 COVER; HOLE DOOR LOCK	8-98176-460-1	01	1	1407-		●
183	16.445 GROMMET 12.182 OD=26	8-94141-484-0	02	1	1407-	●	●
187	16.330 GRIP; FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> PLATED	8-98211-441-0	01	1	1407-	●
187	16.330 GRIP; FRT DOOR HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED	8-98176-458-0	01	1	1407-	●
187	16.330 GRIP; FRT DOOR HANDLE O/S DOOR CHROME<E20> PLATED	8-98176-458-0	01	1	1407-	●
187	16.330 GRIP; FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20>	8-98176-456-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20>	8-98176-456-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK	8-97422-427-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK	8-97422-427-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE	8-97422-436-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE	8-97422-436-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER	8-97422-429-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER	8-97422-429-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE	8-97422-437-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> WHITE	8-97422-437-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN	8-97424-504-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> BROWN	8-97424-504-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE	8-97424-507-0	01	1	1407-	●	●
187	16.330 GRIP; FRT DOOR BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE	8-97424-507-0	01	1	1407-	●	●
189	16.330 BRACKET; GRIP,DOOR	8-98176-469-4	01	1	1407-1510	●	●
189	16.330 BRACKET; GRIP,DOOR	8-98331-498-0	01	1	1511-	●	●
189	16.330 BRACKET; GRIP,DOOR	8-98176-471-4	01	1	1407-1510	●	●
189	16.330 BRACKET; GRIP,DOOR	8-98331-499-0	01	1	1511-	●	●

175 175 12 11 51 79 12 8 176 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-769-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-769-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-769-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-794-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-794-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-794-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-761-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR	8-98231-761-0	01	1	1407-1502		●
8	16.330 LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-761-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR	8-98231-761-1	01	1	1503-		●
8	16.330 LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-763-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR	8-98231-763-0	01	1	1407-1502		●
8	16.330 LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98231-763-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR	8-98231-763-1	01	1	1503-		●
8	16.330 LOCK; DOOR,FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98231-764-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98231-764-1	01	1	1503-	●
8	16.330 LOCK; DOOR,FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98231-765-0	01	1	1407-1502	●
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98231-765-1	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97349-994-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-022-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-022-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-086-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-021-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-021-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97349-993-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-97349-993-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT	8-97349-993-0	01	1	1407-1502		●
11	16.263 ACTUATOR; DOOR LK,FRT REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-012-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98292-012-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT	8-98292-012-0	01	1	1503-		●
11	16.263 ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-085-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT	8-97351-085-0	01	1	1407-1502		●
11	16.263 ACTUATOR; DOOR LK,FRT REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-011-0	01	1	1503-	●
11	16.263 ACTUATOR; DOOR LK,FRT	8-98292-011-0	01	1	1503-		●
11	16.263 ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-97349-995-0	01	1	1407-1502	●
11	16.263 ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98292-013-0	01	1	1503-	●
12	16.330 SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	04	1	1407-1502	●
12	16.330 SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	04	1	1503-	●
12	16.330 SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	04	1	1503-	●
12	16.330 SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	02	1	1407-1502	●
12	16.330 SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	02	1	1407-1502	●
12	16.330 SCREW; DOOR LK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (B)	8-97349-997-0	02	1	1407-1502	●
12	16.330 SCREW; DOOR LK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (B)	8-97349-997-0	02	1	1407-1502	●
12	16.330 SCREW; DOOR LK (B)	8-97349-997-0	02	1	1407-1502		●
12	16.330 SCREW; DOOR LK (B)	8-97349-997-0	02	1	1407-1502		●
12	16.330 SCREW; DOOR LK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	02	1	1503-	●
12	16.330 SCREW; DOOR LK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-97349-997-0	02	1	1503-	●
12	16.330 SCREW; DOOR LK AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (B)	8-97349-997-0	02	1	1503-	●
12	16.330 SCREW; DOOR LK AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (B)	8-97349-997-0	02	1	1503-	●
12	16.330 SCREW; DOOR LK (B)	8-97349-997-0	02	1	1503-		●
12	16.330 SCREW; DOOR LK (B)	8-97349-997-0	02	1	1503-		●
12	16.330 SCREW; DOOR LK (A) M6X14.5	8-98004-342-0	06	1	1407-1502	●	●
12	16.330 SCREW; DOOR LK AUTO DOOR LOCK<AU4> (A) M6X14.5	8-98004-342-0	06	1	1503-	●
12	16.330 SCREW; DOOR LK (A) M6X14.5	8-98004-342-0	06	1	1503-		●
36	16.332 LINK; DOOR LOCK,OUTSIDE PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98193-693-0	01	1	1407-1502	●
36	16.332 LINK; DOOR LOCK,OUTSIDE EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-693-0	01	1	1407-1502	●
36	16.332 LINK; DOOR LOCK,OUTSIDE	8-98193-693-0	01	1	1407-1502		●
36	16.332 LINK; DOOR LOCK,OUTSIDE AUTO DOOR LOCK<AU4>	8-98193-693-0	01	1	1503-	●
36	16.332 LINK; DOOR LOCK,OUTSIDE	8-98193-693-0	01	1	1503-		●
36	16.332 LINK; DOOR LOCK,OUTSIDE EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-692-0	01	1	1407-1502	●
36	16.332 LINK; DOOR LOCK,OUTSIDE AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-692-0	01	1	1503-	●
51	16.335 SNAP; FRT DOOR LOCK CONT ROD	8-97349-986-0	01	1	1407-1502	●	●
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4>	8-97349-986-0	01	1	1503-	●
51	16.335 SNAP; FRT DOOR LOCK CONT ROD	8-97349-986-0	01	1	1503-		●
51	16.335 SNAP; FRT DOOR LOCK CONT ROD EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-97349-985-0	01	1	1407-1502	●
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-97349-985-0	01	1	1503-	●
79	16.263 BOLT; DOOR LK ACTUATOR 10.765 M6X8 FLANGE	8-98048-996-0	02	1	1407-1502	●	●
79	16.263 BOLT; DOOR LK ACTUATOR AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE	8-98048-996-0	02	1	1503-	●
79	16.263 BOLT; DOOR LK ACTUATOR 10.765 M6X8 FLANGE	8-98048-996-0	02	1	1503-		●
175	16.341 CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A)	8-98193-690-0	01	1	1407-1502	●
175	16.341 CABLE ASM; LOCK CONTROL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-690-0	01	1	1407-1502	●
175	16.341 CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (A)	8-98193-690-0	01	1	1503-	●
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-690-0	01	1	1503-		●
175	16.341 CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A)	8-97349-988-0	01	1	1407-1502	●
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-97349-988-0	01	1	1407-1502		●
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-688-0	01	1	1407-1502	●	●
175	16.341 CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (A)	8-98193-688-0	01	1	1503-	●
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-688-0	01	1	1503-		●
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-689-0	01	1	1407-1502	●	●
175	16.341 CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98193-689-0	01	1	1503-	●
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-689-0	01	1	1503-		●
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-691-0	01	1	1407-1502	●	●
175	16.341 CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98193-691-0	01	1	1503-	●
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-691-0	01	1	1503-		●
176	16.270 COVER; DOOR LOCK	8-97349-991-0	01	1	1407-1502	●	●
176	16.270 COVER; DOOR LOCK AUTO DOOR LOCK<AU4>	8-97349-991-0	01	1	1503-	●
176	16.270 COVER; DOOR LOCK	8-97349-991-0	01	1	1503-		●
176	16.270 COVER; DOOR LOCK	8-97349-992-0	01	1	1407-1502	●	●
176	16.270 COVER; DOOR LOCK AUTO DOOR LOCK<AU4>	8-97349-992-0	01	1	1503-	●
176	16.270 COVER; DOOR LOCK	8-97349-992-0	01	1	1503-		●
