51519 - UCR/UCS(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#145388) — 31 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

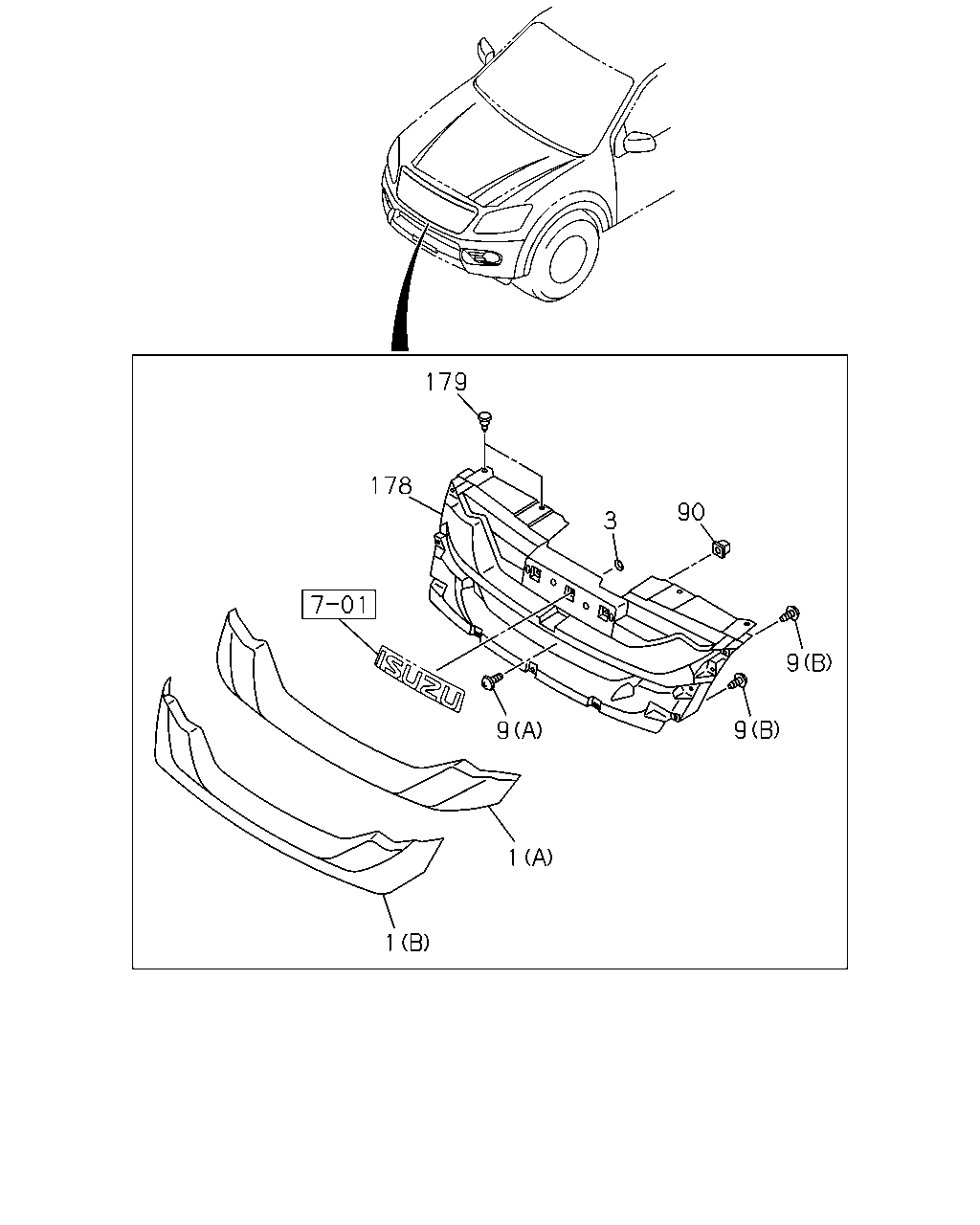

[603A] GRILLE (14 parça)

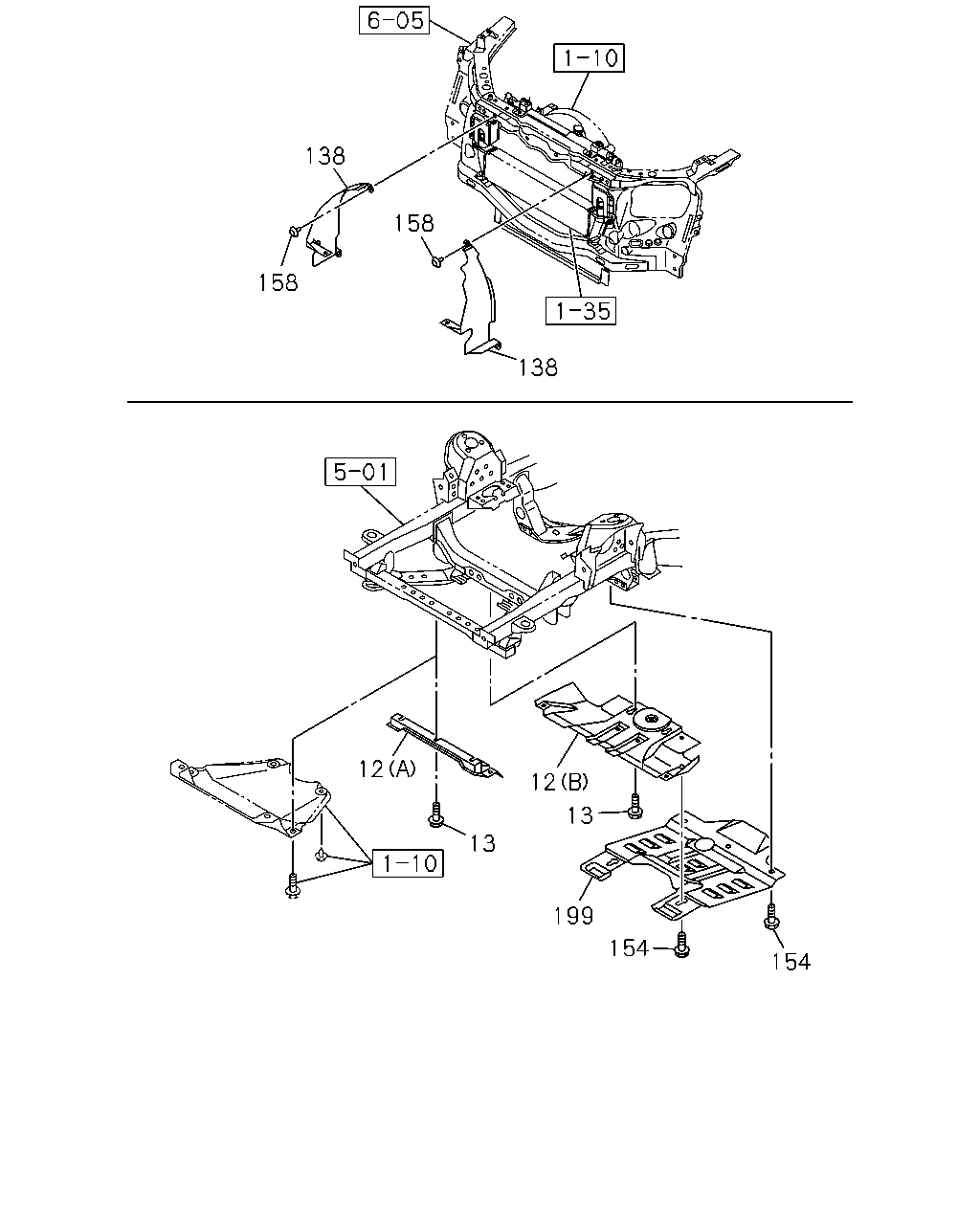

[603A] AIR GUIDE AND SKID PLATE (17 parça)
▶
179
178
3
90
9
9
9
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (A) PLEASE PAINT TO MATCH BODY COLOR
8-98250-257-0
01
1
1407-
●
1
01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR
8-98250-258-0
01
1
1407-
●
1
01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED
8-98249-946-0
01
1
1407-
●
1
01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED
8-98249-949-0
01
1
1407-
●
1
01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (A)
8-98249-944-0
01
1
1407-
●
1
01.266 GRILLE; RAD
(A)
8-98249-944-0
01
1
1407-
●
1
01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (B)
8-98249-947-0
01
1
1407-
●
1
01.266 GRILLE; RAD
(B)
8-98249-947-0
01
1
1407-
●
3
01.269 CLIP; GRILLE
8-98211-687-0
03
1
1407-
●
●
9
01.269 SCREW; RAD GRILLE
(A) M5X16
8-98167-352-0
01
1
1407-
●
●
9
01.269 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER
8-98193-872-0
11
1
1407-
●
●
90
01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5
8-94291-927-0
01
1
1407-
●
●
178
01.269 GRILLE; INNER,RAD
8-98249-943-1
01
1
1407-
●
●
179
01.269 RETAINER; GRILLE,RAD
07.832
8-97301-188-0
04
1
1407-
●
●
138
158
138
158
12
12
13
13
199
154
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A)
8-98102-129-1
01
1
1407-
●
12
01.274 PLATE; SKID,RAD
(A)
8-98102-129-1
01
1
1407-
●
12
01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B)
8-98229-406-0
01
1
1407-
●
12
01.274 PLATE; SKID,RAD
(B)
8-98229-406-0
01
1
1407-
●
13
01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER
8-97945-706-0
09
1
1407-
●
13
01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER
8-97945-706-0
09
1
1407-
●
138
01.266 GUIDE; AIR
4JK1-TCX ENG(LR0)
8-98137-586-1
01
1
1407-1508
●
●
138
01.266 GUIDE; AIR
8-98137-586-1
01
1
1509-
●
138
01.266 GUIDE; AIR
4JK1-TCX ENG(LR0)
8-98137-586-1
01
1
1509-
●
138
01.266 GUIDE; AIR
4JK1-TCX ENG(LR0)
8-98137-587-1
01
1
1407-1508
●
●
138
01.266 GUIDE; AIR
8-98137-587-1
01
1
1509-
●
138
01.266 GUIDE; AIR
4JK1-TCX ENG(LR0)
8-98137-587-1
01
1
1509-
●
154
01.267 BOLT; COVER
M/T MUA 5 SPEED 5H(MWQ) 01.428 M12X25 FLANGE
8-98230-015-0
04
1
1407-
●
158
01.269 CLIP; PROTECTOR
4JK1-TCX ENG(LR0) 08.154 OD=22 L=10.7
8-94215-211-0
06
1
1407-1508
●
●
158
01.269 CLIP; PROTECTOR
08.154 OD=22 L=10.7
8-94215-211-0
06
1
1509-
●
158
01.269 CLIP; PROTECTOR
4JK1-TCX ENG(LR0) 08.154 OD=22 L=10.7
8-94215-211-0
06
1
1509-
●
199
01.274 PLATE; OIL PAN
M/T MUA 5 SPEED 5H(MWQ) 01.426
8-98229-404-0
01
1
1407-
●
