5-10 — CAB MOUNTING; FRAME SIDE (#145382) — 14 parça

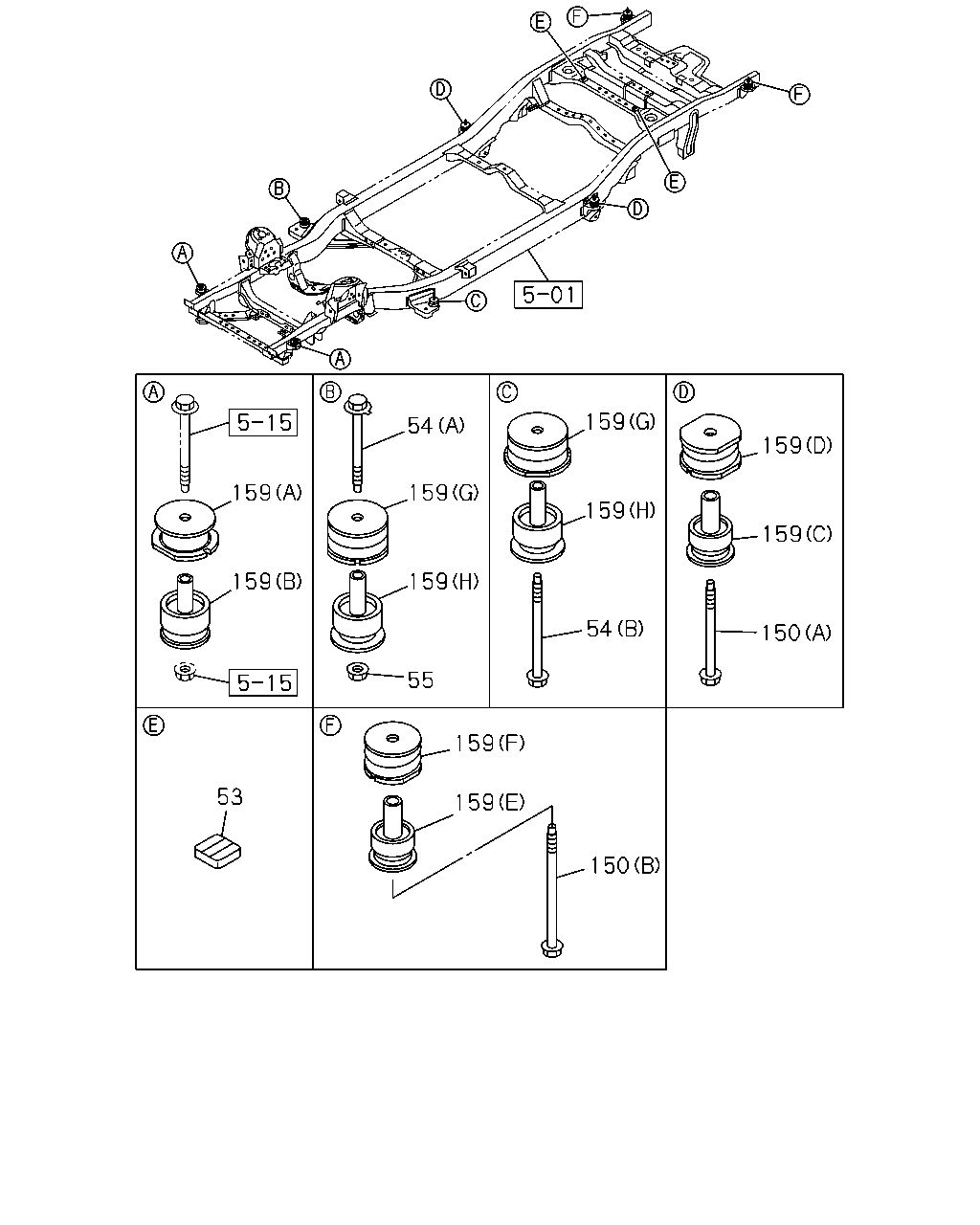

çizim 433526
159 159 55 159 159 54 53 159 159 150 54 159 159 159 159 150
BalonParca AdiParca NoAdetTipApplied Date A B
53 09.023 RUBBER; STOPPER
07.170 		8-98235-433-0 02 1 1407- ● ●
54 09.008 BOLT; RUBBER
(B) 		8-98199-237-0 01 1 1407- ● ●
54 09.008 BOLT; RUBBER
(A) 		8-98224-351-0 01 1 1407- ● ●
55 09.008 NUT; RUBBER 8-98220-857-1 01 1 1407- ● ●
150 09.011 BOLT; CAB MTG RR
09.008 (A) 		8-98199-237-0 02 1 1407- ● ●
150 09.011 BOLT; CAB MTG RR
(B) 		8-98199-238-0 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98051-326-0 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98199-026-1 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98199-028-1 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98199-029-1 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) 		8-98199-030-1 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(G) 		8-98203-605-1 02 1 1407- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(H) 		8-98203-606-1 02 1 1407- ● ●
