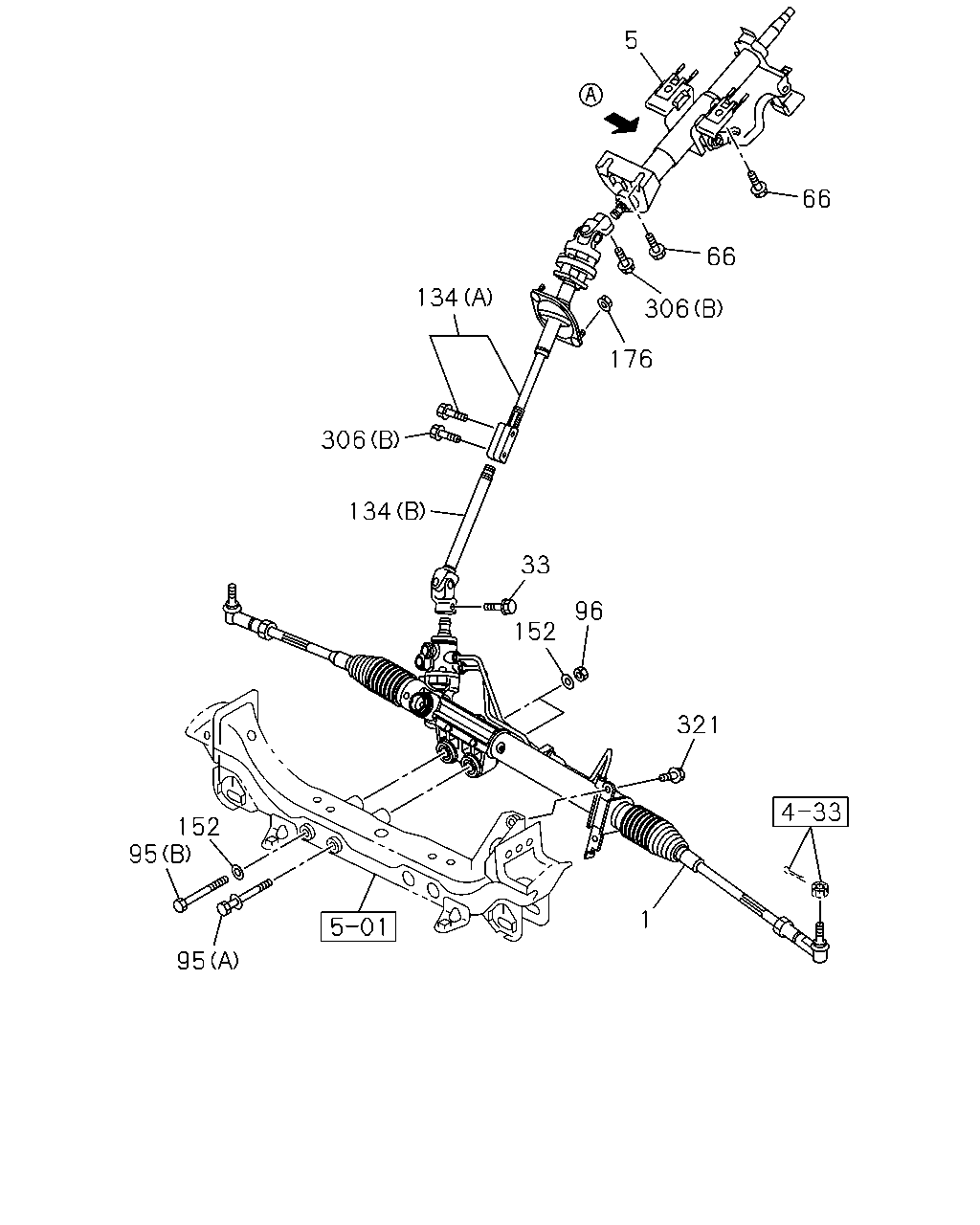

4-31 — STEERING COLUMN AND SHAFT (#145371) — 37 parça

134 306 134 176 306 66 66 5 33 152 96 152 95 95 321 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98231-299-0	01	1	1407-	●	●
5	06.518 COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3>	8-98226-628-1	01	1	1407-	●
5	06.518 COLUMN; STRG EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-	●
5	06.518 COLUMN; STRG	8-98273-326-0	01	1	1407-		●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X35 FLANGE	8-97249-320-0	01	1	1407-	●	●
66	06.514 BOLT; STRG COLUMN 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1407-	●	●
95	06.509 BOLT; STRG UNIT (B) M16X186.5	8-97947-503-0	01	1	1407-	●	●
95	06.509 BOLT; STRG UNIT (A) M16X186.5 W/PL WASHER	8-98162-884-1	01	1	1407-	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	1407-	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97946-127-1	01	1	1407-	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97946-136-0	01	1	1407-	●	●
152	00.796 WASHER; LK,STRG UNIT ID=17	8-97947-501-0	03	1	1407-1504	●	●
152	00.796 WASHER; LK,STRG UNIT ID=17	8-98296-670-0	03	1	1505-	●	●
176	06.509 NUT; STRG 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-	●	●
306	06.525 BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-	●
306	06.525 BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-	●
306	06.525 BOLT; STRG SHAFT M/T MUA 5 SPEED 5H(MWQ) 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-		●
306	06.525 BOLT; STRG SHAFT (B) M8X35 FLANGE	8-97249-320-0	02	1	1407-	●	●
321	06.514 BOLT; BRKT,STRG 06.509 M12X30 FLANGE	0-28661-230-0	02	1	1407-	●	●

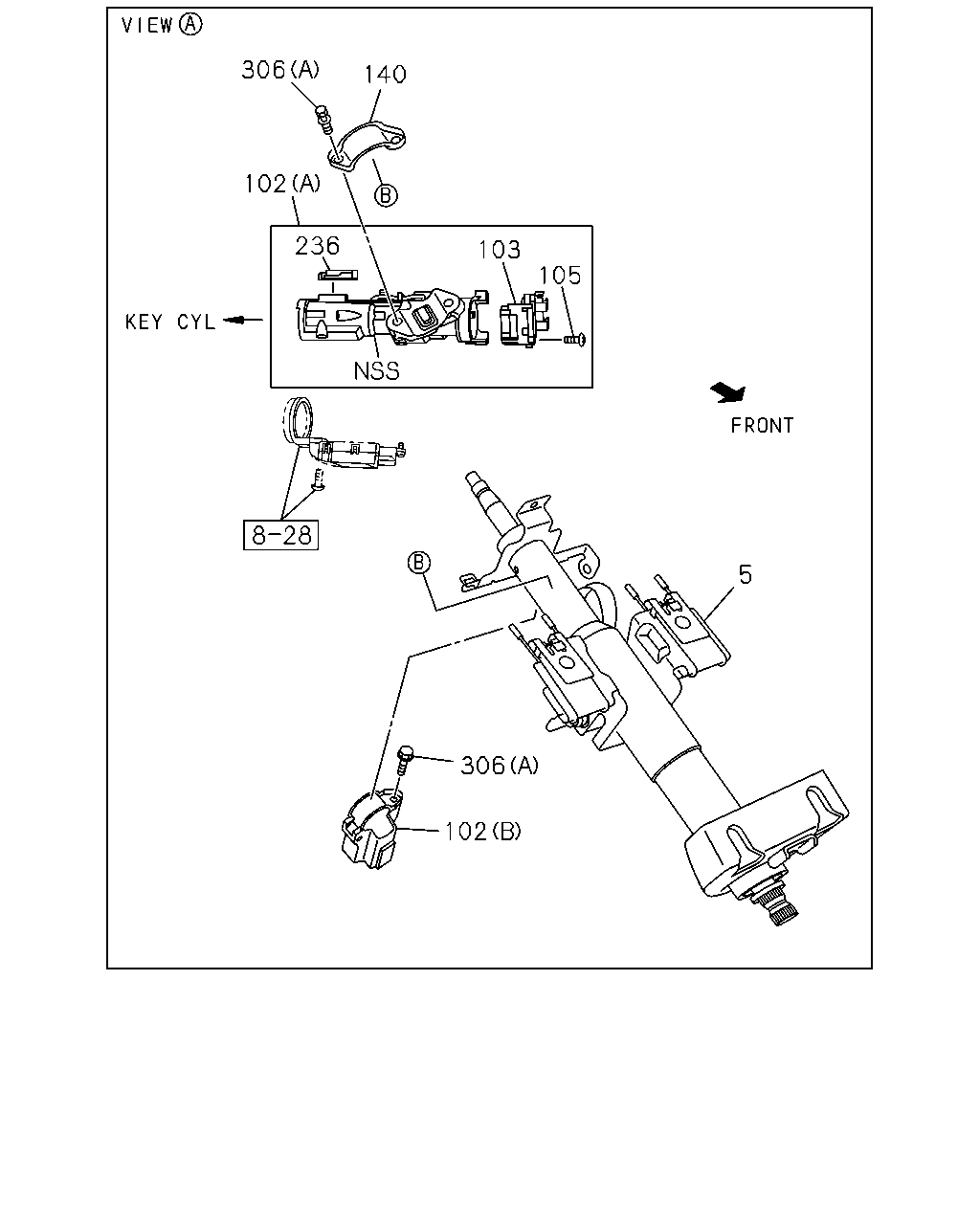

306 140 102 236 103 105 5 306 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	06.518 COLUMN; STRG PASSIVE ENTRY AND START SYSTEM<AP3>	8-98226-628-1	01	1	1407-	●
5	06.518 COLUMN; STRG EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98273-325-0	01	1	1407-	●
5	06.518 COLUMN; STRG	8-98273-326-0	01	1	1407-		●
102	06.500 LOCK ASM; STRG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98226-269-0	01	1	1407-	●
102	06.500 LOCK ASM; STRG A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)	8-98076-120-0	01	1	1407-	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ) (A)	8-98076-117-0	01	1	1407-		●
103	02.188 SWITCH; IGNITION A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-719-0	01	1	1407-	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED 5H(MWQ)	8-98132-719-0	01	1	1407-		●
105	06.500 SCREW; IGN SW A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98192-449-0	02	1	1407-	●
105	06.500 SCREW; IGN SW M/T MUA 5 SPEED 5H(MWQ)	8-98192-449-0	02	1	1407-		●
140	06.524 BRACKET; STRG COWL A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98134-652-0	01	1	1407-	●
140	06.524 BRACKET; STRG COWL M/T MUA 5 SPEED 5H(MWQ)	8-98134-652-0	01	1	1407-		●
236	02.195 SWITCH; DOOR WARNING,STRG LOCK A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98132-720-0	01	1	1407-	●
236	02.195 SWITCH; DOOR WARNING,STRG LOCK M/T MUA 5 SPEED 5H(MWQ)	8-98132-720-0	01	1	1407-		●
306	06.525 BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	01	1	1407-	●
306	06.525 BOLT; STRG SHAFT A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-	●
306	06.525 BOLT; STRG SHAFT M/T MUA 5 SPEED 5H(MWQ) 06.500 (A) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1407-		●
306	06.525 BOLT; STRG SHAFT (B) M8X35 FLANGE	8-97249-320-0	02	1	1407-	●	●
