4-20 — REAR AXLE CASE AND SHAFT (#145368) — 67 parça

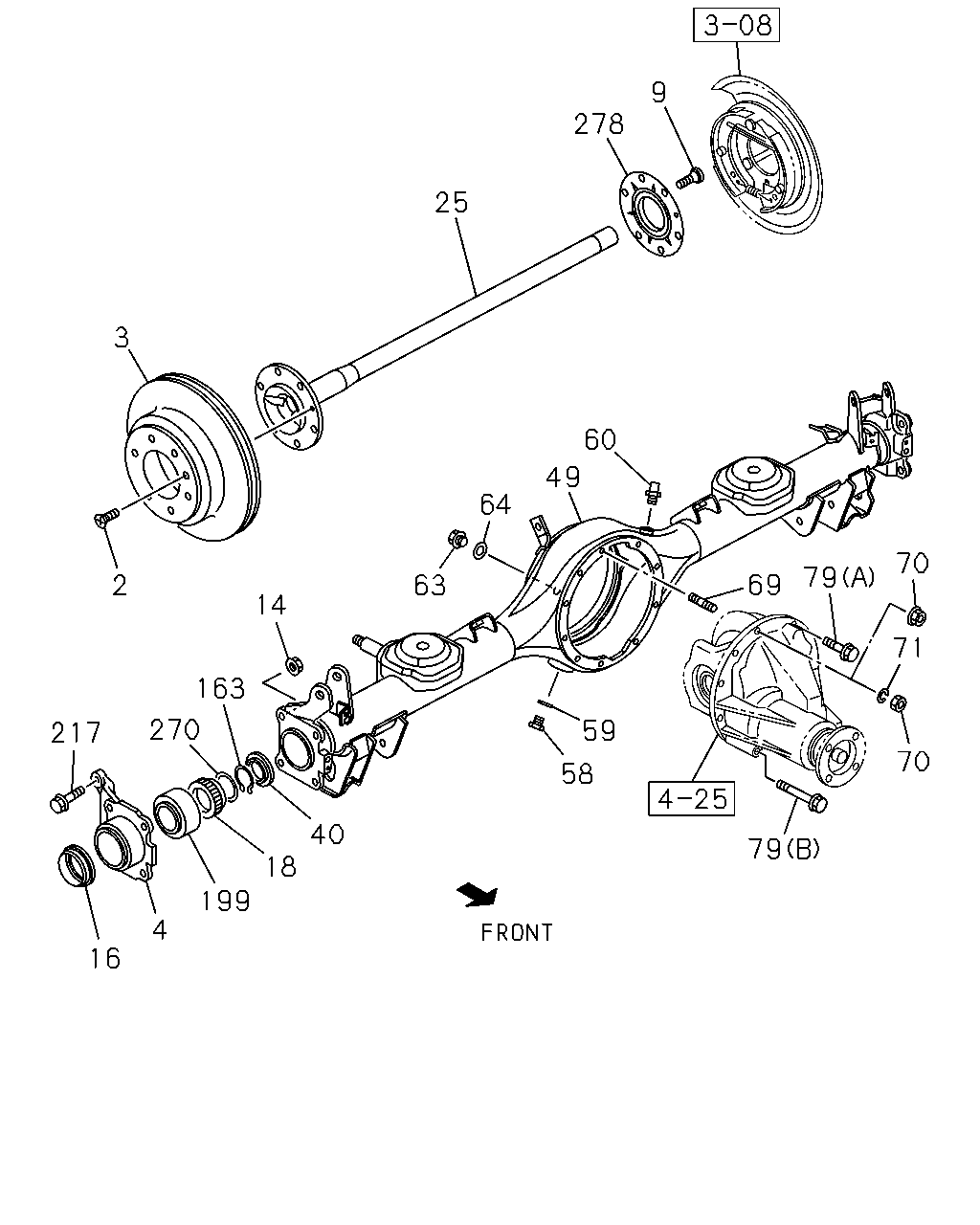

çizim 433237
9 278 25 3 2 217 16 199 18 270 14 163 63 64 49 60 69 70 71 79 79 58 40 4 59 70
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1407- ● ●
3 05.809 ROTOR; DISC BRK,RR 8-98115-794-1 02 1 1407- ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98191-376-0 02 1 1407- ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1407- ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1407- ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1407- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1407- ● ●
18 05.822 RETAINER; RR AXLE 8-98009-341-0 02 1 1407- ●
18 05.822 RETAINER; RR AXLE 8-97239-868-0 02 1 1407- ●
25 05.420 SHAFT; AXLE,RR 8-98080-678-2 02 1 1407- ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1407- ● ●
49 05.387 CASE; RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-432-4 01 1 1407- ●
49 05.387 CASE; RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-431-4 01 1 1407- ●
49 05.387 CASE; RR AXLE 8-98191-429-4 01 1 1407- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1407- ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1407- ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1407- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1407- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1407- ● ●
69 05.387 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1407- ● ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 1407-1509 ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
02.277 ID=10.2 		0-91510-810-0 02 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1407- ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1407- ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-2 02 1 1407- ● ●
217 05.002 BOLT; RR BRK
06.056 M12X25 FLANGE 		8-98033-645-0 04 1 1407- ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 1407- ● ●
278 05.822 CATCHER; OIL 8-98103-447-2 02 1 1407- ● ●

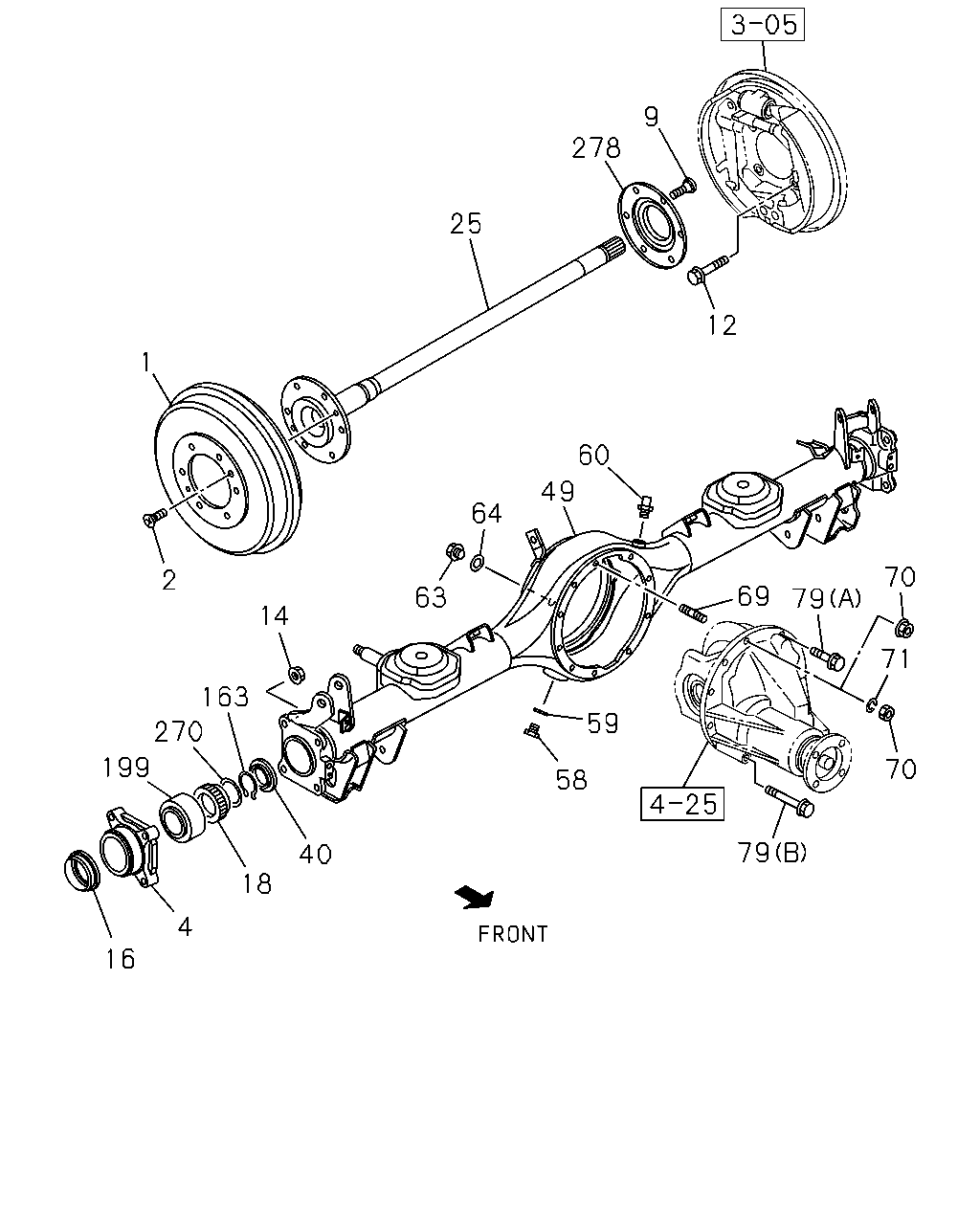

çizim 433293
1 2 25 278 9 12 60 49 64 63 14 163 270 199 16 18 4 40 58 59 70 71 70 69 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.809 DRUM; BRK,RR
AISIN TAKAOKA 		8-97948-038-1 02 1 1407- ●
1 05.809 DRUM; BRK,RR
SOMBOON 		8-98061-813-1 02 1 1407- ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1407- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98191-376-0 02 1 1407- ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1407- ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1407- ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE 		8-98107-914-2 08 1 1407- ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1407- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1407- ● ●
18 05.822 RETAINER; RR AXLE 8-98009-341-0 02 1 1407- ●
18 05.822 RETAINER; RR AXLE 8-97239-868-0 02 1 1407- ●
25 05.420 SHAFT; AXLE,RR 8-98080-678-2 02 1 1407- ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1407- ● ●
49 05.387 CASE; RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-432-4 01 1 1407- ●
49 05.387 CASE; RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-431-4 01 1 1407- ●
49 05.387 CASE; RR AXLE 8-98191-429-4 01 1 1407- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1407- ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1407- ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1407- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1407- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1407- ● ●
69 05.387 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1407- ● ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 1407-1509 ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
02.277 ID=10.2 		0-91510-810-0 02 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1407-1509 ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1407- ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1407- ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-2 02 1 1407- ● ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 1407- ● ●
278 05.822 CATCHER; OIL 8-98103-447-2 02 1 1407- ● ●
