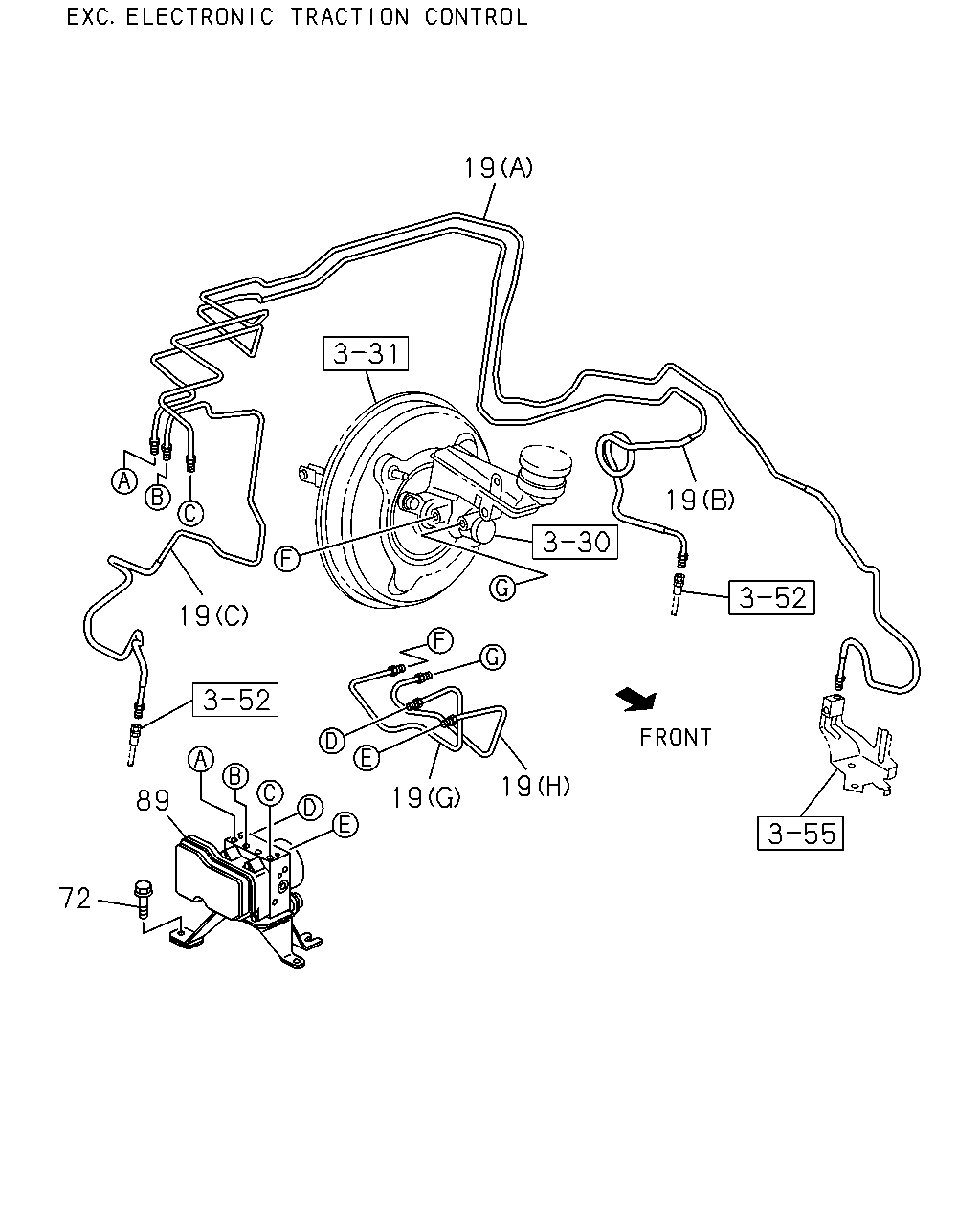

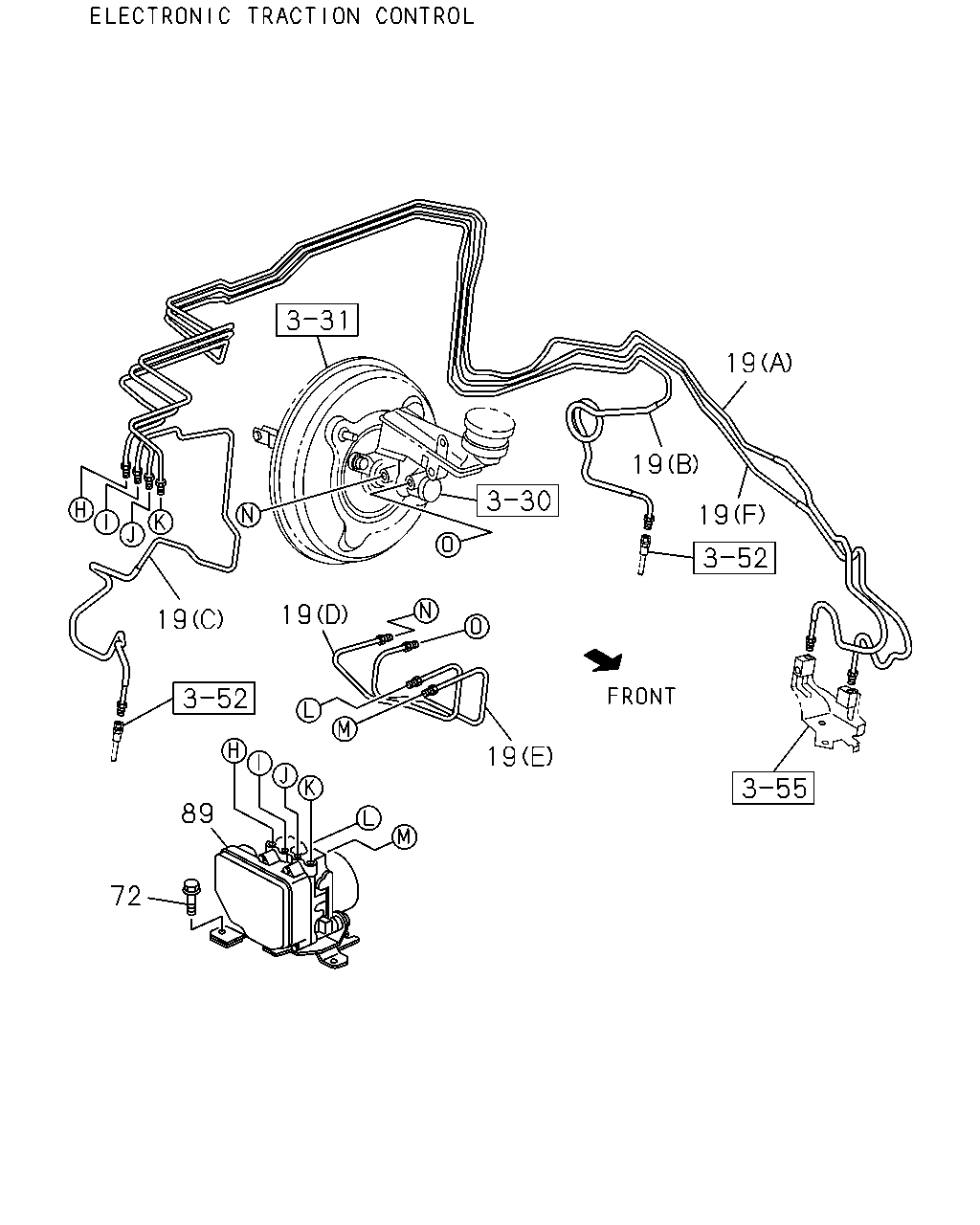

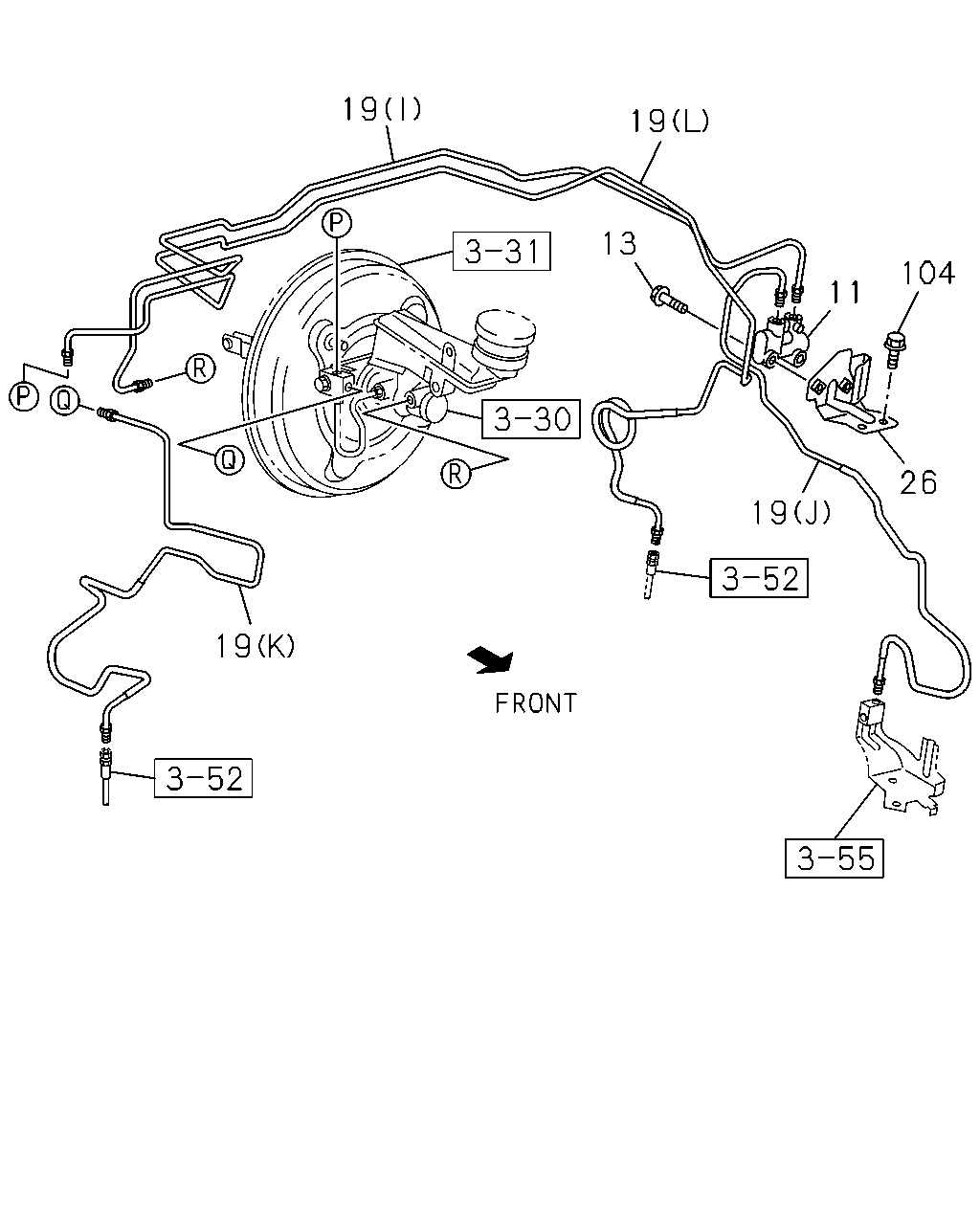

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#145358) — 63 parça

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

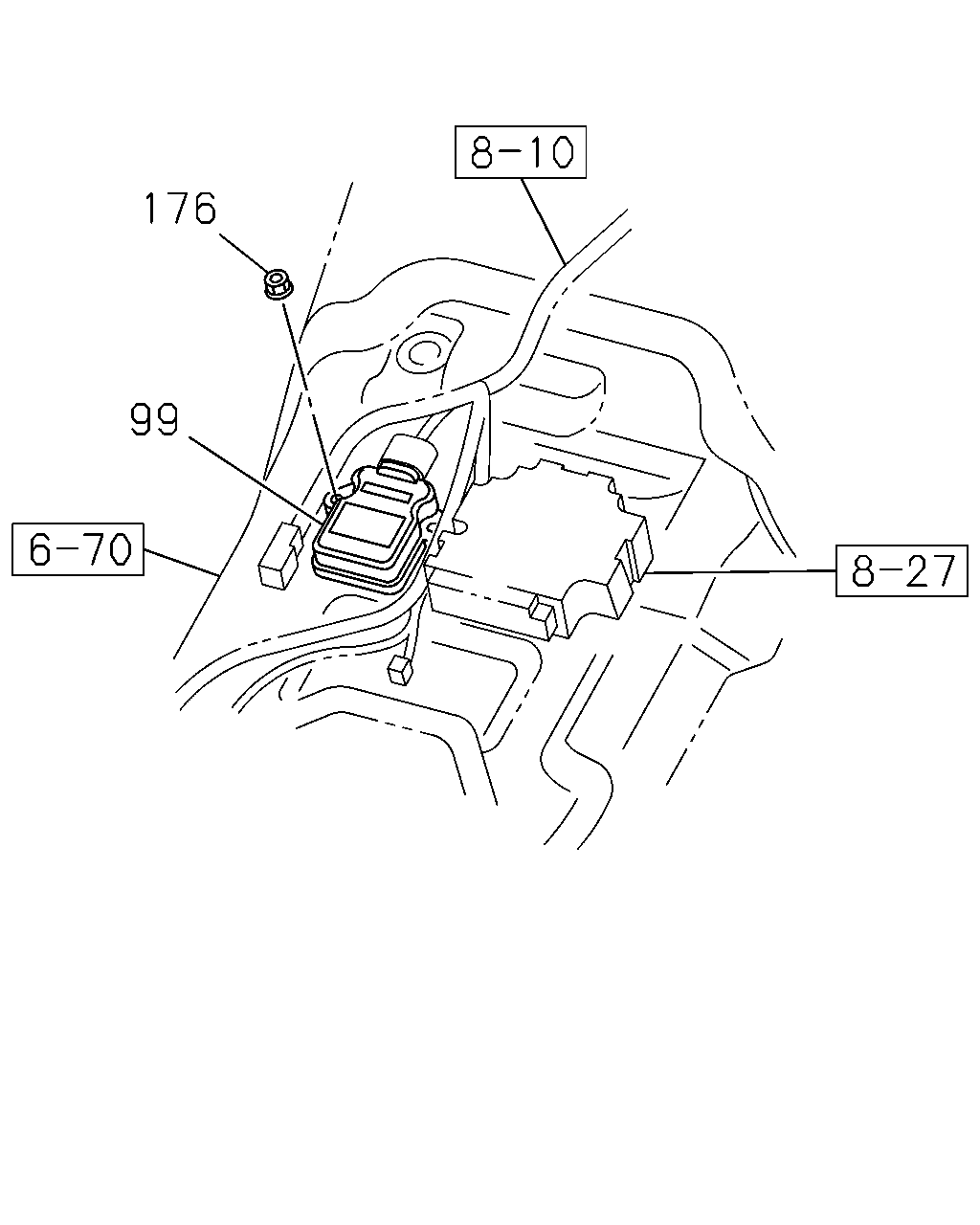

	99	04.710 SENSOR; DECELERATION ELECTRONIC TRACTION CONTROL<NW9>	8-98052-116-1	01	1	1407-	●
	176	04.730 NUT; SENSOR ELECTRONIC TRACTION CONTROL<NW9> 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-	●

19 19 89 72 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-736-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-730-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98099-744-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98159-938-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (I)	8-98099-718-4	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (J)	8-98099-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (K)	8-98099-727-1	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (L)	8-98221-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98099-738-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-739-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98099-731-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1407-	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9>	8-98197-805-1	01	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98197-801-0	01	1	1407-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-186-0	01	1	1509-	●

19 19 19 19 19 89 72 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-736-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-730-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98099-744-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98159-938-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (I)	8-98099-718-4	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (J)	8-98099-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (K)	8-98099-727-1	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (L)	8-98221-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98099-738-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-739-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98099-731-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1407-	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9>	8-98197-805-1	01	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98197-801-0	01	1	1407-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-186-0	01	1	1509-	●

19 19 19 26 11 104 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT	8-97235-339-2	01	1	1407-		●
13	04.686 BOLT; VLV TO BRKT M8X45 FLANGE	0-29260-845-0	02	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-736-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-730-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98099-744-2	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98159-938-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (I)	8-98099-718-4	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (J)	8-98099-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (K)	8-98099-727-1	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) (L)	8-98221-721-0	01	1	1407-		●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98099-738-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-739-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98099-731-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1407-	●
26	04.730 BRACKET; PROPORTIONING VLV	8-98101-970-1	01	1	1407-		●
104	04.730 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-		●

116 184 107 129 96 129 96 184 129 129 129 129 184 95

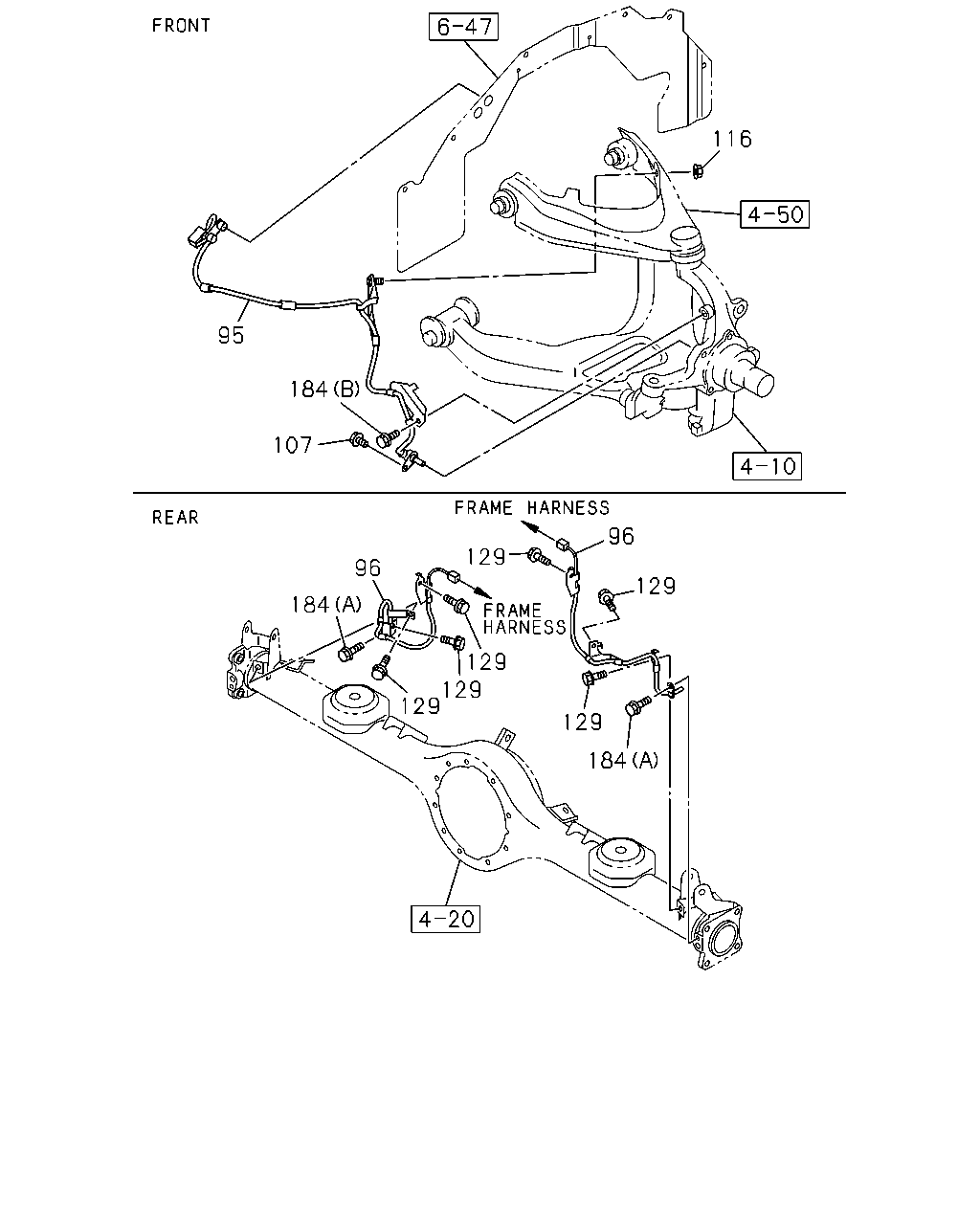

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1407-1509	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1407-1509	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1407-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1407-	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1407-	●
184	04.681 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-	●
