◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#145354) — 21 parça

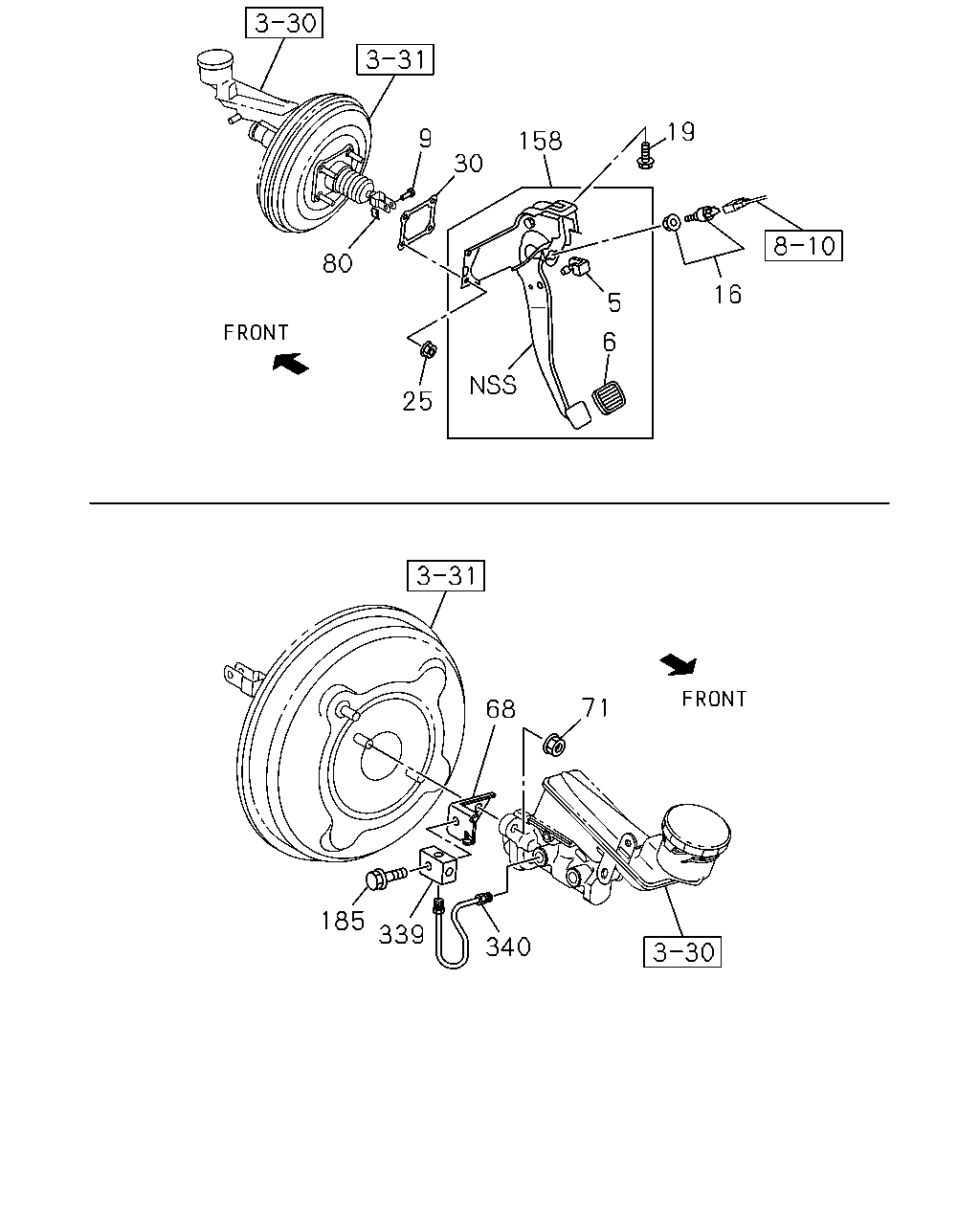

çizim 433277
9 80 158 30 19 16 5 6 25 68 71 340 339 185
BalonParca AdiParca NoAdetTipApplied Date A B
5 04.634 STOPPER; BRK PEDAL 1-73996-231-1 01 1 1407- ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1407- ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 1407- ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 1407- ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1407-1508 ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98140-487-0 01 1 1407-1508 ●
16 02.447 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1509- ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98140-487-0 01 1 1509- ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1407-1508 ●
16 02.447 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1509- ●
19 04.634 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1407- ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1407- ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1407- ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98163-234-0 01 1 1407- ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 1407- ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1407- ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1407- ●
158 04.625 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ) 		8-98061-817-1 01 1 1407- ●
185 04.634 BOLT; BRKT
M/T MUA 5 SPEED 5H(MWQ) M8X35 FLANGE 		8-97947-755-0 01 1 1407- ●
339 04.685 CONNECTOR; OIL PIPE
M/T MUA 5 SPEED 5H(MWQ) 		8-98163-269-0 01 1 1407- ●
340 04.685 PIPE; BRK M/CYL
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-756-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
