Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

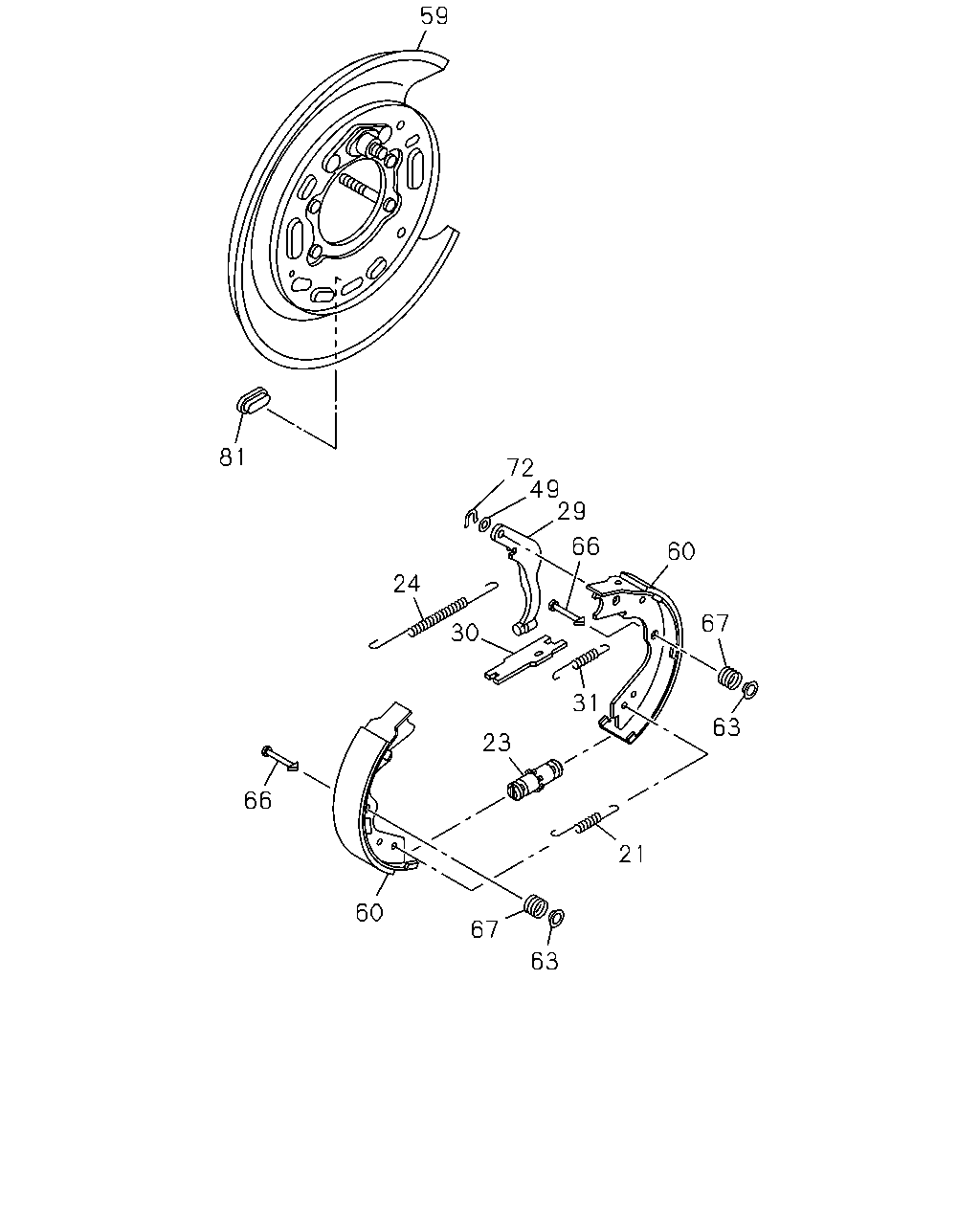

3-08 — PARKING BRAKE
(#145353) — 16 parça
59
81
24
66
60
67
63
21
63
67
60
66
29
49
72
30
31
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
05.606 SPRING; RETURN,PARKING BRK SHOE
8-98244-657-0
02
1
1407-
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98244-658-0
02
1
1407-
24
05.605 SPRING; BRK SHOE
8-98244-656-0
02
1
1407-
29
04.591 LEVER; PARKING BRK
8-98244-651-0
01
1
1407-
29
04.591 LEVER; PARKING BRK
8-98244-652-0
01
1
1407-
30
05.605 STRUT; PARKING BRK
8-98244-659-0
02
1
1407-
31
05.605 SPRING; SHOE TO STRUT
8-98244-660-0
02
1
1407-
49
04.591 WASHER; PARKING BRK LEVER
8-98244-654-0
02
1
1407-
59
05.610 COVER; DUST,PARKING BRK
8-98244-647-1
01
1
1407-
59
05.610 COVER; DUST,PARKING BRK
8-98244-648-1
01
1
1407-
60
05.610 SHOE; PARKING BRK,PRIMARY
8-98244-650-0
04
1
1407-
63
04.591 RETAINER; PARKING BRK LEVER
8-98244-663-0
04
1
1407-
66
05.610 PIN; SHOE HOLD,PARKING BRK
8-98244-662-0
04
1
1407-
67
05.610 SPRING; SHOE HOLD,PARKING BRK
8-98244-661-0
04
1
1407-
72
05.605 RING; SNAP
8-98244-655-0
02
1
1407-
81
05.606 COVER; CHECK HOLE,PARKING BRK
8-98244-664-0
02
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
