Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-06 - REAR DISC BRAKE CALIPER
▶

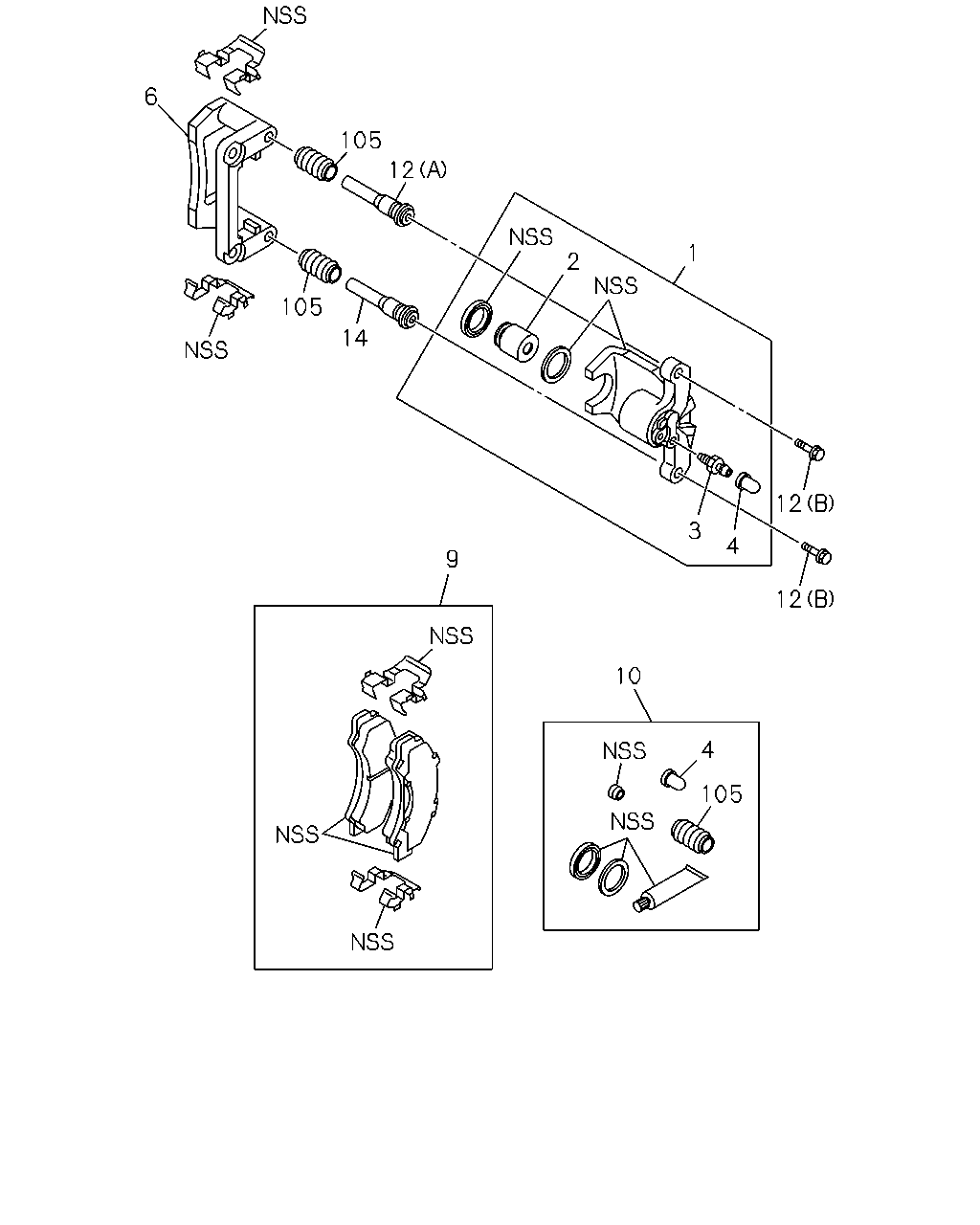

3-06 — REAR DISC BRAKE CALIPER
(#145352) — 12 parça
6
105
105
12
14
2
1
12
12
3
4
9
10
4
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; RR DISC BRK
8-98232-525-0
01
1
1407-
1
04.665 CALIPER; RR DISC BRK
8-98232-526-0
01
1
1407-
2
04.665 PISTON; CALIPER,RR
8-98232-529-0
02
1
1407-
3
04.665 SCREW; BLEEDER,CALIPER,RR
04.666
8-98050-476-0
02
1
1407-
4
04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666
8-98050-479-0
02
1
1407-
6
04.665 BRACKET; SUPPORT,RR DISC BRK
8-98232-532-0
02
1
1407-
9
04.667 PAD KIT; CALIPER,RR
8-98232-543-0
01
1
1407-
10
04.665 REPAIR KIT; DISC BRK,RR
8-98232-545-0
01
1
1407-
12
04.665 PIN; RET,CALIPER,RR DISC BRK
(A)
8-98078-176-0
02
1
1407-
12
04.665 PIN; RET,CALIPER,RR DISC BRK
(B)
8-98078-192-0
04
1
1407-
14
04.665 PIN; GUIDE,CALIPER
8-98078-175-0
02
1
1407-
105
04.665 BOOT; PIN
8-98078-193-0
04
1
1407-
