51519 - UCR/UCS(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-66 - MANUAL TRANSFER GEAR; OUTPUT
▶

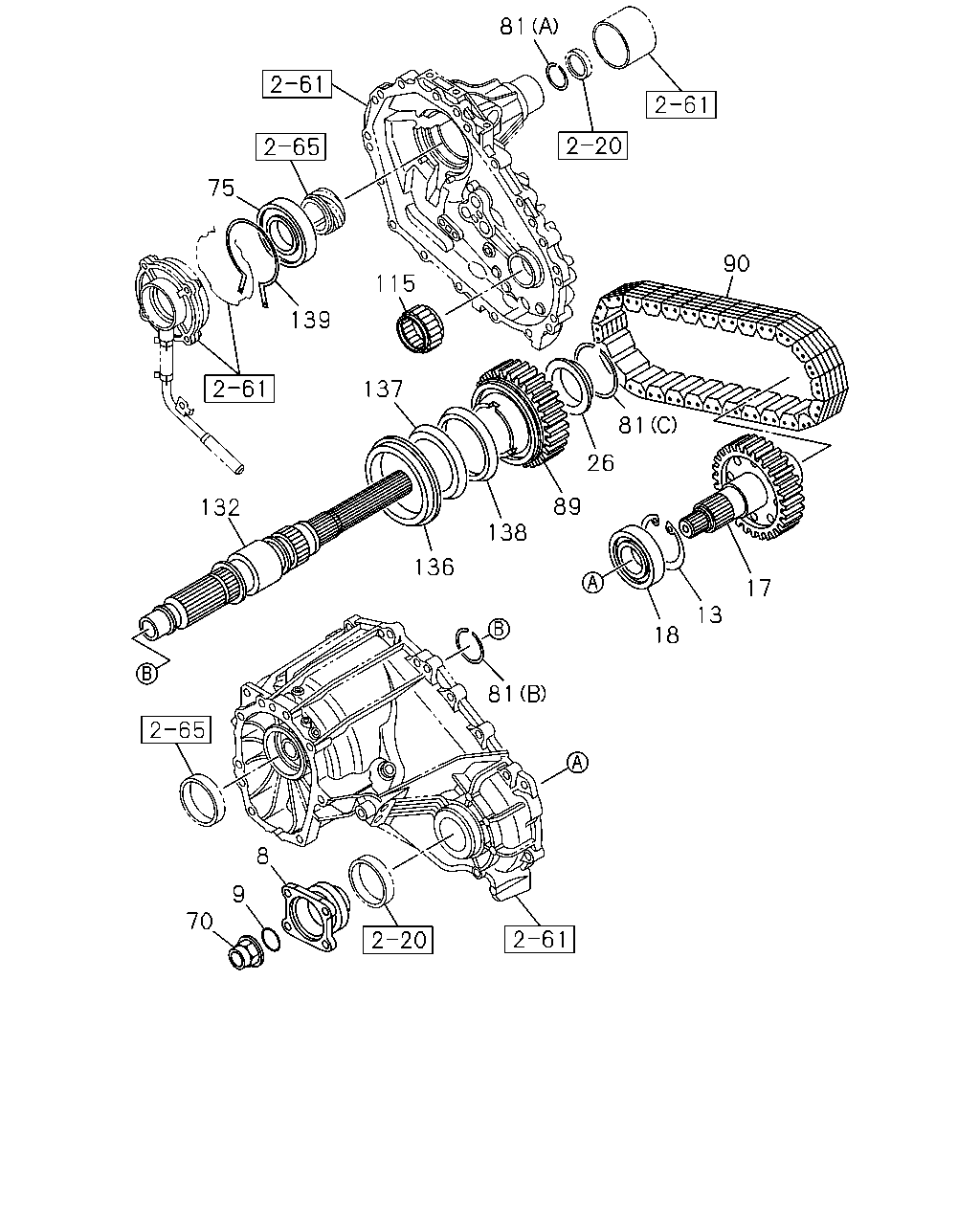

2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#145349) — 22 parça
90
81
75
139
137
81
115
132
26
89
138
136
81
18
17
13
8
9
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
04.535 FLANGE; OUTPUT
8-97319-825-2
01
1
1407-
9
04.164 GASKET; SHAFT
04.552 ID=29.7 OD=36.1
8-94483-035-0
01
1
1407-
13
04.545 RING; SNAP,OUTPUT,FRT
ID=67
8-97305-402-0
01
1
1407-
17
04.555 SHAFT; OUTPUT
8-97231-853-0
01
1
1407-
18
04.520 BEARING; BALL,OUTPUT,FRT
NSK
8-94422-172-1
01
1
1407-
26
04.533 WASHER; THRUST
8-97239-774-0
01
1
1407-
70
04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE
8-97358-603-0
01
1
1407-
75
04.520 BEARING; BALL,RR OUTPUT
8-97234-737-0
01
1
1407-
81
04.545 RING; SNAP
(A) T=1.9
8-97305-404-1
01
1
1407-
81
04.545 RING; SNAP
(B) T=1.4
8-97305-405-0
01
1
1407-
81
04.545 RING; SNAP
(C) T=2.15 RED
8-97305-407-0
01
1
1407-
81
04.545 RING; SNAP
(C) T=2.10 NON COLOR
8-97305-408-0
01
1
1407-
81
04.545 RING; SNAP
(C) T=2.05 BLUE
8-97305-409-0
01
1
1407-
81
04.545 RING; SNAP
(C) T=2.00 WHITE
8-97305-410-0
01
1
1407-
89
04.535 SPROCKET; DRIVE
Z=48
8-98013-525-0
01
1
1407-
90
04.535 CHAIN; DRIVE
8-98275-645-0
01
1
1407-
115
04.520 BEARING; NEEDLE
8-97234-747-0
01
1
1407-
132
05.544 SHAFT; MAIN,TRANSFER
Z=34-36-26-27
8-98013-925-1
01
1
1407-
136
04.545 BLOCK RING; 2-4
04.383 Z=48
8-94363-054-1
01
1
1407-
137
04.545 RING; OUTSIDE,2-4
04.383 OD=90.0
8-94363-055-1
01
1
1407-
138
04.545 RING; INSIDE,2-4
04.383 OD=95.8
8-94363-056-0
01
1
1407-
139
04.545 RING; RETAINING,RR OUTPUT
ID=76
8-97305-012-0
01
1
1407-
